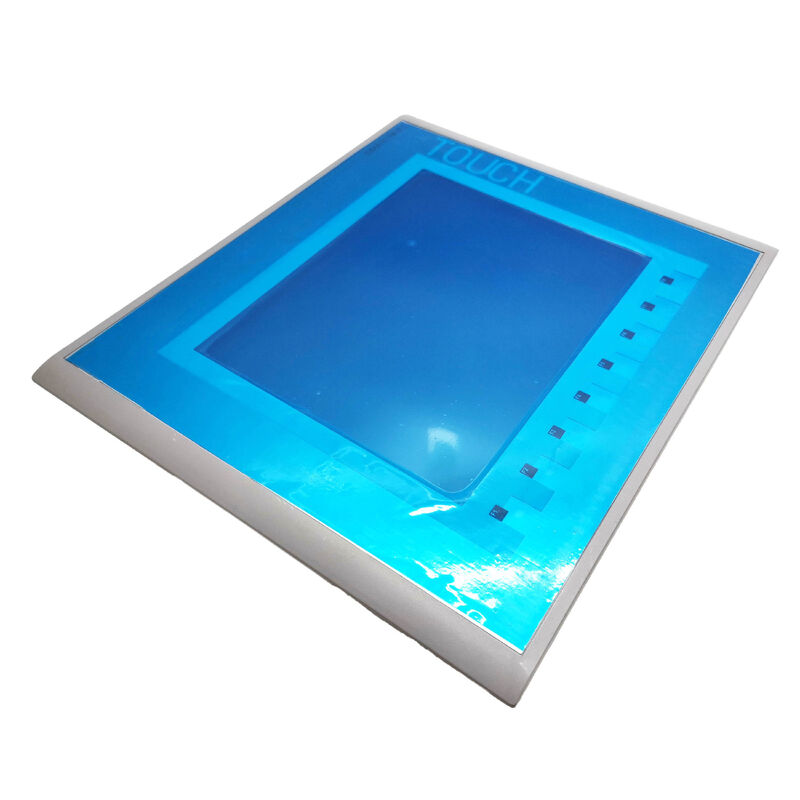

6AV6647-0AE11-3AX0 Siemens 6AV66470AE113AX0 KTP1000 HMI Panel New Original

Siemens 6AV6647-0AE11-3AX0 | SIMATIC HMI KTP1000 Basic Color DP — 10.4" TFT 640×480, 256 Colors, Key/Touch, MPI/PROFIBUS DP, 24V DC, IP65

Overview

The Siemens 6AV6647-0AE11-3AX0 is the KTP1000 Basic Color DP — a 10.4-inch human-machine interface panel from Siemens' SIMATIC Basic Panel range, designed for industrial operator stations where a colour display and both touch and key operation are required with connectivity to MPI or PROFIBUS DP-based PLC systems.

It is the PROFIBUS DP variant of the KTP1000 Basic series; the corresponding PROFINET variant carries a different part number.

The "Basic" in the panel's designation reflects its position in the SIMATIC HMI hierarchy: it occupies the entry tier of Siemens' panel portfolio, below the Comfort Panel range, but it delivers the core HMI functions that the majority of machine-level operator stations need: process value display, alarm indication, recipe management, reporting, and trending, through a configuration environment that shares the same WinCC software toolchain as the higher-end panels.

This shared configuration approach means a project started on a KTP1000 Basic can have its screen design migrated upward to a Comfort Panel with relatively little rework if requirements grow.

At 10.4 inches, the KTP1000 fits naturally into machine control panels where the operator needs to see multiple process values simultaneously — a conveyor system's zone status, a packaging machine's product count and speed, or a machine tool's axis positions and program status — without needing to scroll through multiple screens.

The 640×480 pixel resolution at this display size gives comfortable text and graphic readability in typical ambient industrial lighting without additional display brightness beyond the panel's factory settings.

The combination of an 8-key softkey row below the display with full touchscreen capability on the display itself gives operators two interaction modes for the same panel.

Keypad operation is preferred in environments where gloves are worn or where vibration makes precise touch difficult; touchscreen interaction is faster for parameter entry and navigation when operator access conditions are clean and stable.

Either mode can control the full interface independently.

Key Specifications

MPI and PROFIBUS DP — Two Protocols, One Interface

The -0AE11 suffix designates the MPI/PROFIBUS DP communication variant of the KTP1000. Both protocols share the same physical RS 485 connector on the panel — the protocol is selected in the panel configuration.

This dual-protocol physical interface is common across Siemens' Basic Panel DP range and reflects the transition period between the older MPI-based programming and communication model (used with S7-300 CPUs) and the PROFIBUS DP fieldbus architecture that became the standard for distributed I/O connections.

In practical installation terms, most machines running S7-300 CPUs will connect the KTP1000 DP via MPI to the CPU's MPI port for configuration and runtime communication. Machines with more complex architectures where the HMI must sit on the PROFIBUS network alongside I/O devices can connect the panel as a PROFIBUS master to the CPU's DP interface.

The RS 422 interface, also available on this connector, enables Modbus RTU communication with third-party controllers that use Modbus as their serial protocol.

This is used in multi-vendor machine installations where the HMI serves as the operator interface for non-Siemens PLC systems.

WinCC Flexible and TIA Portal Configuration

The 6AV6647-0AE11-3AX0 was released during the WinCC Flexible era and its primary configuration software is WinCC Flexible 2008 SP2 Compact or higher.

It is also configurable in the early TIA Portal (STEP 7 Basic V11, WinCC Basic V11), though the migration to TIA Portal in its later versions introduced the KTP panel refresh cycle that eventually discontinued the DP-interface KTP1000 Basic in favour of TIA-native panels.

Projects configured in WinCC Flexible for the KTP1000 DP can be migrated to TIA Portal WinCC if a hardware upgrade to a current-generation panel is undertaken, preserving screen designs, alarm configurations, and recipe data with the TIA Portal migration tool.

Installation and Mounting

The panel mounts into a cutout in a flat panel surface, secured by mounting clips provided with the unit.

The cutout dimension is 299mm × 227mm. Maximum panel material thickness at the cutout is 4mm.

The IP65 rating on the front face means the panel's display and bezel are sealed against dust ingress and water jets — standard for machine operator panels exposed to coolant spray, cleaning water, or dusty machining environments.

The rear face (IP20) is not intended for exposure to liquids or conductive dust.

Vertical installation is the specified orientation for the 0 to 50°C operating temperature range.

When mounted at angles up to 35° from vertical, the operating temperature range may be reduced — consult the panel's installation manual for the derating curve at non-vertical mounting angles.

FAQ

Q1: The KTP1000 Basic Color DP was discontinued in October 2022. What is the recommended current-generation replacement?

Siemens' current replacement for the KTP1000 Basic Color DP is within the SIMATIC HMI Basic Panel Generation 2 or KTP1000 Basic PN series, depending on the interface required.

For PROFIBUS DP connectivity, current Siemens recommendations involve an interface converter or a migration to PROFINET, as the current-generation Basic Panels focus on PROFINET communication.

For direct replacement sourcing, the aftermarket carries tested KTP1000 DP units from machines that have been decommissioned.

Q2: Can the KTP1000 DP communicate simultaneously with multiple PLCs on the same MPI network?

In an MPI network, the KTP1000 can be configured to communicate with a designated PLC CPU as its primary controller.

MPI is a multi-point bus that allows multiple nodes, but the KTP1000 Basic panel is designed as a single-master HMI device that maintains communication with one configured PLC at a time.

For multi-controller applications, separate screen objects can be linked to tags from different controllers, but this requires careful configuration in WinCC Flexible and is subject to communication latency constraints of the MPI network.

Q3: The panel's backlight MTBF is 50,000 hours. What does this mean operationally?

50,000 hours at 25°C is the statistical mean time between failures for the LED backlight at that reference temperature. At typical machine operating temperatures above 25°C, the MTBF decreases.

At continuous 24/7 operation, 50,000 hours represents approximately 5.7 years of operating time before the backlight statistically reaches its reliability midpoint.

In practice, backlight dimming is a gradual process, and planned maintenance replacement before failure — rather than reactive replacement after failure — is the recommended approach for critical operator stations.

Q4: Can this panel be used for outdoor applications where sunlight readability is required?

The KTP1000 Basic Color DP is designed for indoor industrial installation. The 256-color TFT display is not a high-brightness type, and direct sunlight causes significant reflective glare that reduces readability.

Outdoor installations require either a sunshade/hood over the panel, an anti-reflection screen protector, or a higher-brightness display variant.

The IP65 front-face rating provides protection against rain and dust, but the display brightness is the limiting factor for outdoor use.

Q5: How many alarm messages can the KTP1000 Basic panel handle simultaneously?

The KTP1000 Basic panel supports alarm handling through the WinCC Flexible configuration. In the Basic panel architecture, the alarm buffer size and simultaneous active alarm count are determined by the configuration limits defined in WinCC Flexible for this device class.

The project compiler will indicate if the alarm configuration exceeds the device's memory or processing limits.

For applications requiring extensive alarm management with long history buffers, the SIMATIC Comfort Panel range provides larger alarm buffer capacities and more sophisticated alarm management features.
