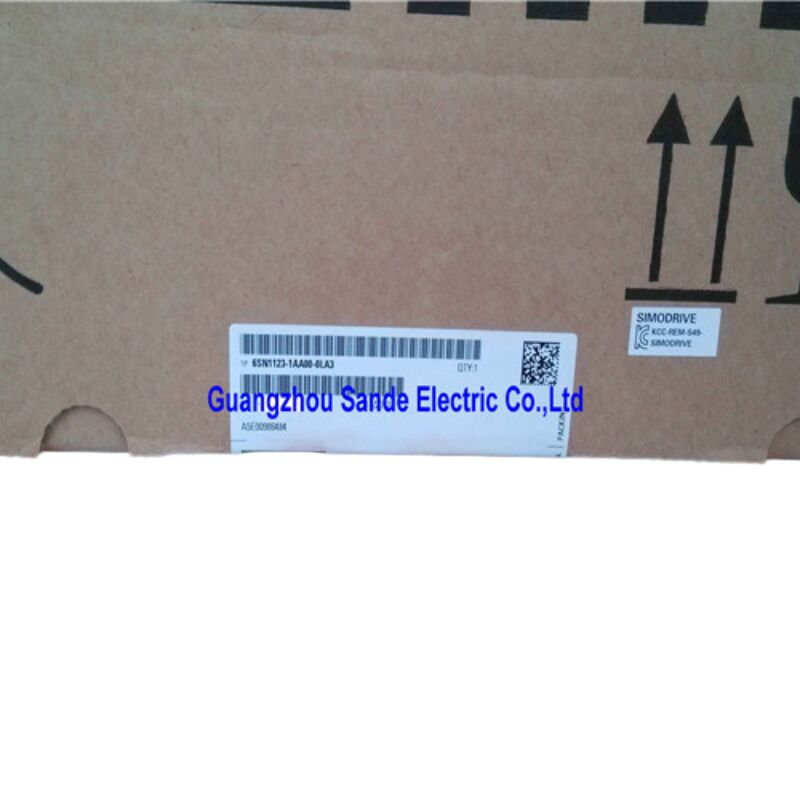

Siemens 6SN1123-1AA00-0LA3 SIMODRIVE 611 Power Module

Single-Axis | Internal Cooling | 42A Feed / 45A Spindle | 380–480 VAC | Genuine Spare Part

The Drive Module That Keeps the Spindle Turning

On any CNC machine tool built around Siemens' SIMODRIVE 611 architecture, the power module is the electrical heart of each axis. It sits between the DC bus and the motor, converting the DC link voltage into the variable-frequency, variable-voltage output that the servo or spindle motor actually needs. When that module fails, the axis stops — and the machine stops with it.

The 6SN1123-1AA00-0LA3 is Siemens' own spare part designation for this single-axis SIMODRIVE 611 power module with internal cooling. Its dual current rating — 42A for feed (synchronous) motors and 45A for main spindle (asynchronous) motors — makes it one of the higher-current variants in the 6SN1123 family, suited to heavier spindle drives and high-torque feed axes on mid-to-large machining centers and turning centers.

Technical Specifications

What This Module Does Inside the SIMODRIVE 611 System

The SIMODRIVE 611 is a modular drive architecture. A complete drive group consists of a power supply module (the infeed/regenerative unit, typically 6SN1145 or 6SN1146 series), one or more power modules like this one, and a control unit for each axis. The power supply handles the AC-to-DC conversion and maintains the DC bus — typically running at 540–600V DC — while each power module draws from that shared bus and independently drives its assigned motor.

The 6SN1123-1AA00-0LA3 receives DC bus voltage, PWM switching commands from its paired control unit, and encoder feedback via the motor cable assembly. It then synthesizes the three-phase AC output to the motor at the exact frequency, voltage, and phase angle required by the position and velocity control loop. The internal fan extracts the heat generated by the IGBT switching transistors during this process, allowing the module to run continuously at full rated current within a standard panel environment.

The IP20 protection rating means this module is designed for installation inside a closed electrical cabinet, not for exposure to the machine tool's coolant environment directly.

Current Ratings: Feed vs. Spindle — Why Both Matter

The dual current rating isn't a quirk — it reflects how SIMODRIVE 611 handles the two fundamentally different motor types it may drive.

Feed drives typically use synchronous AC servo motors (such as Siemens 1FT6 or 1FK7 series), which deliver precise torque and position control at the rated current of 42A in this module. Spindle drives use asynchronous induction motors (such as the 1PH4 and 1PH7 series), which have different magnetic characteristics and need a somewhat higher current ceiling to achieve their rated output — hence the 45A spindle rating.

A single physical power module can be configured for either duty through the parameter settings in the paired drive control unit. Machine tool builders choose the appropriate module based on which motor type will be connected, ensuring that neither the feed nor spindle axis is pushed against its current limit during maximum-torque cuts.

Where This Module Is Found in Service

The 6SN1123-1AA00-0LA3 has been installed across a broad range of Siemens-equipped machine tools since SIMODRIVE 611 was introduced. Typical host machines include:

• Horizontal and vertical machining centers — typically driving a high-torque spindle or a heavy Z-axis
• CNC turning centers — main spindle or live tooling axis
• High-speed machining systems — where axis stiffness and dynamic current delivery are critical to surface quality
• Automated production lines — integrated axis drives within transfer machines and flexible manufacturing cells
• Grinding machines — where spindle stability at consistent speed directly determines workpiece accuracy
• EDM and laser cutting equipment — axis positioning drives requiring stable current delivery at mid-to-high load

The module integrates with SINUMERIK CNC controllers (840D, 840Di, 810D, and others) through the accompanying SIMODRIVE 611 control unit, which handles the communication between the CNC and the power stage.

Internal Cooling: Self-Contained, Cabinet-Ready

The "internal cooling" designation means this module is fully self-cooled by its integrated fan — it does not require an external blower mounted to the cabinet door or a separate cooling duct arrangement. Heat is drawn through the module body and exhausted from the rear or top, making it compatible with standard SIMODRIVE 611 bookshelf cabinet installations where modules sit side by side on the DC bus connector rail.

Maintaining the integrated cooling fan in working condition is one of the most important preventive maintenance steps for this module. A degraded or stopped fan leads to thermal shutdown at best, and IGBT transistor failure at worst. Fan replacement is a serviceable operation — the fans are available as spare components separate from the module itself.

Spare Part Status and the Aftermarket Reality

Siemens officially discontinued the 6SN1123-1AA00-0LA3 from standard production in April 2015, placing it into the spare part lifecycle category. This doesn't mean the module disappeared from the market — the installed base of SIMODRIVE 611 systems in active production globally is vast, and the aftermarket response has been proportionally robust.

Certified new-old-stock, factory-refurbished units, and professionally repaired modules are widely available from SIMODRIVE 611 specialists. Reputable suppliers test these units on full-load SIMODRIVE 611 test rigs with actual Siemens servo motors before shipping, verifying DC bus behavior, current output, and fault response across both the feed and spindle current ranges.

Frequently Asked Questions

Q1: What is the difference between the 6SN1123-1AA00-0LA3 and other 6SN1123 variants like the 0DA1 or 0CA1?

The 6SN1123 part number family covers all single and dual-axis SIMODRIVE 611 power modules with internal cooling. The suffix characters encode the current rating and axis count. The 0LA3 is a single-axis module rated at 42A/45A — one of the higher-current single-axis variants. The 0DA1 is also single-axis but rated lower (18A/24A), while the 0CA1 and similar are lower-rated still. Choosing the correct suffix is critical — substituting a lower-rated module for the 0LA3 on a high-current spindle axis will result in thermal overload faults.

Q2: Can this power module be used without a SIMODRIVE 611 control unit?

No. The power module provides the high-current switching stage but has no motor control intelligence on its own. It must be paired with a compatible SIMODRIVE 611 control unit (analog or digital variant, depending on the control system), which handles current regulation, speed control, position loop interface to the SINUMERIK CNC, and fault monitoring. The power module and control unit are physically mounted together in a bookshelf configuration on the DC bus.

Q3: How do I know if this module has failed rather than the control unit or the motor?

SIMODRIVE 611 provides LED fault indicators on both the power module and the control unit. A red LED on the power module typically indicates an internal hardware fault — overcurrent, overvoltage on the DC bus, or a transistor failure. If the control unit LEDs indicate a normal status but the power module shows a fault, the power module is the primary suspect. Siemens' SimoCom U commissioning software can query the drive's diagnostic buffer for specific fault codes, which significantly narrows the diagnosis before committing to a module swap.

Q4: Is it safe to run the module at the full 45A spindle rating continuously?

Continuous full-rated current is permissible within the specified ambient temperature limit of 45°C with the internal cooling fan operating correctly. For applications where the spindle regularly operates near the current ceiling — heavy roughing cuts, for example — verifying that cabinet ambient temperature stays within specification and that the fan is clean and running at full speed is important. Siemens' SIMODRIVE 611 configuration manual provides derating curves for elevated ambient temperatures.

Q5: What is the expected service life of a refurbished 6SN1123-1AA00-0LA3, and what should be replaced preventively?

A professionally refurbished module typically replaces the electrolytic capacitors (which age with operating hours and thermal cycling), the internal cooling fan, and any degraded IGBT transistors. With those components renewed, service life comparable to a new unit is achievable. The most important preventive item after installation is the fan — Siemens recommends inspecting drive system cooling fans on a scheduled maintenance interval. Capacitor replacement every 8–10 years or per actual operating hour counts is the other key preventive action for long-deployed SIMODRIVE 611 systems.
