FANUC Small Industrial Servo Motor Electronics A06B-0033-B577

FANUC A06B-0033-B577 | Beta Series AC Servo Motor — Taper Shaft / i32b Encoder / 3000 rpm / 200V Class

Part Number: A06B-0033-B577

Manufacturer: FANUC Corporation (Japan)

Product Type: AC Brushless Servo Motor — Beta Series

Series: A06B-0033 Beta family

The Beta Series — Compact Performance at Lower Cost

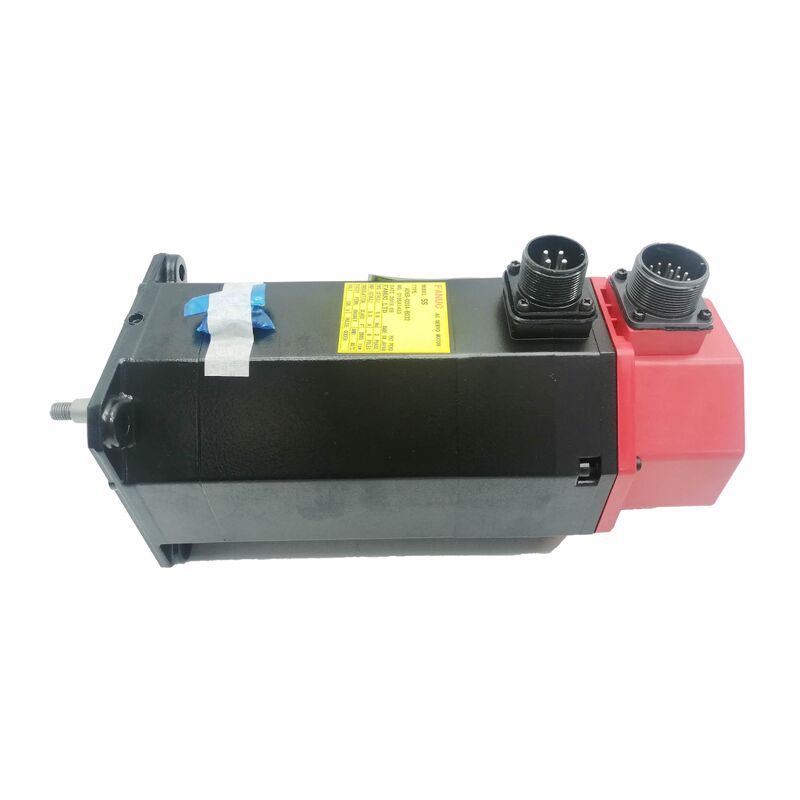

The A06B-0033-B577 is a Beta series AC servo motor from FANUC. Where the Alpha series targets the highest-performance end of FANUC's servo range — larger frames, higher torque densities, absolute encoders — the Beta series was designed to bring FANUC servo quality to applications where a cost-optimised, compact motor is the right fit. Beta motors are shorter and lighter than equivalent Alpha-class motors, which matters in tight machine layouts where installation space is at a premium.

The B577 suffix encodes the motor's mechanical and electrical configuration. B5 identifies the taper shaft variant (no electromagnetic brake). The 77 digits specify the i32b incremental encoder and the IP protection standard. The taper shaft self-centres in the hub bore — pulled axially into position and locked with a nut — giving accurate shaft alignment and a mechanically positive fit without relying on friction alone.

The i32b encoder provides 32 signal periods per revolution. On FANUC servo systems, the drive electronics multiply this base count to compute a higher effective resolution for position feedback. The i32b is an incremental encoder: it counts from a zero reference at each power-up and requires the machine to execute a reference-return cycle before absolute position is established.

Installation and Drive Compatibility

The A06B-0033-B577 pairs with FANUC's Beta amplifier family: SVU (servo amplifier units) and SVM (servo amplifier modules) from the series compatible with Beta motors. The specific amplifier model depends on the motor's power rating and the drive system's axis count configuration. Always confirm the amplifier's rated current matches the motor's rated current before pairing.

Taper shaft installation: use the shaft-end thread and a nut to pull the hub axially onto the taper. Never use a press or hammer. Impact loading during installation travels through the shaft to the encoder. Damage to the encoder from improper hub fitting is one of the most common causes of premature Beta motor failure in service.

Key Specifications

FAQ

Q1: What is the difference between a Beta series motor (A06B-0033-B577) and an Alpha series motor?

Beta motors are smaller, lighter, and lower cost than Alpha motors at equivalent power. Alpha motors offer higher torque density, absolute encoders, and broader performance options. Beta motors are the right choice when cost and size matter more than absolute positioning or the highest dynamic performance. Both are fully integrated into FANUC's servo system but use different amplifier families.

Q2: The machine requires absolute position without a homing cycle. Can the i32b encoder provide this?

No. The i32b is an incremental encoder — it requires a reference-return cycle at power-up to establish the machine's position reference. For absolute position without homing, an absolute encoder version of the Beta motor (if available for this model) or an Alpha series motor with an absolute pulsecoder is required.

Q3: The taper shaft hub is stuck after a machine crash. How should it be removed?

Use a puller designed for tapered shaft hubs. Never strike the shaft end or pry against the motor housing. Sudden impact on a taper shaft damages the encoder disc and rear bearing. If the hub will not release with a standard hub puller, heat the hub evenly with a heat gun (not a torch) to expand the bore before pulling.

Q4: After replacing with A06B-0033-B577, the axis shows following error. What should be checked?

Confirm the servo amplifier parameters for motor type, encoder specification (i32b = 32 ppr), and the electronic gear ratio settings. A mismatch between the encoder count set in the amplifier and the actual encoder produces consistent following error. Also verify the encoder cable is correctly shielded and grounded at the amplifier end.

Q5: Where are Beta series servo motors sourced?

FANUC Beta motors are available through the CNC spare parts aftermarket — new surplus, tested refurbished, and motor rebuild services. Confirm the full part number including suffix (A06B-0033-B577) on the nameplate before accepting delivery. Rebuild services cover encoder replacement, bearing replacement, new seals, and shaft restoration.
