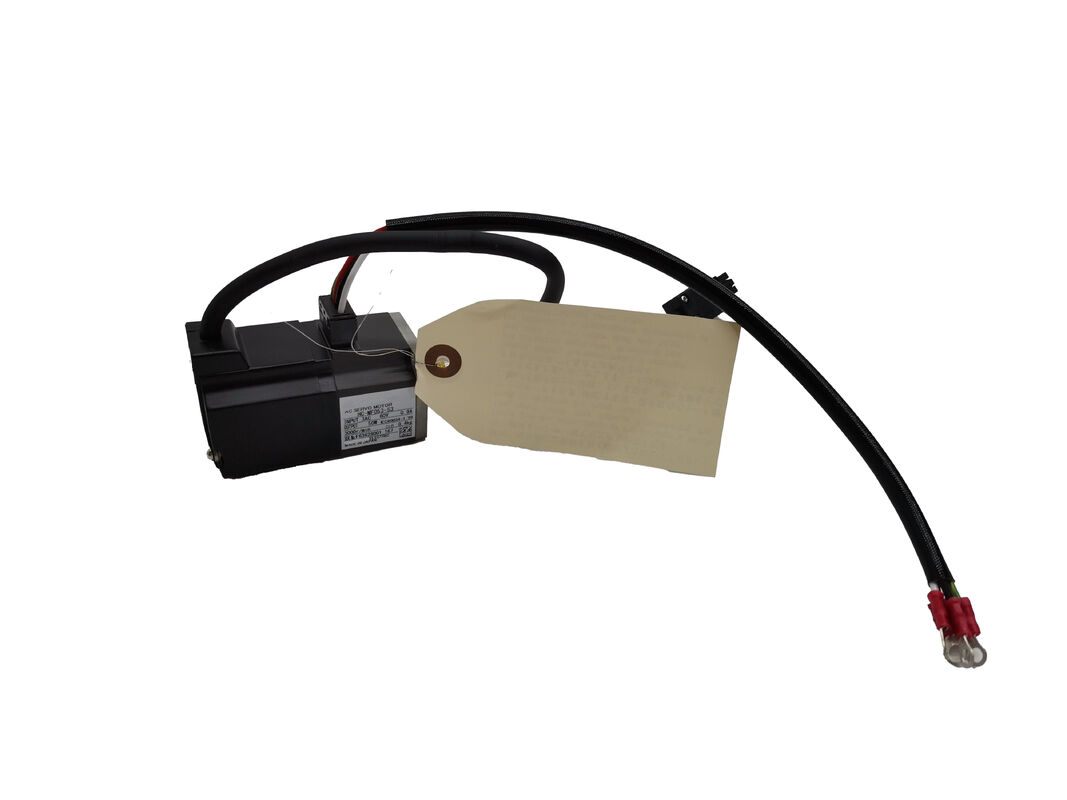

Mitsubishi HC-MF73-S15 AC Servo Motor — HC-MF Series 750W Keyed Shaft Motor

When Steady, Smooth Torque Is the Priority

There's a category of servo motor that doesn't chase the spec sheet headlines — no exotic encoder resolution, no ultra-low inertia numbers — but earns its reputation by running reliably year after year in some of the most demanding CNC environments in the industry. The Mitsubishi HC-MF73-S15 belongs to that category.

Part of Mitsubishi's HC-MF series — a line built around medium-inertia, small-capacity design principles — this motor delivers 750W (0.75 kW) of rated output at 3,000 RPM on a three-phase AC 117V supply, drawing 5.2 A under rated conditions. The output shaft is a φ19 mm straight shaft with keyway, providing the positive mechanical interlock that torque-reversing applications demand. There is no electromagnetic brake on this variant. Power and encoder connections are brought out through front-facing plugs, a practical layout for CNC machine enclosures where rear cable routing is limited.

The motor is closed construction with forced-air cooling — built tough for real shop environments rather than climate-controlled labs.

Technical Specifications

The HC-MF Series in Context

The HC-MF line predates the HC-MFS generation. Where the HC-MFS uses a 17-bit absolute encoder communicating over a digital serial link, the HC-MF uses an OBA analog encoder — a sine/cosine signal encoder that was standard on MR-J2 amplifiers. This means the HC-MF73-S15 is squarely a MR-J2 drive motor. It won't plug directly into MR-J2S, MR-J3, or MR-J4 amplifiers without compatibility evaluation, because each generation shifted encoder communication protocols.

For maintenance engineers keeping MR-J2-controlled machines running, this distinction is what makes the HC-MF73-S15 the right replacement part. The newer MFS variant, while

dimensionally similar in some respects, uses a different encoder type and is paired with MR-J2S drives — these are not interchangeable without drive changes and parameter work.

The medium-inertia characteristic of the HC-MF series places it well for CNC machine tool feed axis applications: more forgiving under varying load conditions than low-inertia motors, and more responsive than high-inertia designs when acceleration rates matter. It handles the kind of bidirectional, load-varying axis movement that occurs in milling, drilling, and turning operations without the gain-hunting issues that under-sized motors often exhibit.

Shaft Configuration and Installation Notes

The keyway in the φ19 mm shaft is a practical necessity for any axis where torque reversals are frequent or where axial loads could cause a plain-shaft coupling to slip over time. Keyed connections transfer torque through mechanical engagement, not friction — and at 750W with 3,000 RPM available, friction-only couplings introduce a failure mode that simply isn't needed.

When mounting, the HC-MF 750W class motor should be installed on a 300 × 300 × 12 mm aluminum flange (or equivalent thermal mass) to ensure adequate heat dissipation under continuous rated operation. This is a motor that relies on conductive heat transfer to its mount as part of its thermal management — installation on a thermally isolated or undersized mounting plate will reduce the motor's continuous duty rating.

The front-facing connector layout, shared across the HC-MF series, keeps cable dressing predictable and avoids the need to route cables around the rear of the motor — a detail that matters in densely packaged axis assemblies.

Application Fit

The HC-MF73-S15 is most commonly found on CNC machining centers, lathes, and milling machines from the late 1990s and early 2000s that were originally configured with MR-J2 servo systems. Beyond CNC, the series also appears in automated assembly equipment, X-Y positioning stages, and packaging machinery from the same generation.

For any of these machines still in production service, the HC-MF73-S15 is the reliable, like-for-like replacement that avoids the system integration work a cross-generation swap would require.

Frequently Asked Questions

Q1: What servo drive is required for the HC-MF73-S15?

A: This motor is designed for Mitsubishi MR-J2 series servo amplifiers. The OBA analog encoder fitted to HC-MF series motors communicates with MR-J2 drives specifically. It is not compatible with MR-J2S, MR-J3, or MR-J4 amplifiers without a conversion or replacement drive setup.

Q2: What does the S15 designation mean, and is this motor available with a brake?

A: The S15 suffix indicates the shaft and mounting configuration — specifically, a standard straight shaft with keyway and no electromagnetic brake. A brake-equipped version of the same base motor is available under the HC-MF73B designation, which adds a power-off holding brake for vertical axis or position-retention applications.

Q3: What is the difference between the HC-MF73 and the HC-MFS73?

A: Both are 750W, 3,000 RPM motors from the Mitsubishi HC medium-inertia family, but they belong to different drive generations. The HC-MF73 uses an OBA analog encoder and pairs with MR-J2 drives. The HC-MFS73 uses a 17-bit absolute encoder and pairs with MR-J2S drives. They are not directly interchangeable — swapping one for the other requires either a drive change or additional interface hardware.

Q4: What are the most common failure modes on the HC-MF73-S15?

A: The OBA analog encoder is the most frequent service item — signal degradation shows up as erratic speed readings or positioning errors before complete failure. Bearing wear is the other common issue in high-cycle applications. Both are repairable by experienced servo motor service shops. The forced-air cooling fan on this motor should also be checked periodically, as a failed fan can cause thermal overload under sustained duty cycles.

Q5: Can the HC-MF73-S15 be used as a drop-in replacement for other HC-MF 750W variants?

A: Mechanically, many HC-MF 750W variants share the same flange dimensions and shaft size, making physical installation straightforward. However, always verify the encoder type and connector configuration match before assuming a direct swap. Some variants have different cable outlet orientations or encoder signal types that can affect compatibility with existing wiring and drives.

The Mitsubishi HC-MF73-S15 is a legacy servo motor. Confirm drive compatibility, encoder type, and mounting requirements against your existing machine documentation before ordering.
