Fanuc A06B-0033-B077#0008 — αiF Series Large-Frame AC Servo Motor with Holding Brake for Heavy-Duty CNC Axis Drives

FANUC · AC SERVO MOTOR · αiF SERIES

Product Overview

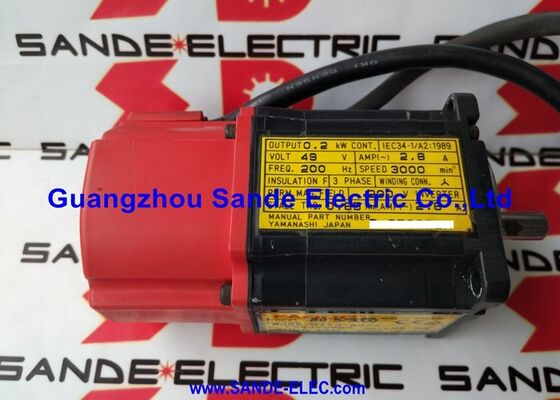

The Fanuc A06B-0033-B077#0008 is a large-frame brushless AC servo motor from Fanuc's αiF series — the high-inertia, high-torque tier of Fanuc's αi servo motor platform. Built for heavy-axis applications in CNC machine tools and large-scale industrial automation, it delivers the sustained torque output and robust mechanical construction that demanding production environments require.

The αiF designation marks a specific position in Fanuc's motor lineup. Where the αis and αi series address compact and mid-range axis requirements, the αiF is engineered for axes carrying substantial load inertia — large worktables, heavy spindle heads, bridge-type gantry structures, and any driven axis where the reflected inertia at the motor shaft is high enough to make a standard-frame motor the wrong choice. The larger rotor, heavier frame, and elevated torque rating are not incidental — they are the reason this motor exists in the αi product family.

The #0008 option code is a meaningful part of the complete part number. It indicates a specific factory-installed configuration — in this case, an integrated holding brake. The brake engages when the motor is de-energized, holding the axis in position against gravity or residual load without relying on the servo drive to maintain torque. For vertical axes, counterbalance-free gantry structures, and any application where an unpowered axis must not drift or drop, this is not an optional convenience — it is a safety and functional requirement.

The B077 suffix defines the encoder type and connector configuration, governing cable compatibility and amplifier pairing. The full part number — including B077 and #0008 — must be matched exactly when sourcing a replacement.

Key Specifications

Understanding the αiF Series

Fanuc segments its servo motor lineup by inertia class because the engineering tradeoffs are real and consequential. A low-inertia motor accelerates quickly but can become unstable when the load inertia significantly exceeds its rotor inertia. A high-inertia motor like those in the αiF series is designed to remain stable and controllable with heavy loads attached — the larger rotor inertia provides a more favorable inertia ratio even when the axis load is substantial.

That characteristic defines the αiF's application domain. It is not the right motor for a high-speed, light-load pick-and-place axis. It is the right motor for a large CNC machine's primary axis, a heavy rotary table, or a gantry beam drive where the moved mass is measured in hundreds of kilograms and the servo system needs to maintain positional stiffness under load without oscillating.

Three characteristics of this motor deserve closer attention:

High-inertia rotor for stable control under load. The αiF rotor geometry is optimized for applications where the load-to-motor inertia ratio would be unfavorable with a smaller motor. By increasing rotor inertia to match the load profile, the servo amplifier's control loop can be tuned for stiffness and stability without fighting an extreme mismatch between motor and load dynamics. The practical result is an axis that holds position firmly, resists external disturbances, and doesn't require compromised gain settings to stay stable.

Integrated holding brake — functional and safety-critical. The #0008 brake engages automatically when motor power is removed. On vertical axes — Z-axis spindle heads, vertical ram drives, bridge crossbeams — this prevents gravity-driven drop during e-stops, power interruptions, and normal machine park sequences. The brake is not rated for dynamic stopping; it holds a stationary axis. The servo drive handles deceleration; the brake holds position once the axis has stopped. Understanding that distinction is important for both machine design and maintenance.

Serial encoder architecture throughout. Consistent with the rest of the αi family, the A06B-0033-B077#0008 uses Fanuc's serial encoder for position feedback. The encoder transmits high-resolution position data digitally, supports real-time fault detection, and enables the amplifier to auto-identify the motor on powerup. On a large machine where encoder cables run several meters through a congested cabinet and cable tray, the noise immunity of serial transmission over analog resolvers is a practical advantage — not just a specification point.

Typical Applications

The αiF series is specified where heavy loads, large machine structures, and vertical axis safety requirements converge. The A06B-0033-B077#0008 — with its large-frame output and integrated brake — is found on:

• Large CNC horizontal and vertical machining center primary axis drives
• Bridge-type and gantry machining center crossbeam and ram drives
• Heavy-duty CNC boring and milling machine feed axes
• Large-format five-axis machining center rotary and tilt axis drives
• CNC grinding machine table and column traverse drives
• Heavy palletizer and transfer line positioning axes
• Large CNC rotary table and indexing table drives
• Vertical axis drives on any machine requiring brake-held park position

System Integration & Amplifier Compatibility

The A06B-0033-B077#0008 connects to Fanuc αi series servo amplifier modules installed in CNC cabinets running Series 0i, 16i, 18i, 21i, 30i, 31i, and 32i controller families. For large-axis applications, the amplifier module selected must be sized to match the motor's rated current and peak torque demand — a common oversight during both new machine commissioning and replacement sourcing is selecting an amplifier rated for a smaller motor in the same series.

The serial encoder interface auto-identifies the motor on powerup, loading standard motor model parameters into the amplifier without manual entry. Axis-specific parameters — travel limits, torque clamps, acceleration profiles — are stored in the CNC controller and must be restored from a backed-up parameter set after any motor replacement.

The holding brake circuit requires a separate 24V DC power supply connection, typically sourced from the machine's control panel supply. Brake engagement and release are controlled by the CNC controller through a dedicated relay output or the amplifier's integrated brake control output, depending on the machine's electrical design. Confirm the brake wiring scheme from the machine's electrical drawings before removal and reinstallation.

Cable sets are defined by the B077 connector specification. Both the power cable and encoder cable must match. On large machines where motor cables are routed through cable chains or conduit, inspect cables for wear or damage during a motor replacement — cable replacement on a large machining center is significantly more disruptive than on a compact machine, and doing it proactively during a planned motor swap avoids a second unplanned downtime event.

Replacement & Procurement Considerations

The A06B-0033-B077#0008 is a common replacement item on large Fanuc-driven CNC machines, where the combination of high-inertia axis loads and vertical drive requirements makes the αiF series with brake option a standard machine builder specification.

Full part number precision is essential. B077 defines encoder and connector type. #0008 defines the brake option. A motor sourced without the brake — or with a different encoder variant — will not install as a direct replacement. Confirm both elements of the part number from the failed motor's nameplate before procurement.

Brake function verification after installation. After fitting a replacement motor, verify brake engagement and release as part of the commissioning checkout. Confirm that the brake releases fully on motor energization — partial release causes excess heating and premature brake wear. Confirm that the brake engages completely on de-energization — incomplete engagement on a vertical axis is a safety hazard.

Parameter backup before disassembly. Back up the full CNC parameter set before starting motor removal. On large machines with complex multi-axis parameter sets, reconstructing axis parameters from documentation alone is time-consuming and error-prone.

New vs. remanufactured units. Both are available through Fanuc's authorized service network and qualified third-party rebuild centers. For remanufactured αiF series motors, verify that bearing replacement, encoder validation, brake inspection, and performance testing were completed. The brake assembly in particular should be confirmed for full holding torque — a worn or contaminated brake on a large vertical axis represents a real safety risk if not identified before the motor returns to service.

FAQ

Q1. What makes the αiF series different from the standard αi and αis series? The αiF is Fanuc's large-frame, high-inertia servo motor tier. It is designed for heavy-axis applications where the load inertia is too large for a standard or compact-frame motor to control stably. The αiF delivers higher torque output and a more favorable inertia ratio for heavy loads — it is not a substitute for αi or αis motors on lighter axes, nor are those motors suitable replacements for the αiF on heavy ones.

Q2. What does the #0008 option code mean, and is it required for my application? The #0008 option code indicates a factory-installed integrated holding brake. The brake engages when the motor is de-energized, holding the axis against gravity or residual load. It is required for vertical axes and any application where an unpowered axis must remain stationary without relying on servo drive torque. A non-brake variant cannot be safely substituted on these axes.

Q3. Does the holding brake stop the axis during an emergency stop? No. The holding brake is a static holding device, not a dynamic stopping brake. The servo amplifier decelerates the axis during an e-stop sequence; the brake engages after the axis has come to a stop to hold it in position. Using the brake for dynamic stopping will cause rapid wear and premature brake failure.

Q4. Is the B077 suffix interchangeable with other B0xx suffix variants? No. The suffix specifies the encoder type and connector configuration. Different suffix variants have incompatible connector geometries or encoder protocols that prevent direct installation without cable or wiring modification. The full part number including B077 and #0008 must match the original motor exactly.

Q5. What should be confirmed after installing a replacement A06B-0033-B077#0008? Restore the CNC controller's axis parameters from a backup, then verify brake function — confirm full brake release on motor energization and complete brake engagement on de-energization. Restore and validate software travel limits before returning the axis to operation. On vertical axes, perform a controlled manual move to confirm the axis holds position correctly when the brake is engaged before running automatic cycles.
