Fanuc A06B-0078-B403 — αis Series Compact AC Servo Motor for CNC Machine Tool Axes

FANUC · AC SERVO MOTOR · αis SERIES

Product Overview

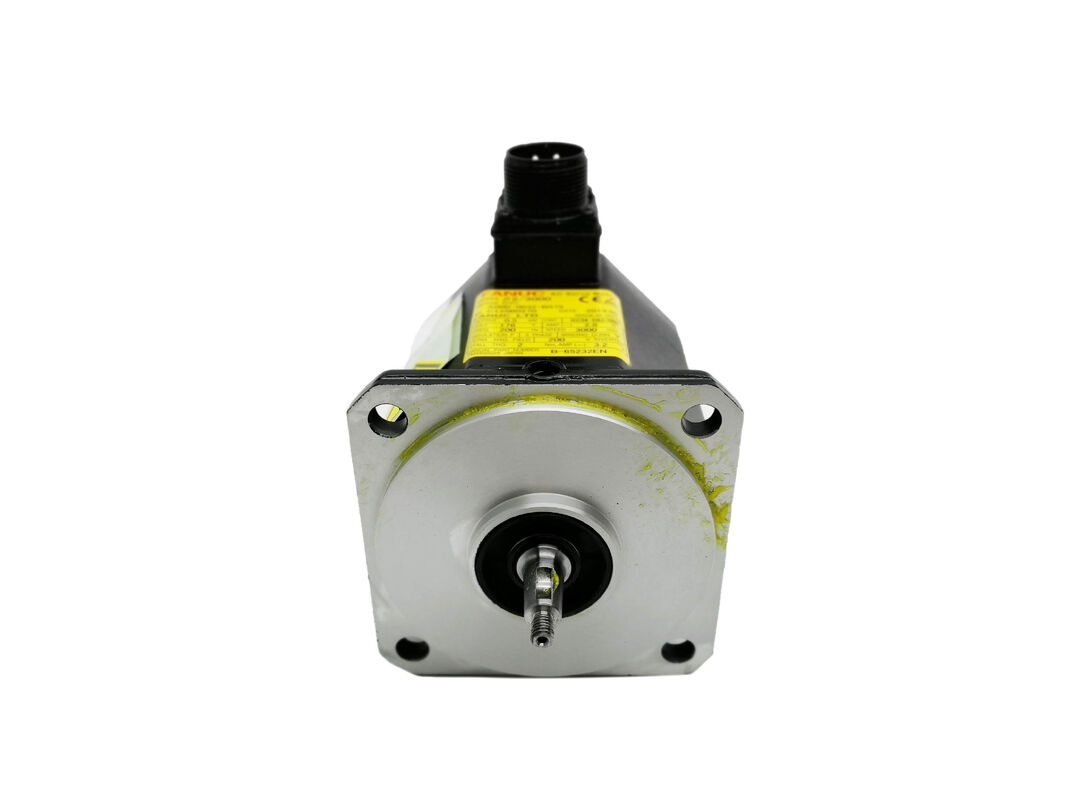

The Fanuc A06B-0078-B403 is a compact brushless AC servo motor from Fanuc's αis series — the small-frame variant within Fanuc's broader αi servo motor lineup. It is built specifically for integration with Fanuc's αi series servo amplifier modules, operating as part of a fully matched drive-and-motor system within CNC machine tool and factory automation environments.

Where the standard αi series motors target mid-to-large axis applications, the αis designation reflects an optimized package for axes where physical space is constrained, moved mass is lower, or multiple servo axes share a compact machine footprint. The motor delivers Fanuc-grade positional accuracy and response in a smaller frame without stepping outside the αi ecosystem — the same serial encoder architecture, the same amplifier compatibility, the same parameter management through the CNC controller.

The B403 suffix is not a generic descriptor. It specifies the motor's encoder variant and connector configuration, which directly determines cable compatibility and amplifier pairing. Getting the suffix right is as important as getting the base model number right — particularly when sourcing a replacement unit for an existing machine.

Key Specifications

What the αis Series Is Designed For

The αis designation exists for a reason. Fanuc's servo motor lineup is segmented by inertia class and frame size, and the αis series targets applications that don't need the torque headroom of a larger frame but do need the same encoder resolution, amplifier compatibility, and reliability standard as the rest of the αi family. A few things stand out about how this motor is positioned:

Compact footprint without compromising feedback quality. The αis series uses the same serial encoder architecture found across the αi lineup. That means high-resolution position data, real-time encoder fault detection, and seamless amplifier recognition — regardless of the motor's physical size. Compactness doesn't come at the cost of feedback integrity.

Matched for the αi amplifier ecosystem. The A06B-0078-B403 connects to αi series servo amplifier modules inside Fanuc CNC cabinets. The amplifier reads motor ID data from the serial encoder on powerup, auto-loading the correct motor model without manual parameter entry. For machine builders and service engineers, this removes a common source of setup error during replacement or system expansion.

Serial encoder advantages in industrial environments. Digital serial transmission is inherently more noise-immune than analog resolver signals across long cable runs in electrically noisy machine tool environments. The αis encoder also supports absolute or incremental position modes depending on the specific encoder variant — a detail encoded in the B403 suffix.

Suited for multi-axis machines with space constraints. On machines where three, four, or five servo axes are packed into a compact structure — rotary tables, tool changers, sub-spindles, tailstocks — the smaller αis frame allows engineers to meet torque and speed requirements without redesigning the mechanical envelope around a larger motor body.

Typical Applications

The A06B-0078-B403 appears most consistently in CNC and automation platforms where a small, reliable servo axis is needed as part of a larger Fanuc-driven machine:

• CNC lathe sub-spindle and tailstock positioning
• Automatic tool changer drive axes
• CNC rotary table and indexing head control
• Compact machining center auxiliary axes
• Five-axis machine tilt and rotary axis drives
• Fanuc robotic arm joint actuators
• Small-format precision grinding axis drives
• Gantry loader and part transfer positioning

Drive & Controller Compatibility

The A06B-0078-B403 operates within Fanuc's αi series servo amplifier modules, which are housed in CNC cabinets running Fanuc controller families including Series 0i, 16i, 18i, 21i, 30i, 31i, and 32i. The motor and amplifier communicate via Fanuc's FSSB (Fanuc Serial Servo Bus) or direct serial encoder connection depending on the specific cabinet architecture.

Because the motor is auto-identified by the amplifier through the encoder interface, parameter loading is largely automatic in standard configurations. That said, any replacement installation should be validated against the machine's parameter backup to confirm that axis-specific tuning data — acceleration limits, torque limits, software travel boundaries — is correctly restored after the motor swap.

Cable sets for the A06B-0078-B403 are defined by the B403 connector specification. Both the power cable and encoder cable must match the connector style and encoder protocol of this specific suffix. Retain the original cables from a failed motor where possible, or source replacement cables through Fanuc or an authorized distributor using the original machine wiring diagram.

A Note on Replacement Sourcing

The A06B-0078-B403 is a commonly replaced unit in Fanuc-driven CNC machines due to the scale of the installed base running αis series motors across global manufacturing. When sourcing a replacement:

The full part number must match exactly. B403 is not interchangeable with B400, B402, or other suffix variants — encoder type and connector orientation can differ in ways that prevent installation without cable modification or parameter changes.

Both new and remanufactured units are available through Fanuc's authorized service network and qualified third-party servo motor rebuild centers. Remanufactured units from reputable sources are a viable option for cost-sensitive maintenance budgets, provided the rebuilder replaces bearings, inspects the encoder, and validates the unit against Fanuc's performance specifications before shipment.

FAQ

Q1. What Fanuc CNC controllers is the A06B-0078-B403 compatible with? It is compatible with Fanuc CNC systems using αi series servo amplifier modules, including the Series 0i, 16i, 18i, 21i, 30i, 31i, and 32i controller families. Confirm the specific amplifier module rating and slot configuration before installation.

Q2. What is the difference between the αi and αis motor series? The αis designation indicates a compact, small-frame variant of the αi series. The αis motors share the same serial encoder architecture and amplifier compatibility as the standard αi series but are optimized for applications where a smaller physical footprint is required without leaving the Fanuc servo ecosystem.

Q3. Is the B403 suffix interchangeable with other B4xx suffix variants? No. The suffix defines the encoder type and connector configuration. Substituting a different suffix variant — such as B400 or B402 — may result in connector mismatch, encoder protocol incompatibility, or incorrect motor parameter loading by the amplifier. Always replace with the exact part number.

Q4. Does the A06B-0078-B403 require manual parameter setup after installation? In most standard configurations, the αi series amplifier reads motor ID data from the serial encoder automatically on powerup and loads the corresponding motor model parameters. However, axis-specific parameters — travel limits, torque limits, acceleration settings — should be restored from the machine's parameter backup file after any motor replacement.

Q5. Are remanufactured units a reliable option for this motor? Yes, provided the remanufacturer replaces bearings, inspects and validates the encoder assembly, and performance-tests the unit against Fanuc's specifications before delivery. For critical production machines, request documentation of the rebuild process and test results before accepting a remanufactured unit.
