Fanuc A06B-0085-B103 — αis Series AC Servo Motor for Compact CNC Axis & Precision Automation Drives

FANUC · AC SERVO MOTOR · αis SERIES

Product Overview

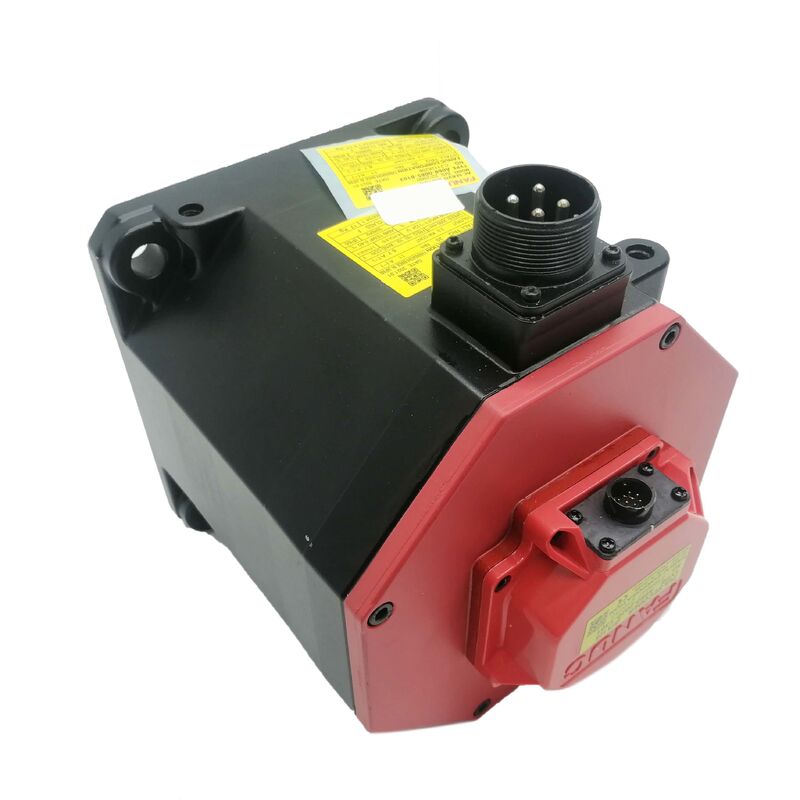

The Fanuc A06B-0085-B103 is a brushless AC servo motor from Fanuc's αis series — the compact small-frame tier of Fanuc's αi servo motor platform. Engineered for use within Fanuc's integrated servo drive ecosystem, it brings full αi-class encoder performance and amplifier compatibility to machine axes where physical space, weight, or multi-axis density makes a smaller motor frame the right engineering choice.

This is not a compromised-down version of a larger motor. The αis series was developed as a dedicated product line, not a scaled reduction — meaning the serial encoder architecture, amplifier auto-recognition, and system-level integration behavior are identical to those found across Fanuc's full αi range. An αis motor connects to the same amplifier modules, communicates over the same serial interface, and is configured through the same CNC controller environment as every other motor in the αi family.

The B103 suffix is specific and consequential. It defines the encoder type and connector configuration for this unit — the details that determine which cables fit, which amplifier modules are compatible, and whether the motor will install directly into an existing machine without wiring modification. For replacement sourcing in particular, the full part number including the B103 suffix must be matched exactly.

Key Specifications

Engineering Perspective: Why the αis Series Exists

Fanuc's servo motor lineup covers a broad range of inertia classes and frame sizes because the machines that use them vary just as widely. The αis series addresses a specific part of that range — compact axes on CNC machines and automation equipment where the torque and speed requirements are well within what a small-frame motor can deliver, and where fitting a larger motor would mean redesigning the mechanical structure around it.

The A06B-0085-B103 fits that profile. A few characteristics worth understanding before specifying or replacing it:

Serial encoder with digital transmission. The αis series doesn't use analog resolvers or incremental encoders with analog interfaces. Serial transmission is cleaner in electrically noisy machine tool environments, more immune to cable-length-related signal degradation, and capable of carrying fault diagnostic data alongside position values — all of which reduce the likelihood of unexplained position errors or nuisance faults in service.

Amplifier auto-identification on powerup. When the A06B-0085-B103 is connected to a compatible αi series servo amplifier, the drive reads motor identity data from the encoder and loads the corresponding motor model parameters automatically. This behavior removes a layer of manual setup from both initial commissioning and motor replacement — and eliminates a class of parameter-mismatch errors that can otherwise take time to trace.

Compact frame dimensions for dense axis configurations. On machines with multiple servo axes packed into a limited structural volume — sub-spindles, rotary tables, tool changers, loader units — the αis frame size allows the machine to meet its motion requirements without compromising the mechanical design around a larger motor body.

Consistent reliability across the installed base. The αis series has accumulated a substantial service history across global CNC manufacturing. Its failure modes are well understood by Fanuc service engineers and qualified third-party motor repair centers alike, which supports both preventive maintenance planning and rapid return-to-service when a failure does occur.

Typical Applications

The A06B-0085-B103 is found most consistently in multi-axis CNC machines and automation systems where Fanuc drives are the platform of record and a compact, reliable servo axis is required:

• CNC lathe auxiliary axis drives — sub-spindle, tailstock, steady rest
• Automatic tool changer arm and magazine drives
• CNC machining center fourth and fifth axis positioning
• Rotary table and tilting head control
• Compact vertical and horizontal machining center feed axes
• Gantry loader and bar feeder positioning
• Fanuc robot joint actuators in integrated machine cells
• Precision grinding wheel dresser and table traverse axes

System Integration & Amplifier Compatibility

The A06B-0085-B103 operates with Fanuc αi series servo amplifier modules installed in CNC cabinets running Series 0i, 16i, 18i, 21i, 30i, 31i, and 32i controller families. Communication between motor and amplifier runs over Fanuc's serial encoder interface — either through direct encoder cable connection or via the FSSB (Fanuc Serial Servo Bus) architecture depending on the specific cabinet configuration.

The amplifier's auto-ID function reads motor data from the encoder on every powerup. In a straightforward replacement, this means the amplifier recognizes the new motor and loads the standard motor model without manual parameter input. What it does not automatically restore are axis-specific parameters — software travel limits, torque clamp values, acceleration and deceleration settings — which are machine-dependent and must be reloaded from the machine's parameter backup after any motor swap.

Matching cables to the B103 connector specification is non-negotiable. The power connector and encoder connector geometries defined by the B103 suffix must match the cable assemblies in the machine. Reusing the original cables from a failed motor — provided they are undamaged — is usually the most reliable approach. Where new cables are required, source them through Fanuc or an authorized distributor using the machine's original wiring diagram as the reference.

Replacement Considerations

The A06B-0085-B103 is a routinely replaced component in the Fanuc αis installed base. Machines built on Fanuc CNC platforms over the past two decades commonly use αis series motors on auxiliary and secondary axes, and the volume of those installations means this part number appears regularly in maintenance and MRO sourcing.

A few practical points for replacement planning:

Part number precision matters. B103 is not interchangeable with B100, B102, or other adjacent variants. Encoder type and connector orientation differ between suffix codes in ways that will prevent direct installation without modification. Confirm the full part number from the failed motor's nameplate before ordering.

Parameter backup before disassembly. Back up the machine's full parameter set before removing the failed motor. Restoring axis-specific tuning after the replacement is faster and more reliable with a current backup than attempting to reconstruct parameters from documentation alone.

New vs. remanufactured. Both new units through Fanuc's authorized distribution network and remanufactured units from qualified servo motor rebuild centers are available. For remanufactured units, verify that bearing replacement, encoder inspection, and performance validation against Fanuc specifications were performed and documented before the unit shipped.

FAQ

Q1. Which Fanuc CNC controllers are compatible with the A06B-0085-B103? The motor is compatible with Fanuc CNC systems using αi series servo amplifier modules, including the Series 0i, 16i, 18i, 21i, 30i, 31i, and 32i families. Confirm the specific amplifier module type and power rating against the machine's electrical documentation before installation.

Q2. What distinguishes the αis series from the standard αi series? The αis designation indicates a compact small-frame motor within the αi product family. The αis series shares the same serial encoder system, amplifier compatibility, and CNC integration behavior as the standard αi series — the distinction is physical size and the corresponding output range, not a difference in technology or ecosystem.

Q3. Can the B103 suffix be substituted with another B1xx variant during replacement? No. The suffix encodes the encoder specification and connector configuration. Different suffix variants within the same base model number can have incompatible connector geometries or encoder protocols. Always source a replacement using the exact full part number from the motor nameplate.

Q4. Does replacing the A06B-0085-B103 require manual parameter entry at the CNC controller? The αi series amplifier auto-loads standard motor model parameters from the encoder ID on powerup, so basic motor recognition is automatic. Axis-specific parameters — travel limits, torque settings, acceleration values — are machine-dependent and must be restored from a parameter backup file after the replacement is complete.

Q5. What should be checked when evaluating a remanufactured A06B-0085-B103? At minimum, confirm that the rebuilder replaced the bearings, inspected and validated the serial encoder assembly, and performed a functional performance test against Fanuc's motor specifications before shipment. Request written documentation of the rebuild process and test results, particularly for motors destined for high-duty or precision-critical axes.
