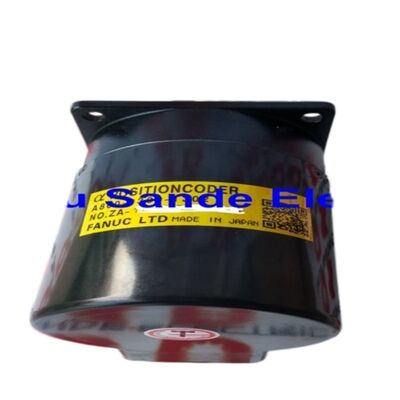

Used Fanuc A860-2109-T302 — Alpha i Series Spindle Position Coder, 10,000 RPM, 68mm Flange

Product Overview

Part Number: A860-2109-T302

Also Searched As: A8602109T302, Fanuc A860-2109-T302, FANUC A8602109T302

Product Type: Alpha i Series Spindle Position Coder (External Spindle Encoder) Condition: Used

Replaces / Supersedes: A860-0309-T302

Classification: Fanuc Alpha i Series High-Speed Spindle Feedback Encoder — 10,000 RPM, 68mm Square Flange, 50mm Centre Bore, 17-Pin Integrated Connector

What This Part Actually Is

Before ordering, one point deserves clarity. The A860-2109-T302 is a spindle position coder — an external rotary encoder mounted to the machine's spindle to feed position and speed data back to the Fanuc CNC. It is not a servo motor and not a pulse coder built into a motor. It is a standalone encoder unit that bolts to the spindle nose or spindle housing, couples directly to the spindle shaft via the 50mm centre bore, and transmits real-time rotational feedback to the CNC drive system through its 17-pin connector.

Spindle position coders are used on CNC lathes, machining centres, and multi-axis machines where the CNC needs accurate spindle angular position for rigid tapping, Cs contour control (spindle-as-C-axis), and synchronised thread cutting. Without a functioning spindle coder, these operations are unavailable — the CNC cannot control spindle orientation or angular position, only speed.

The A860-2109-T302 is the Alpha i series replacement for the older A860-0309-T302. The two parts are functionally interchangeable on compatible machines — the newer A860-2109-T302 is the current Fanuc production designation for this position coder specification.

Technical Specifications

Why Spindle Position Feedback Matters

A CNC spindle without position feedback is a one-trick component — it can be commanded to a speed, and it will run at that speed, but the control has no idea where the spindle shaft actually is at any given moment. That limitation rules out a significant portion of what modern CNC machine tools are expected to do.

Rigid tapping requires the spindle to maintain exact angular-to-linear synchronisation with the Z-axis during the tapping cycle. As the tool descends, the spindle must rotate at a rate precisely matched to the feed rate and thread pitch. Any angular position error produces a pitch error in the thread — or a broken tap. The spindle position coder provides the angular feedback that makes this synchronisation possible; without it, rigid tapping is unavailable and the machine reverts to floating-tap holders with their inherent pitch accuracy limitations.

Thread cutting on lathes — single-point threading — depends on the spindle position coder identifying a reference angular position (the thread-start pulse) each revolution so the cutting tool engages at exactly the same angular position every pass. Multi-start threads and precision Acme or buttress threads require this synchronisation across multiple passes. The A860-2109-T302 provides the per-revolution position reference the CNC uses for this function.

Cs contour control — the spindle operating as a controlled C-axis for milling and contouring operations on turning centres and multi-task machines — requires the spindle to behave like a servo axis. Angular position must be commanded, held, and interpolated with the linear axes. A speed sensor is not sufficient; position feedback at spindle-servo resolution is required. The spindle position coder bridges the gap between spindle drive and the CNC's axis interpolation engine.

At 10,000 rpm maximum speed, the A860-2109-T302 covers the full speed range of high-performance machining centre and turning centre spindles. Most production CNC spindles that use an external position coder of this type operate at peak speeds between 6,000 and 12,000 rpm — the A860-2109-T302 sits comfortably within this range, providing valid feedback data from low-speed C-axis contouring at near-zero rpm through maximum-speed metal removal.

Used Condition — What That Means Here

This A860-2109-T302 is a used unit. That is stated plainly because it matters when the component in question provides feedback to a CNC spindle on which threading and tapping accuracy depend.

Used spindle coders have a valid place in the aftermarket. The A860-2109-T302 is an optically-based rotary encoder — when it works, it works accurately. There is no wear mechanism in a correctly-functioning encoder that degrades its resolution or accuracy over time. What fails on used encoders is physical: contamination on the optical disc, damaged bearings, bent or corroded connector pins, cracked housing from impact, or damaged cable and connector from repeated bending. These are inspectable conditions.

A used A860-2109-T302 that has been inspected for disc condition, connector integrity, and bearing feel, and that shows no evidence of coolant ingress into the optical section, is a functional unit capable of providing the same feedback accuracy as a new one. For a machine that is down and needs a spindle coder to get back into production — without the lead time and cost of a new unit — a good used A860-2109-T302 is the practical solution.

Buyers who need zero-accumulated-hours certainty should specify a new unit. Buyers who are replacing a confirmed-failed encoder to restore a machine to production, and who have the technical ability to verify function at commissioning, will find a used unit entirely appropriate.

A860-2109-T302 vs A860-0309-T302: Supersession Explained

The A860-0309-T302 is the older designation for the same position coder specification — the part number that appears in the original machine documentation and parts lists for machines built when the original alpha series was current. The A860-2109-T302 is the current Fanuc production designation, released as part of the Alpha i encoder series update.

The two parts are functionally interchangeable on compatible machines. If the machine documentation calls for an A860-0309-T302, the A860-2109-T302 is the correct replacement. The physical mounting dimensions (68mm square flange, 50mm centre bore), connector pin-out (17-pin), and CNC interface are the same. No parameter changes or wiring modifications are required when substituting A860-2109-T302 for A860-0309-T302.

This supersession is the reason the A860-2109-T302 appears in searches for both part numbers — it covers the installed base of machines originally spec'd with either designation.

Installation and Integration

The A860-2109-T302 mounts to the spindle via the 68mm square bolt pattern flange and couples to the spindle shaft through the 50mm centre bore. On most machines, a coupling element — typically a bellows or disc-type flexible coupling — connects the encoder bore to the spindle shaft journal, accommodating small angular and axial misalignment while transmitting rotational motion accurately. The coupling design matters: a rigid connection on a shaft with any runout will impose cyclic load on the encoder bearings and shorten their service life.

The 17-pin integrated connector accepts the standard Fanuc Alpha i encoder cable. Cable routing should avoid sharp bends close to the connector body and should be secured so the cable does not flex with every spindle start-stop cycle. The connector sealing should be checked on installation — the spindle environment typically includes coolant mist, and a leaking connector seal allows contamination to reach the pins over time.

After installation, verify spindle coder function with the Fanuc CNC's spindle diagnostic screens before running production. Confirm that the position feedback count increments correctly as the spindle rotates in both directions, and that the one-per-revolution reference signal is detected. On systems where Cs axis or rigid tapping had been disabled due to a failed encoder, re-enable those functions in the CNC parameters per the machine builder's commissioning documentation.

Compatible CNC Systems and Amplifiers

The A860-2109-T302 is designed for integration with Fanuc αi series spindle amplifiers (αiSP) and is compatible with Fanuc CNC Series 0i-D, 0i-F, 15i, 16i, 18i, 21i, 30i-A, 30i-B, 31i-A, 31i-B, and 32i. It is the standard spindle position coder for machines running Fanuc αi spindle drives where external spindle feedback is required.

Not all Fanuc-controlled machines require an external spindle coder — some spindle motor configurations use an encoder built into the spindle motor itself. The A860-2109-T302 is for externally-mounted spindle position feedback, where the encoder is separate from the spindle motor and couples directly to the spindle shaft. If the machine currently has no external encoder and spindle positioning features are not required, no position coder is needed. If rigid tapping, thread cutting synchronisation, or Cs contour control are required and the machine was designed for an external coder, the A860-2109-T302 is the part.

Typical Applications

CNC turning centre rigid tapping and thread cutting. Single-point thread cutting and rigid tapping cycles on CNC lathes and turning centres controlled by Fanuc αi systems, where the spindle position coder provides the per-revolution reference and angular position data the CNC interpolates against Z-axis motion.

Machining centre rigid tapping. Synchronised tapping cycles on vertical and horizontal machining centres where the A860-2109-T302 is externally mounted to the spindle to provide the position feedback that rigid tapping requires. Eliminates the need for tension-compression tap holders and delivers more consistent thread depth control.

Multi-task machine and turn-mill centre Cs axis control. Spindle-as-C-axis contouring operations on turn-mill centres and multi-task machines, where the spindle is interpolated as a controlled rotary axis for milling, drilling, and contouring at off-centre positions. Requires spindle position feedback at servo resolution — the function the A860-2109-T302 provides.

High-speed machining centre spindles. Spindle position feedback on machining centres with spindle speeds up to 10,000 rpm, where the encoder's rated speed matches the spindle's full operating range and provides valid feedback data through the complete speed envelope.

FAQ

Q1: Is the A860-2109-T302 a servo motor or an encoder?

It is an external spindle position coder (encoder) — not a servo motor. It is a standalone rotary feedback device that mounts to the machine spindle and sends angular position and speed data to the Fanuc CNC via the αi spindle amplifier. It is used to enable rigid tapping, synchronised thread cutting, and Cs contour control on CNC lathes and machining centres. The A860 prefix on Fanuc part numbers consistently identifies encoder and feedback devices, not motors (which carry the A06B prefix).

Q2: Will the A860-2109-T302 replace the older A860-0309-T302 directly?

Yes — the A860-2109-T302 is the current Alpha i series successor to the A860-0309-T302 and is a direct functional replacement. The mounting dimensions (68mm square flange, 50mm bore), connector type (17-pin), and CNC interface are identical. No wiring changes or parameter modifications are needed when substituting A860-2109-T302 for A860-0309-T302. If your machine's parts list shows A860-0309-T302, order the A860-2109-T302 with confidence.

Q3: What CNC functions become unavailable when this encoder fails?

A failed or missing A860-2109-T302 disables any CNC function that requires spindle angular position feedback. On most machines this means rigid tapping, single-point thread cutting synchronisation, and Cs contour control are all unavailable until the encoder is replaced. Speed-only spindle operation (constant RPM cutting) is typically unaffected, as that function uses the spindle amplifier's own speed feedback, not the external position coder.

Q4: Does buying a used encoder carry additional risk compared to a new unit?

Some risk exists, but it is manageable. Rotary optical encoders do not wear out in normal use — what fails is physical damage: contaminated optical disc, bearing failure from misalignment, or connector corrosion from coolant exposure. A used encoder that has been inspected and shows none of these conditions will perform identically to a new one. The practical approach is to verify function immediately after installation using the CNC's spindle diagnostic screen before returning the machine to production. If the encoder does not respond correctly, the problem is visible immediately and the unit can be returned or exchanged.

Q5: Does the A860-2109-T302 work with all Fanuc CNC controllers?

It is compatible with Fanuc αi series spindle amplifiers and the CNC platforms they run on — Series 0i-D/F, 16i, 18i, 21i, 30i, 31i, and 32i. It is not compatible with original α series (non-i) amplifiers or with Fanuc β series spindle drives, which use different encoder interface protocols. Before ordering, confirm the machine's spindle amplifier is an αiSP unit and that the existing wiring is the standard 17-pin Alpha i encoder cable.
