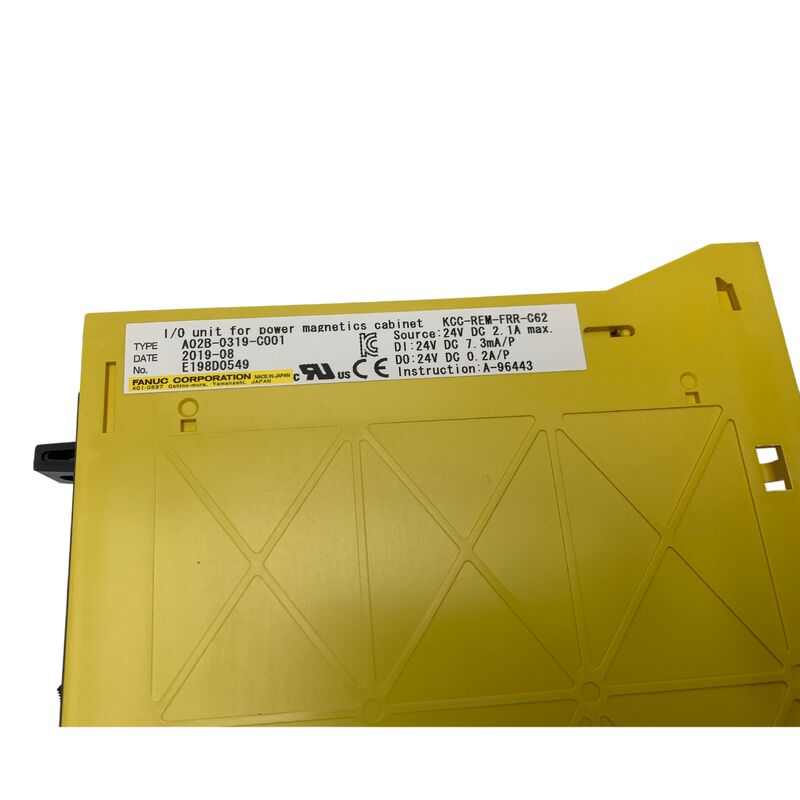

Fanuc A02B-0319-C001 I/O Board A02B0319C001 AO2B-O3I9-COOI

A02B-0319-C001 | FANUC I/O Unit — Power Magnetics Cabinet / I/O Link / PMC-Controlled Contactors and Safety Interlocks

Power Magnetics Cabinet — What It Contains and Why I/O Is Needed

Most industrial CNC machine tools separate their control electronics from their power electrical components. The CNC control cabinet houses the CNC computer, servo drives, and spindle drive. The power magnetics cabinet is the associated electrical panel that contains the high-current, high-voltage switching hardware:

• Main spindle motor starter: The AC contactor that connects or disconnects mains power to the spindle motor
• Coolant pump starter: Contactor controlling the coolant pump motor
• Hydraulic unit starter: Contactor for the machine's hydraulic system
• Axis brake release contactors: Controls the electromagnetic brakes on machine axes where brakes are fitted
• Overload relays: Protection relays that detect motor overcurrent and trip the associated contactor
• Safety interlocks: Door guard switches, area scanners, emergency stop relays, and their associated monitoring contacts

The CNC's PMC (Programmable Machine Control) ladder logic must monitor the status of all these devices and must control their on/off states. The A02B-0319-C001 is the I/O unit that makes this communication possible — it provides the physical input and output terminals inside the power magnetics cabinet, and connects those terminals to the CNC via the I/O Link bus.

Key Product Information

PMC Control and Monitoring Through This Unit

The CNC's PMC ladder programme controls the power magnetics cabinet through the A02B-0319-C001. Typical PMC interactions:

Outputs (CNC → cabinet): Spindle start/stop command; coolant pump on/off; hydraulic system on/off; axis brake release command; door-locking solenoid command.

Inputs (cabinet → CNC): Spindle contactor feedback (on/off confirmed); overload relay trip status; door guard open/closed; hydraulic pressure reached; coolant level low; emergency stop circuit status.

The PMC ladder reads these inputs in every scan cycle and responds according to the programmed machine logic — preventing spindle start if the door is open, stopping all motion if an overload trips, and executing the proper shutdown sequence when E-stop is activated.

Application Scenarios

Power magnetics I/O fault diagnosis: A machining centre develops an intermittent spindle start alarm. Investigation confirms that the spindle contactor feedback signal is not reaching the CNC consistently. The I/O Link communication with the A02B-0319-C001 is tested and the unit is identified as the fault source. Replacement restores reliable I/O communication from the power magnetics cabinet.

New machine electrical installation: A machine tool builder installs the A02B-0319-C001 in the power magnetics cabinet during machine build. All contactor control and feedback wiring terminates at this unit. A single I/O Link cable connects back to the CNC, eliminating the multi-wire harness that would otherwise be required.

FAQ

Q1: What is the I/O Link communication standard used by A02B-0319-C001?

The FANUC I/O Link is a FANUC-proprietary high-speed serial communication protocol. It uses a master-slave architecture — the CNC is the master and the A02B-0319-C001 is a slave node. The master polls all nodes in a defined cycle, collecting input data and delivering output commands. The I/O Link cycle time is fast enough for the PMC's real-time machine control requirements. The protocol operates over standard shielded twisted-pair cable or optical fibre depending on the system configuration.

Q2: How many I/O points does the A02B-0319-C001 provide?

The I/O point count is defined by the specific unit variant and its internal I/O module configuration. FANUC I/O units for power magnetics cabinets typically provide 32 to 64 digital inputs and outputs in various combinations. The exact point count and I/O address assignment for the A02B-0319-C001 are defined in the FANUC CNC connection manual for the specific control type. The PMC's I/O address mapping must match the physical I/O unit's configured address range.

Q3: Can the A02B-0319-C001 be added to a system that currently has no power magnetics cabinet I/O?

Adding the A02B-0319-C001 requires an available I/O Link slot on the CNC — the I/O Link typically supports multiple nodes, but the total number is limited. The CNC's PMC programme must also be updated to read and write the new I/O addresses. Adding a new I/O unit without updating the PMC programme results in the physical I/O being unaddressed — the hardware is connected but the CNC ignores it. Consult the CNC I/O Link connection manual for the available node capacity and addressing procedure.

Q4: What are the consequences of the A02B-0319-C001 failing during machine operation?

If the I/O Link communication to the A02B-0319-C001 is lost during operation, the CNC will generate an I/O Link alarm. Safety systems are designed to fail safe — the PMC ladder typically drives all outputs to their safe state (contactors off, brakes applied) when the I/O unit communication is lost. The machine will stop. Restarting requires restoring the I/O communication, confirming no other fault conditions are present, and resetting the PMC.

Q5: Does replacing the A02B-0319-C001 require PMC programme changes?

Not if the replacement unit is the same model with the same I/O count and I/O Link address configuration. The PMC programme uses I/O addresses, not the hardware unit's serial number. As long as the replacement A02B-0319-C001 is configured to the same I/O Link address as the failed unit, the existing PMC programme will communicate with it without modification. Confirm the I/O Link address from the failed unit's configuration before fitting the replacement.
