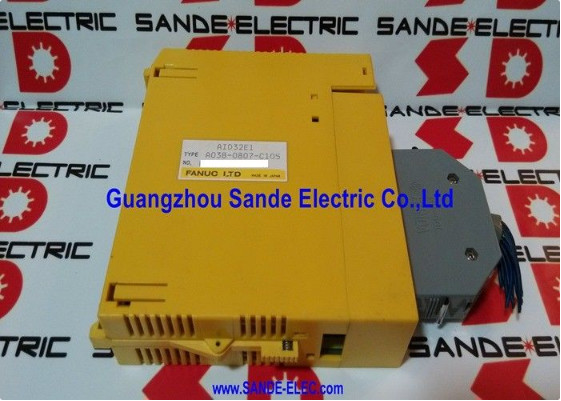

A03B-0819-C106 Fanuc AID32F1 Input Module A03B0819C106 AO3B-O8I9-CIO6

FANUC A03B-0819-C106 | AID32F1 32-Point DC Digital Input Module — 12/24V DC / LED Status / CNC/Robotics I/O System

Part Number: A03B-0819-C106

Manufacturer: FANUC Corporation (Japan)

Product Type: Digital Input Module — 32 Points

32 Digital Inputs for the FANUC CNC and Robot I/O System

The A03B-0819-C106 is the AID32F1 model digital input module for FANUC's A03B-0819 distributed I/O system — the modular I/O architecture used across FANUC CNC machining systems and FANUC robot controllers. Each module plugs into a backplane unit (ABU05A or ABU10A) that connects to the CNC or robot controller as a slave on the I/O bus.

Thirty-two digital input points read the state of field devices — limit switches, proximity sensors, pressure switches, pushbuttons, interlock relays, and servo-connected feedback signals — and report their states to the CNC's PMC or the robot controller's system programme. The AID32F1 designation identifies this module as a 32-point input type within the A03B-0819 module family.

Each of the 32 input points has a dedicated LED indicator on the module face. These LEDs illuminate when the corresponding input is in the ON state — driven by a 12V or 24V DC signal from the field device. This per-point LED array is the first tool for commissioning and fault diagnosis: without a meter or PLC monitoring software, an installer can verify that each sensor is delivering a signal to the module by reading directly from the module's indicator lights.

The 12V/24V dual-voltage input acceptance covers the range of DC sensor and switch outputs common in modern machine tool and robot installations, avoiding the need to match supply voltages precisely.

Key Specifications

A03B-0819 I/O System Architecture

The A03B-0819-C106 is one module within a broader I/O system. A complete node requires a backplane (ABU05A or ABU10A), a power module (A03B-0819-C011 / AIF01A), and the selected combination of input and output modules. Common module types in the same family include digital output modules, analogue modules, and other I/O variants. The AID32F1 input module slots into any available slot in the backplane alongside other modules in the same node.

FAQ

Q1: What is the difference between A03B-0819-C106 (AID32F1) and A03B-0819-C111 (AID32H1)?

Both are 32-point digital input modules in the A03B-0819 series. The F1 and H1 suffixes identify different input circuit specifications — typically related to input current, filter time, or signal conditioning characteristics. Confirm which variant is installed in the machine from the module's own label before ordering a replacement. Both types fit the same backplane slots.

Q2: Can the A03B-0819-C106 module be replaced with power applied to the backplane?

FANUC's A03B-0819 I/O modules are hot-swap capable in systems where the backplane and power module support this function. Confirm from the FANUC I/O unit documentation for the specific controller whether hot-swap is supported. If not confirmed, power down the backplane before inserting or removing any I/O module.

Q3: All 32 inputs on the module read OFF but the field devices are confirmed active. Where is the fault?

Check the input power supply (12V or 24V DC common) to the module — if the common terminal has lost power, all 32 inputs read OFF simultaneously regardless of field device state. Verify the voltage at the module's power input terminal. If power is confirmed, check the wiring between each field device and the module input terminals. A simultaneous all-OFF condition is more likely a power or wiring issue than a module failure.

Q4: The LED for an input is ON but the CNC PMC does not register the input. What should be checked?

If the LED is illuminated, the module's input circuit is receiving the 12/24V DC signal correctly. The fault is likely in the I/O address assignment — the PMC may be reading a different I/O address than the module's position. Check the I/O map configuration in the CNC or robot controller to confirm the module's slot position matches the expected PMC address. Also confirm the backplane is recognised by the controller on the I/O bus.

Q5: Where is the A03B-0819-C106 sourced?

Through the FANUC I/O module aftermarket — FANUC CNC and robot parts dealers, tested surplus suppliers, and repair services. The A03B-0819 system is used across a large number of FANUC CNC and robot installations, keeping aftermarket availability good. Confirm A03B-0819-C106 (AID32F1) specifically from the installed module's label before ordering.
