Fanuc AC Servo Motor A06B-0215-B605 AO6B-O215-B6O5 A06B0215B605

FANUC A06B-0215-B605 AC Servo Motor | Beta Series | CNC Machine Tool Drive

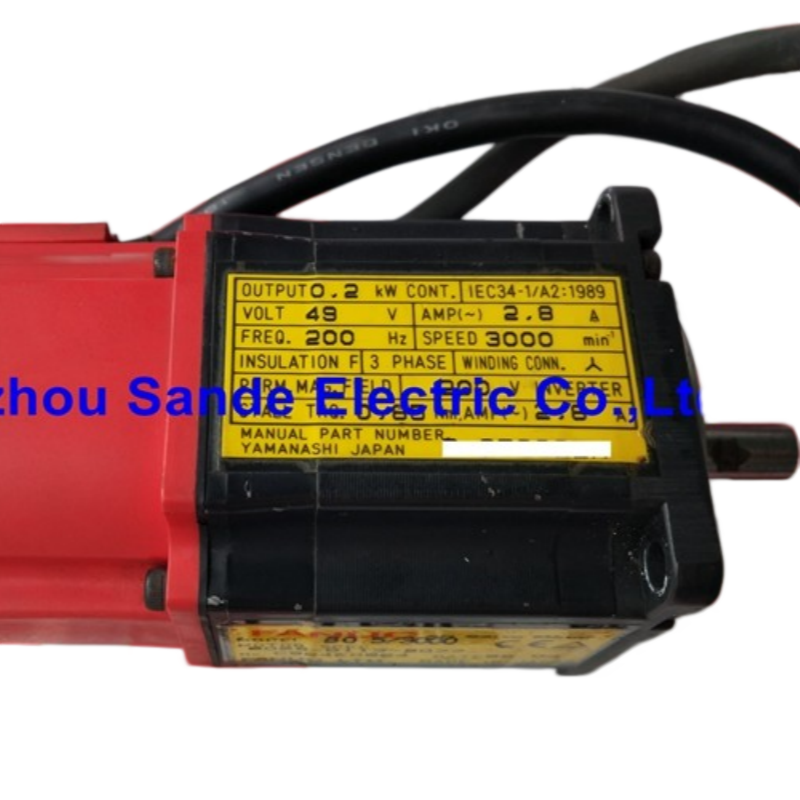

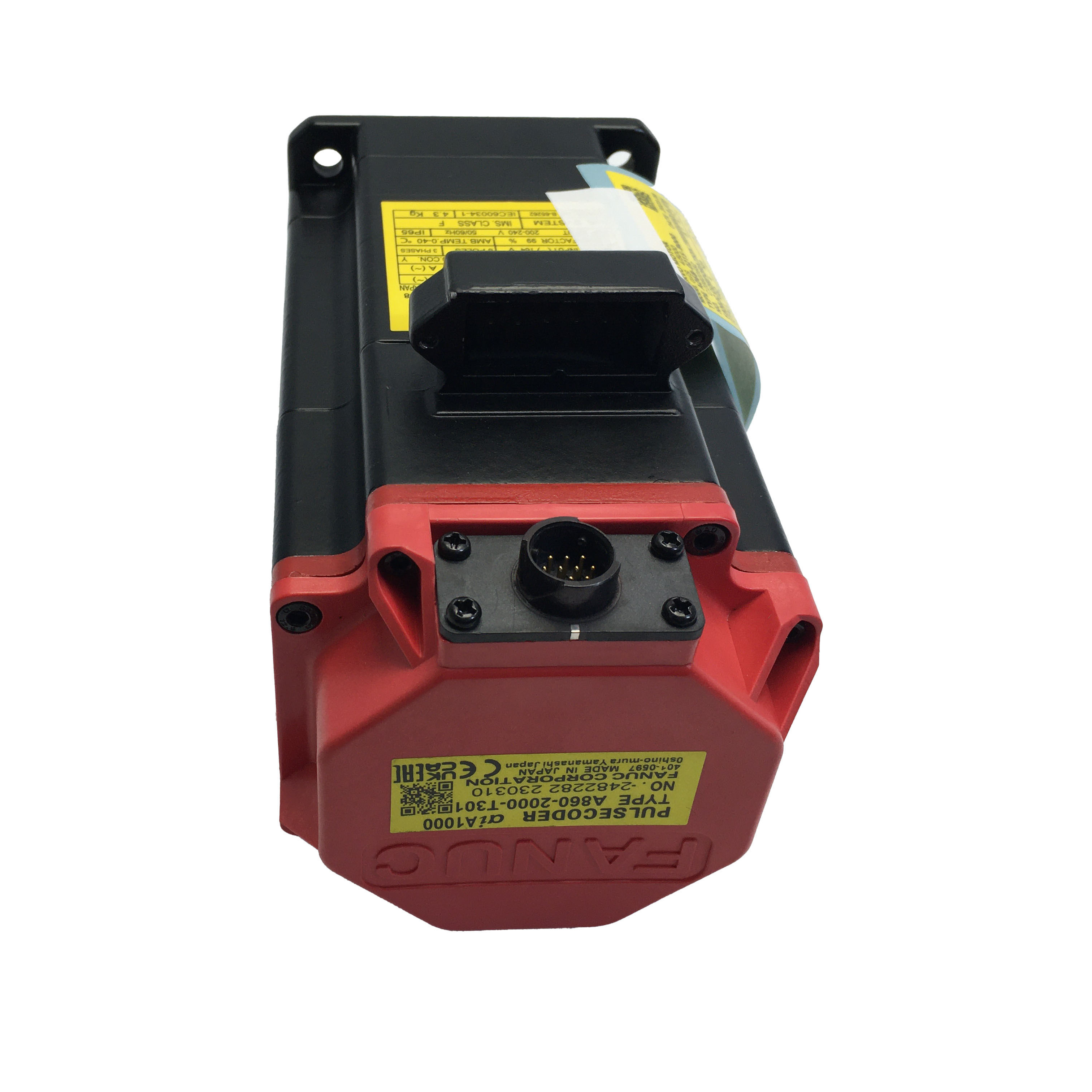

FANUC A06B-0215-B605 AC Servo Motor

Built for precision. Engineered for uptime.

The FANUC A06B-0215-B605 is a Beta Series (βi Series) AC servo motor designed to meet the demanding performance requirements of modern CNC machine tools. Whether you're running a turning center, machining center, or multi-axis system, this motor delivers the consistent torque output and positioning accuracy that FANUC-driven machines depend on.

What Makes This Motor Stand Out

FANUC's Beta Series servo motors are the industry standard for mid-range CNC applications — and the A06B-0215-B605 is no exception. A few things worth noting right away:

• Integrated holding brake — The "-B605" designation confirms a built-in electromagnetic brake, essential for vertical axis and gravity-loaded configurations where the axis must hold position when power is cut.
• Compact form factor — Despite its robust output, the motor's housing is optimized for tight machine enclosures without sacrificing thermal performance.
• High-resolution encoder feedback — Paired with FANUC's αi or βi servo amplifiers, the motor supports high-speed pulse feedback for tight loop control and superior surface finish results.
• Direct compatibility — Designed to integrate seamlessly with FANUC Series 0i, 21i, 31i, and related CNC control platforms.

Core Specifications

Designed for Real-World CNC Environments

One thing that sets FANUC servo motors apart from generic alternatives is long-term reliability under continuous duty cycles. The A06B-0215-B605 is built to tolerate the vibration, thermal cycling, and electrical noise common on the shop floor — not just in a lab environment.

The holding brake is a critical feature in vertical axis designs. When the CNC is powered down or an emergency stop is triggered, the brake engages automatically to prevent axis drift or drop. This isn't just a convenience feature — it's a safety requirement on many machine types.

Typical Applications

This motor is widely used across:

• CNC vertical machining centers (VMC) — Z-axis drive
• CNC lathes and turning centers — Turret index, tailstock
• Gantry and multi-axis routers
• Automation and robotic positioning systems built on FANUC platforms

Why Source a Genuine FANUC Unit

Counterfeit and rebuilt servo motors are common in the replacement parts market. A non-genuine unit may appear identical externally but often uses lower-grade magnets, mismatched encoder assemblies, or inadequate insulation ratings. For production environments, the risk of premature failure — and the downtime that follows — far outweighs any short-term cost savings.

When sourcing the A06B-0215-B605, confirm the unit includes FANUC part labeling, encoder housing integrity, and ideally a test report or warranty from the supplier.

FAQ

Q1: What servo amplifier is compatible with the FANUC A06B-0215-B605? This motor is designed for use with FANUC βi Series servo amplifiers (SVU and SVM types). Always verify the amplifier's current and voltage ratings match the motor specifications before installation.

Q2: Does the A06B-0215-B605 come with a brake as standard? Yes. The "B6" in the part number indicates an integrated electromagnetic holding brake. It engages automatically when power is removed, making it suitable for vertical or gravity-loaded axes.

Q3: Can this motor be used as a direct replacement for an older FANUC Beta Series unit? In most cases, yes — provided the physical dimensions, shaft size, and connector pinout match the original installation. Always cross-reference the full part number before swapping.

Q4: What is the typical cause of failure in this type of servo motor? The most common issues are encoder failure (often from contamination or impact), bearing wear from high duty-cycle use, and brake wear in vertical axis applications. Regular inspection of the encoder feedback signal and brake gap clearance is recommended.

Q5: Is a new or refurbished unit available for the A06B-0215-B605? Both new and professionally refurbished units are available through authorized FANUC distributors and reputable industrial parts suppliers. Refurbished units should come with a test certificate and a minimum 6-month warranty to be considered reliable for production use.
