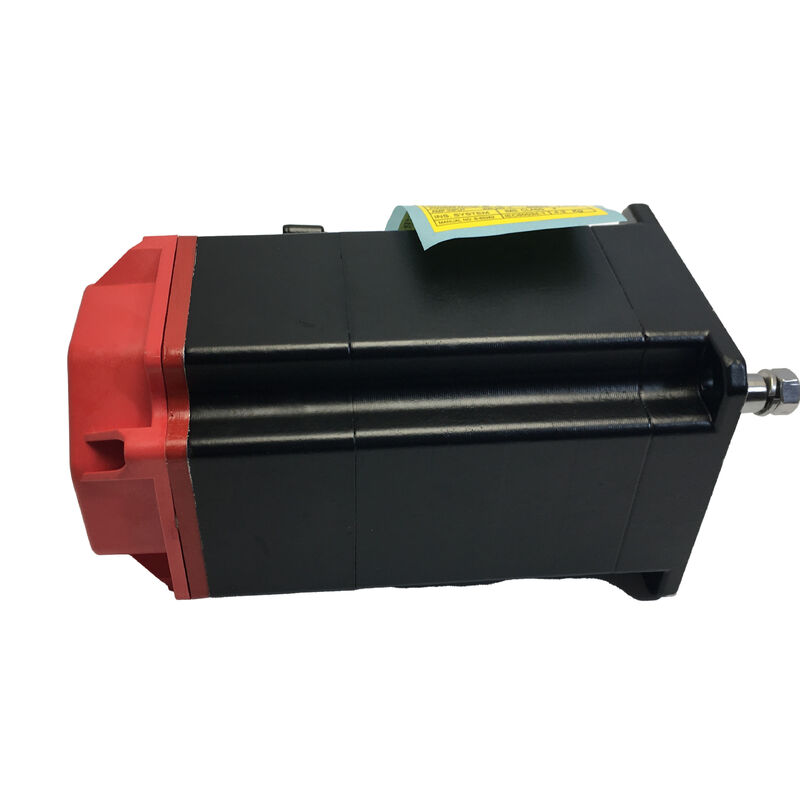

Fanuc AC Servo Motor A06B-0215-B100 — Compact βis Series Motor for High-Cycle CNC Applications

βis Series · No Brake · Compact AC Servo Motor for CNC Feed Axis Control

Small Motor. Serious Job.

The assumption that compact servo motors handle less demanding work doesn't hold in practice. On a high-cycle drilling center or a precision lathe running three shifts, the feed axis motor is one of the hardest-working components on the machine — accelerating, decelerating, and reversing hundreds of times per hour with positioning tolerances that don't move.

The Fanuc A06B-0215-B100 is built for exactly that kind of work. It's a βis-series AC servo motor in a small frame, configured without a brake for horizontal axis use, and designed to slot directly into FANUC-controlled machines without the commissioning friction that third-party alternatives routinely introduce. The drive speaks FANUC. The controller speaks FANUC. The motor does too — and that alignment shows up in how the machine behaves from the first cycle forward.

Specifications

Built for the Conditions Production Actually Creates

Coolant isn't going anywhere. Most CNC environments involve cutting fluid — as mist, as spray, or as pooled liquid near the machine base. The A06B-0215-B100 carries an IP67 shaft seal, which means the most vulnerable entry point for fluid ingress is specifically rated for immersion exposure. It's not a marketing claim; it's the specification the shaft seal is engineered to meet, shift after shift.

Position memory that doesn't depend on the power supply. The absolute serial encoder holds axis position without a reference battery or a homing sequence. When the machine powers back up after a planned stop or an unplanned one, the controller already knows where the axis is. Production restarts without delay.

Smooth output at low speeds matters more than peak numbers. A motor with high torque ripple introduces surface irregularities in slow finishing passes — the kind that show up in the part and can't be compensated away by the controller. The βis winding geometry keeps torque delivery consistent across the full speed range, which is where it counts for surface finish work.

Thermal behavior over time, not just at startup. The insulation class and bearing specification on this motor are chosen for sustained continuous duty. A motor that holds its thermal equilibrium through a long shift behaves predictably. One that doesn't introduces a variable that's genuinely difficult to diagnose from the outside.

Where This Motor Works

CNC Turning Centers — Feed axis control on compact lathes where consistent tool positioning across high part counts is the core requirement. The absolute encoder keeps positioning reference intact between parts and between shifts.

Small Vertical Machining Centers — X and Y axis drives on machines with limited installation space. The βis small frame fits where mid-range motors won't, without giving up encoder accuracy or drive compatibility.

Tapping and Drilling Centers — Applications defined by high reversal frequency and fast cycle times. The motor's low inertia and quick torque response keep cycle times tight without accumulating positional error across cycles.

Auxiliary Axes and Rotary Systems — Secondary axes on multi-process machines — rotary tables, tool changers, pallet positioning — where full FANUC integration matters but αi-series power and cost are more than the application needs.

The Condition Question — and Why It's Worth Asking

A meaningful share of the FANUC servo motor market consists of refurbished units that aren't always labeled as such. They arrive looking clean. The shaft shows no visible wear. The packaging may even look close to original.

What isn't visible: how many hours the encoder has run, how many thermal cycles the winding insulation has been through, whether the bearings were loaded at an angle at some point and are carrying internal fatigue. That history doesn't appear on arrival — it appears six months or a year later, during production, on a machine that's scheduled to be running parts.

A new A06B-0215-B100 has none of that history. Factory bearings, an encoder at zero hours, and warranty coverage that applies from day one. For a component that will run unattended inside a machine for years, those are reasonable things to verify before the unit is installed.

Installation and Ongoing Service

Before installation, verify amplifier module capacity against the motor's rated current and confirm physical dimensions fit your mounting arrangement. Do this with the drawings, before uncrating — not after the motor is already at the machine.

Once running, the diagnostic to watch is axis following error. A trend of slow, steady increase over weeks — rather than a sudden alarm — is typically the early signature of encoder cable seal deterioration in coolant-exposed installations. Catching it at that stage means a cable replacement, not an unplanned production stop.

For stored units: keep them at 0–40 °C, humidity below 75%, no condensation. Rotate the shaft by hand every six months to prevent bearing brinelling under sustained static contact load. Don't unpack until installation day.

Frequently Asked Questions

Q1: Does this motor come with a built-in brake? No. The B100 configuration does not include an integrated brake. This motor is designed for horizontal axis applications where the load does not need to be held when power is removed. If your application involves a vertical axis or gravity-loaded axis, a brake-equipped variant in the βis series should be used instead.

Q2: What drive hardware does the A06B-0215-B100 require? This motor runs with FANUC βi SVU or βi SVM series servo amplifiers. Amplifier module capacity must match the motor's rated current — confirm the correct pairing before ordering. Mismatched amplifier ratings are one of the more common installation errors on βis motors.

Q3: Will this work as a direct replacement for an older β-series motor? It depends on the specific unit being replaced. The βis series uses an updated encoder protocol compared to earlier β-series motors, which typically requires parameter changes in the CNC controller. Physical connector locations may also differ. It is not a plug-and-play swap and needs verification against both the machine wiring and controller parameters.

Q4: Which FANUC CNC systems are compatible? The A06B-0215-B100 is compatible with FANUC 0i-D, 0i-F, 30i, 31i, and 32i series controllers when paired with an appropriate βi amplifier. For older controller generations, compatibility needs to be confirmed before specifying this motor as a replacement.

Q5: What's the best way to confirm a unit being sold is genuinely new? Check for sealed FANUC packaging with intact labels, a shaft that shows no wear at the keyway or shaft end, and a serial number that has no prior service or repair record. A seller who can provide documentation confirming new stock origin is a reasonable baseline. If the packaging has been opened or sourcing documentation isn't available, ask before accepting the unit.
