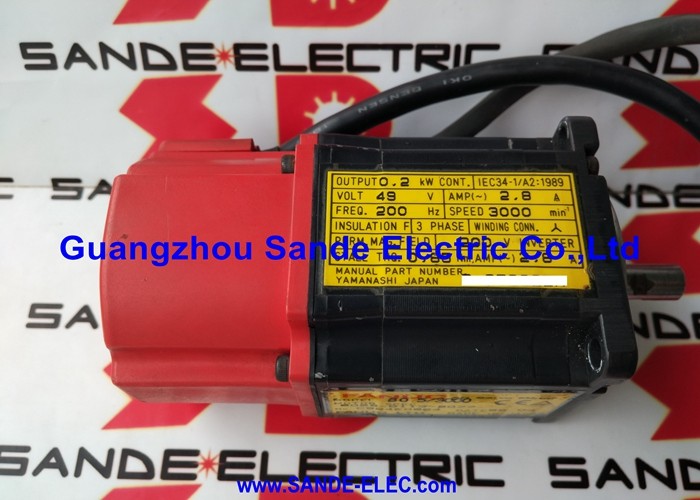

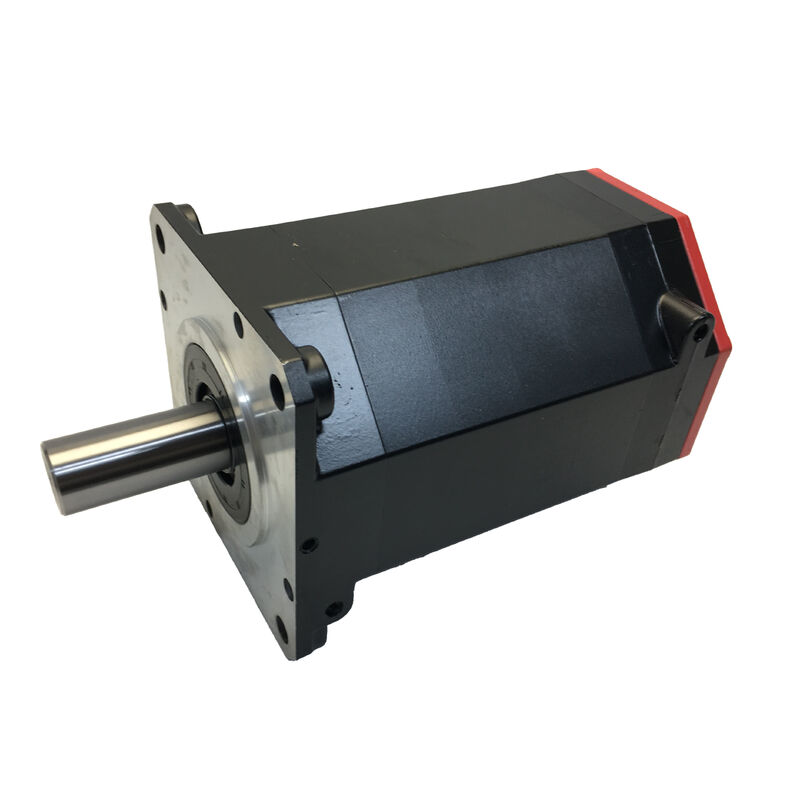

Fanuc AC Servo Motor A06B-0221-B000

βis Series · No Brake · High-Precision AC Servo for CNC Machine Tools

Precision Starts at the Axis

Every positioning error in a CNC machine traces back somewhere — a worn encoder, a thermally unstable winding, a motor that wasn't quite the right fit for the drive system it was paired with. The Fanuc A06B-0221-B000 is built to eliminate all three of those variables.

It belongs to FANUC's βis series: the compact-end workhorse of their servo motor lineup, used across a wide range of smaller and mid-size CNC platforms where space is limited but accuracy requirements are not. The B000 designation means this unit ships without an integrated brake — a configuration suited to horizontal axes where the motor isn't responsible for holding a load against gravity when power is removed.

What you get in return is a lighter assembly, simpler drive cabinet wiring, and a motor that connects directly into FANUC's βi amplifier architecture without any adaptation layer between them.

Technical Specifications

Four Things That Matter When a Motor Is Running Inside a Machine

You don't interact with a servo motor after it's installed. It runs inside the machine, unattended, for years. These are the characteristics that determine whether that goes smoothly or not:

1. Absolute encoder — no homing required. The encoder stores position data continuously. After a power interruption, emergency stop, or planned shutdown, the axis comes back online at its exact last position. No homing routine, no lost reference, no delay getting back into production.

2. IP67 shaft seal — coolant exposure handled. Coolant mist reaches everywhere in an active machining environment. The shaft-end seal on the A06B-0221-B000 is rated IP67 — designed to keep contaminants out across the full service life of the motor without requiring special periodic maintenance.

3. Low torque ripple — surfaces finish cleaner. At slow feed rates, motor irregularities print directly onto the machined surface. The βis winding geometry keeps torque delivery smooth across the speed range, which means finishing passes produce the surface quality the tool geometry was designed to achieve.

4. Thermal stability through long shifts. The insulation class and bearing specification are both selected for sustained continuous operation. A motor that runs cool at hour two but starts drifting at hour ten creates problems that are difficult to trace back to the source. This one doesn't drift.

Machine Types This Motor Is Used In

The A06B-0221-B000 is a small-frame motor. It fits where larger units won't, and it delivers the positioning accuracy and drive compatibility that FANUC-controlled machines are built around.

Compact CNC Turning Centers X and Z axis feed on smaller lathes running medium-to-high cycle counts. The encoder's absolute feedback keeps part-to-part positioning consistent even when the machine restarts mid-batch.

Benchtop and Small VMCs X and Y axis control on compact vertical machining centers used in precision component production, mold work, and tooling manufacture. The motor's footprint fits where larger servo units simply cannot.

Drilling and Tapping Centers These machines reverse axis direction hundreds of times per shift. The A06B-0221-B000 handles high-cycle reversals cleanly, with fast torque response and no positional error accumulation between cycles.

Auxiliary and Indexing Axes Tool changers, rotary tables, and pallet indexing systems that need full FANUC protocol integration without the size and cost of an αi-series motor. The βis series is the right tier for these secondary roles.

On the Question of Motor Condition

The used and refurbished servo motor market is large and not always transparently labeled. A motor with several thousand operating hours can be cleaned, repackaged, and listed without that history being disclosed. From the outside, it looks identical to a new unit.

The difference shows up later: an encoder that starts generating intermittent errors, bearings that develop noise after a few months of operation, winding insulation that's already partway through its thermal life cycle. None of it is detectable on arrival.

A new A06B-0221-B000 starts with an encoder that has never accumulated wear, bearings in factory condition, and full OEM warranty coverage. For a component that operates continuously inside a production machine, the starting condition is a reasonable thing to care about.

Installation, Service and Storage

At installation: Verify that the βi amplifier module capacity matches the motor before wiring. Check physical dimensions and connector positions against the machine mounting drawing — do this before uncrating the unit, not after.

During operation: Watch the axis following error trend through the CNC diagnostic screen. A slow upward drift over weeks or months typically means encoder cable seal degradation, and catching it there avoids the hard alarm that comes next.

In storage: Keep the unit between 0 °C and 40 °C, below 75% relative humidity, with no condensation. Rotate the shaft by hand every six months to prevent bearing brinelling under static load. Leave it in original sealed packaging until the day of installation.

Frequently Asked Questions

Q1: Does the A06B-0221-B000 have a built-in brake? No. The B000 suffix indicates this motor ships without an integrated brake. It is intended for horizontal axis applications where power-off load holding is not required. For vertical axes or any axis that must hold position when the machine is de-energized, a brake-equipped variant within the βis series should be selected instead.

Q2: What amplifier is required to run this motor? This motor is designed for use with FANUC βi SVU or βi SVM series servo amplifiers. The amplifier module must be rated to the motor's current specification — confirm the correct pairing before purchasing either component.

Q3: Is this motor compatible with FANUC 0i-F and 30i controllers? Yes. The A06B-0221-B000 is compatible with FANUC 0i-D, 0i-F, 30i, 31i, and 32i series CNC controllers when used with an appropriate βi-series servo amplifier. Compatibility with earlier controller generations should be verified before specifying this motor as a replacement.

Q4: Can it replace a first-generation β-series motor on an older machine? Not as a direct swap. The βis series uses an updated serial encoder compared to earlier β-series motors, which requires parameter changes in the CNC after installation. Physical connector positions may also differ between generations. A fit check and parameter review are both necessary before treating it as a like-for-like replacement.

Q5: What should I check when buying to confirm the unit is new? New units come in sealed FANUC packaging with intact labels, a shaft that shows no contact wear or fretting at the keyway, and a serial number with no prior service record. Ask the seller for documentation confirming new stock status. If the packaging has been opened or the seller cannot provide sourcing information, clarify before accepting the shipment.
