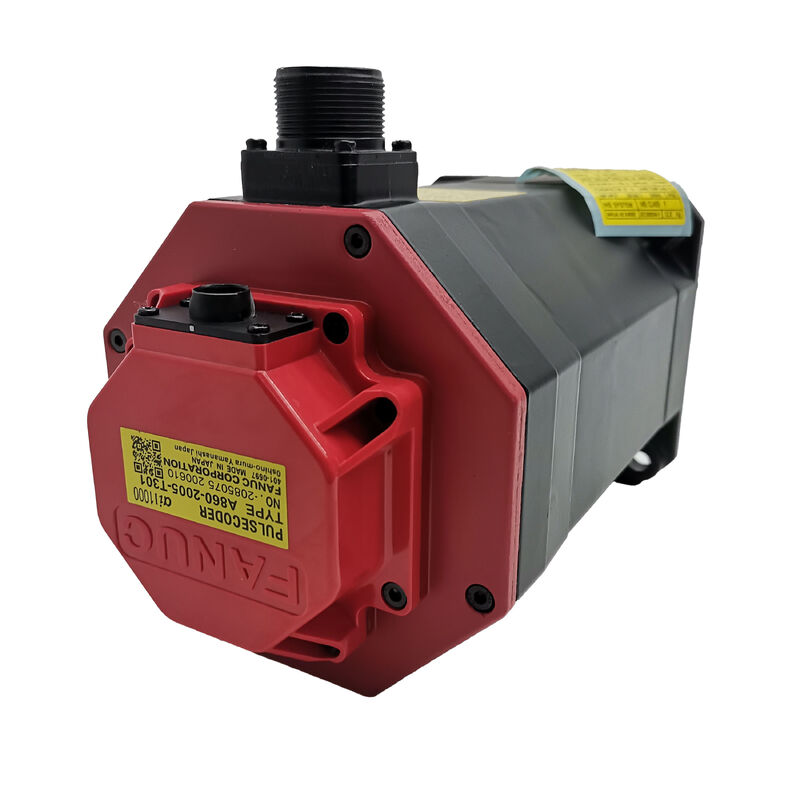

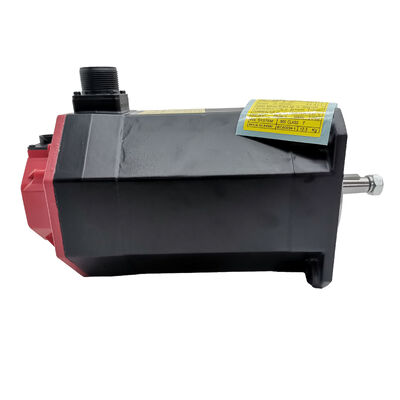

Fanuc AC Servo Motor A06B-0227-B001 — βis Series Precision Motor for Compact CNC Axis Control

Where Compact Meets Capable

There's a version of this conversation where a smaller motor means a compromised one. That version doesn't apply here.

The Fanuc A06B-0227-B001 operates at the compact end of FANUC's βis servo motor lineup without giving up the characteristics that make an axis behave well in production: absolute position retention, clean low-speed torque, thermal stability across a full shift, and the native drive compatibility that removes commissioning uncertainty from the equation entirely. It doesn't include a brake — a deliberate configuration for horizontal axis use — which keeps the assembly lighter and the wiring straightforward.

In machines built around FANUC controllers, this motor connects to the drive system the same way the original equipment did. The encoder protocol matches. The amplifier pairing is direct. The controller doesn't need to negotiate anything. That's a different starting point than a third-party alternative, and it's a gap that tends to show up during setup rather than on the spec sheet.

Specifications

Five Things the Axis Needs the Motor to Get Right

One: Know where it is without being told. The absolute serial encoder holds position data across power cycles. No homing battery. No reference sequence on restart. The axis resumes from its exact last position the moment the controller initializes — useful in planned restarts, essential in unplanned ones.

Two: Handle the environment the machine actually runs in. Cutting fluid is present in almost every CNC installation — as mist, as directed flow, or as residue that migrates. The IP67 shaft seal addresses the most vulnerable ingress point directly, rated for immersion exposure rather than just splash resistance. It holds that rating without special maintenance intervals.

Three: Deliver torque consistently at low speeds. At slow feed rates, torque ripple from the motor prints onto the machined surface. The βis winding geometry keeps output smooth across the full speed range. That's not a marginal performance claim — it's the difference between a finishing pass that holds the drawing tolerance and one that doesn't.

Four: Stay thermally stable from hour one to hour ten. Insulation class and bearing specification on this motor are selected for continuous duty, not intermittent operation with long cool-down periods between cycles. A motor that holds thermal equilibrium through an extended shift produces consistent axis behavior. One that drifts introduces positioning variation that's genuinely difficult to isolate.

Five: Fit where larger motors won't. The small frame on the A06B-0227-B001 is a practical constraint in compact machine platforms, not a performance compromise. It goes into spaces that mid-range motors can't reach, without giving up encoder resolution, protection rating, or drive compatibility.

Production Environments This Motor Is Specified For

High-Volume CNC Turning On compact lathes running multi-shift production, X and Z axis consistency is measured in microns across thousands of parts. The absolute encoder prevents reference drift between batches; the thermal stability prevents drift across shifts. Both matter when part-to-part variation is the metric being managed.

Small and Mid-Size VMCs Space constraints on compact vertical machining centers rule out larger motor frames. The βis small-frame format fits the installation envelope while delivering the FANUC protocol integration that the control system expects as a baseline.

Tapping and Drilling Centers These machines define their cycle around rapid, repeating direction reversals on the feed axis. Low inertia and fast torque response mean cycle times stay tight and positional accuracy doesn't degrade as cycle count increases through the shift.

Secondary Axes on Multi-Process Machines Rotary tables, tool changers, chip conveyors, and pallet positioning systems that need full FANUC integration without the frame size or cost of an αi-series motor. The βis series covers this tier correctly.

Refurbished Units, New Units, and the Risk the Market Creates

The secondary FANUC servo motor market is large. It includes genuine new-old-stock units, properly refurbished units with disclosed service histories, and — less reassuringly — units that have been cleaned, repackaged, and listed without any disclosure of prior operating time.

The last category is the one that creates problems. The motor arrives looking acceptable. The shaft turns freely. The external seals show no obvious damage. What isn't visible: accumulated encoder hours, winding insulation that has gone through thermal cycling, bearings that may be carrying preload changes from prior loading conditions. None of that is apparent on receipt. It shows up later, during production, as a slow rise in axis following error, an intermittent encoder alarm, or a bearing that starts generating noise months into service.

A new A06B-0227-B001 has none of that accumulated history. Factory bearings. An encoder at zero operating hours. Winding insulation at the beginning of its service life. Full OEM warranty coverage from the date of installation. For a motor that will run unattended inside a production machine for years, the starting condition is a reasonable variable to control.

Before Installation, During Operation, and in Storage

Getting installation right starts before the motor is at the machine. Verify that the βi amplifier module capacity matches the motor's rated current — a mismatched rating generates alarms from first power-on and is one of the more common errors on βis replacements. Check mounting dimensions and connector positions against the machine drawing before uncrating. Discovering a mismatch at the drawing takes minutes. Discovering it at the machine costs considerably more.

During operation, the diagnostic worth watching is axis following error through the CNC screen. A gradual upward drift over weeks — as distinct from a sudden alarm — is typically the earliest indicator of encoder cable seal degradation in coolant-exposed installations. Catching it at that stage means a cable replacement during a planned maintenance window, not an unplanned production stop.

For units held in storage: 0–40 °C, relative humidity below 75%, no condensation. Rotate the shaft manually every six months to prevent bearing brinelling from static contact load on a fixed point. Leave the unit in original sealed packaging until installation day.

Frequently Asked Questions

Q1: Does the A06B-0227-B001 include an integrated brake? No. The B001 configuration does not include a brake. This motor is designed for horizontal axis applications where the load does not need to be held when power is removed. If the application involves a vertical axis or any gravity-loaded condition that requires power-off holding, a brake-equipped variant within the βis series should be specified instead.

Q2: Which FANUC amplifier units work with this motor? The A06B-0227-B001 is designed for use with FANUC βi SVU or βi SVM series servo amplifiers. Amplifier module capacity must be matched to the motor's rated current before ordering. Using an incorrectly rated module is one of the more frequent setup errors on βis motor installations.

Q3: Is this a drop-in replacement for an earlier β-series motor? Not without verification. The βis series uses an updated serial encoder protocol compared to earlier β-series motors, which means CNC parameters need to be reviewed and updated after installation. Physical connector positions may also differ between generations. Plan for a parameter check and a fit verification before the first axis run — don't assume dimensional compatibility from the motor family name alone.

Q4: Which CNC controllers is this motor compatible with? Compatible controllers include FANUC 0i-D, 0i-F, 30i, 31i, and 32i series when paired with an appropriate βi-series servo amplifier. For controller generations outside this list, compatibility should be confirmed before specifying this motor as a replacement.

Q5: How do I confirm a unit is genuinely new before accepting delivery? New units come in sealed FANUC packaging with intact authenticity labels, a shaft that shows no wear or contact marking at the keyway, and a serial number with no prior service or repair record. Request sourcing documentation from the seller before purchase. If the packaging has been opened, the labeling is unclear, or the seller cannot confirm new stock origin, treat that as a reason to ask questions before accepting the shipment.
