New FANUC A06B-0269-B100 AC Servo Motor for CNC and Precision Industrial Motion

The FANUC A06B-0269-B100 AC Servo Motor is designed for CNC equipment and industrial automation systems that require stable torque output, fast servo response, and reliable positioning accuracy during continuous operation. In production environments, a motor like this is valued not only for its output class, but for how well it supports controlled acceleration, consistent axis behavior, and repeatable motion over long duty cycles. This model is commonly listed as an αiS 30/4000HV servo motor with straight shaft, straight shaft with key, and A1000 / αiA1000 feedback, making it especially practical for compatible FANUC-based replacement and maintenance work.

Key Technical Data

Built for High-Response Motion with Stable Torque Delivery

What makes this motor useful in real industrial service is the way its torque and speed characteristics work together. A servo motor in this class must stay predictable during acceleration, react cleanly to command changes, and remain stable when the machine sees changing load conditions. The A06B-0269-B100 fits that requirement well because its output profile is strong enough for demanding axis work without sacrificing the controlled behavior expected in CNC and automation systems. The 30 Nm stall torque supports solid low-speed control, while the 100 Nm maximum torque provides additional reserve for short-duration peak demand.

Its 3000 min⁻¹ rated speed and 4000 min⁻¹ maximum speed also make it a practical choice for systems where fast axis movement and positioning consistency need to work together. In many machine tools and automation assemblies, that balance is more important than chasing raw speed alone. A well-matched servo motor helps preserve interpolation smoothness, repeatability, and overall process consistency, which directly affects machine performance in everyday use.

Straight Shaft Configuration for Easier Mechanical Compatibility

Mechanical fit is one of the first issues buyers look at when replacing a servo motor. Public listings commonly describe this model with a straight shaft, and some specifically identify it as a straight shaft with key. That is an important practical detail because shaft design influences coupling compatibility, alignment, and installation efficiency. A motor that matches the original shaft arrangement is much more likely to restore the machine’s intended motion behavior without requiring extra modification.

For service teams and rebuilders, that kind of compatibility can make a real difference. It shortens commissioning time, reduces installation uncertainty, and improves the chances of returning the equipment to stable operation quickly. In established FANUC systems, those mechanical details are often just as important as the headline electrical specifications.

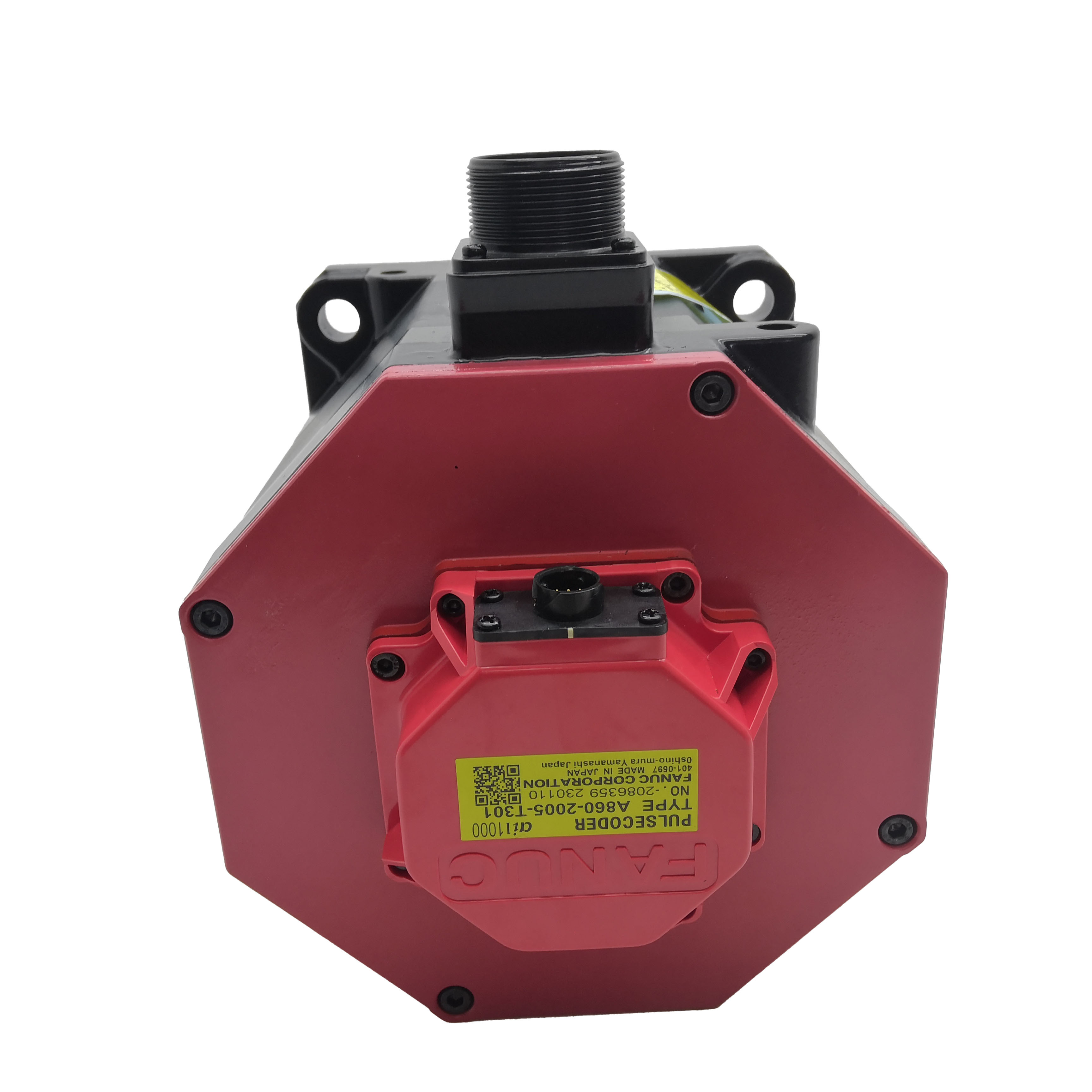

A1000 Feedback for Precise Servo Control

This motor is also commonly associated with A1000 / αiA1000 feedback, which is one of the main compatibility checkpoints in replacement sourcing. In practical use, the encoder allows the control system to monitor speed and position continuously, which is essential for smooth correction, repeatable stopping behavior, and accurate axis tracking. When the expected feedback type is matched correctly, the machine has a much better chance of maintaining its original control quality after installation.

That matters especially in CNC and industrial automation systems where even small motion inconsistencies can affect part quality or cycle stability. Rather than being just a replacement component, the motor is part of the machine’s overall accuracy chain, and dependable encoder feedback is one of the reasons it can continue to perform consistently in long-term service.

Typical Applications

The FANUC A06B-0269-B100 AC Servo Motor is commonly considered for:

• CNC machine tools

• Industrial automation systems

• Precision axis control assemblies

• High-response motion-control equipment

• Compatible FANUC servo motor replacement projects

FAQ

Q1: What is the rated output of the FANUC A06B-0269-B100?
A1: The FANUC A06B-0269-B100 is associated with a rated output of 5.5 kW. This places it in a performance class suitable for CNC and industrial automation systems that need substantially more servo capability than compact motor sizes can provide. In practical use, that output level supports strong axis drive performance while still maintaining the controlled motion behavior expected in precision equipment.

Q2: What speed and torque performance is associated with this motor?
A2: The αi-series data for the matching specification group lists 3000 min⁻¹ rated speed, 4000 min⁻¹ maximum speed, 30 Nm stall torque, and 100 Nm maximum torque. These values indicate a motor intended for demanding servo work where stable acceleration, dependable load handling, and repeatable axis behavior are all important. For many buyers, these are the most useful baseline figures when comparing it with the motor already installed on the machine.

Q3: What shaft and feedback configuration is commonly listed for the A06B-0269-B100?
A3: Public distributor listings commonly describe this model with a straight shaft, often noted as a straight shaft with key, together with an A1000 / αiA1000 encoder. These details matter because they affect both mechanical installation and control-side compatibility. Confirming them before purchase can reduce installation issues and improve the chance of restoring the machine’s original motion characteristics after replacement.

Q4: What electrical characteristics are commonly listed for this motor?
A4: Available listings commonly associate the A06B-0269-B100 with 353 V, 9.3 A, 200 Hz, and 3-phase operation. These figures are useful when comparing the motor against an existing drive or machine platform. Before installation, users should still verify complete amplifier and feedback compatibility with the original system.

Q5: What kinds of applications is the FANUC A06B-0269-B100 suitable for?
A5: This servo motor is suitable for CNC machinery, industrial automation equipment, precision axis systems, and compatible FANUC replacement applications. Its combination of 5.5 kW output, αiS 30/4000HV performance, straight-shaft configuration, and A1000 feedback makes it especially useful in systems where accurate motion control and dependable long-term operation are essential.
