FANUC A06B-0034-B177 | Beta B6/2000 AC Servo Motor — Straight Keyed Shaft / Spring Brake / i32b Encoder / IP67

B6/2000 — Medium-Frame Beta Motor with Brake

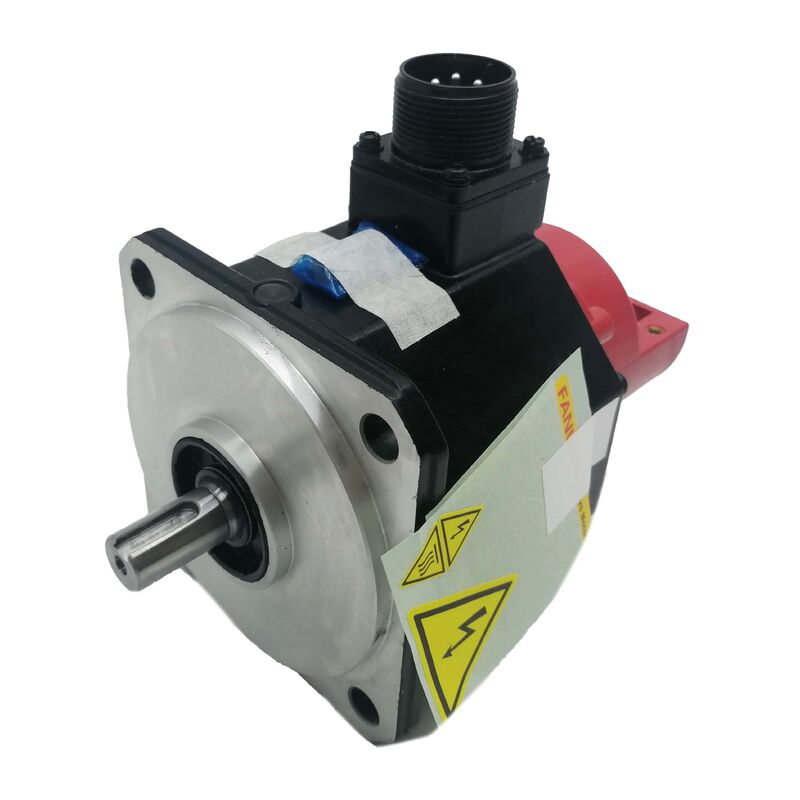

The A06B-0034-B177 is FANUC's B6/2000 servo motor — the 2,000 rpm motor from the Beta series in the straight-shaft, brake-equipped, i32b encoder configuration. The B6 designation identifies the motor's torque class: a medium-frame Beta motor with the continuous torque output to handle sustained machine-duty loads at moderate speed. At 11.2 kg this is a physically substantial motor, sized for machine axes that carry real mechanical load rather than light positioning duties.

The built-in brake is spring-applied — it engages by default when the 24V brake coil is not energised, holding the shaft locked. Normal servo operation requires the coil to be powered (brake released). At servo-off, E-stop, or power loss, the coil de-energises and the spring immediately locks the shaft.

This makes the B177 configuration appropriate for vertical axes, inclined slides, or any mechanism where the load has a gravitational component and would move under gravity when the servo is inactive. On horizontal axes where servo lock alone is sufficient, the no-brake variant is the correct specification — the brake adds circuit complexity and maintenance without functional benefit.

The i32b encoder is incremental, providing 32 signal periods per revolution for speed and position feedback. This requires a reference-return (homing) cycle at each machine power-up to establish the position reference. The machine cannot begin production until this cycle completes.

IP67 — Sealed for Machine Tool Environments

IP67 confirms full dust exclusion and temporary water immersion to one metre for 30 minutes. In machine tool environments where coolant spray, swarf, and cleaning operations are part of normal operation, this protection rating is the standard specification for axis servo motors. The shaft oil seal adds protection at the front bearing against liquid ingress through the shaft penetration point.

Key Specifications

FAQ

Q1: The brake does not release when the axis is enabled. The 24V coil supply is confirmed at the connector. Is the brake faulty?

With 24V confirmed, measure the resistance across the brake coil terminals (24V disconnected). A healthy spring-applied brake coil typically reads in the 15–50 Ω range depending on the motor frame. Open circuit confirms a failed coil. If resistance is within range but the brake remains applied, mechanical binding in the disc — from contamination or a seized spring — is preventing release.

Q2: The machine requires a homing cycle at every power-up. Is this because of the i32b encoder?

Yes. The i32b is incremental — it counts pulses from power-on but has no absolute position memory. A homing cycle is required to establish the reference before production can start. If the machine needs absolute position at power-up without homing, specify a Beta motor variant with an absolute encoder.

Q3: Can A06B-0034-B177 be used on a horizontal axis where a brake is not needed?

The motor works on a horizontal axis, but the brake circuit still requires 24V to hold the brake released during operation. If a brake is not needed, specifying the no-brake variant eliminates the brake coil circuit, the surge absorber, the MBR interlock in the PLC, and the periodic brake inspection from the maintenance schedule. For horizontal axes, the no-brake variant is the simpler and correct specification.

Q4: After installing A06B-0034-B177, the axis shows a small position drift at rest. What should be checked?

Small drift at rest with a brake-equipped motor on a horizontal axis first warrants checking whether the brake is fully releasing — a partially applied brake creates a mechanical resistance that appears as apparent position drift to the servo loop. Confirm 24V is present at the brake connector with the servo enabled. If the brake is fully released, check that the servo amplifier's motor type parameter matches the B6/2000 specification.

Q5: Where is the A06B-0034-B177 sourced?

Through the FANUC Beta series motor aftermarket — new surplus, tested refurbished, and motor rebuild services. Confirm the full part number including B177 (straight shaft + brake + i32b) from the installed motor's nameplate. Brake function and encoder condition should both be verified in any acceptance test.
