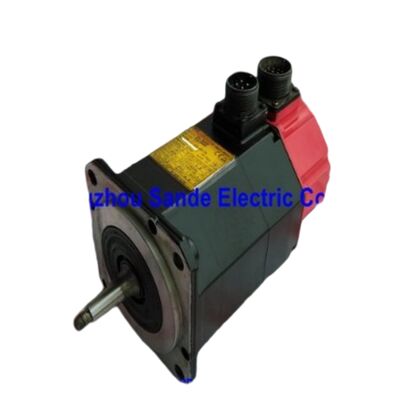

FANUC A06B-0143-B077 AC Servo Motor

Alpha Series | 2.8 kW | 3000 RPM | Built for the Demands of Industrial CNC

The Motor That Keeps Production Lines Moving

In a world where CNC downtime is measured in lost revenue, the components you choose matter more than most people admit. The FANUC A06B-0143-B077 has earned its place as a go-to servo motor for small-to-medium-sized machine tools — not through marketing, but through consistent, verifiable performance across thousands of real-world installations.

Part of the Alpha 12/3000 family, this motor delivers 2.8 kW of rated output with a stall torque of 12 Nm, running at up to 3,000 RPM on a three-phase, 155V / 200Hz supply. The straight keyed shaft and FANUC Alpha I64 incremental encoder (64K ppr) — referenced as A860-0365-V501 or A860-0365-T101 — combine to deliver tight, reliable position feedback that holds up through high-cycle-count operations.

Technical Specifications at a Glance

Fully Enclosed, Brushless — and That Changes Everything

FANUC's Alpha series uses a totally enclosed, friction-free brushless design, allowing these servo motors to operate in demanding environments with no need for regular brush maintenance. For shops running multi-shift schedules, that directly translates into fewer unplanned stoppages and a lower total cost of ownership over the motor's service life.

The IP67-rated sealing adds another layer of practicality. Coolant splash, airborne metal particles, general workshop grime — none of these penetrate the motor housing under normal operating conditions. It's the kind of detail that seems minor until you're not dealing with premature bearing failures caused by contamination.

Where This Motor Gets Used

Designed for small-to-medium-sized machine tools, the A06B-0143-B077 has documented install history across a wide range of industrial equipment. You'll commonly find it driving:

• Vertical and horizontal machining centers — feed axis control (X, Y, Z)
• CNC turning centers — X and Z axis positioning
• PCB drilling machines — where high-speed, high-repeatability movement is non-negotiable
• Multi-axis engraving and routing systems
• Industrial robot joint axes

Amplifier Compatibility

The A06B-0143-B077 is matched to the FANUC SVM1-80 servo amplifier module, available as A06B-6079-H105 or A06B-6096-H105. This pairing is documented in FANUC's official Alpha Series descriptions manual and ensures that current limits, overload protection thresholds, and drive tuning parameters are correctly pre-configured for this power class.

The motor also integrates natively with FANUC CNC controllers across the 0i, 16i, 18i, and 21i families without requiring additional interface hardware. For legacy systems running earlier FANUC platforms, confirming amplifier firmware compatibility before installation is advisable.

A Note on the B077 vs. B075 Suffix

The "B077" designation indicates an Alpha I64 incremental encoder — 64,000 counts per revolution. This motor can be converted to a "B075," "B084," or "B088" configuration through an encoder change. The "#7008" suffix denotes a straight shaft with a keyway. This motor does not include a holding brake; models with a brake carry part numbers beginning with A06B-0143-B1 rather than B0.

Frequently Asked Questions

Q1: What servo amplifier is compatible with the A06B-0143-B077?

The recommended amplifier is the FANUC SVM1-80, either A06B-6079-H105 or A06B-6096-H105. Using a mismatched amplifier can trigger drive alarms and may void warranty on refurbished units.

Q2: Does this motor include a holding brake?

No. The B077 suffix indicates no brake. If your application requires a holding brake — on a vertical axis, for example — look for part numbers starting with A06B-0143-B1***.

Q3: Can the I64 encoder be replaced independently?

Yes. The encoder references are A860-0365-V501 or A860-0365-T101 and are available separately. After replacement, a reference return (zero-return) cycle on the CNC controller is required to re-establish the position datum.

Q4: Is there a meaningful performance difference between a tested refurbished unit and a new one?

A professionally rebuilt and load-tested unit — with encoder calibration verified — will typically perform within specification tolerance. The key question is whether the supplier provides a test report and a warranty. An untested cosmetic refurb is a different matter entirely and carries real risk in precision applications.

Q5: Is the A06B-0143-B077 still in production?

FANUC has phased out production of this Alpha series variant through official channels. Availability now comes from certified surplus stock, authorized rebuild programs, and exchange-based refurbishment services. If you're maintaining a fleet of machines that use this motor, sourcing spare inventory proactively is worth considering.
