New Mitsubishi Servo Motor HF-KE13W1-S100 HFKE13W1S100 HF-KE13W1-S1OO

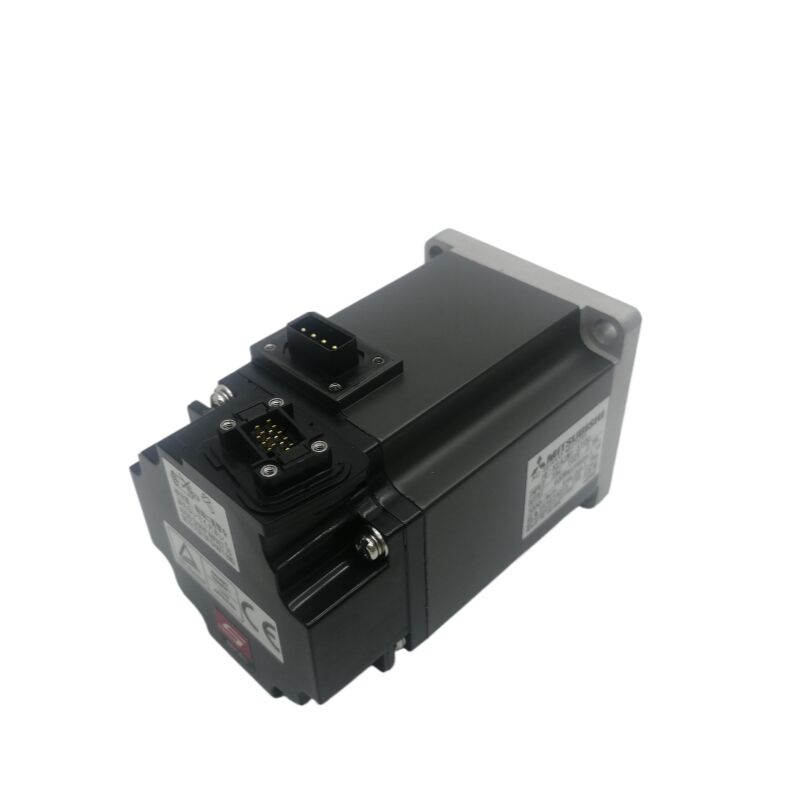

Mitsubishi Servo Motor HF-KE13W1-S100

The Mitsubishi HF-KE13W1-S100 is a compact AC servo motor designed for precise motion control in light-duty automation systems. As part of the HF series, it is positioned for small-capacity servo applications where stable speed control, responsive acceleration, and reliable positioning are more important than high-output power.

With a 3-phase design, 0.1 kW output, and 3000 rpm rated speed, this model is well suited to compact axes used in feeders, indexing units, transfer mechanisms, packaging equipment, and other small machine motions that demand repeatable performance in limited installation space.

In practical use, the HF-KE13W1-S100 is the kind of servo motor typically chosen for existing Mitsubishi motion systems where dimensional fit, predictable control behavior, and straightforward replacement matter.

It belongs to an older Mitsubishi servo generation and is generally treated as a legacy model family, which makes it especially relevant for machine maintenance, spare-parts support, and retrofit work on installed equipment already built around earlier MELSERVO platforms.

For users maintaining established equipment rather than designing from scratch, this motor remains a sensible option when the priority is keeping the machine architecture intact.

It is intended to operate with the corresponding servo amplifier rather than as a stand-alone motor, and that system-level pairing is part of what gives Mitsubishi servo axes their control accuracy and dynamic response.

In other words, this is not simply a motor for rotation—it is a motion component meant for closed-loop industrial positioning.

Key Product Data

Product Overview

The HF-KE13W1-S100 is best understood as a compact servo solution for controlled motion tasks rather than general motor duty. In many machines, a servo motor in this size range is selected to handle short-stroke positioning, light transfer movement, indexing, and timing-sensitive axis control.

That is where a 100 W class servo motor becomes useful: it offers the controlled response needed for automation work without introducing the size and inertia of a larger drive package.

The HF-KE family is grouped in Mitsubishi migration documentation under low-inertia, small-capacity motors, which aligns with the type of applications this model is typically used for.

From an engineering standpoint, the value of this model is not only in its basic power rating. It is also in how easily it fits into a known Mitsubishi servo environment. For maintenance teams, that means less redesign risk.

For equipment owners, it often means a more efficient path to restoring production when an older machine needs a compatible motor rather than a full control-system conversion. Mitsubishi’s migration documentation also shows that users moving away from this generation were guided toward later HF-KN and HG-KN motor families, which reinforces its position as a legacy motor still relevant in service and replacement channels.

Why It Works Well in Industrial Equipment

Small automation axes often demand fast start-stop behavior, controlled positioning, and stable performance over repeated cycles. A motor such as the HF-KE13W1-S100 is suited to these conditions because it sits in the low-inertia, small-capacity servo class rather than in a general-purpose induction motor category.

That matters in applications where the motion profile is closely tied to machine timing, product spacing, or repetitive handling accuracy.

Another practical advantage is its relevance in installed Mitsubishi systems.

When a machine has already been designed around an earlier MR-E series servo platform, a matching motor class is often preferred to avoid unnecessary mechanical or electrical changes.

Mitsubishi documentation for the MR-E platform explicitly lists HF-KE motors within the supported servo motor series, which helps explain why this model continues to appear in replacement and service demand even after discontinuation.

Installation and Use Notes

As with other industrial servo motors, correct installation matters just as much as nameplate specifications.

The motor should be mounted before wiring, grounded properly, and connected through the correct servo amplifier and terminal arrangement. Mitsubishi’s safety instructions also warn against carrying the motor by the cable, shaft, or encoder, and against wiring the motor before installation is complete.

These are standard but important points in real field work, especially during repair or replacement jobs where rushed installation often causes avoidable failures.

It is also worth noting that this motor is part of a servo system, not a direct-to-mains motor package.

The associated drive platform is designed to be installed in a control enclosure, and the wiring method, grounding practice, and protective components are part of the overall motion system design.

For that reason, replacement work should confirm amplifier compatibility, cable condition, connector match, and machine-side mechanical fit before commissioning.

FAQ

Q1. What type of application is the HF-KE13W1-S100 best suited for?
It is best suited for small-capacity servo axes that require controlled positioning, repeatable start-stop motion, and stable response in compact automation equipment. Typical examples include feeders, indexing units, transfer mechanisms, and light packaging motions.

Q2. Is this motor intended for use as a standard stand-alone AC motor?
No. It is a servo motor designed to operate with the matching servo amplifier as part of a closed-loop motion system. It should be used in the proper Mitsubishi servo configuration rather than connected like a general-purpose motor.

Q3. Is the HF-KE13W1-S100 still a current production model?
It is generally treated as a legacy or discontinued model family. In service practice, it is more commonly sourced for maintenance, replacement stock, and support of existing Mitsubishi-based machines.

Q4. What should be checked before replacing this servo motor?
Users should confirm amplifier compatibility, shaft and flange fit, connector and cable condition, and the mechanical load requirements of the axis. On older equipment, checking the overall servo system before power-up is especially important.

Q5. What installation precautions are most important?
The motor should be mounted before wiring, grounded correctly, and handled without lifting it by the cables, shaft, or encoder area. It should also be connected only through the correct servo system components and enclosure arrangement.
