IP67 proximity switch sensor

Autonics proximity switch sensor

autonics pr18 5dp

Basic Infomation

Place of Origin: China

Brand Name: AUTONICS

Model Number: PR18-5DP

Payment & Shipping Terms

Packaging Details: Original packaging

Delivery Time: 2 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100 pcs per day

Gallery

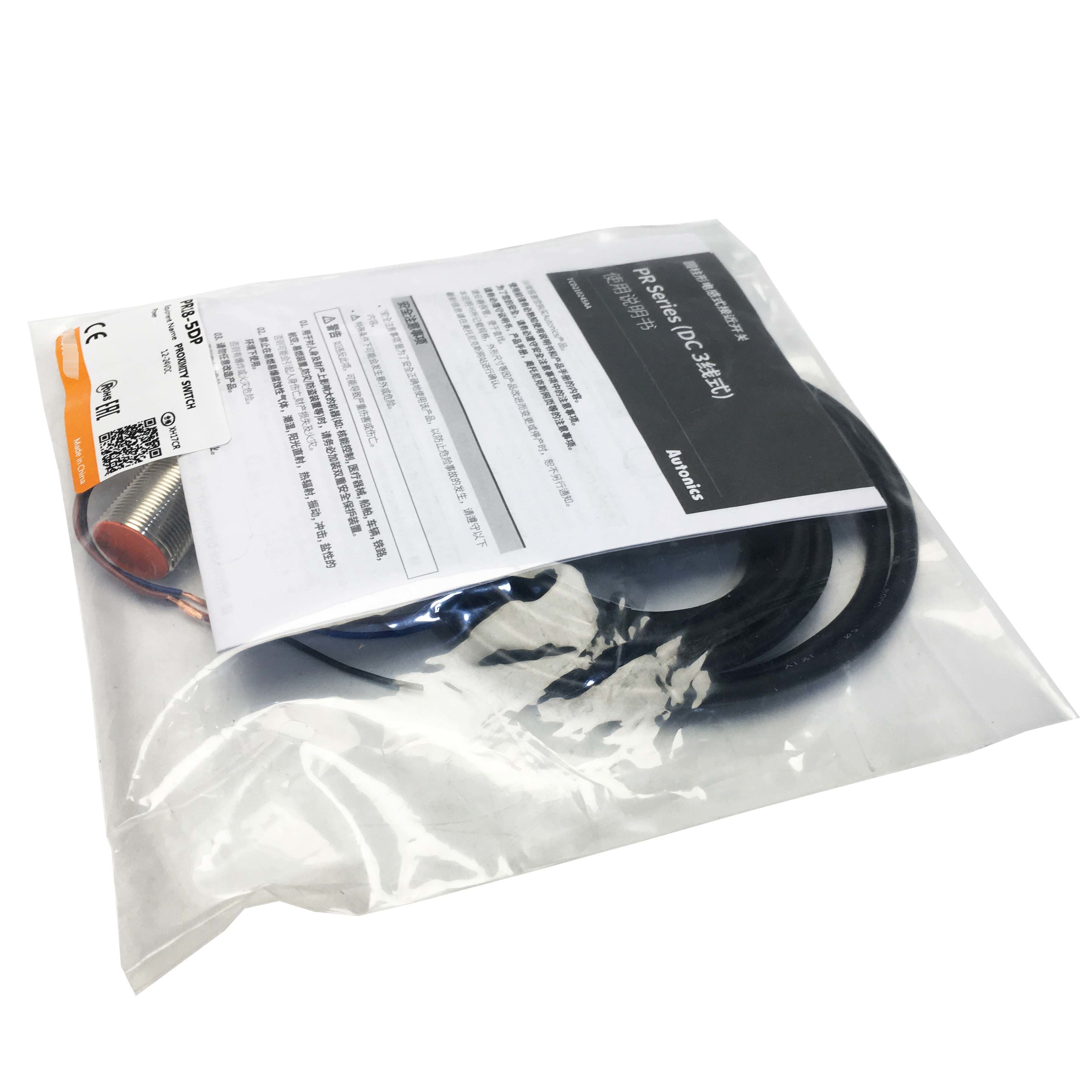

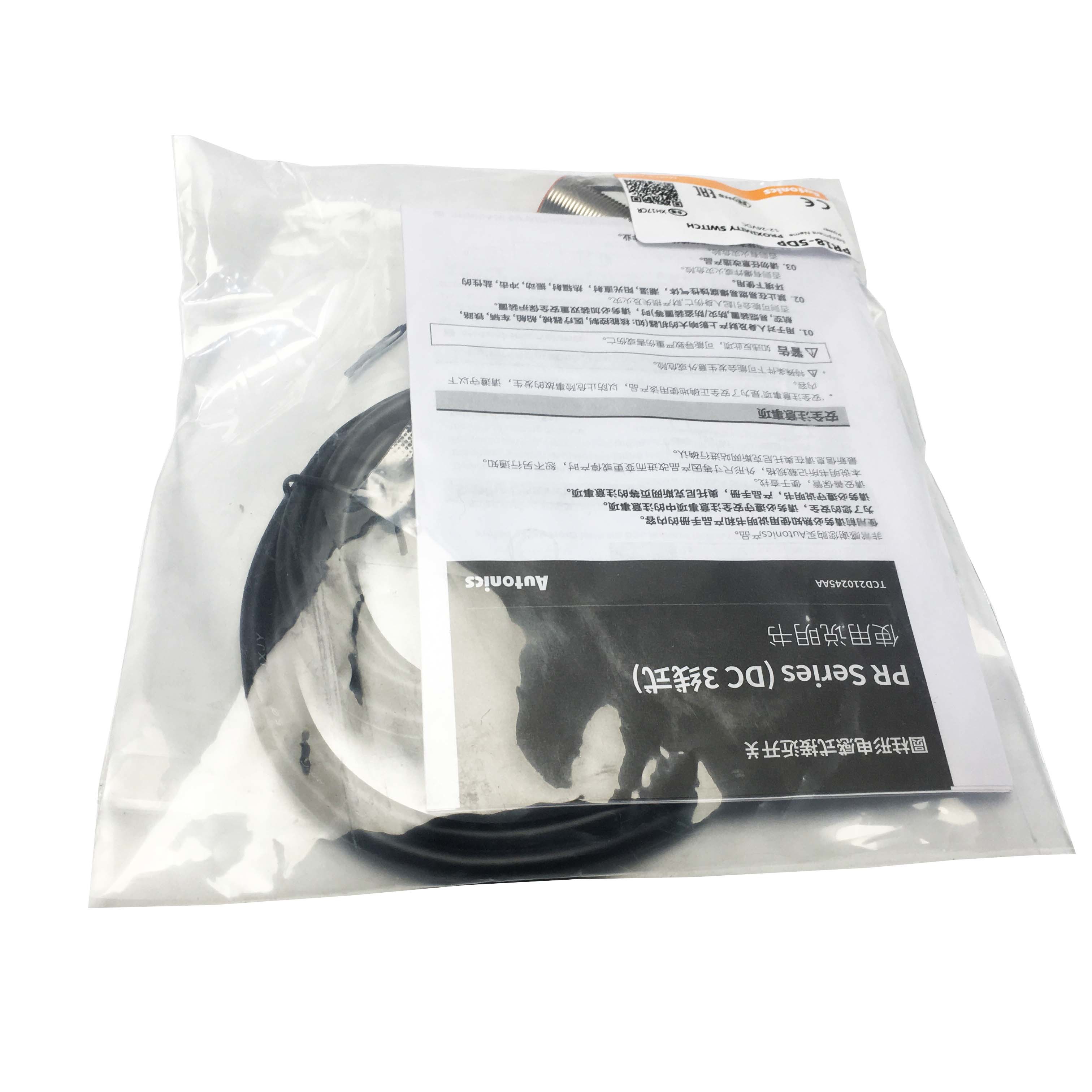

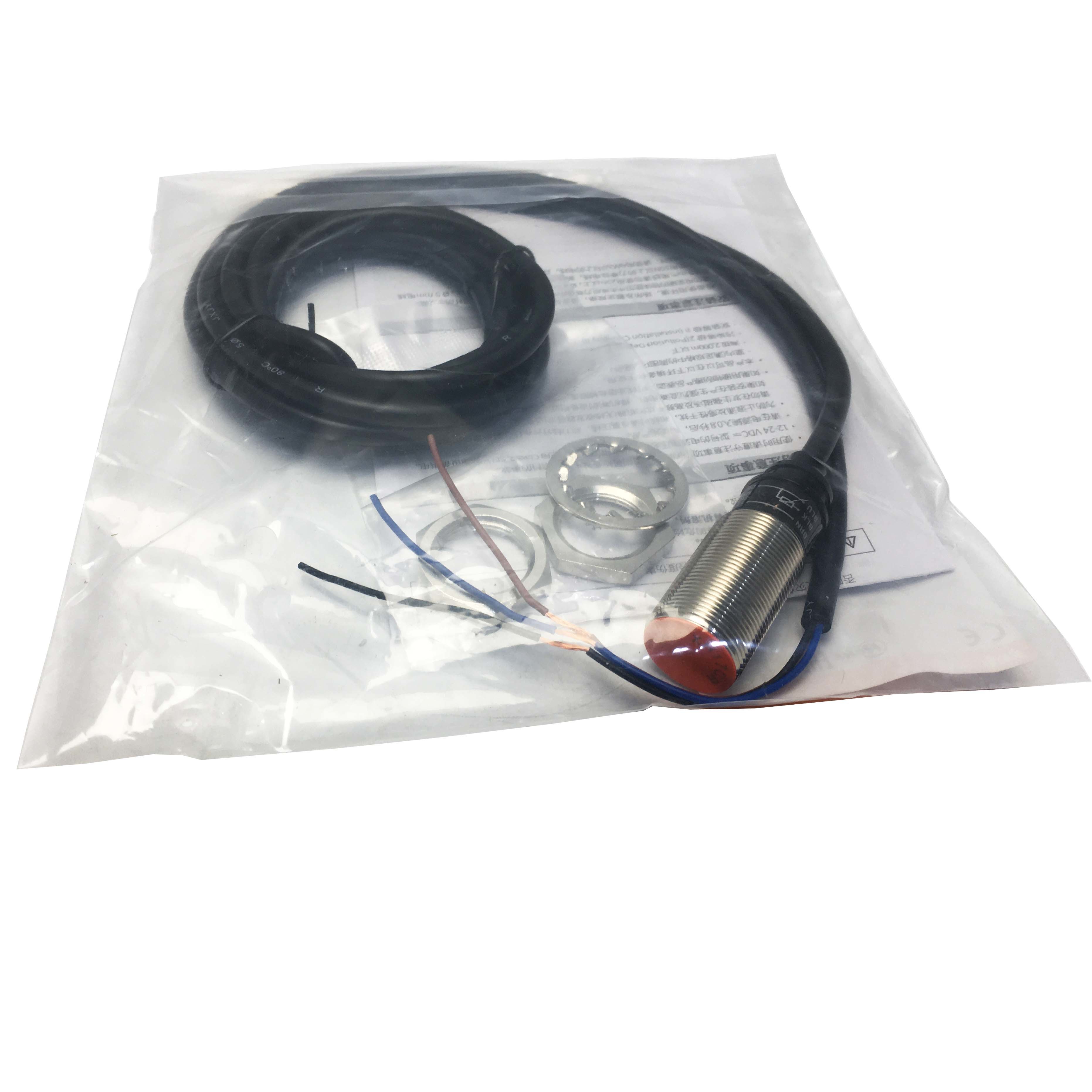

IP67 Proximity Switch Sensor Autonics PR18-5DP IEC Standard 12VDC–24VDC

Product Description

PR18-5DP Autonics Inductive Proximity Switch — M18 PNP NO Sensor (Factory Sealed)

The PR18-5DP Autonics Proximity Switch is a high-reliability cylindrical inductive proximity sensor designed for precise, non-contact detection of metal objects in industrial automation systems. Featuring a robust M18 shielded housing, fast response, and IP67 environmental protection, this sensor delivers stable performance in demanding factory environments such as CNC machinery, packaging lines, conveyors, and PLC control systems.

Built with Autonics’ dedicated sensor IC and integrated protection circuits, the PR18-5DP ensures excellent noise immunity, long service life, and consistent switching accuracy — making it an ideal replacement for mechanical limit switches and micro switches.

Technical Specifications

Parameter	Specification
Wire Type & Power Supply	DC 3-wire type, 12–24 VDC
Sensing Face Diameter	M18
Sensing Distance	5 mm
Installation Type	Shielded (Flush Mount)
Standard Sensing Target	Iron plate 18 × 18 × 1 mm
Sensor IC	Specialized IC with excellent noise immunity
Operation	Simple operation, reliable performance, high durability
Surge Protection	Built-in surge protection circuit
Overcurrent Protection	Built-in (DC 2-wire and DC 3-wire types)
Reverse Polarity Protection	Built-in (DC 3-wire type)
Operation Indicator	Red LED
Replacement Capability	Reliable alternative to micro switches and limit switches
Protection Rating	IP67 (IEC standard)

IP67 Proximity Switch Sensor Autonics PR18-5DP IEC Standard 12VDC–24VDC 0

Key Features

Detects metal objects only (inductive principle)
Robust M18 cylindrical housing
5 mm sensing distance (flush / shielded)
PNP, DC 3-wire output
Red LED operation indicator
Reverse polarity & short-circuit protection
High repeatability and fast response
IP67 protection for harsh industrial environments

Applications

PLC-based automation systems
Conveyor & material handling
Packaging & assembly machines
CNC & special-purpose machines
Control & junction panels
Position, limit & counting detection
