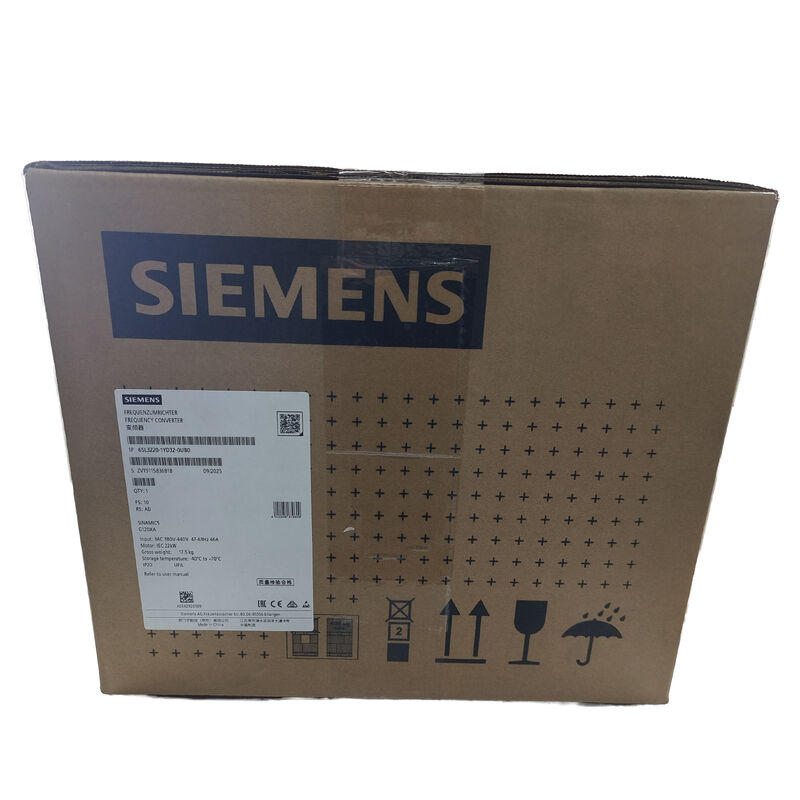

Siemens 6SL3220-1YD32-0UB0 SINAMICS G120XA Variable Frequency Drive
Product Overview
The Siemens 6SL3220-1YD32-0UB0 is a SINAMICS G120XA variable frequency drive for industrial motor control. It provides adjustable speed operation for standard pump and fan systems. The drive supports reliable motor operation in infrastructure and process applications.
Technical Specifications
| Parameter |
Specification |
| Brand |
Siemens |
| Model |
6SL3220-1YD32-0UB0 |
| Product Series |
SINAMICS G120XA |
| Product Type |
Variable Frequency Drive |
| Rated Power |
22 kW |
| Input Voltage |
3-phase AC, 380–440 V |
| Rated Output Current |
43 A |
| Control Methods |
V/f control, sensorless vector control |
| Communication |
Modbus RTU, BACnet MS/TP, USS |
| Protection Rating |
IP20 |
| Frame Size |
FSD |
Drive Performance and Control
With a rated output power of 22 kW, this drive is designed for three-phase AC motors. It supports V/f control and sensorless vector control. The integrated fieldbus interfaces allow communication with compatible automation systems.
The drive provides 110% overload capability for 60 seconds within a 600-second cycle under the specified low-overload conditions.
Frequently Asked Questions
Q1: What is the rated power of the Siemens 6SL3220-1YD32-0UB0?
A: The rated output power is 22 kW.
Q2: Which applications is this drive suitable for?
A: It is designed for standard pump, fan, and HVAC applications.
Q3: Which communication protocols does it support?
A: It supports Modbus RTU, BACnet MS/TP, and USS.
Q4: Does this model include an operator panel?
A: No. This version is supplied without an operator panel.
