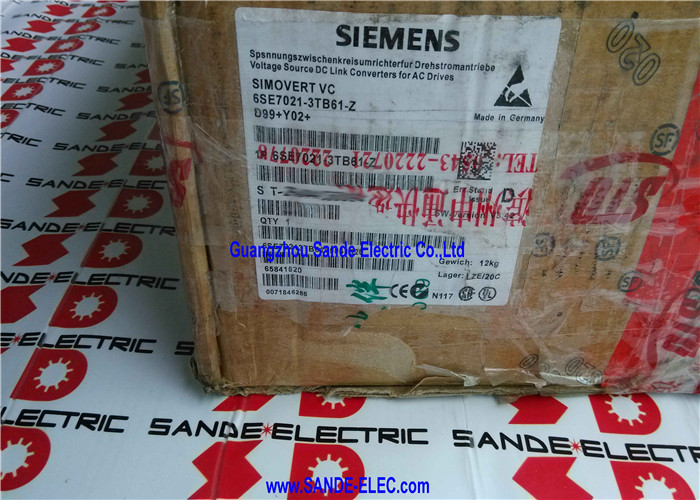

Siemens 6SE7021-3TB61-Z D99+Y02 | SIMOVERT MASTERDRIVES VC Vector Control Inverter — 5.5 kW / DC 510–650V / 13.2A / IP20 / Compact Unit

Part Number: 6SE7021-3TB61-Z

Option Codes: D99 + Y02

Manufacturer: Siemens AG (Germany)

DC Bus Inverter — The Drive That Doesn't Rectify Its Own Power

The 6SE7021-3TB61-Z is not a conventional AC-in, AC-out VFD. It is a SIMOVERT MASTERDRIVES inverter — a drive unit that receives its power as DC voltage from a common bus, not from direct AC mains. The DC input (510–650V DC) comes from a separate MASTERDRIVES rectifier or Active Front End (AFE) unit that converts the 380–480V AC mains supply for the whole drive system. The inverter then converts this common DC bus voltage into a controlled AC output to drive the motor.

This architecture is the defining characteristic of MASTERDRIVES in multi-axis installations. A single large rectifier — or an AFE that regenerates braking energy back to the mains — powers several inverter units from one DC bus. This centralises the rectifier equipment, reduces total system cost, and allows braking energy from one axis to be recovered and used to accelerate another axis from the same bus. The 6SE7021-3TB61-Z at 5.5 kW is sized for machine axes, spindle drives, and process applications where this common DC bus architecture is in use.

Vector control — the "VC" in MASTERDRIVES VC — means the drive builds a real-time model of the connected motor's flux and torque. It uses this model to calculate the correct stator current direction at every moment, giving accurate torque control even at low speed and under rapidly changing loads. This is the control mode required for demanding machine tool spindle drives, positioning axes, and winding/unwinding applications where conventional V/Hz control cannot achieve the required torque response.

Key Specifications

Option Code Significance — Z, D99, Y02

The base part number 6SE7021-3TB61 defines the standard inverter hardware. The Z suffix indicates that optional equipment is fitted — the drive is not in its base configuration. The D99 and Y02 option codes identify the specific options installed:

• Z = options present; specific options listed in the supplementary codes
• D99 = a Siemens MASTERDRIVES option designation, typically relating to documentation or drive configuration variant
• Y02 = customer-specific modification or accessory, Y-class codes in MASTERDRIVES denote non-catalogue customer-specific configurations

When ordering a replacement or spare, confirm all suffix codes — 6SE7021-3TB61-Z D99+Y02 — to ensure the replacement carries the same option configuration as the installed drive.

FAQ

Q1: Why does the 6SE7021-3TB61-Z use DC input instead of AC mains?

The MASTERDRIVES inverter is designed for multi-axis drive systems where a single rectifier or Active Front End (AFE) supplies a common DC bus to multiple inverter units. The DC bus architecture allows energy regenerated during braking on one axis to power acceleration on another, reducing total energy consumption. The inverter-only design also reduces the size and cost per axis compared to drives with integrated rectifiers. A separate MASTERDRIVES converter or AFE must supply the DC bus.

Q2: What is the difference between SIMOVERT MASTERDRIVES VC and FC?

MASTERDRIVES VC (Vector Control) uses a flux vector motor model for precise torque and speed control, including accurate low-speed torque and rapid torque response. MASTERDRIVES FC (Frequency Control, i.e., V/Hz control) uses simpler open-loop voltage/frequency control — adequate for fans, pumps, and constant-torque loads where precise speed regulation is not required. The VC variant (6SE7021-3TB61-Z) is the higher-performance option.

Q3: What does IP20 mean for cabinet installation requirements?

IP20 provides protection against solid objects larger than 12mm — finger contact protection — but provides no protection against liquids or dust ingress. The 6SE7021-3TB61-Z must be installed inside an IP-rated control cabinet that provides the required environmental protection for the installation location. The cabinet enclosure provides the actual environmental protection; the drive's IP20 rating only applies when the cabinet door is closed.

Q4: Can the 6SE7021-3TB61-Z be repaired after a fault, or should it be replaced?

MASTERDRIVES inverter compact units are repairable through Siemens-specialist drive repair centres. Common failure points include IGBT transistors, gate driver boards, control card faults, and cooling fan failure. A qualified MASTERDRIVES repair service can diagnose and repair the unit and load-test it before return. Repair is often more cost-effective than replacement, particularly for 5.5 kW units where the component cost is a manageable fraction of the new drive price.

Q5: How are the D99 and Y02 option codes confirmed for the installed drive?

The options installed in a specific MASTERDRIVES unit are identified on the nameplate label on the front of the drive — the full ordering code including Z and all option suffixes is printed on the rating plate. Photograph or record the complete nameplate before removing any drive from service. When ordering a replacement, provide the complete part number with all Z-suffix option codes to Siemens or a MASTERDRIVES specialist to confirm an equivalent replacement configuration.
