Replacement Servo Drive Module 6SL3120-2TE21-8AA3 Siemens OEM

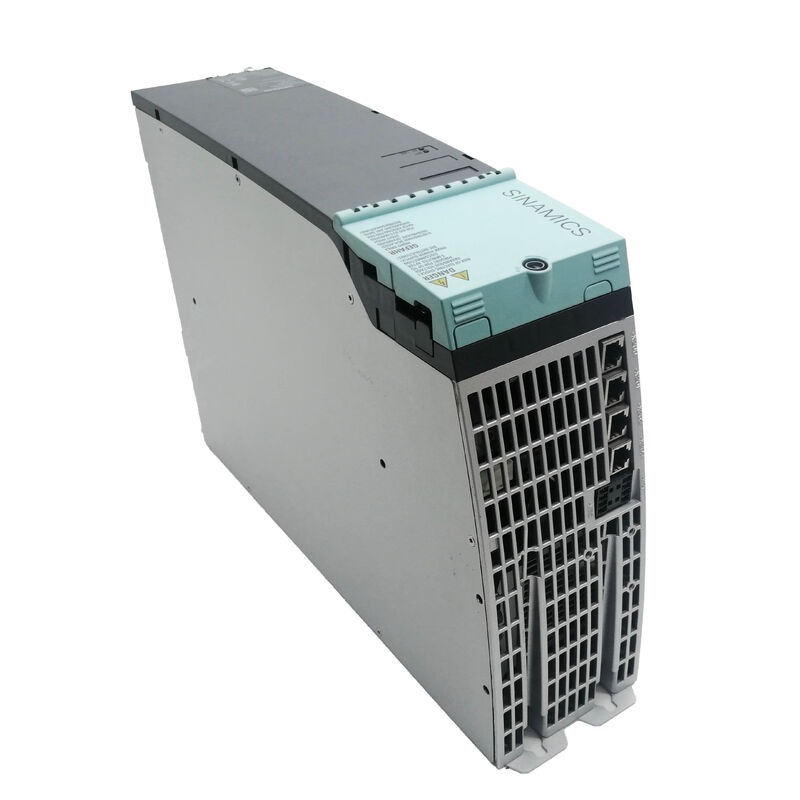

Running two servo axes from a single drive module provides significant engineering advantages—fewer control cabinet slots consumed, shared DC bus connection, and reduced cabling complexity. The Siemens 6SL3120-2TE21-8AA3 is a Double Motor Module in the SINAMICS S120 booksize series, rated at 2 * 18A and designed to handle two independent servo axes with the comprehensive feature set that makes S120 the preferred drive platform for precision machine tools, robotics, and automated production systems.

This module draws from the shared DC link established by the upstream Line Module, converts 600 VDC into two independent three-phase 400V AC outputs, and communicates with the Control Unit via Drive-CLiQ—Siemens' dedicated digital interface that combines power supply, encoder feedback, and intelligent module identification on a single cable. For any S120 system requiring two axes with similar current demands in one compact housing, this module offers an efficient, space-saving solution.

Drive-CLiQ—Siemens' proprietary digital interface—consolidates multiple functions into a single standardized connection, carrying encoder signals, module identification data, and parameterization information between the Control Unit and each Motor Module. Each S120 module contains an electronic type plate that the Control Unit reads automatically during startup, identifying the exact hardware configuration without manual parameter entry.

For the 6SL3120-2TE21-8AA3, this automated identification capability means commissioning new modules or replacing existing units takes minutes rather than hours. The Control Unit reads the module, recognizes the hardware, and applies the appropriate configuration automatically. In multi-axis production environments where drive replacement must occur quickly, this feature directly impacts machine uptime and productivity.

The Drive-CLiQ cable required for adjacent module connection is included with the 6SL3120-2TE21-8AA3, pre-cut to match the module width.

Modern machinery safety certification is integrated directly into the 6SL3120-2TE21-8AA3, which includes the Extended Safety Integrated function package as standard, meeting Performance Level d (PL d) and Category 3 per EN ISO 13849-1. Available safety functions include:

These functions operate without requiring external safety relays or PLC safety modules. The safety logic runs internally within the drive, reducing wiring complexity and component count in the safety chain. For machine builders certifying equipment to Machinery Directive requirements, having integrated safety functions simplifies documentation and validation processes.

Standard PWM switching in servo drives can produce regular pulse patterns that may excite mechanical resonant frequencies or generate audible noise. The 6SL3120-2TE21-8AA3 utilizes optimized pulse patterns (OPP) that randomize or adapt switching sequences to reduce harmonic content and audible switching noise.

For precision machine tools where surface finish quality is sensitive to drive-induced vibration, and for applications where acoustic noise reduction is important in production environments, the optimized pulse pattern feature addresses both concerns without requiring motor sizing or control tuning modifications.

The 6SL3120-2TE21-8AA3 operates downstream of the Line Module (which handles AC-to-DC conversion and, in regenerative versions, returns braking energy to the supply grid). The module connects to the shared DC bus through integrated busbar connectors—no separate DC bus cabling is required between booksize modules in standard S120 configurations.

The Control Unit (CU320 or CU310) connects via Drive-CLiQ and runs closed-loop control for both axes simultaneously. Motor feedback—including encoder signals, temperature monitoring, and brake control—returns to the Motor Module through the motor connector and is forwarded upstream to the Control Unit via Drive-CLiQ.

Typical system configurations include:

The 6SL3120-2TE21-8AA3 belongs to the AA3 hardware generation of SINAMICS S120 booksize modules, which Siemens discontinued in January 2021. The direct functional replacement is the 6SL3120-2TE21-8AC0—the current AC0 generation maintains identical electrical specifications (2 * 18A, 600 VDC input, booksize format) with updated hardware. For sites maintaining existing AA3-generation S120 systems, AA3 units remain available through certified industrial automation suppliers, and Drive-CLiQ's automatic module identification ensures straightforward swapping between AA3 and AC0 hardware in existing systems.

Yes. Both motor channels operate independently—accommodating different motor types, speeds, and load profiles. The Control Unit manages each axis as a separate drive object with its own control loop and parameter set. The only shared element is the DC bus input. As long as neither motor's continuous current demand exceeds 18A and the combined peak demand stays within DC link capacity, the module handles them independently.

The 6SL3120-2TE21-8AA3 connects to any SINAMICS S120-compatible Control Unit via Drive-CLiQ. Common pairings include the CU320-2 (for multi-axis systems with multiple motor modules), the CU310-2 (for simpler single-drive configurations), and SIMOTION D or SINUMERIK integrated control units that incorporate S120 drive functionality. The Control Unit must support Extended Safety Integrated functions to utilize the module's safety features.

Both are functionally identical—same 2 * 18A rating, booksize format, Drive-CLiQ interface, and Safety Integrated feature set. The AC0 generation features updated hardware with minor component specification and manufacturing improvements. Drive-CLiQ's automatic electronic type plate identification ensures the Control Unit recognizes both generations without parameter changes, making the AC0 a drop-in replacement for the AA3.

Each 6SL3120-2TE21-8AA3 ships with a Drive-CLiQ cable pre-cut to connect it to adjacent modules in the booksize stack. The cable length matches the module width, enabling daisy-chaining without ordering separate inter-module connection cables. Cables to the Control Unit or other non-adjacent components are ordered separately.

Surplus units in original Siemens packaging that have never been powered offer the closest experience to new parts, assuming proper storage conditions (temperature-controlled, low humidity). Professionally refurbished units should have DC bus capacitors replaced (electrolytic capacitors degrade with age regardless of operating hours), Drive-CLiQ interface verification, and safety function operation confirmation through testing. For critical production machines, request documentation of replacement components and testing procedures before commissioning.
