Simodrive Closed Loop Servo Driver Control Unit 6SN1121-0BA11-0AA1

Siemens 6SN1121-0BA11-0AA1 SIMODRIVE 611-A Control Unit

Closed-Loop Control | Main Spindle Drive | 1PH Motor | Universal Version | Plug-In Module

Where Spindle Control Begins

On any CNC machine tool built around Siemens' SIMODRIVE 611 platform, the closed-loop control unit is the intelligence behind the power electronics. It processes encoder feedback, executes the current and speed control algorithms, manages the setpoint interface with the CNC controller, and determines whether the spindle accelerates smoothly to programmed speed or trips into a fault state. The power module provides the current — but this control unit decides exactly how to use it.

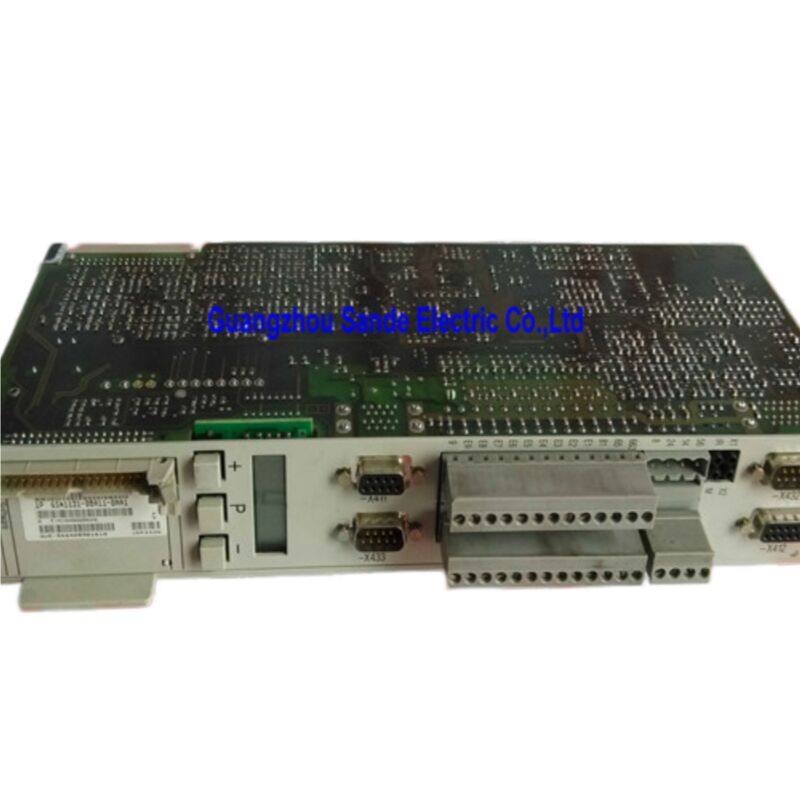

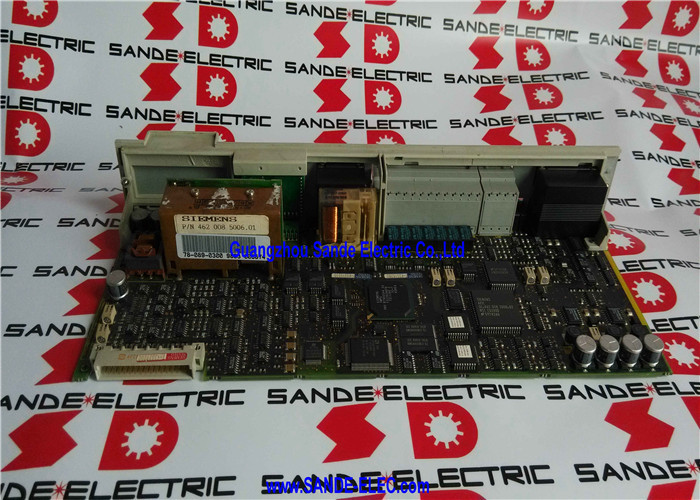

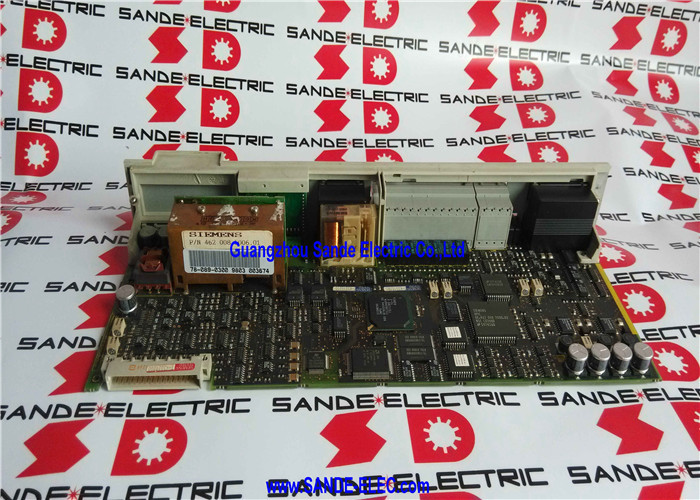

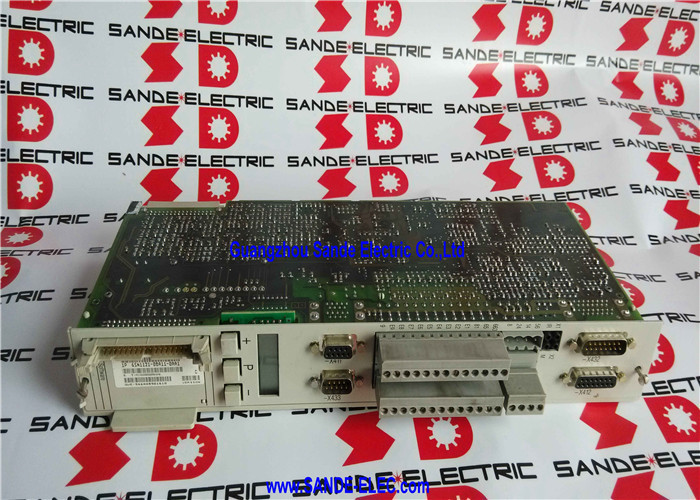

The 6SN1121-0BA11-0AA1 is the SIMODRIVE 611-A plug-in closed-loop control unit in the Universal version, purpose-built for main spindle drives equipped with 1PH asynchronous motors. It plugs directly into the SIMODRIVE 611 power module, connects to the SINUMERIK CNC via the drive bus, and brings the full closed-loop spindle control capability of the 611-A platform to the machine axis that typically does the most demanding work: the cutting spindle.

Technical Specifications

The 611-A Architecture: Analog Setpoint, Industrial Reliability

SIMODRIVE 611-A refers to the analog setpoint interface variant of the 611 closed-loop control family — as distinct from the 611-D (digital) series. In an analog-interface system, the speed and torque commands travel from the SINUMERIK CNC to the drive module as ±10V analog voltage signals. This architecture predates the widespread adoption of digital drive buses, and it was the standard approach across an enormous number of SINUMERIK-equipped machine tools built through the 1990s and into the 2000s.

The practical result is that the 6SN1121-0BA11-0AA1 remains the correct replacement part for a very large installed base of machines currently in productive service. The analog interface is not inferior — for main spindle applications where the CNC commands speed and the drive closes the loop, it delivers entirely adequate performance, and the architecture's simplicity means fewer points of potential firmware incompatibility during replacement.

X432 Interface: Dual-Purpose and Operationally Critical

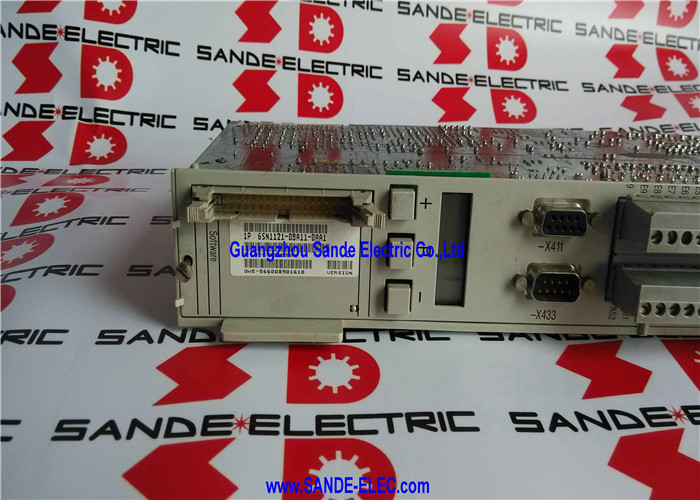

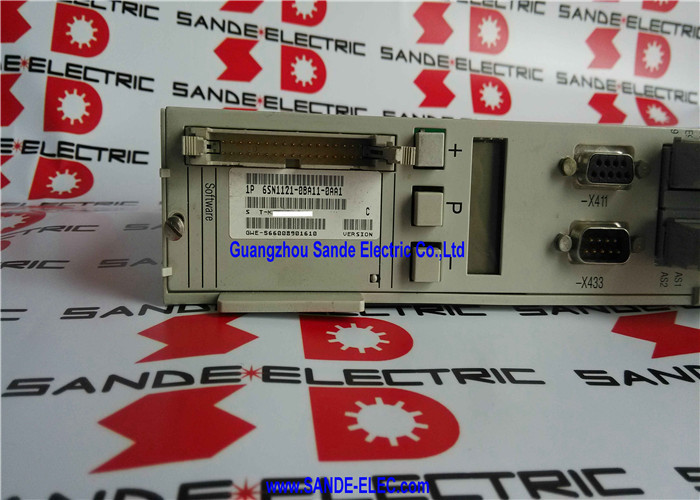

The X432 connector is the most application-specific feature of this control unit, and it's worth understanding what it does before commissioning or replacing the board.

According to Siemens' SIMODRIVE 611 Planning Guide, X432 serves two mutually exclusive functions depending on how the machine is configured:

As spindle encoder input for positioning: The spindle encoder signal connects to X432, giving the control unit the feedback it needs to perform orientated spindle stop (C-axis positioning). This is essential on turning centers and machining centers where the spindle must stop at a defined angular position to allow automatic tool change, gear shifting, or contour turning operations.

As WSG interface (rotary position output to NC): In this configuration, X432 outputs a rotor position signal back to the SINUMERIK CNC, allowing the NC to use spindle position data for coordinated operations — synchronized tapping, for example, where the feed axis and spindle must move in precise angular synchronization.

Only one function operates at a time. The Siemens documentation specifies that only PELV (Protective Extra Low Voltage) circuits should connect to X432 pin 15 and X433 pin 3. For non-PELV circuits at AS1 and AS2, connector coding must be applied to prevent incorrect connector seating per EN 60204-1, Section 6.4.

Compatible Motors and Drive Combinations

The 6SN1121-0BA11-0AA1 is designed for use with SIEMENS 1PH series asynchronous motors — the main spindle motor family that has been the standard on SINUMERIK-controlled machining centers and lathes for decades. The 1PH4, 1PH6, and 1PH7 series are the typical companions.

The control unit pairs with SIMODRIVE 611 power modules (6SN1123 series) selected according to the required spindle motor current rating. The combined assembly — control unit plus power module — connects to the SINUMERIK 840D or 840Di CNC via the drive bus. During the initialization phase (power-up or reset), the SINUMERIK 840D downloads the drive software to the control board via the drive bus automatically, meaning no manual software loading or separate programming device is typically required during replacement commissioning.

Compatible CNC controllers include:

• SINUMERIK 840D and 840D sl
• SINUMERIK 840Di
• SINUMERIK 810D

Universal Version: What It Covers

The "Universal" designation in the product description distinguishes this control unit from the "High Performance" variant. Both serve main spindle drive applications, but the Universal version covers the full range of standard spindle applications — speed control with analog setpoint, spindle orientation, WSG output — without the extended dynamic response capability and higher-bandwidth current control of the High Performance version.

For the overwhelming majority of CNC machining centers and turning centers where the spindle runs at programmed speeds, performs tool change orientations, and executes synchronized tapping cycles, the Universal version is the correct and appropriate specification. The High Performance version adds value primarily in applications requiring extremely rapid speed transients or very high dynamic stiffness against load disturbances — less common in general-purpose machine tool spindle applications.

Installation and Replacement Notes

The plug-in design means replacement is a board-swap operation: the power module remains in the cabinet, and only the control unit is exchanged. After insertion, the following steps apply:

The SINUMERIK CNC downloads drive software to the new control unit on first power-up via the drive bus. Machine-specific parameters (spindle encoder type, gear ratio steps, speed limits, monitoring thresholds) are stored in the SINUMERIK NC and re-transmitted to the new control unit during this process. A comprehensive test of spindle function — including orientation if used — should be performed before returning the machine to production. Verify X432 wiring is correct for the machine's specific spindle encoder or WSG configuration.

Frequently Asked Questions

Q1: What is the difference between 6SN1121-0BA11-0AA1 and 6SN1121-0BA11-0AA0?

Both are SIMODRIVE 611-A Universal version control units for 1PH main spindle drives. The final digits (AA0 vs AA1) indicate hardware revision levels. The AA1 is the later revision and is the standard replacement reference. In most cases, the AA1 replaces the AA0 as a direct hardware upgrade with no functional difference from the drive system's perspective. Confirm with the machine tool documentation if specific hardware revision compatibility is a concern for your SINUMERIK CNC version.

Q2: Can this control unit also be used with 1FT6 or 1FK servo motors for feed axis applications?

No. The 6SN1121-0BA11-0AA1 is specifically designed for main spindle drive applications with 1PH asynchronous motors. For feed axis servo control using 1FT6, 1FK, or similar servo motors, the correct products are the SIMODRIVE 611-D or 611 Universal digital closed-loop control units (6SN1118 series). Using a spindle control unit for a servo feed axis will result in incorrect control behavior and should not be attempted.

Q3: After replacing the board, what parameters need to be set on the SINUMERIK CNC?

If the replacement is a like-for-like swap (same part number), the SINUMERIK CNC should automatically download the previously saved drive parameters to the new control unit during power-up initialization. It is essential that the machine's parameter backup is current before the board swap. After replacement, verify that all spindle-specific parameters — encoder type, gear steps, speed limits, monitoring values — are correctly transferred and confirm spindle functionality including orientation stop if the machine uses it.

Q4: What alarms on the SINUMERIK typically indicate this control unit has failed?

Drive-related alarms pointing to spindle axis hardware are the most common indicators. Alarm 300501 (drive not ready), alarm 300507 (speed controller output limited), hardware fault alarms on the spindle axis, or complete failure to initialize the spindle drive on power-up typically warrant investigation of the control unit. Before condemning the board, verify that the 24V DC control supply is present, the drive bus connection is secure, and the spindle power module itself is not the source of the fault.

Q5: The part is discontinued — is it still being serviced and repaired?

Siemens cancelled the 6SN1121-0BA11-0AA1 from standard production in September 2018, but SIMODRIVE 611-A spindle drives remain in service on a large number of machines worldwide. Both surplus new-old-stock units and certified refurbished boards continue to be widely available through industrial automation parts specialists who support the SIMODRIVE 611 platform. Professional refurbishment services test these boards under full load conditions on actual 611 drive systems, making properly refurbished units a reliable maintenance option for the foreseeable life of machines equipped with this control unit.
