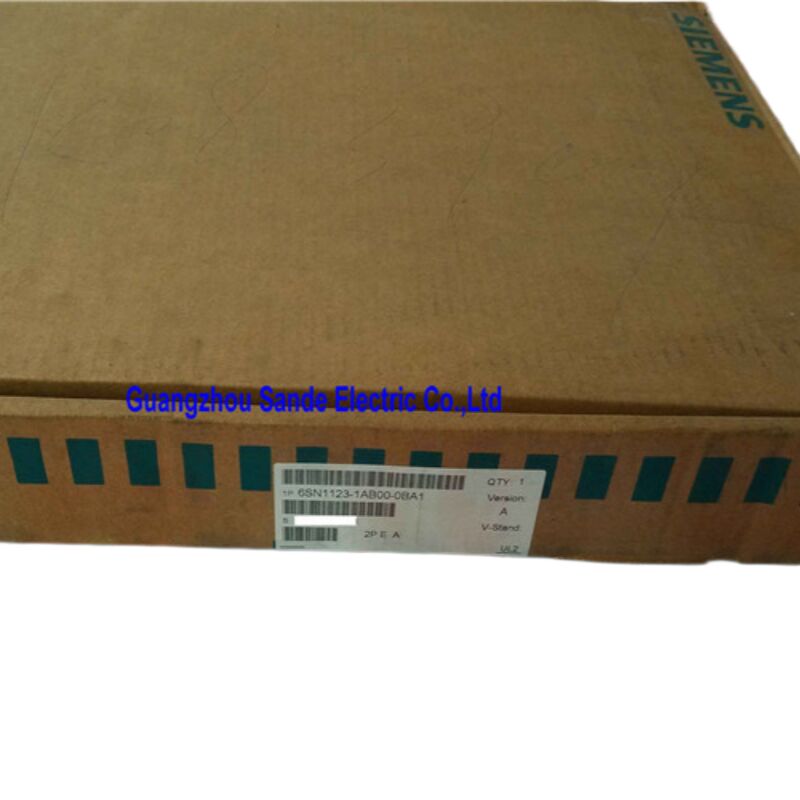

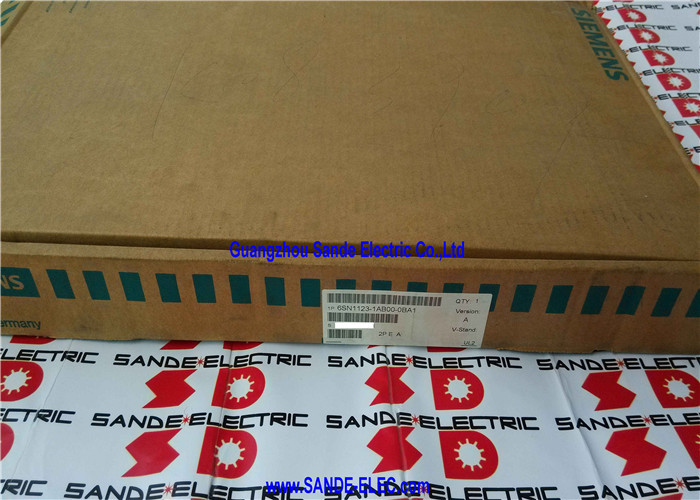

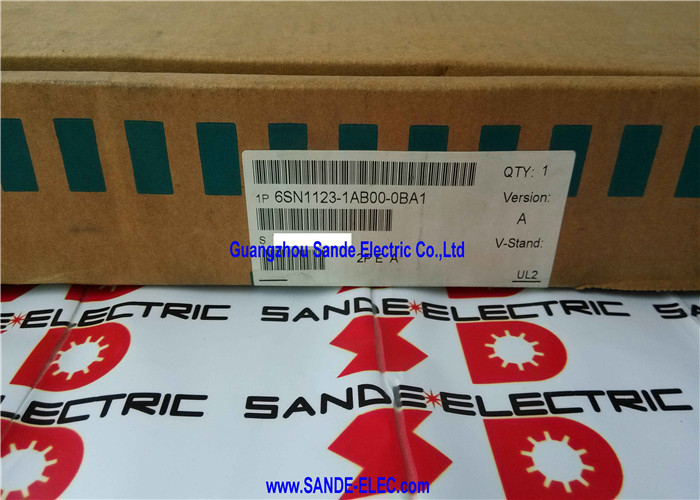

Siemens 6SN1123-1AB00-0BA1 — SIMODRIVE 611 Power Module, 2-Axis, 25A, Internal Cooling

Product Overview

The 6SN1123-1AB00-0BA1 is a dual-axis power module from Siemens' long-established SIMODRIVE 611 servo drive platform — a system that has powered CNC machine tools across the globe for decades. With a combined output rating of 25 A and the ability to simultaneously drive two motor axes from a single module, this unit represents the kind of engineering practicality that made the SIMODRIVE 611 series a standard fixture in machining centers, turning cells, and grinding machines running SINUMERIK controls.

The module handles the high-power conversion work: it takes DC bus energy supplied by the SIMODRIVE 611 infeed module, inverts it into precisely controlled three-phase AC output, and delivers that output to the attached servo or spindle motors. The intelligence — current loop control, speed regulation, positioning — lives in the control module that mounts alongside it on the drive rail. Together they form a complete drive axis.

Technical Specifications

How the SIMODRIVE 611 System Is Structured — and Where This Module Fits

Understanding what this module does requires a brief look at how the SIMODRIVE 611 cabinet is organized.

A complete SIMODRIVE 611 drive group starts with an infeed/regenerative module, which rectifies the incoming three-phase mains supply and maintains the shared DC bus. Every power module in the cabinet draws from that bus. The 6SN1123-1AB00-0BA1 slots into this group, sits on the drive rail, and connects to the DC bus via the module interconnect system — no individual power wiring between modules is required.

Mounted directly onto this power module is a control module (ordered separately), which processes encoder feedback and closes the speed and current loops. The pairing of power module and control module forms a complete drive axis — or in this case, two complete axes within a single module width. That dual-axis design is not a compromise; it's a deliberate space-saving feature that allows two lower-current axes to share one slot, keeping the drive cabinet compact.

The module also interfaces with protective and switching elements in the cabinet: line contactor, commutating reactor, and line filter. All of these sit upstream and are part of the SIMODRIVE 611 system design.

Internal Cooling — What That Means in Practice

The "1AB00" designation in the part number identifies this as an internal heat dissipation variant, as opposed to external heat-sink or liquid-cooled configurations available in the broader SIMODRIVE 611 range.

With internal cooling, waste heat is dissipated into the interior of the drive cabinet rather than through a rear heatsink mounted outside the panel wall. This simplifies cabinet installation — no cutout in the back panel is required — but it does place a greater demand on the cabinet's ventilation system. The power supply produces heat as a byproduct of regular function, so a fan or alternative cooling system is required to keep the whole system running smoothly.A well-ventilated cabinet with forced-air cooling is standard practice. Operating the module beyond its rated ambient temperature of 45 °C will trigger thermal protection and eventually cause drive faults.

Compatible Motors and Control Modules

The 6SN1123-1AB00-0BA1 is designed to drive a range of Siemens servo and spindle motor types, including:

• 1FT5 and 1FT6 series synchronous servo motors (feedrate applications)
• 1PH series asynchronous spindle motors
• Standard asynchronous induction motors (when the inverter is configured for the appropriate switching frequency — 4 kHz or 8 kHz for MA mode)
• 1PM series hollow-shaft spindle motors for direct-drive applications
• Non-Siemens motors, provided they meet sinusoidal modulation suitability requirements per the motor manufacturer's documentation

This range of motor compatibility reflects the module's use across a wide variety of machine tool configurations — from precision grinding to heavy turning — as long as the required motor current remains within the 9 A (feed) and 8 A (spindle) per-axis limits.

Compatible predecessor and successor variants include the 6SN1123-1AB00-0BA0 (earlier hardware revision) and the 6SN1123-1AB00-0BA2 (later revision), which share the same electrical ratings.

Typical Machine Applications

This specific power module size — 25 A dual-axis — is a common choice for auxiliary and secondary axes where motor currents are moderate. Typical use cases include:

• CNC machining centers: X, Y, Z, or rotary axis drives on smaller spindle configurations
• Turning centers: Turret positioning and sub-spindle axes
• Grinding machines: Wheel head feed and workhead drives
• Boring mills and gear-cutting machines running SINUMERIK 840D or 810D controls

The dual-axis format is especially practical where two axes share similar current demands — it halves the number of module slots required compared to two single-axis units.

Procurement Notes — Discontinued Status

The 6SN1123-1AB00-0BA1 carries a discontinued classification from Siemens, meaning it is no longer in active production. This is expected for the SIMODRIVE 611 platform, which has been superseded by the SINAMICS S120 drive family for new machine builds.

For maintenance applications, however, SIMODRIVE 611 systems remain operational across a very large installed base of existing CNC machines — and replacement modules are widely available through specialist industrial automation parts suppliers, typically as new-old-stock or professionally refurbished/exchange units. When sourcing, look for suppliers who perform functional testing on a motor test bench prior to sale, as this provides meaningful assurance that the module's power stage and control interfaces are performing correctly.

Frequently Asked Questions

Q1: What control modules are compatible with the 6SN1123-1AB00-0BA1?

This power module accepts the full range of SIMODRIVE 611 control modules, including the 6SN1118 series standard and universal control boards for both feed and spindle applications. The correct control module depends on the motor type (synchronous or asynchronous), the feedback system (resolver, encoder, or direct measuring system), and the required control functions. The pairing must be confirmed against the SIMODRIVE 611 system manual or the existing machine configuration — power modules and control modules are not universally interchangeable despite physical compatibility.

Q2: Is this module a direct drop-in replacement for the 6SN1123-1AB00-0BA0 and 0BA2 variants?

In most cases, yes. The BA0, BA1, and BA2 suffixes indicate hardware revisions of the same base product. Electrical ratings, form factor, and connector positions are consistent across revisions. However, specific firmware versions on the control module may interact differently with particular hardware revisions in some edge cases. When replacing a failed unit, note the original revision and match it if possible. If the exact revision is unavailable, the BA1 variant is generally accepted as compatible with systems originally fitted with BA0 or BA2.

Q3: The machine shows a drive fault after installing a replacement module — what should be checked first?

Start with the DC bus voltage. If the infeed module is not energized or its ready signal is not present, the power module will not operate regardless of its condition. Next, verify that the control module is correctly seated and that its enable signals (AS1/AS2 and the pulse enable) are active. Parameter mismatches — particularly the motor data set if a control module was also replaced — are another common cause. Finally, check for any residual fault codes stored in the control; some SINUMERIK controls retain alarm history that points directly to the fault sequence.

Q4: What happens if the cabinet cooling fails while this module is running?

The module's internal thermal protection will trigger before any permanent damage occurs under normal fault conditions. The drive will issue a temperature warning at a defined threshold, followed by a controlled shutdown if the temperature continues to rise. The operating ceiling is 45 °C ambient; sustained operation above this level degrades component life even without triggering an immediate fault. After a thermal shutdown, allow adequate cooling time before restarting — powering back up immediately into a still-hot cabinet is a common error that causes repeat faults.

Q5: Can this module be repaired rather than replaced?

Specialist repair is a well-established option for SIMODRIVE 611 modules, with several European and North American service providers offering tested exchange programs. A quality repair should include replacement of capacitors and other age-sensitive passive components — not just the failed part — along with a full functional test under load conditions. This approach typically costs significantly less than a new equivalent or high-grade refurbished unit. For machines where the SIMODRIVE 611 platform will remain in service for several more years, having at least one tested spare module on the shelf is a practical maintenance strategy given the discontinued status of the product line.

The 6SN1123-1AB00-0BA1 is supplied as a power module only. A compatible SIMODRIVE 611 control module is required for full drive function and must be ordered separately. Always refer to the Siemens SIMODRIVE 611 system manual for installation, parameter assignment, and commissioning procedures.
