Siemens 6SN1145-1AA00-0CA0 — SIMODRIVE 611 Infeed Module, 28/50 kW, Unregulated, Internal Cooling

What This Module Actually Does

Before getting into specs, it's worth being clear about the role this component plays — because "infeed module" is a term that means different things in different drive systems.

In the SIMODRIVE 611 architecture, the infeed module is the first module in the drive group. It sits to the far left of the cabinet rail, connects directly to the three-phase mains supply, and does one critical job: it rectifies the incoming AC voltage and establishes the shared DC bus that every power module in the group draws from. Without a correctly rated, functioning infeed module, none of the axis drives operate. This makes the 6SN1145-1AA00-0CA0 the foundation of the entire SIMODRIVE 611 cabinet — not a peripheral component, but the central power source.

This particular variant is the unregulated (UI) type, rated at 28 kW continuous / 50 kW peak, with internal heat dissipation and compatibility with both the SIMODRIVE 611A (analog) and SIMODRIVE 611D (digital) drive families.

Technical Specifications

Unregulated Infeed — Understanding the Distinction

The SIMODRIVE 611 platform offers two types of infeed modules, and the difference between them has real implications for system behavior.

Unregulated infeed (UI) — this module's type — produces a DC bus voltage that is directly proportional to the incoming mains voltage. There is no active voltage regulation. The DC link sits at approximately 1.35 times the supply voltage, which on a 400 V supply gives roughly 540 V DC. If the mains voltage fluctuates, the DC bus fluctuates with it. When a connected axis decelerates, regenerative energy flows back into the DC bus and raises the bus voltage. If no other axis can absorb that energy at the same moment, a braking resistor module must be used to prevent overvoltage faults.

Regulated infeed / regenerative (I/R) modules — a different product family — use active control to hold the DC bus voltage constant and can return regenerative braking energy to the mains supply. They cost more and require additional line components, but eliminate the need for braking resistors in many applications.

For the 6SN1145-1AA00-0CA0, the unregulated design is entirely appropriate where the drive group operates motors that coast to a stop, or where a braking module handles deceleration energy. Many production machine tools fall into this category, and the UI module's simpler circuit is inherently more robust over time.

System Configuration — Where This Module Belongs

The SIMODRIVE 611 drive group is assembled on a common rail, with modules sharing the DC bus through their backplane interconnection. The infeed module must occupy the leftmost position in the group — this is a hard requirement, not a preference. To its right go the NCU box (if present), followed by spindle drive modules arranged left to right in descending current order, then feed axis modules in the same descending sequence.

The infeed module also contains the mains contactor circuit. When the enable signals are satisfied and the system is ready to operate, the infeed module closes the mains contactor internally, connecting the DC bus to the rectified supply. This sequenced power-up is what allows the entire drive group to be safely enabled and disabled as a single unit from the CNC control.

For a 28/50 kW module, the total connected DC bus load — calculated as the sum of all power module requirements accounting for duty cycle and coincidence factor — must remain within the module's rated capability. Exceeding this results in overcurrent faults at the infeed stage rather than at individual power modules, which can make fault diagnosis confusing if the system was not properly sized at commissioning.

Internal Cooling — Cabinet Requirements

The "0CA0" suffix in this part number identifies the internal cooling configuration. This means the module's heat sink sits entirely inside the cabinet enclosure, dissipating waste heat into the cabinet interior air volume.

The implications for cabinet design are straightforward: the enclosure must be ventilated adequately to prevent heat buildup. At full load, a 50 kW infeed module generates meaningful thermal output, and the cabinet fan sizing must account for this alongside the heat from connected power modules, control hardware, and any other heat sources in the enclosure. Siemens published thermal design guidelines in the SIMODRIVE 611 Configuration Manual for exactly this calculation.

The alternative cooling configuration — where the heat sink protrudes through a cutout in the rear panel — reduces thermal load inside the cabinet but requires more complex mechanical installation. The internal cooling variant is generally preferred where cabinet modification is restricted or where the installation environment makes rear-panel access difficult.

Typical Machine Applications

The 28/50 kW power rating positions the 6SN1145-1AA00-0CA0 in the mid-range of the SIMODRIVE 611 infeed lineup — large enough to support multi-axis machining centers with full-size spindle drives, compact enough that the drive group doesn't grow beyond manageable cabinet dimensions. Common applications include:

• CNC machining centers with one spindle axis and three to five feed axes
• Turning centers and lathes with servo turret, tailstock, and C-axis
• Grinding machines requiring multiple coordinated feed axes
• Gear cutting and hobbing machines running SINUMERIK 840D or 810D controls
• Boring and milling machines in aerospace and heavy engineering environments

The dual compatibility with both 611A (analog) and 611D (digital) systems gives this module an unusually wide footprint across the installed base of SIMODRIVE-equipped machine tools.

Procurement Considerations

This part carries discontinued / spare part status from Siemens, consistent with the broader SIMODRIVE 611 platform's end-of-active-manufacturing lifecycle. Siemens has transitioned new machine designs to the SINAMICS S120 platform, but the SIMODRIVE 611 installed base remains enormous, and replacement modules continue to be actively traded through specialist industrial automation suppliers.

When sourcing the 6SN1145-1AA00-0CA0, the key distinction to make is between:

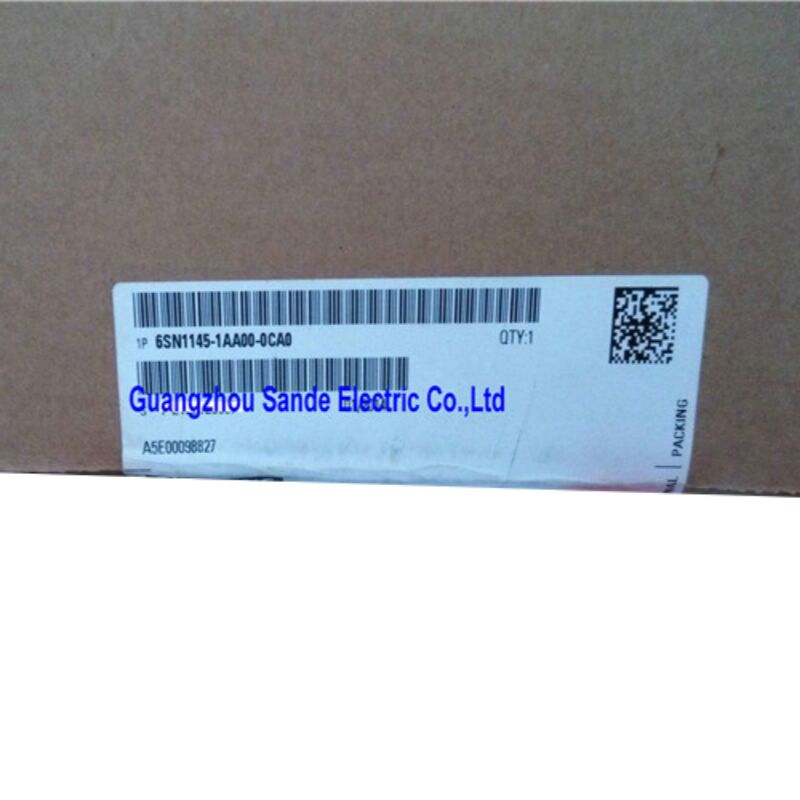

• New-old-stock (NOS): Original Siemens units in sealed packaging, typically commanding a significant price premium but offering full confidence in component age and condition
• Refurbished / exchange units: Professionally tested and reconditioned modules, appropriate for most maintenance applications when sourced from reputable specialists who test on live drive test benches
• Untested used stock: Carries meaningful risk for a module of this criticality — the infeed module's failure takes down the entire drive group, so the cost of a second failure during production downtime can far exceed the saving on a cheaper unit

Frequently Asked Questions

Q1: What is the difference between the 28 kW and 50 kW ratings on this module?

The 6SN1145-1AA00-0CA0 carries a dual power rating because the infeed module must support two different load profiles. The 28 kW figure is the continuous power rating — the sustained load the module can handle indefinitely under normal operating conditions. The 50 kW figure is the peak capability, available for short periods when the connected axes are simultaneously accelerating under heavy load. When sizing an infeed module for a new drive group, the calculation must confirm that both the peak demand and the continuous average remain within these respective limits across the worst-case duty cycle of the machine.

Q2: Does this module work with both SIMODRIVE 611A (analog) and 611D (digital) systems?

Yes — the "A/D" designation in the product description confirms compatibility with both generations. The infeed module itself is not sensitive to whether the connected power modules use analog or digital control; its job is to supply the DC bus regardless. Mixed 611A and 611D configurations in the same drive group are possible and were commonly found on machines that underwent partial drive upgrades over their service life.

Q3: The machine trips with an overvoltage fault on the DC bus during braking — could the infeed module be at fault?

Not necessarily the infeed module itself, but the system configuration around it. With an unregulated UI module, regenerative braking energy has nowhere to go unless a braking resistor module is present and correctly sized. If the braking resistor has failed, is undersized, or was never fitted, DC bus overvoltage during deceleration is the expected result. Check the braking module status and resistor condition before suspecting the infeed module. If the infeed module is genuinely failing, the more typical symptom is inability to establish the DC bus at power-up, often accompanied by a specific fault code on the SINUMERIK display.

Q4: What upstream line components are required with this infeed module?

A SIMODRIVE 611 drive group using this infeed module requires several upstream components to function correctly and safely. A line filter is required for EMC compliance. A commutating reactor (HF reactor) must be fitted between the line filter and the infeed module to limit current rise rate and protect the rectifier bridge. The mains supply must be a grounded TN system; for IT or TT supplies, an isolation transformer with the correct vector group (Yyn0) is required. Line fusing or a circuit breaker rated for the infeed module's maximum input current must also be provided. These requirements are specified in the SIMODRIVE 611 Configuration Manual and must not be omitted.

Q5: Is this module interchangeable with other 6SN1145-1AA00 variants?

Within the 6SN1145-1AA00-0CA series, minor hardware revision suffixes (0CA0, 0CA1, 0CA2) are generally considered interchangeable for maintenance replacement purposes — the electrical ratings and physical dimensions are identical, with the suffix reflecting manufacturing revision level rather than functional difference. However, the 6SN1145-1AA00 series as a whole covers multiple power ratings (10/25 kW, 28/50 kW, and higher), and modules of different power ratings are not interchangeable. Fitting a lower-rated infeed module than the original will result in overcurrent trips during normal operation. Always confirm the power rating matches the original installation before substituting a unit.

The 6SN1145-1AA00-0CA0 is a cabinet-mounted module rated IP00. It must be installed in a suitably enclosed, ventilated control cabinet. A braking resistor module is required for applications involving significant regenerative energy from decelerating loads. Always refer to the Siemens SIMODRIVE 611 Configuration Manual for drive group sizing, line component selection, and installation requirements.
