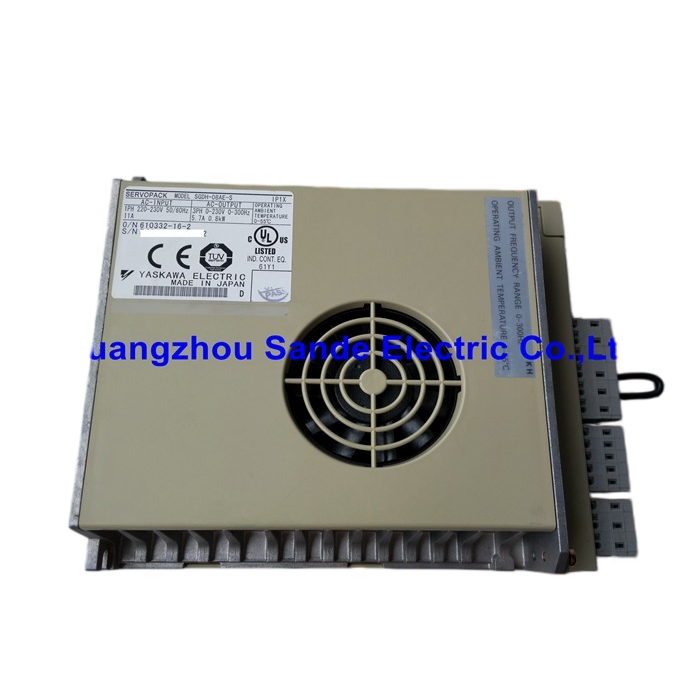

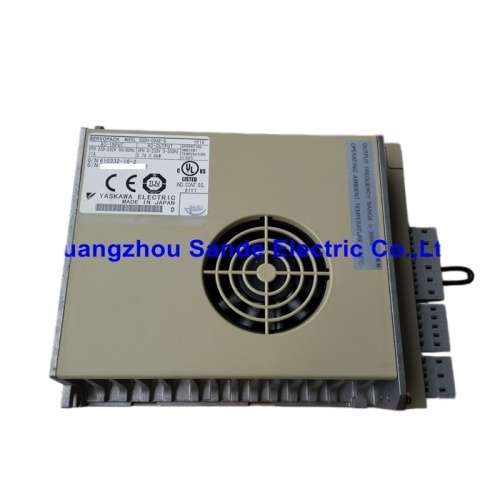

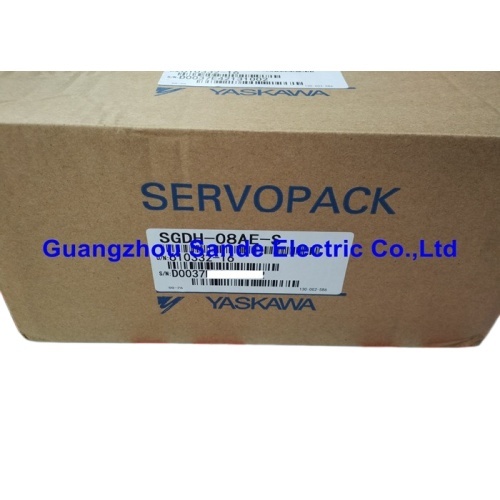

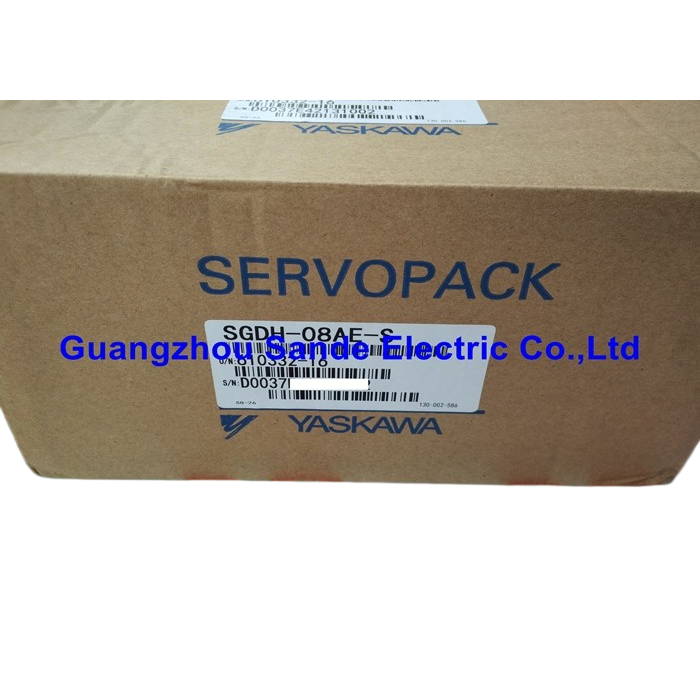

External Apperance and Naneplate Examples

FAQs for Yaskawa SGDH-08AE-S AC Drive

1. What is the input voltage and frequency requirement for the SGDH-08AE-S?

The SGDH-08AE-S's input voltage is between 200 and 230 V, and it requires an input frequency of 50/60 Hz. This allows it to be compatible with standard industrial power supplies.

2. Can SGDH-08AE-S replace other models?

The SGDH-08AE-S is specifically designed for single-phase Sigma II series and cannot be directly replaced by other series such as SGDV (Sigma V); power, voltage, and control mode must be fully compatible.

3. What communication protocols does SGDH-08AE-S support?

It can be expanded with fieldbus modules such as DeviceNet and EtherCAT, but requires corresponding communication cards and parameter settings.

4. SGDH-08AE-S AC Drive Routine Maintenance Points?

Every 6 months: Check terminals, heat sinks, and fans; clean dust.

Annually: Check capacitor status; replace fans after 2-3 years.

During operation: Monitor temperature, current, and regenerative power; promptly detect any abnormalities.

5. Does the firmware need an upgrade?

Yaskawa SGDH-08AE-S AC Drive releases firmware updates. It is recommended to upgrade during downtime maintenance to obtain functional optimizations and stability improvements.

6.Which control modes are supported?

SGDH-08AE-S AC Drive supports three modes: position control, speed control, and torque control. These can be switched via the panel or parameters.
