Fanuc A06B-6164-H223#H580 | Beta i Servo/Spindle Amplifier — BiSVSP 40/40-15, Dual-Axis 13A Servo + 15kW Spindle, 200–240VAC, FSSB, Built-In PSU

Overview

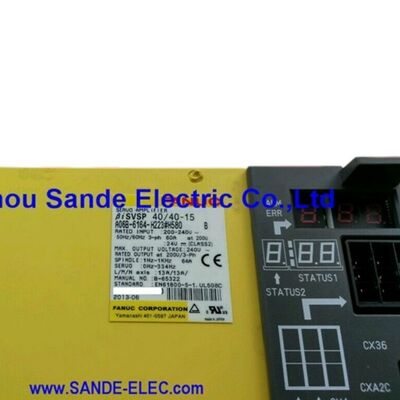

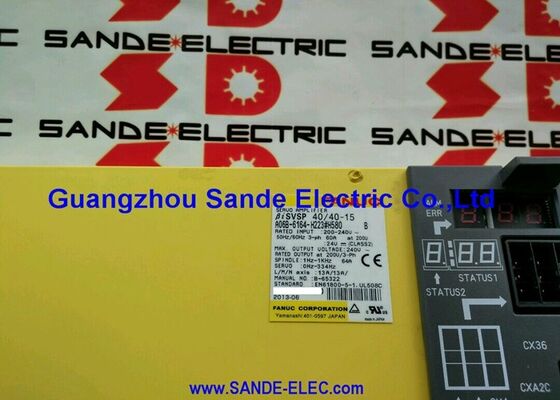

The Fanuc A06B-6164-H223#H580 is a BiSVSP 40/40-15 — a second-generation Beta i series combined servo and spindle amplifier unit that integrates two servo axis channels (each 13A) and a 15kW spindle channel into a single standalone unit with its own built-in power supply.

This combination architecture is the defining feature of the Beta i series BiSVSP family: one unit replaces what would otherwise require a separate PSM, two SVM servo modules, and an SPM spindle module in an alpha series installation, substantially reducing the cabinet hardware count and simplifying the drive system wiring for small-to-medium CNC machine tools.

Designed specifically for the Fanuc 0i-D and 0i-Mate-D CNC controls, the A06B-6164-H223#H580 drives the biS22/3000 Beta i servo motors on its two servo channels and the biLP15 Beta i spindle motor on its spindle channel.

The 13A per-servo-axis output correctly matches the biS22's rated current demand at full continuous torque, and the 15kW spindle channel rating covers the biLP15's full power output across its operating speed range.

All three motor channels are coordinated through the FSSB fiber optic ring that connects the 0i-D control to the drive unit.

The #H580 suffix identifies this as the standard 200V input series, operating from a 200–240V three-phase AC supply — the standard shop-floor voltage in most global markets.

This distinguishes it from high-voltage HV variants used on 400V infrastructure.

The second-generation redesign (from the original A06B-6134 BiSVSP platform) addressed known reliability issues in the first-generation units while maintaining mechanical and functional compatibility with the same Fanuc 0i platform.

Key Specifications

BiSVSP Architecture — Servo and Spindle in One Unit

The BiSVSP (Beta i Servo/Spindle) architecture integrates functions that the alpha series implements as separate modules: power supply (PSM), servo drive modules (SVM), and spindle module (SPM) are all combined into the single BiSVSP unit.

This integration delivers the complete drive system for a small CNC machine tool in one box — plug in three-phase AC, connect the FSSB fiber cable from the CNC, wire the three motors, and the machine's drive system is complete.

The built-in power supply rectifies the three-phase AC input and generates the internal DC bus that feeds both the servo and spindle output stages simultaneously. Regen energy from spindle braking and axis deceleration is returned to this internal bus.

The FSSB connection to the 0i-D control carries all axis command and feedback data on a single fiber optic ring, with the BiSVSP unit acting as a single FSSB node that the CNC recognises as two servo axes and one spindle channel.

This architecture is deliberately targeted at smaller machine tools where the simplicity and cost of a single-unit drive system outweigh the modular expansion flexibility of the alpha series. The 0i-Mate-D is Fanuc's entry-level machining centre and turning centre control, and the BiSVSP 40/40-15 is the drive system designed to match it: compact, cost-effective, complete.

Second Generation — Reliability Improvements Over A06B-6134

The A06B-6164 series is the second-generation redesign of the original A06B-6134 BiSVSP family, which introduced the combined servo/spindle concept for the Beta i platform in 2004. The A06B-6164 addressing specific reliability issues identified in production service on the first-generation units: improved thermal management of the combined power stages, revised PCB layout for better separation of high-current power paths from low-level control signals, and updated IPM protection circuitry.

The second generation maintains full compatibility with the same 0i/0i-Mate-D CNC controls and the same biS and biLP series motors, making it a direct replacement for first-generation units in service.

The incompatibility with alpha series amplifiers is fundamental — the alpha series uses the PSM/SVM/SPM modular architecture with a different DC bus voltage, different FSSB device configuration, and different motor parameter sets.

A machine designed for BiSVSP cannot substitute alpha modules without changing the entire drive system.

FAQ

Q1: The BiSVSP 40/40-15 drives both servo axes and the spindle — what happens to the spindle if a servo axis alarms?

The BiSVSP unit's internal architecture isolates the servo output stages from the spindle output stage electrically.

A servo axis alarm (IPM alarm on L or M channel) will de-energise the affected servo axis and generate a CNC alarm, but the spindle channel can continue operating if the CNC does not command an emergency stop.

In practice, most machine ladder programs trigger an emergency stop on any servo alarm, which also stops the spindle. The specific response depends on the machine's PMC ladder logic design.

Q2: Can the A06B-6164-H223#H580 run biS series motors other than the biS22?

The BiSVSP 40/40-15 is factory-rated and tested with the biS22/3000 at 13A per axis. Smaller Beta i servo motors — biS8, biS12 — have lower rated currents than 13A and can be driven by the BiSVSP without overcurrent issues; the drive simply operates at a fraction of its output capacity.

The servo parameters must be set to the actual installed motor's specifications.

Larger Beta i motors that require more than 13A continuous current cannot be used — the IPM output stage limit is the 13A per-channel rating.

Q3: The #H580 suffix indicates the 200V series — are 400V variants available for the BiSVSP 40/40-15 configuration?

The A06B-6164 BiSVSP family is a 200V input series only. The 400V input high-voltage series of Beta i amplifiers carries different part numbers in the A06B-616x range.

If the machine's infrastructure is 400V three-phase, the corresponding high-voltage series unit is required.

The #H580 suffix always denotes a standard 200V series module within the A06B-6164 lineup.

Q4: What FSSB topology does the BiSVSP 40/40-15 use, and how does it appear to the 0i-D CNC?

The BiSVSP unit connects to the 0i-D's FSSB ring as a single fiber optic node. The CNC's FSSB initialisation detects the BiSVSP as providing two servo axes (L and M) and one spindle channel — the same channel assignment that three separate alpha modules would provide, but from a single node address in the ring.

The FSSB fiber cables at the BiSVSP's input (COP10A) and output (COP10B) connectors form the ring.

If there are additional FSSB nodes (other axis drives), they chain from the BiSVSP's COP10B to the next module.

Q5: What are the most common failure modes in the A06B-6164-H223#H580 in production service?

IPM (Intelligent Power Module) failures in the servo output stages — typically caused by motor winding insulation breakdown that drives fault current through the output transistors — are the most common sudden hardware failures.

The biS22 motor's pulse coder cable connector can develop intermittent contact faults after years of repeated axis movements, producing encoder-related alarms rather than drive faults; check the encoder cable and connector first when a position feedback alarm appears.

Internal electrolytic capacitor aging after extended service life can produce DC bus voltage irregularity and is typically addressed during a full workshop reconditioning of the unit.

All repaired BiSVSP units should be tested under load with actual biS servo motors and a biLP spindle motor on a Fanuc 0i test system before return to service.
