FANUC A06B-6044-H008 AC Spindle Servo Unit — Analog Drive for CNC Spindle Control

The Drive Behind Reliable Spindle Performance

There's a reason this unit keeps showing up in machine shops that refuse to retire their older FANUC-controlled machines — it works, and it's been working for decades. The FANUC A06B-6044-H008 is an AC spindle servo unit built around an analog interface architecture, designed to pair with the Model 6 FANUC AC spindle motor and commonly found on machines running early FANUC SYSTEM 10/11 controls.

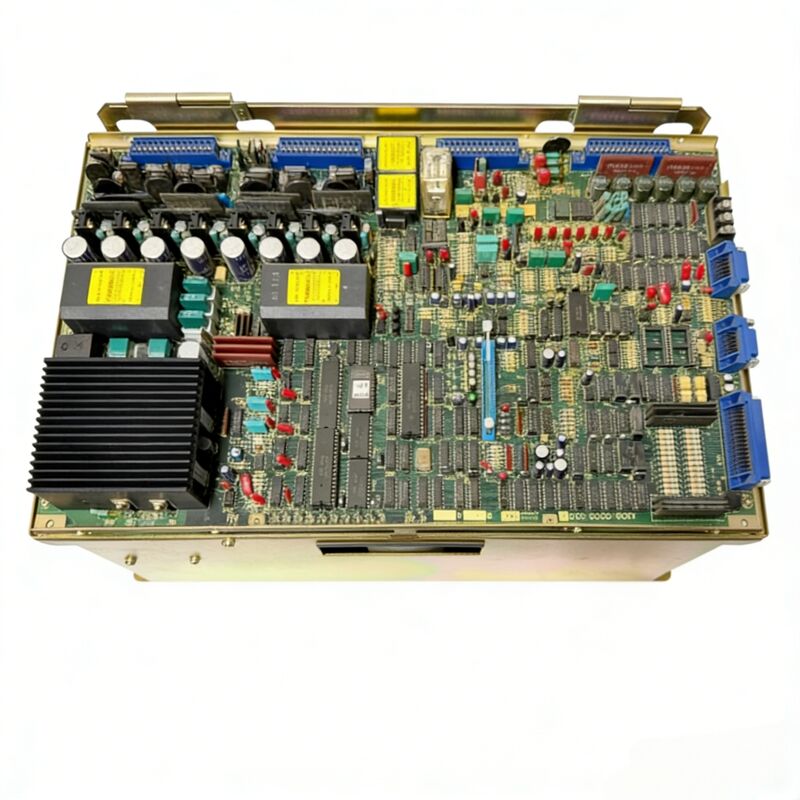

This is not a delicate piece of electronics. The drive is housed in a robust anodized metal enclosure, with the spindle control PCB card secured firmly to the top of the unit — a practical, serviceable layout that made field repairs far more straightforward than later all-in-one designs. It was manufactured in Japan, at FANUC's facility near Mt. Fuji, and the build quality reflects that origin.

If your machine went down and this drive is at the center of it, you're dealing with a well-understood, well-documented unit that the CNC repair community has been servicing for years.

Technical Specifications

What Makes This Unit Distinct

The A06B-6044-H008 belongs to an era when FANUC's spindle drives communicated via analog signal rather than the serial bus protocols used in later amplifier generations. This means the CNC sends speed commands as an analog voltage, and the drive responds accordingly — a simpler signal path with fewer layers of digital overhead, but one that requires careful attention to cable routing and shielding to maintain clean signal integrity.

The spindle motor type is selected via a ROM chip on the PCB card. In the case of the H008, the onboard ROM is the J11, which defines the drive and motor relationship and governs how the unit interprets feedback and executes speed control. Swapping the top card without verifying ROM compatibility is one of the most common mistakes in field replacements — worth double-checking before anything gets powered on.

The A20B-0009-0531 spindle card plugs into the top of the main drive chassis. It can be replaced independently of the power section, which is a real advantage when the fault is isolated to the control board side rather than the transistor modules or power components below.

Common Alarm Codes and What They Mean

Field technicians dealing with this unit will likely encounter a handful of recurring alarm codes. Here's a quick reference for the most common:

• AL-01 (Motor Overheat) — Check the motor cooling fan, inspect for overload conditions, and clean any blocked air passages.
• AL-05 (Control Power Fuse Blown) — Points to fuse AF2 or AF3; caused by a defective PCB or abnormal supply voltage.
• AL-08 (High Input Voltage) — Often caused by an incorrect voltage selector switch setting. Verify 200V vs. 230V configuration.
• AL-09 (Heatsink Overheat) — Cooling fan failure or accumulated dust on heatsink fins. Clean and replace as needed.
• AL-11 (DC Link Overvoltage) — Can indicate high line impedance or a failing transistor module or PCB.

Understanding these alarms before calling a repair facility can save significant diagnostic time and back-and-forth.

Sourcing and Repair Considerations

New old stock of the A06B-6044-H008 is rare — this is not a unit FANUC still manufactures. Most available units on the market today are refurbished or surplus, and quality varies considerably depending on who tested them and what they checked. A thorough bench evaluation using a matched FANUC test rig and closed-loop feedback testing is the most reliable way to confirm a unit is genuinely functional before it goes back into a production machine.

Repair is a viable path. The modular construction means experienced shops can address power section failures, capacitor degradation, and PCB faults with individual component replacement rather than a full unit swap. For machines where this drive is the bottleneck to getting back to production, same-day or next-day turnaround repair options do exist through specialized FANUC service providers.

Frequently Asked Questions

Q1: What spindle motor is the A06B-6044-H008 designed to drive?

A: This unit is matched to the FANUC Model 6 AC spindle motor. The pairing is determined by the J11 ROM chip on the A20B-0009-0531 spindle card. Using a different motor model without changing the ROM and reconfiguring the drive will result in incorrect operation or alarm faults.

Q2: Can this drive be used with newer FANUC CNC controls beyond SYSTEM 10/11?

A: It's designed for FANUC SYSTEM 10/11 controls and communicates via analog interface. Integration with later digital-bus-based FANUC controllers (such as Series 16/18/21) is generally not straightforward and typically not recommended without additional interface hardware or conversion.

Q3: What is the most common failure mode on this unit?

A: Capacitor degradation in the power section is the most frequent age-related failure, followed by cooling fan failure leading to heatsink overheat alarms (AL-09). PCB faults on the spindle card are also common and are usually more cost-effective to address than power module failures.

Q4: Is the spindle card (A20B-0009-0531) interchangeable with cards from other drives in the A06B-6044-H series?

A: Not directly. Each spindle card in the H series carries a specific ROM that defines the compatible motor model. The H007, for example, uses the A20B-0009-0530 with J10 ROM. Swapping cards between H-suffix variants without verifying ROM compatibility will cause mismatched operation.

Q5: How can I tell if a used unit has been properly tested before purchase?

A: Ask the seller whether the unit was tested under closed-loop conditions on a live FANUC test rig — not just powered on and checked for obvious damage. A legitimate bench test should confirm speed regulation, current output, and alarm-free operation through the operating RPM range. Units described only as "powers on" or "visually inspected" carry significantly more risk.
