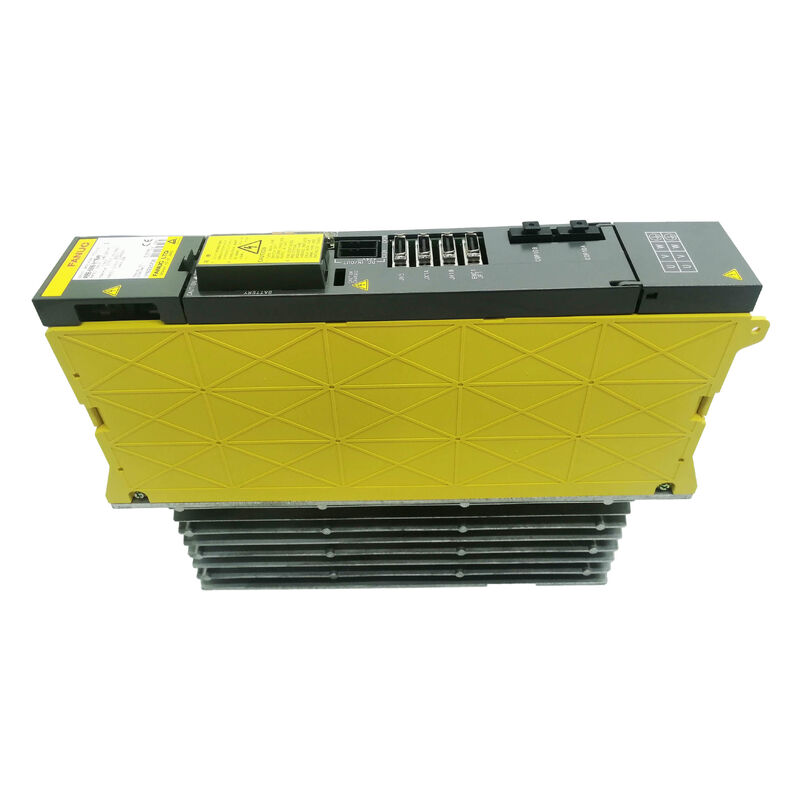

FANUC A06B-6077-H002 Alpha Series Servo Drive — Dual-Axis Power Supply Module for CNC Systems

The Drive That Keeps Two Axes Running

In any FANUC Alpha-series CNC system, the power supply module is the component everything else depends on. It doesn't move the machine directly, but without it, nothing moves at all. The FANUC A06B-6077-H002 is the Alpha series power supply module — the unit that conditions incoming AC power, feeds the servo and spindle amplifier modules on the DC bus, and manages power failure response so the machine can retract safely rather than crash when the lights flicker.

This is a dual-axis capable module, designed to work alongside FANUC Alpha series servo and spindle amplifiers in compact machine configurations. It handles two controlled axes and is matched to the smaller end of the Alpha motor range — typically paired with smaller Alpha spindle and servo modules in lathes, machining centers, and other CNC machine tools where the full PSM-11 or larger modules would be oversized for the application.

The rated DC bus voltage is in the 283–325V range, derived from a 200–230V AC, 50/60Hz incoming supply. Like all FANUC Alpha PSMs, the A06B-6077-H002 also manages the kinetic energy recovery function — on a power interruption, the spindle motor's rotational inertia is converted back into electrical energy to power the CNC control and servo system long enough for a controlled stop or tool retraction. For interruptions under 100ms, behavior can be customized at the parameter level to suit the machine's safety requirements.

Technical Specifications

What This Module Actually Does in the System

The A06B-6077-H002 sits at the front of the FANUC Alpha drive system — it takes the raw three-phase AC from the panel, rectifies it to the DC bus voltage that feeds the servo and spindle amplifier modules, and handles regenerative energy from motor deceleration. When a servo axis brakes hard, the energy has to go somewhere; the PSM manages that flow, protecting the system from overvoltage on the DC bus.

The power failure response function is one of the less-discussed but practically important features. When mains power drops, the CNC control needs enough time to execute an orderly stop — retracting the tool, disabling motion commands, and writing machine state to non-volatile memory. The A06B-6077-H002 uses the rotational inertia of the running spindle as a temporary energy source during that window. It's an elegant solution to a real problem, and it's the reason FANUC machines tend to stop gracefully rather than leaving tools buried in the workpiece after a power event.

The module is designed for the smaller Alpha system configurations — pairing with compact Alpha servo and spindle amplifiers for machines where space and power requirements don't demand the larger PSM-26, PSM-30, or PSM-37 variants. Getting the PSM sizing right for the connected amplifiers is important: too small and the module can't supply enough DC bus current under peak demand; too large and you're paying for capacity the system will never use.

Operating Environment and Installation

The operating temperature range of 0 to 55°C covers standard industrial control cabinet environments in most climates. At the upper end, cabinet cooling is worth considering — FANUC Alpha modules run warm under load, and sustained operation near the thermal limit shortens component life. The 20–95% RH non-condensing humidity rating is standard for industrial electronics; the non-condensing qualification means the module should not be powered up after being moved from a cold storage environment into a warm, humid space without adequate warm-up time.

At 8.5 kg, the module has the build density typical of FANUC power electronics — it's a solid unit with meaningful transformer mass inside. Mounting hardware and DIN rail compatibility follow standard FANUC Alpha panel layout conventions, with the amplifier modules connecting via the DC bus bar on the right side of the PSM.

Repair vs. Replace — What the Market Looks Like

The A06B-6077-H002 has been discontinued by FANUC, which means new units are no longer available through the factory channel. The market for this module runs on three tracks: refurbished exchange units, tested used stock, and repair of failed units.

Refurbished exchange is often the fastest path — a tested unit ships immediately, your failed module goes back as the core. Repair is the right choice when you want your specific unit returned with known history, particularly if the machine has custom parameters tied to the drive configuration. Tested used stock sits between the two — useful when the price matters and a warranty from the supplier substitutes for factory backing.

Regardless of which route you take, confirm the module has been tested under load on an actual FANUC system, not just bench-powered. A PSM that initializes correctly but can't sustain the DC bus under servo axis motion is not a functional module — and that distinction only becomes apparent under load testing.

Frequently Asked Questions

Q1: What is the A06B-6077-H002 and what role does it play in a FANUC Alpha system?

A: It is the power supply module (PSM) for the FANUC Alpha series drive system — it converts incoming 3-phase AC to the DC bus voltage that feeds servo and spindle amplifier modules. It also manages regenerative energy from motor braking and provides power-failure backup via spindle kinetic energy recovery.

Q2: Which FANUC Alpha servo and spindle modules are compatible with the A06B-6077-H002?

A: This PSM is designed for the smaller Alpha amplifier configurations — typically paired with compact Alpha servo modules (SVM) and smaller Alpha spindle modules (SPM). The specific amplifier combinations depend on the machine's motor selection and axis count. Always verify your machine's electrical diagram before substituting or pairing amplifier modules.

Q3: Is the A06B-6077-H002 still available new from FANUC?

A: No. This module has been discontinued by FANUC and is no longer available through the factory channel. Available supply consists of refurbished exchange units, tested used stock, and repair services for failed modules through specialist CNC parts suppliers and FANUC service partners.

Q4: What typically causes failure on the A06B-6077-H002?

A: The most common failure modes are capacitor degradation in the DC bus filter section (presenting as DC bus overvoltage or instability under load), IGBT or rectifier module failure from power surge events, and control board faults caused by contamination or component aging. Many failures trace back to poor incoming power quality — voltage spikes, phase imbalance, or sustained operation at the thermal limit without adequate cabinet cooling.

Q5: Can this module be used with FANUC αi (Alpha i) series amplifiers, or only the original Alpha series?

A: The A06B-6077-H002 is part of the original Alpha series drive system, not the later αi (Alpha i) series. The two generations use different DC bus architectures and connector interfaces and are not directly interchangeable. For αi systems, the corresponding power supply modules are from the A06B-6110 or A06B-6120 series.
