Overview

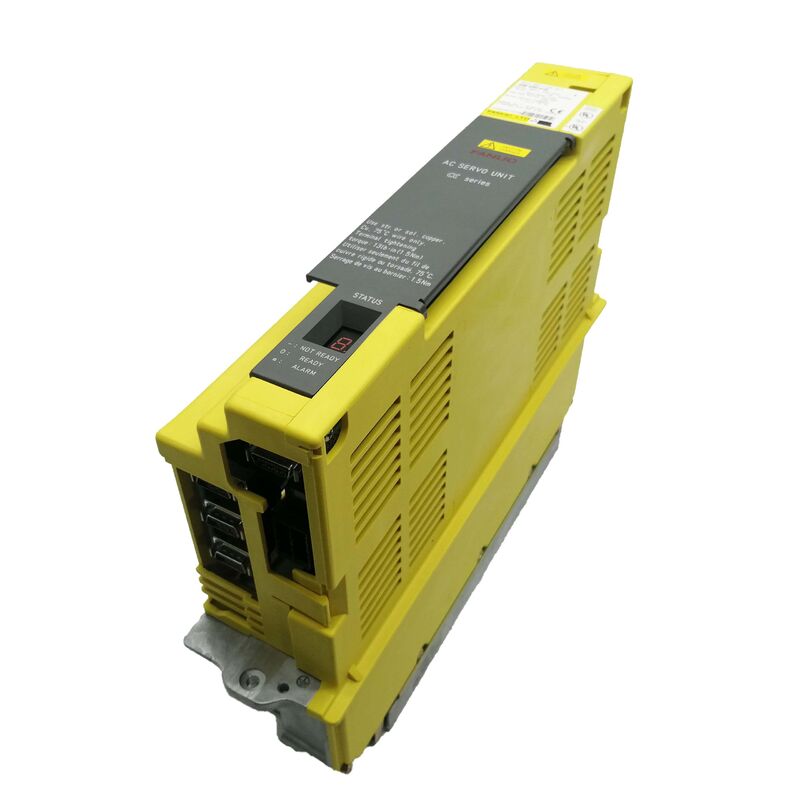

The Fanuc A06B-6089-H101 is the SVU1-12 — the entry-level, smallest single-axis unit in Fanuc's A06B-6089 alpha servo amplifier unit (SVU) series, rated at 3.0A continuous output on its single L-axis channel from a 200–230VAC three-phase input.

As the smallest SVU in the series, it occupies a unique position: it serves the lightest alpha servo motors in applications where a standalone drive architecture is preferred over the SVM/PSM module system, but the motor's current demand is at the minimum end of the alpha motor range.

The SVU architecture's defining advantage over the SVM module system is self-containment.

The SVU1-12 draws three-phase AC directly from the machine's power distribution, generates its own internal DC bus, drives the motor, and connects to the CNC through a single PWM cable — without requiring a shared PSM and the associated DC bus infrastructure.

This makes the SVU1-12 suitable for remote axis installations, distributed machine layouts, and machine designs where a single light-duty axis needs to be positioned separately from the main drive cabinet.

The 3.0A rated output places the SVU1-12 at the same current level as the SVM1-12 rail module (A06B-6079-H101) — the architectural difference is the SVU's built-in power supply versus the SVM's shared bus dependency.

The motor class served by both is the same: α1/3000 (1N·m, 3000rpm) and α2/2000 (2N·m, 2000rpm) as the standard companions, with the A06B-6089-H101's rated current providing the appropriate continuous drive for these motors.

Both Type A and Type B PWM interface are supported on the same unit — the interface mode is selected by a switch on the SVU1-12's front panel.

This dual-interface capability gives the A06B-6089-H101 broader CNC compatibility than type-specific modules: it serves machines using Series 0-C, 15A, 16A, 18A controls (Type A) and equally serves machines with Series 0-D, 0-MD, 16B, 18B, 21B controls (Type B), making it a versatile single-unit spare for different machine generations.

Key Specifications

SVU1-12 in the A06B-6089 Series Hierarchy

The A06B-6089 SVU series steps up from the SVU1-12 (H101, 3.0A) to the SVU1-20 (H102, 5.9A), then SVU1-40 (H104, 12.5A), SVU1-80 (H105, 18.7A), and SVU1-130 (H106, 52.2A). The H101 is the floor of this range — the minimum standalone alpha servo drive available.

Where the SVU1-80 and SVU1-130 drive heavy machine axes with high-inertia loads, the SVU1-12 handles applications where motor torque and speed are modest but a standalone architecture is preferred.

The two PCBs inside the H101 — wiring board A16B-2202-0950 and control board A20B-2002-0030 — are not sold separately.

Complete module exchange is the standard replacement approach. Serviceable components available separately include the fuses, internal battery pack for absolute encoder backup, and transistors for specialist component-level repair.

Built-In Power Supply — Standalone Operation Principles

The SVU1-12's internal AC-to-DC converter section handles the conversion of 200–230V three-phase AC to the internal DC bus that feeds the output stage transistors. This internal bus is generated within the SVU housing from the three-phase AC supply connected to its input terminals — no connection to any external PSM is required or provided.

At 3.0A rated output, the SVU1-12's internal power electronics are lightly loaded in absolute terms.

The heat generated by the output stage at 3.0A is moderate, and the unit's thermal management handles it within its rated 0°C to 55°C operating ambient temperature range.

This thermal self-sufficiency at the 3.0A current level means the SVU1-12 can be installed in compact enclosures or mounting positions that would challenge higher-current SVU units with larger heatsink requirements.

Type A and Type B Interface Selection

Unlike the single-interface A06B-6079 SVM modules (which are dedicated to either Type A or Type B), the A06B-6089-H101 SVU supports both interface types through a front-panel switch setting.

This is a significant practical advantage for service inventories: one H101 unit can replace failed units on both Type A and Type B machines — provided the switch is set to the correct mode before installation.

Setting the switch to the wrong interface type produces the characteristic VRDY OFF alarm on power-up, where the CNC's drive-ready signal cannot be established.

This alarm clears immediately upon correcting the switch setting and power cycling — it indicates a configuration mismatch, not a unit fault.

For machines where the switch must be set before installation, confirm the machine's CNC interface type from the machine's electrical documentation before fitting the replacement unit.

FAQ

Q1: The A06B-6089-H101 is described as the "smallest" alpha SVU — what motor does it drive?

The 3.0A rated output matches α1/3000 and α2/2000 alpha servo motors — the lightest AC servo motors in Fanuc's standard alpha range.

The α1/3000 produces 1N·m continuous torque at 3000rpm rated speed; the α2/2000 produces 2N·m continuous at 2000rpm.

Both draw rated current comfortably within the SVU1-12's 3.0A envelope. Motors above the α2 class — α3, α6 and larger — require the next unit in the series (SVU1-20, H102, 5.9A) or larger.

Q2: Can the SVU1-12 support an absolute pulse coder with battery backup?

Yes. Absolute pulse coder operation with battery backup is supported via the battery connector on the SVU1-12's wiring board.

A lithium battery maintains the absolute position stored in the motor's pulse coder during machine power-off. When battery voltage drops below the monitoring threshold, the CNC generates a BAT alarm.

The battery should be replaced before complete discharge to avoid loss of absolute position data — a data loss event requires a full reference return procedure to re-establish the axis zero position.

Q3: How is the Type A / Type B interface mode selected on the A06B-6089-H101?

A switch on the front panel of the SVU1-12 (behind the terminal cover) selects between Type A and Type B.

Set the switch before connecting the CNC interface cable and before power-up.

The switch position must correspond to the CNC's interface type — Type A for Series 0-C, 15A, 16A, 18A controls; Type B for Series 0-D, 0-MD, 15B, 16B, 18B, 21B controls.

The B-65192 manual appendix details the specific switch position for each interface type.

Q4: What is the correct alarm diagnostic sequence for an A06B-6089-H101 showing overcurrent alarm?

Start by powering off the machine and disconnecting the motor's U/V/W power cables from the SVU1-12's output terminals. With cables disconnected, power on the machine and release E-stop.

If the overcurrent alarm (typically displayed as Alarm 8 on the SVU's 7-segment LED) clears, the fault source is in the motor winding or motor cable — test motor insulation resistance from each winding terminal to protective earth (acceptable: several hundred megaohms or higher).

If the alarm remains with cables disconnected, the fault is in the SVU1-12's output stage and the unit requires repair or exchange.

Q5: Is the A06B-6089-H101 interchangeable with the A06B-6079-H101 (SVM1-12, rail module)?

Both are SVU/SVM1-12 class drives rated at 3.0A output for the same α1/α2 motor class. However, they are not interchangeable in the physical and architectural sense.

The A06B-6089-H101 is a standalone unit with its own AC input terminals and built-in power supply; the A06B-6079-H101 is a rail-mounted module that draws from a shared PSM DC bus. The A06B-6089-H101 cannot be connected to a PSM DC bus, and the A06B-6079-H101 cannot operate without one. Replacement must match the original unit type — SVU for SVU, SVM for SVM.
