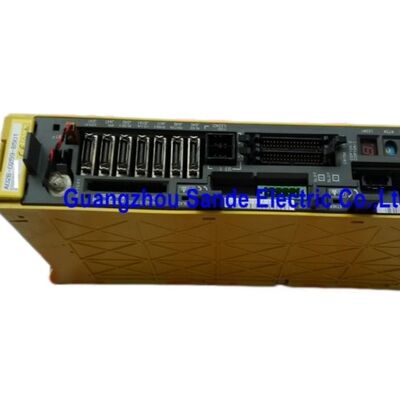

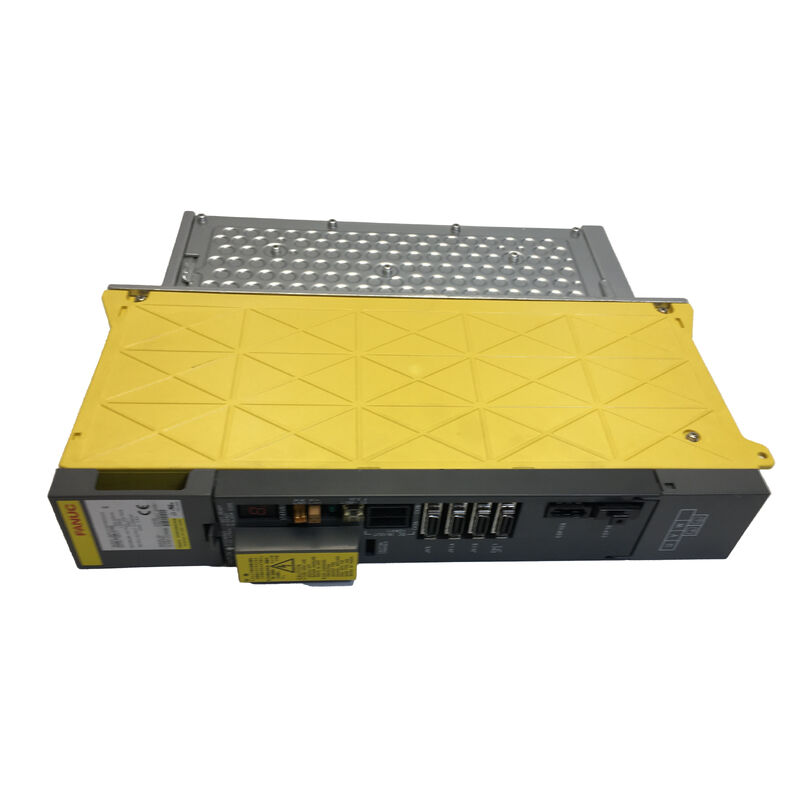

FANUC A06B-6096-H205 Alpha Servo Amplifier Module SVM2-20/40

Overview

The FANUC A06B-6096-H205 is a 2-axis servo amplifier module in the Alpha series, identified in the FANUC descriptions manual as SVM2-20/40 for the FSSB interface. In the official ordering section for the 200-V input series, it is listed as a standard module with external dimensions of 380 × 60 × 307 mm, which places it in the compact multi-axis amplifier class used where cabinet space and clean axis integration both matter.

This is the kind of module buyers usually look for when the machine is not asking for a broad retrofit, but for a correct, like-for-like replacement that matches the original drive architecture.

In practical service terms, that matters more than generic “high performance” language.

A correct SVM2 module restores the intended axis structure, keeps the wiring and interface logic aligned with the original system, and reduces the risk of turning a parts replacement into a commissioning problem.

Key parameters

Technical Profile

FANUC’s manual groups SVM2-20/40 under the individual servo-module specification table in the 200-V input series, and the naming convention is consistent with a mixed-capacity two-axis arrangement.

In the same manual set, the heat-dissipation table shows A06B-6096-H205 with an example motor pairing of αC12/2000 and αC22/1500, which is useful for understanding the intended class of axis combination this amplifier supports.

FANUC also states, as a common SVM specification, that the main circuit control method is sine-wave PWM control with transistor (IGBT) bridge.

What makes this model commercially valuable is not just that it is two-axis, but that it combines two different servo classes in one module footprint.

That is often exactly what legacy FANUC machine platforms need: one amplifier body, two coordinated servo channels, and a cabinet layout already designed around that format. For maintenance teams, that means faster replacement planning and fewer surprises during installation.

Application and Replacement Context

For industrial users, the real decision point is compatibility. A two-axis amplifier is not interchangeable simply because another unit looks similar or has the same family prefix. FANUC’s own manual emphasizes selecting an amplifier appropriate for the interface between the CNC and the SVM, which is especially important here because A06B-6096-H205 is the FSSB version of the module family.

In a working machine, this amplifier would typically be chosen by technicians and parts buyers who need to preserve the original axis distribution and avoid altering the existing control topology.

That makes it suitable for repair inventories, machine rebuild projects, and production environments where the cost of downtime is far higher than the cost of sourcing the exact model.

FAQ

Q1: What exactly is the A06B-6096-H205 in the FANUC range?
It is an Alpha-series, 2-axis servo amplifier module listed by FANUC as SVM2-20/40 with an FSSB interface in the 200-V input series.

That official designation is important because it tells you this is not a generic single-axis amplifier, but a mixed two-axis module intended to fit a specific drive and CNC communication architecture.

Q2: Why does the “20/40” designation matter?
In FANUC’s specification layout, SVM2-20/40 appears in the grouped individual-spec tables in a way that aligns with a mixed-capacity two-axis format, and the heat-dissipation table gives an official example pairing of αC12/2000 and αC22/1500 for this exact ordering number.

For an engineer or buyer, that is more useful than a sales label because it shows the module belongs to a dual-axis class with different channel capacities rather than two identical outputs.

Q3: Is this module meant for FSSB systems only?
Yes, based on the FANUC ordering section, A06B-6096-H205 is the FSSB-interface version of the SVM2-20/40.

That matters during replacement because the 6096-series ordering numbers are separated from other interface variants in the manual, so the correct interface family should be matched before purchase or installation.

Q4: What should be checked before replacing an A06B-6096-H205?
The installed part number, the interface type, the machine’s original axis arrangement, and the cabinet space should all be checked first. FANUC also notes that users should ensure the motor/amplifier combination is appropriate and that valid parameters are specified, because a mismatch can prevent normal operation and may damage the amplifier.

Q5: Why is this model useful in legacy CNC maintenance?
Because it lets a machine keep its original two-axis amplifier structure without redesigning the cabinet or changing the communication interface.

In real maintenance work, that often means quicker recovery, less rewiring, and a lower chance of secondary faults after installation, especially on machines built around the original FSSB servo topology.
