Fanuc A06B-6102-H211#H520 | Alpha Spindle Amplifier Module — SPM-11, Type 1 Interface, 283–325V / 13.2kW, 48A / 230V Output, CE Approved

Overview

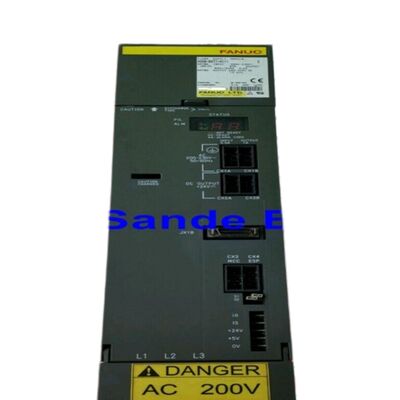

The Fanuc A06B-6102-H211#H520 is an alpha series SPM-11 spindle amplifier module from the A06B-6102 second-generation alpha spindle family, delivering 48A at 230V from a 13.2kW / 283–325V DC bus input.

The CE-marking indicated by the #H520 suffix confirms this variant meets European conformity requirements — relevant for machines installed or relocated to CE-regulated markets, where the drive system's compliance documentation must trace back to the component level.

The A06B-6102 series represents the second generation of Fanuc's alpha spindle modules, succeeding the original A06B-6078 first-generation alpha SPMs.

Both series carry the same SPM-11 model designation and identical electrical ratings (13.2kW input, 48A output), but the A06B-6102 incorporates improved control card electronics — the A16B-2203-050x control card with 9D20 software replaces the earlier A06B-6078's control card — providing better spindle function execution, improved parameter handling, and a more refined alarm diagnostic structure accessible via the twin 7-segment LED display.

The SPM-11's 48A output is matched to the Fanuc Alpha6, Alpha8, AlphaP8, and AlphaP12 spindle motors — the mid-range alpha spindle series used on the broad middle tier of CNC machine tools: small-to-medium machining centres, CNC lathes with moderate spindle power requirements, and drill-and-tap centres where spindle power in the 7.5–11kW range is the design target.

The 90mm module width reflects the cooling demands of 48A output: an internal fan circulates air across the control electronics, while the external heatsink at the rear of the module dissipates the power stage's heat through the machine cabinet panel.

Key Specifications

#H520 — CE Suffix and Software Version

In the A06B-6102 spindle module family, the suffix following the # sign identifies the control card's software version and regional compliance status. The H520 suffix denotes CE-approved hardware with a specific software revision that governs the module's internal spindle algorithm behaviour, parameter set, and available spindle functions.

Other suffix variants — such as H500, H501, and H502 — carry different software revisions that may enable or restrict specific functions, particularly the extended spindle function set (Cs contouring mode, rigid tapping coordination timing, high-speed orientation).

This suffix incompatibility is operationally significant: fitting an H500 or H501 variant in a machine originally equipped with an H520 may produce parameter mismatches or missing function access unless the CNC is re-parameterised accordingly.

When ordering a replacement for an existing machine, specify the complete part number including the #H520 suffix to ensure the replacement unit carries the same control card revision as the original.

Type 1 Interface and Spindle Functions

The Type 1 interface is the simpler of the two alpha spindle interface types (Type 1 and Type 2). It connects the spindle module to the CNC's serial spindle interface via a standard cable harness, without the additional sensor connections and communication channels of the Type 2 interface.

Type 1 supports the full standard spindle function set — Cs contouring control (using the spindle as a precision position axis for milling on turning centres), rigid tapping (synchronising spindle rotation with Z-axis advance for thread cutting without floating chuck), spindle orientation (stopping the spindle at a defined angular position for tool change and workpiece transfer), and spindle synchronisation (matching two spindles during workpiece hand-off).

The Alpha6 and Alpha8 spindle motors are standard companions for the SPM-11, with the AlphaP8 and AlphaP12 variants providing the high-speed capability for applications where cutting at higher spindle speeds is required.

All four motor types use standard alpha series position coder feedback, compatible with the Type 1 interface's JY2/JY4 feedback connector arrangement on the SPM-11.

FAQ

Q1: What distinguishes the A06B-6102-H211#H520 from the earlier A06B-6078-H211 (same SPM-11 rating)?

Both are SPM-11 alpha spindle modules with identical electrical ratings (13.2kW, 48A, 283–325V, 230V output) and Type 1 interface. The difference lies in the control card generation: the A06B-6102 uses the A16B-2203-050x card with 9D20 software, replacing the A06B-6078's older control card.

This newer control card provides improved parameter processing and enhanced compatibility with later CNC control series. In most machine applications the two are functionally interchangeable for the same motor types; however, the control card software revision may affect access to specific advanced spindle functions depending on the machine's CNC software version.

Q2: What alarm codes on the SPM-11 indicate a module fault vs a spindle motor fault?

Alarm 3 (DC link fuse blown) and Alarm 9 (overheat main circuit) directly indicate SPM-11 module faults. Alarm 12 (overcurrent in power circuit) is most commonly caused by spindle motor winding insulation breakdown — disconnect motor cables and test motor winding insulation to protective earth (several hundred megaohms or higher is acceptable). Alarm 1 (motor overheat) points to the motor's embedded thermistor detecting excessive motor winding temperature — check motor cooling and machining duty cycle before condemning the SPM.

Alarm 56 (inner cooling fan stopped) requires immediate response to prevent thermal damage to the 48A output stage.

Q3: The SPM-11 is specified for 13.2kW rated input — what PSM is needed to support it?

The PSM demand calculation must include the SPM-11's 13.2kW plus all connected SVM servo module demands.

A machine with an SPM-11 (13.2kW) and three SVM modules totalling 8kW peak concurrent demand requires a PSM rated for at least 21.2kW.

This typically requires a PSM-18.5 (A06B-6087-H118) or PSM-26 (A06B-6087-H126) depending on the machine's servo axis configuration. Underrating the PSM produces DC link voltage drop alarms (Alarm 4) during spindle acceleration combined with simultaneous axis motion.

Q4: What is the Cs contouring function and what machines use the SPM-11 for this purpose?

Cs contouring converts the spindle into a fully position-controlled servo axis, enabling the spindle to perform precise angular positioning and velocity control — functions normally associated with a servo motor.

On CNC turning centres, this allows milling, drilling, and threading operations on the workpiece face and circumference using rotary tools while the main spindle holds position as the work-holding axis.

The SPM-11 at 48A continuous output sustains the spindle motor in Cs mode through the torque demands of driven tool operations. Not all SPM-11 installations use this function; machines where the spindle is used only for rotation (no driven tools) do not require it.

Q5: What is the correct approach for testing a suspected faulty A06B-6102-H211#H520?

Testing must be performed on a matched alpha system: a functioning PSM generating the 283–325V DC bus, the SPM-11 connected to the bus, and an actual Alpha6, Alpha8, AlphaP8, or AlphaP12 spindle motor connected to the SPM-11's U/V/W output terminals and feedback connectors.

The CNC must be a Fanuc control with Type 1 spindle serial interface.

Functional testing verifies: Alarm-free power-up, correct speed response across the motor's speed range, overcurrent protection response, orientation stopping accuracy, and Cs-mode position holding if applicable.

A "static" bench test without a connected motor and CNC provides no meaningful validation of an SPM module's servo control functions.
