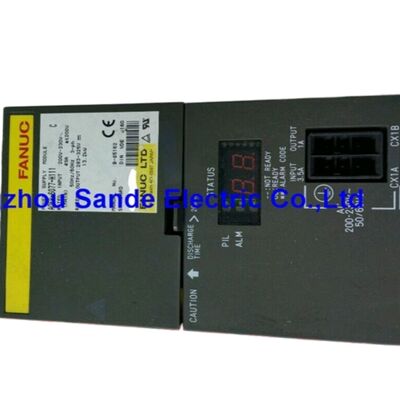

A06B-6141-H022#H580 Fanuc Servo Amplifier Module A06B6141H022#H580 A06B-6141-H022#H580

FANUC A06B-6141-H022#H580 ALPHA i Spindle Module MDL AiSP-22

Overview

The A06B-6141-H022#H580 is a FANUC ALPHA i spindle module, designated MDL AiSP-22, built for applications where spindle-side drive performance must remain stable under demanding machine tool conditions. In CNC systems, spindle modules are not passive devices.

They directly influence how the machine starts, accelerates, responds under cutting load, and returns to repeatable operation over long production cycles.

This model is positioned for users who need a dependable replacement in an existing FANUC alpha i environment. For maintenance teams, the real concern is not simply obtaining a spindle module quickly.

It is obtaining the correct unit that can be integrated cleanly into the original machine architecture without adding avoidable commissioning risk.

Key Product Information

Why This Module Matters

A spindle module such as the AiSP-22 sits close to the heart of machine performance. When the spindle side becomes unstable, the result is rarely limited to one simple alarm. Shops may see interrupted cycle flow, inconsistent spindle response, reduced confidence in operation, or complete loss of production availability.

That is why experienced buyers focus on more than a short description. They look at the exact part number, series fit, cabinet integration, and service suitability.

The A06B-6141-H022#H580 is intended for industrial environments where replacement accuracy and operational reliability matter more than broad catalog language.

Practical Service Value

In the field, spindle module replacement is often part of a larger maintenance decision. A failed or aging module may be linked with heat stress, contamination, cooling inefficiency, or long-term electrical loading inside the cabinet.

Replacing the spindle module is an important step, but good service practice also includes checking fan operation, air path cleanliness, wiring condition, and the health of the connected spindle system.

For that reason, this module is well suited to OEM service support, machine rebuild projects, MRO inventories, and planned spare-parts strategies where reducing downtime is the main target.

Integration Considerations

Before purchase or installation, the installed model number and suffix should be verified directly from the original unit. On CNC spindle hardware, close-looking variants may still differ in system fit. In a production setting, that difference matters.

It is also advisable to inspect the cabinet for secondary causes before commissioning the replacement. If the original failure resulted from excessive temperature, poor airflow, or connection stress, the new unit should not be put into the same environment without correction.

FAQ

Q1: What does the A06B-6141-H022#H580 do in a CNC machine?
This model is a spindle module in the FANUC ALPHA i drive family. Its function is tied to spindle-side control and drive operation within the CNC system.

In practical machining terms, that means it supports the performance of the spindle section during acceleration, running, and load response.

A problem here can affect both machine availability and process confidence on the shop floor.

Q2: Why is the spindle module considered a critical service part?
Because spindle performance is directly tied to production quality and cycle continuity. When the spindle drive section becomes unstable, the machine may not simply “slow down”; it may alarm, fail to reach readiness, or behave inconsistently under operating load. For maintenance teams, replacing the correct spindle module is often a decisive step in restoring stable operation.

Q3: What should be checked before ordering this AiSP-22 module?
The exact installed part number, the suffix marking, the machine model, and the cabinet-side compatibility should all be checked.

It is also wise to review the machine’s electrical documentation and any service history related to spindle alarms or thermal stress. Industrial buyers who skip model verification often create more delay later during installation and testing.

Q4: Can a spindle module fail because of external cabinet conditions?
Yes. Industrial electronic modules do not operate in isolation. High cabinet temperature, blocked airflow, contamination, line-side instability, and connector degradation can all contribute to shortened service life or recurring faults.

A professional replacement process should include root-cause review, not only part exchange. That approach improves long-term reliability and lowers the chance of repeat downtime.

Q5: What makes an exact replacement preferable to a near-match alternative?
In CNC systems, “close” is often not good enough. Spindle modules must align with the original system architecture, and that includes more than mounting size. Electrical fit, interface behavior, and control-side matching all matter.

The right module reduces commissioning risk, shortens troubleshooting time, and supports safer return to production.
