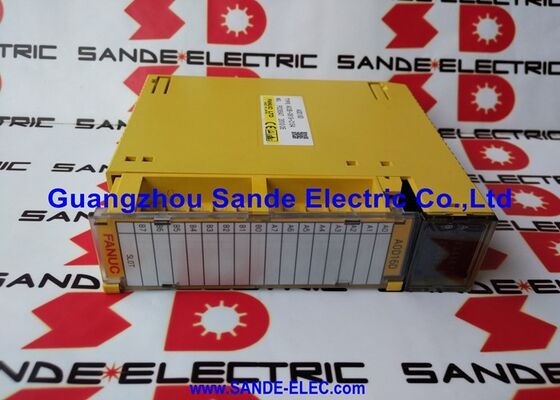

Fanuc A02B-0280-B502 | Series 0i-MA CNC Control Unit — Machining Centre Control, Multi-Axis, Linear & Circular Interpolation, PMC, RS-232C

Overview

The Fanuc A02B-0280-B502 is the integrated CNC control unit for the Fanuc Series 0i Model A machining centre platform — one of the most widely deployed CNC control systems in the history of industrial machining.

The Series 0i was Fanuc's mid-range CNC offering designed to bring near-high-end functionality (multi-axis interpolation, rigid tapping, tool compensation, PMC ladder logic) to the broadest possible installed base of machine tools at a competitive cost point.

The MA variant specifically covers machining centre applications — vertical and horizontal milling, multi-axis contouring, and machining centres with automatic tool change systems.

As the complete CNC control unit, the A02B-0280-B502 integrates the CPU, ROM, RAM, LCD/MDI interface circuitry, I/O expansion bus, and servo communication interface into a single back-panel assembly.

In the field, this unit sits behind the machine's operator panel, connected to the machine's axis servo drives, spindle drive, PMC I/O modules, and operator panel interface wiring.

The control manages the complete motion cycle from G-code program execution through position loop closure on all controlled axes.

The 0280 series within the A02B product family corresponds to the first-generation 0i Model A hardware platform — the generation that introduced Fanuc's transition from the older Series 0 and Series 15 architecture to the compact, integrated 0i design. Machines built on the A02B-0280-B502 include machining centres from the late 1990s through the early 2000s from builders including Mazak, Mori Seiki, Makino, Okuma, Doosan, and a wide range of Taiwanese and Korean machine builders who adopted the 0i platform as their standard CNC.

Key Specifications

Series 0i-MA — Machining Centre CNC in the 0i Generation

The "0i" in the Fanuc product family name identifies the control generation that succeeded the earlier Series 0 (0-MA, 0-MC, 0-TA) and bridged into the modern 0i-D and 0i-F platforms still in production today. The Model A designation identifies the first hardware generation within the 0i series, while MA specifies the machining centre variant — as opposed to TA (turning) or FA (transfer machine).

In practice, the Series 0i-MA delivered the programming and operational features that machining centre users required in its era: G-code programming compatible with earlier Fanuc Series 0 and Series 15 part programs (existing programs run without modification), canned drilling and milling cycles, tool radius compensation, work coordinate systems (G54–G59), cutter length measurement, and standard rigid tapping.

The PMC (programmable machine controller) handles the machine's I/O logic — tool changer sequencing, pallet clamping, coolant control, door interlocks — separately from the CNC motion control, in a two-processor architecture that keeps machine logic processing independent of the CNC's servo control loop.

CNC Architecture — Integrated Control Behind the Panel

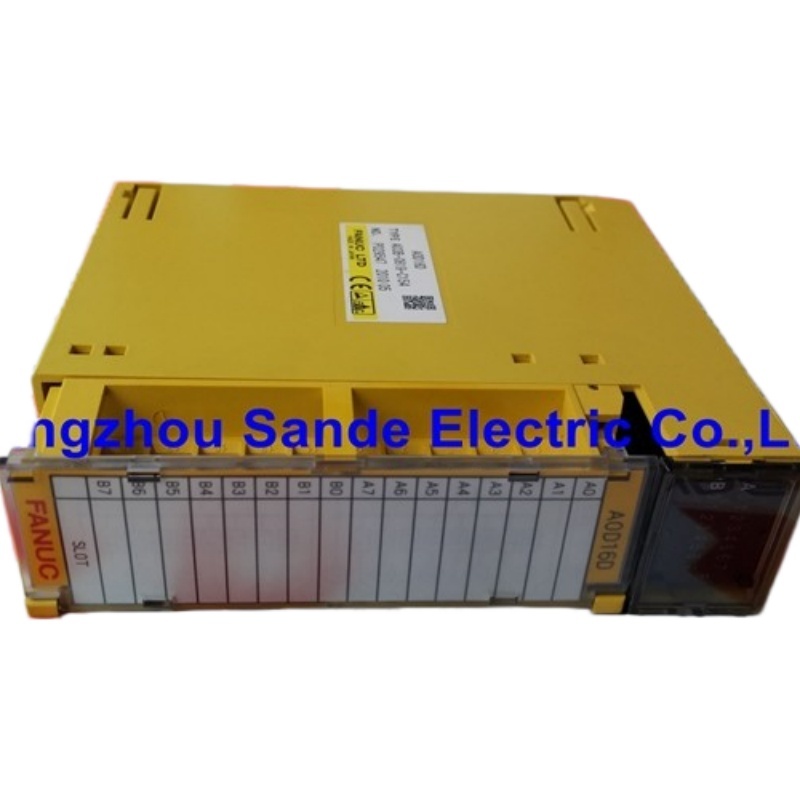

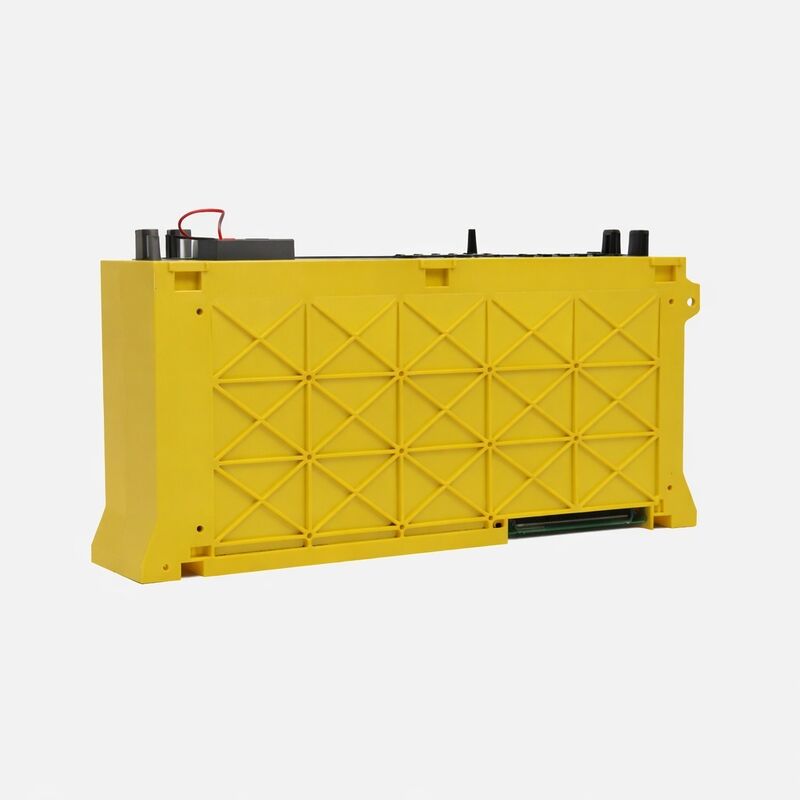

The A02B-0280-B502 is the back-panel unit — the hardware assembly that mounts behind the operator display and keyboard. In Fanuc's 0i architecture, this unit contains the main CPU board, the axis servo interface, the PMC processor, the memory for part programs and parameters, and the communication interfaces.

The operator display (LCD), MDI keyboard, and machine operator buttons are separate components that connect to the B502 unit through standardised interface cables.

This modular architecture — display separate from control hardware — was an important serviceability feature: a failed display or keyboard did not require the entire CNC unit to be replaced, and vice versa.

In practice, the most failure-prone component in long-service machines is the power supply within the control unit, followed by battery-backed RAM data corruption (causing parameter and part program loss when the backup battery expires), and eventually LCD display degradation.

The B502 control unit itself is generally robust in clean cabinet environments.

RS-232C and Program I/O — Machine Communication

RS-232C serial communication was the standard interface for part program transfer on machines using the A02B-0280-B502. Programs are loaded from a PC, DNC controller, or storage device via RS-232C, edited on the MDI, and executed from the control's internal memory.

The RS-232C interface also supports data backup — parameters, tool offsets, and part programs can be dumped to an external device for safekeeping.

For machines in environments where RS-232C communication is needed for production DNC operation, the A02B-0280-B502's interface configuration must be matched to the DNC system's communication parameters.

FAQ

Q1: What is the difference between the A02B-0280-B502 and other B502 variants in the A02B-0280 family?

Within the A02B-0280 product series, different B5xx suffix numbers identify different combinations of axis count, spindle configuration, and hardware options.

The B502 is a specific factory configuration — the exact axis capability, memory size, and option set for this configuration is defined by Fanuc's build specification for the B502 code. When replacing a failed unit, the replacement must match the complete part number (B502) rather than a similar suffix, as different B5xx configurations carry different hardware that may not be drop-in compatible despite the same A02B-0280 series prefix.

Q2: What happens to part programs and parameters when the backup battery fails?

The A02B-0280-B502 uses a lithium battery to maintain the SRAM memory that stores part programs, parameters, tool offsets, and PMC data when the control is powered down. When the battery voltage drops below the minimum threshold, an alarm appears on the CNC panel (typically a BAT alarm or LOW BATTERY warning).

If the battery fully discharges before replacement, all battery-backed data is lost — parameters must be reloaded from a backup, and part programs must be re-entered or re-transferred. Annual battery replacement is standard maintenance practice for Series 0i controls in continuous production use.

Q3: Is the A02B-0280-B502 compatible with alpha-series servo drives?

The Series 0i Model A was designed during the transition period from S-series to alpha-series servo drives.

The A02B-0280 platform supports both S-series drives (used in earlier installations) and the early alpha-series servo amplifiers, depending on the machine builder's configuration.

The specific servo interface type configured in the B502 unit determines which drive generation it supports.

When replacing the control unit, the replacement must match the servo interface type used in the machine's existing drive system. Confirm this from the machine builder's documentation or the existing control unit's internal configuration.

Q4: Can Series 0 and Series 15 part programs run on the 0i-MA without modification?

In the vast majority of cases, yes. Fanuc designed the 0i series to maintain programming compatibility with earlier Series 0 and Series 15 part programs, which was a primary design requirement given the large installed base of machines with existing part program libraries.

Standard G-code programs using linear, circular, and canned cycle commands run without modification. Some advanced functions specific to Series 15 that are not available in the 0i may require minor adaptation, but routine machining programs transfer directly.

This compatibility was a key selling point for machine upgrades during the 0i's introduction period.

Q5: What is involved in replacing the A02B-0280-B502 control unit in a machine?

Replacement involves:

(1) backing up all parameter data, PMC ladder, part programs, and tool offsets from the existing control to an external device before shutdown;

(2) removing the existing unit from the back-panel mounting, disconnecting servo interface cables, I/O module cables, operator panel cables, and power supply;

(3) installing the replacement unit and reconnecting all cables;

(4) restoring all backed-up data to the replacement unit;

(5) verifying axis reference positions, servo parameters, and PMC I/O operation before returning the machine to production. The process requires familiarity with Fanuc 0i-A parameter structure — incorrect parameter restoration can prevent the machine from functioning correctly.
