Fanuc A06B-6064-H302 | AC Digital Spindle Drive — MDL 1.5 / 2 (1.5S/2S Motors), Serial Feedback, A06B-6064 Series, FANUC 0-C/15/16/18/21 Compatible

Overview

The Fanuc A06B-6064-H302 is an AC digital spindle drive from Fanuc's A06B-6064 serial spindle amplifier family, configured for the MDL 1.5 and 2 — the smallest power class spindle motors in the A06B-6064 series, specifically the 1.5S and 2S Fanuc AC spindle motor models.

These motors occupy the low end of the A06B-6064 spindle drive range: compact, lower-power spindle drives suited to small machining centres, small turning centres, and CNC milling machines where spindle power requirements are moderate and cabinet space is at a premium.

The A06B-6064 series represents Fanuc's digital serial spindle amplifier generation — the transition from earlier analog spindle drives to digital communication between the spindle drive and the CNC.

In this architecture, the CNC sends spindle speed and direction commands via a serial digital interface, and the spindle drive returns motor speed feedback and status through the same serial link.

This eliminates the analog signal conditioning that earlier spindle drive generations required and brings the spindle into the same digital control environment as the axis servo drives.

In the machine tool installation, the A06B-6064-H302 is invariably paired with C-series servo amplifier units (A06B-6066 series) on the same machine — this pairing was the factory-standard combination for machines built on FANUC 0-C, 15, 16, 18, and 21 controls during the era when both drive families were current.

The spindle drive and servo drives share the same control cabinet, connected to the CNC's serial spindle interface and PWM servo axis interface respectively.

Understanding this pairing is important for machine maintenance: a fault on the spindle drive is isolated to the A06B-6064-H302 unit and its PCB assemblies, while axis faults involve the A06B-6066 servo units.

Key Specifications

MDL 1.5 and 2 — Small Spindle Drive, Full CNC Integration

In Fanuc's AC spindle motor nomenclature for the A06B-6064 era, the model number identifies the continuous power rating class.

The 1.5S motor delivers approximately 1.5kW continuous spindle power, and the 2S delivers approximately 2kW — both are compact spindle motors for small-to-mid machine tools where the workpiece and tooling combination does not require the higher kW output of larger spindle motor classes like the 6S, 12S, or 22S.

Despite their modest power rating, the 1.5S and 2S motors on the A06B-6064-H302 receive the same quality of digital speed and torque control as the larger motors in the series. The serial feedback loop between motor and drive provides accurate speed regulation, smooth acceleration and deceleration under the CNC's spindle acceleration parameters, and reliable synchronisation for rigid tapping operations where the spindle must track the programmed spindle position in coordination with the Z-axis feed.

Rigid tapping is a critical function for machining centres — the spindle drive's ability to maintain tight spindle position control during tapping directly determines thread quality and tool life.

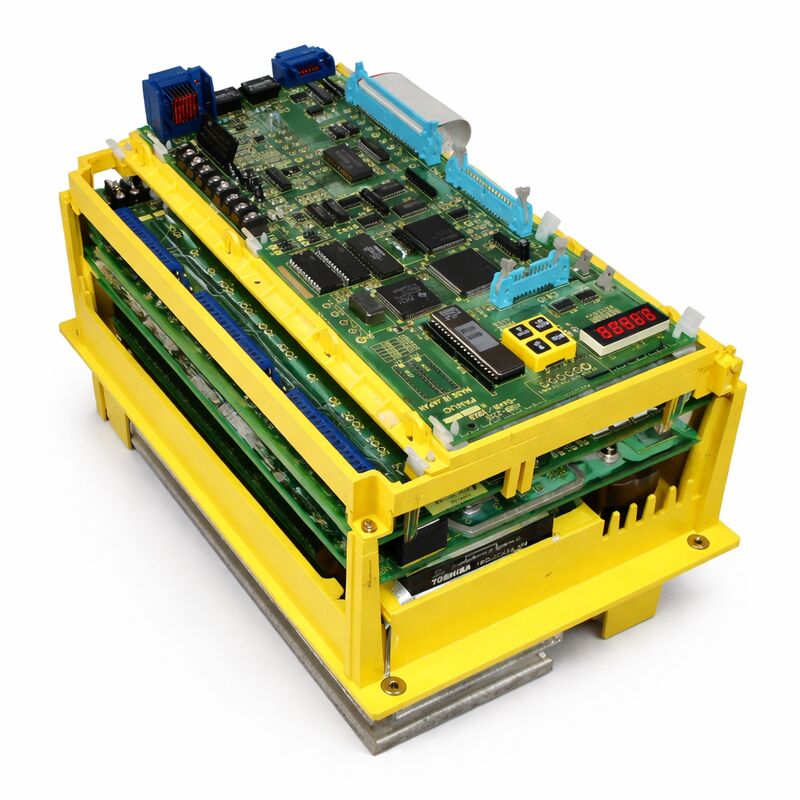

Three-PCB Architecture and Serviceability

The A06B-6064-H302 uses a three-board internal architecture standard across the A06B-6064 series: the wiring/interface board, the control board set (A16B-2201-0440 and A16B-2100-0070), and the power board (A20B-1005-0190).

Each board serves a distinct function — the interface board routes signals between the CNC serial link, the control boards, and the power section; the control boards handle the digital speed and torque regulation algorithms; the power board manages the AC rectification, DC bus, and IGBT output switching that converts DC bus energy to the three-phase AC current driving the spindle motor.

This board separation means that common field failures can often be addressed by replacing one board rather than the entire drive unit. A failed power transistor on the power board can be replaced while the control boards remain in service.

A corrupted control board that produces incorrect speed regulation is replaced independently, leaving the functional power board in place. Repair specialists stock both control board variants and the A20B-1005-0190 power board as individual service parts for exactly this reason.

Serial Feedback and CNC Interface

The serial feedback interface on the A06B-6064-H302 communicates motor shaft position and speed data back to the CNC at the update rate required for the CNC's spindle position loop. This feedback path is what enables rigid tapping — the CNC uses the spindle's real-time angular position, transmitted via the serial feedback, to synchronize Z-axis advancement with spindle rotation turn-by-turn through the tapping operation.

The serial interface also carries drive status information — alarm codes, speed attained signals, load monitoring data — from the drive to the CNC, giving the CNC visibility into spindle drive health that was not possible with analog interface drives.

When the spindle drive generates an alarm, the CNC receives the alarm code through the serial interface and displays it on the operator panel, simplifying fault diagnosis for the machine operator and maintenance engineer.

FAQ

Q1: The drive description says MDL 1.5, 2 — does one unit cover both the 1.5S and 2S motor?

Yes. The A06B-6064-H302 is configured to drive both the 1.5S and 2S motor models — it is a single drive unit whose parameter settings determine which motor it controls. When installed with a 1.5S motor, the motor's serial feedback identifies itself to the drive, and the drive uses the corresponding parameter set.

The same drive unit, fitted to a 2S motor, uses the 2S motor's parameters. This dual motor coverage in one part number simplifies spare parts inventory for machine shops that may have both motor sizes across their machine fleet.

Q2: What are the most common failure modes of the A06B-6064-H302?

On the power board, IGBT transistor failure is the most frequent fault — typically caused by motor winding insulation breakdown that allows fault current to flow through the drive's output stage.

On the control boards, component aging and electrolytic capacitor degradation lead to speed regulation errors and digital communication faults with the CNC over time. Cooling fan failure accelerates thermal stress on all components, so verifying the fan's operational status during routine maintenance is important.

The CNC's spindle alarm codes identify which fault category is active, guiding the repair technician to the specific board or component.

Q3: Can the A06B-6064-H302 drive a spindle motor other than the 1.5S and 2S?

No — the drive's power stage and parameter set are matched to the 1.5S and 2S motor class.

Connecting a larger spindle motor (such as a 6S or 12S) to the H302 would result in the drive operating outside its rated current range during machining loads, triggering overcurrent protection or, in severe cases, damaging the output stage.

Always match the spindle drive model to the spindle motor model; the H-suffix number in the A06B-6064 part number identifies the motor class the drive is designed for.

Q4: Does rigid tapping require any additional hardware beyond the A06B-6064-H302?

Rigid tapping requires the CNC to have the rigid tapping function enabled in its software options, and the spindle motor must have a serial pulse coder that provides the angular position feedback the CNC uses to synchronize spindle position with Z-axis motion.

The A06B-6064-H302's serial feedback interface supports this position feedback.

The CNC's parameters must be configured for the specific spindle and tap geometry. No additional hardware beyond the standard H302 drive, the serial-encoder-equipped spindle motor, and the appropriate CNC parameter settings is required.

Q5: Is the A06B-6064-H302 interchangeable with the A06B-6064-H303 or other adjacent models?

Within the A06B-6064 series, each H-suffix variant corresponds to a specific motor model — H302 for 1.5S/2S, H303 for 3S, H305 for 6S, H312 for 12S, etc.

The control boards are shared across multiple variants (the same A16B-2201-0440 and A16B-2100-0070 appear in several A06B-6064 models), but the power board and some parameter firmware differ between motor classes.

An H303 or H305 should not be substituted for an H302 without verifying power board compatibility and loading the correct motor parameters, as the larger motor's drive characteristics may not function correctly with the H302's power stage components, or vice versa.
