Fanuc A06B-6066-H006 | C-Series Single-Axis Servo Amplifier — SVUC-80 (80A), 5L/30S Motors, 200VAC, PWM, FANUC 0-C/15A/16A/18A/21A

Overview

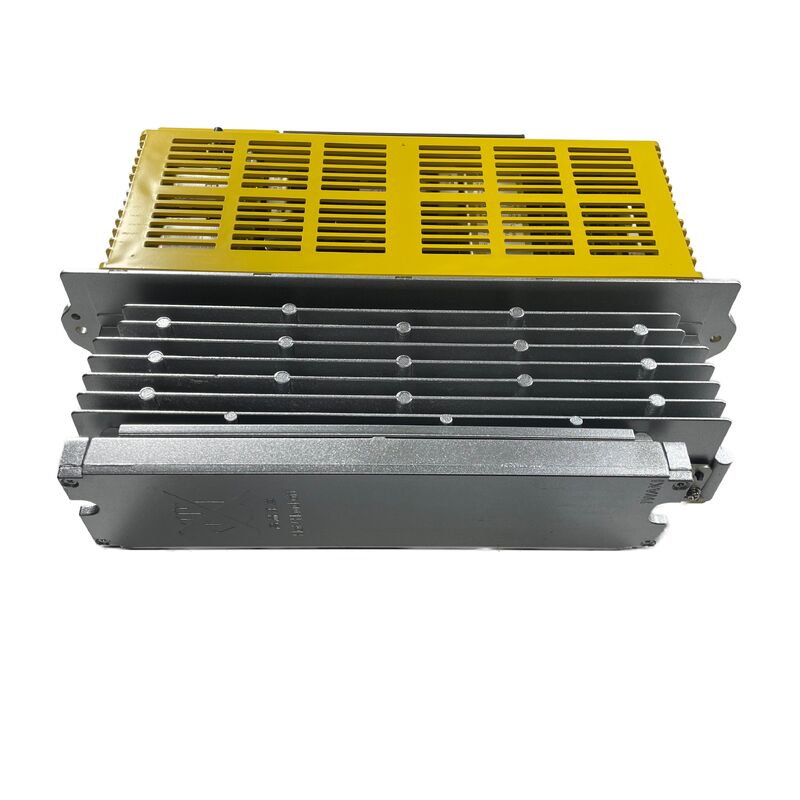

The Fanuc A06B-6066-H006 is the 80-amp SVUC-class single-axis drive from Fanuc's C-series servo amplifier family, designed for the heavier motor models in the C-series range — specifically the 5L and 30S AC servo motors, along with a broad compatibility group including 5S/3000, 10S/3000, 20S, 30S, 5L, 6L, 5T/3000, and 10T/2000.

Within the A06B-6066 series, the H006 is the higher-current variant compared to the H004 (which handles the lighter 0S/5S/20S/1500 motor class); the 80A output rating of the SVUC-80 supports the greater sustained current draw of the 30S and 5L motors under machining load.

The 30S designation in Fanuc's C-series motor nomenclature refers to a mid-to-large AC servo motor with substantial continuous torque output, commonly fitted to heavy-duty axis drives on larger milling machines, boring mills, and machining centres where axis mass and friction demands exceed what the 20S can sustain reliably.

The 5L designation identifies a motor from Fanuc's L-class series, associated with laser machine tool axis applications where the specific torque and speed profile differs from the standard S-series motor geometry.

Both motor families share the same PWM drive interface that the H006 implements, which is why one amplifier part number covers both.

In the field, the H006 occupies the L or M channel position in a multi-axis CNC cabinet. Machines using individual single-axis C-series drives mount one unit per axis on the drive rail, each receiving its PWM command from the CNC's axis output card and returning motor current and encoder feedback through the C-series signal cable harness.

Key Specifications

SVUC-80 — Higher Current Class Within the C-Series

The "SVUC" designation in Fanuc's C-series naming identifies the specific output stage class. The H006's SVUC-80 rating (80A peak output capability) sits above the SVUC-40 class of the H004 and accommodates the higher instantaneous current that 30S and 5L motors draw during acceleration transients on heavy machine axes.

On a large machining centre where the X-axis drives a heavy table through a high-pitch ballscrew, the acceleration torque demand during rapid traverse initiation can momentarily draw several times the motor's rated continuous current — the SVUC-80's headroom above the rated continuous output prevents nuisance overcurrent alarms during these normal operating events.

The power board A20B-1004-0850 in the H006 is physically larger than the H004's A20B-1200-0851, reflecting the higher IGBT rating and heat dissipation requirements of the 80A output stage.

This board difference is the primary physical distinction between H004 and H006 drives when inspecting the internal layout — the control board variants (A20B-2900-0610/0620/0630) are shared across the motor compatibility range and are selected based on the specific motor model being driven.

PWM Interface and Control Compatibility

Like all A06B-6066 C-series drives, the H006 uses Fanuc's PWM servo interface to communicate with the CNC.

This is a dedicated parallel connection — one cable per axis between the CNC's axis card and the drive — that carries the PWM velocity/position command signal from the CNC to the drive and returns encoder feedback from the motor's pulse coder.

The interface is compatible with FANUC 0-C controls and the early versions of Series 15A, 16A, 18A, and 21A that were configured with C-series drive compatibility rather than FSSB.

This PWM interface compatibility is a determining factor in the H006's application.

Machines built with these control generations can use the H006 as a direct drive replacement without modifying the CNC or adding interface adapters.

Machines later upgraded to FSSB-based controls require either an interface conversion or drive replacement with alpha-series hardware.

FAQ

Q1: How does the H006 differ from the H004 within the A06B-6066 C-series?

The H004 is the smaller SVUC class, rated for 0S/5S/20S/1500 motors — lighter axis drives. The H006 is the SVUC-80 (80A class), designed for higher-torque 30S and 5L motors. The key internal difference is the power board: H004 carries the A20B-1200-0851, while the H006 carries the A20B-1004-0850 with higher-rated IGBT transistors.

The control board variants (0610/0620/0630) are shared across both models.

Do not substitute an H004 for an H006 application — the lower-rated power stage will trigger overcurrent alarms under the higher motor current demand of 30S or 5L motors.

Q2: What CNC alarm codes point to the A06B-6066-H006 as the fault source?

On FANUC 0-C and early 15/16/18/21 controls, C-series drive alarms appear as SV-4xx series codes on the CNC alarm display. SV-401 or equivalent indicates axis overcurrent (often caused by a failed output transistor in the drive or a motor winding short). SV-404 indicates encoder feedback loss.

The C-series drive's own LED indicator provides additional fault identification at the drive body — a seven-segment display shows specific error codes that correlate with the CNC alarm number. Always read both the CNC alarm and the drive's LED code before deciding whether the fault is in the drive, motor, or feedback cabling.

Q3: Is the 5L motor compatibility specific to laser machine applications?

Yes, in the context of the A06B-6066-H006's motor range, 5L refers to a Fanuc laser-series servo motor specifically designed for the axis drives on Fanuc laser cutting machines (such as the Laser Mate and similar platforms).

These motors have different torque/speed characteristics from standard S-series motors but operate on the same C-series PWM drive interface. The H006's support for the 5L motor makes it relevant to laser machine maintenance as well as conventional CNC machining applications.

Q4: Can the A06B-6066-H006 run a 20S motor, even though the H004 also supports 20S?

Yes. The H006's motor compatibility list includes 20S, which overlaps with the H004's range.

The H006's higher current capacity is not a disadvantage for driving a 20S motor — it simply means the drive has more headroom than the 20S motor demands, which is not harmful.

In practice, if the machine originally specified an H006 for a 20S axis (perhaps for future motor upgrade headroom or due to a machine builder preference), replacing it with another H006 is correct and reliable. Substituting an H004 would technically work if the axis is lightly loaded, but matching the original specification is the standard maintenance approach.

Q5: The power board A20B-1004-0850 — is it available as a separate repair component?

The A20B-1004-0850 power board circulates in the repair parts market and is stocked by Fanuc component repair specialists who service C-series drives.

It can be replaced independently when the fault is isolated to the power stage (transistor failure, power bus capacitor degradation) while the control boards remain functional.

Repair facilities test the drive with the replacement power board installed under actual motor load before shipment, verifying correct transistor switching waveforms and output current across the motor operating range.
