| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A06B-6078-H206 |

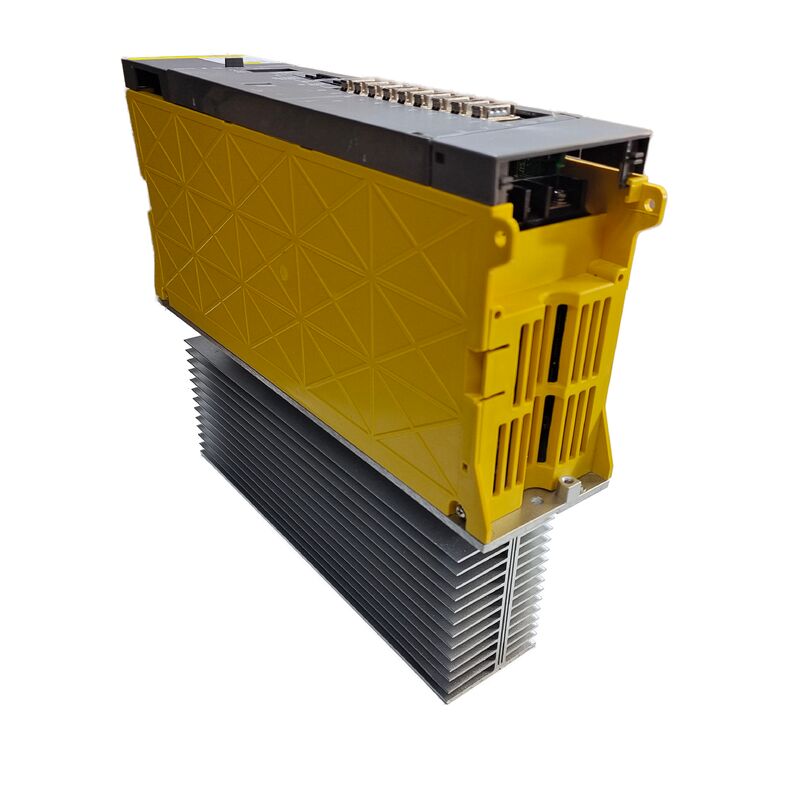

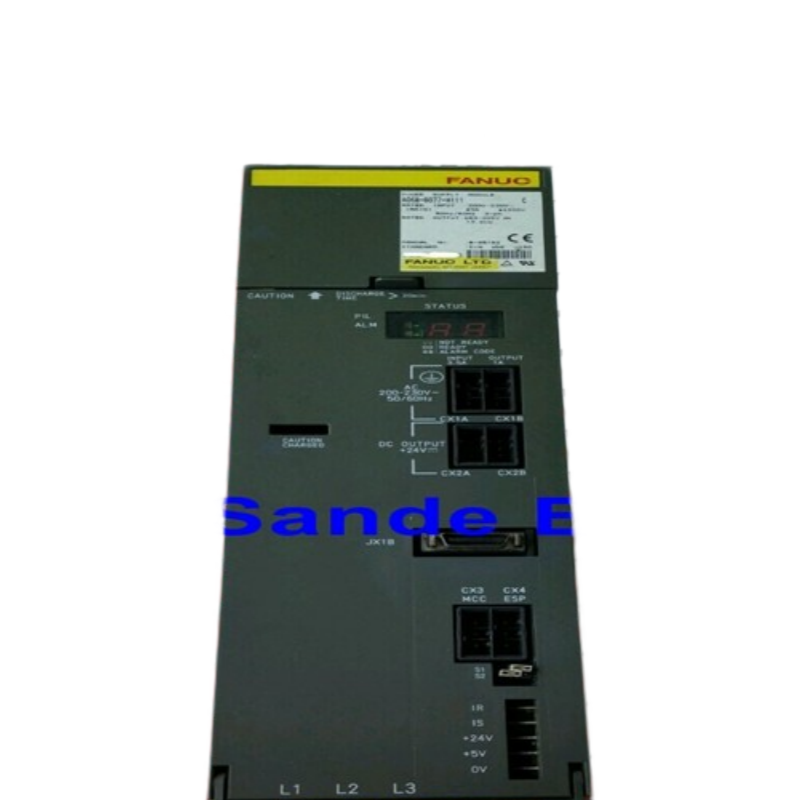

The Fanuc A06B-6078-H206 is a first-generation alpha series spindle amplifier module, designated SPM-5.5, from Fanuc's A06B-6078 spindle amplifier family.
As a compact 5.5kW-class spindle module, it was designed for two specific installation scenarios: as the primary spindle drive on smaller CNC machine tools where spindle power requirements fall within the 3.7–5.5kW continuous range, and as a secondary or sub-spindle amplifier on twin-spindle machining centres and turning centres where the sub-spindle's power demand is modest relative to the main spindle.
The A06B-6078 series occupies a distinct position in Fanuc's alpha amplifier history as the first-generation alpha platform — the original alpha series modules that introduced the integrated PSM/SVM/SPM architecture before the higher-resolution HRV (High Response Vector) refinements appeared in the later A06B-6082, A06B-6088, and A06B-6102 series. This first-generation architecture is architecturally complete: PSM provides the shared DC bus, SVM modules handle the servo axis drives, and the SPM module handles the spindle — all drawing from the same rail. The A06B-6078-H206 is a participant in this standard architecture, fitted alongside the A06B-6079 SVM series on the same amplifier rail in machines of its era.
The 66.8 × 70mm module footprint is physically compact for a 5.5kW spindle drive — a consequence of Fanuc's integrated drive module design philosophy.
The small module size made it practical to install as a sub-spindle or secondary spindle amplifier in cabinets already occupied by the main spindle drive and axis modules, without requiring a dedicated cabinet section for the secondary spindle electronics.
| Parameter | Value |
|---|---|
| Module Model | SPM-5.5 |
| Interface | Type 1 (first-generation alpha) |
| Power Series | 200VAC (standard voltage) |
| Feedback Connectors | JY2 and JY4 |
| Dimensions | 66.8 × 70 × 163.5 mm |
| Power Source | Alpha PSM shared DC bus |
| Part Variants | #H500, #H501 |
| Compatible SVM | A06B-6079 series |
| Compatible PSM | First-generation alpha PSM |
The Type 1 interface on the A06B-6078-H206 connects the spindle drive to the CNC via the spindle serial interface, enabling the advanced spindle functions — Cs contouring, rigid tapping, spindle synchronisation, orientation — that define first-generation alpha spindle capability.
The feedback arrives at the drive via the JY2 and JY4 connectors, which carry the spindle motor position coder signals and temperature monitor inputs respectively.
This JY2/JY4 feedback arrangement is specific to Type 1 (and original) interface spindle drives and is an important identification characteristic when distinguishing the A06B-6078-H206 from later-generation spindle modules.
Type 2, Type 3, and Type 4 interface spindle amplifiers use different connector arrangements and different parameter sets for position feedback — the H206 is explicitly not compatible with these later interface types, and machines designed for Type 2/3/4 spindle amplifiers cannot use the A06B-6078-H206 as a drop-in replacement without interface conversion.
The JY2 connector carries the spindle motor's pulse coder feedback — the position and speed signal that the spindle drive uses for velocity control and for servo-mode position control during rigid tapping and Cs axis operation.
The JY4 connector carries the motor overheat signal from the thermistor embedded in the motor windings, providing the thermal protection input that triggers the AL-01 motor overheat alarm before winding damage occurs. Both connections must be intact and correctly wired for the drive to operate with full protection.
The 5.5kW continuous power class of the SPM-5.5 places it below the main spindle modules of most production machining centres, which typically run 7.5kW to 30kW spindle drives.
This power class is appropriate for sub-spindles on twin-spindle CNC turning centres — the sub-spindle in this configuration accepts the workpiece from the main spindle and performs secondary operations (rear-face drilling, turning, threading) at power levels that rarely require the full capacity of the main spindle.
The sub-spindle's lower continuous demand makes the SPM-5.5 the correctly specified module without the cost and size of a larger spindle amplifier.
On smaller CNC machine tools — compact vertical machining centres, drill-and-tap machines, small horizontal machining centres, and specialty CNC machines — the SPM-5.5 is adequate as the primary spindle drive when the application's material removal rates and tool sizes fit within the 5.5kW continuous spindle power budget.
Light alloy machining, plastic machining, and PCB drilling are typical processes where a 5.5kW spindle is a practical match to the workpiece and tooling requirements.
The A06B-6078 series is the first alpha generation, meaning it predates the higher-resolution HRV improvements introduced in the A06B-6082, A06B-6088, and A06B-6102 series. Within the machine's amplifier stack, the H206 operates with the same PSM and the same A06B-6079 SVM series that define first-generation alpha system installations.
A machine fitted with the A06B-6078-H206 will have the matching first-generation PSM (A06B-6087 series or A06B-6081 series) and A06B-6079 SVM modules, all sharing the same DC bus and the same era of Fanuc CNC interface.
This system architecture consistency is practically important for maintenance: replacing a failed H206 with a later-generation SPM module may require PSM and SVM module upgrades as well if the drive communication protocols or PSM interface specifications differ.
Confirm system compatibility before substituting a different-generation spindle module for the original A06B-6078-H206.
Q1: What distinguishes the A06B-6078-H206 (#H500) from the #H501 variant?
The #H500 and #H501 suffixes identify minor revision differences within the A06B-6078-H206 — typically related to minor PCB revisions, component substitutions, or regional market specifications. Both operate as SPM-5.5 Type 1 interface spindle modules with the same JY2/JY4 feedback connectors and the same functional capabilities.
In most replacement applications, #H500 and #H501 are interchangeable.
Confirm with the service provider whether any hardware revision-specific parameter adjustments are needed for the specific machine and control combination before installation.
Q2: Why does the A06B-6078-H206 use JY2 and JY4 connectors while later spindle modules do not?
The JY connector designations are specific to the first-generation alpha series spindle amplifier interface architecture. Later generations (Type 2/3/4) restructured the feedback and control signal connections, using different connector names and pin arrangements as the feedback circuit design evolved.
The JY2/JY4 interface on the H206 is part of its original design — the spindle motor's pulse coder and thermistor connect here, and the CNC's spindle interface receives the feedback signals through the spindle amplifier's internal processing.
Attempting to connect a JY2/JY4-type spindle motor to a later-generation spindle amplifier without the correct adapter configuration will produce alarm conditions.
Q3: Can the A06B-6078-H206 be used as a replacement for the A06B-6082-H206 SPM-5.5?
The A06B-6082 series is the second-generation alpha spindle module series with improved HRV spindle control.
The A06B-6078 (first generation) and A06B-6082 (second generation) share the same SPM model designations and similar electrical ratings but differ in their control PCB architecture and CNC parameter compatibility.
Substituting between generations requires verifying CNC compatibility and parameter compatibility — it is not always a straightforward swap. Consult Fanuc's spindle amplifier compatibility documentation or a qualified service provider before attempting cross-generation substitution on a production machine.
Q4: What CNC alarm codes are generated when the A06B-6078-H206 fails?
Spindle amplifier alarms appear on the CNC operator display as SP-xxx alarm numbers.
AL-09 (overheat power semiconductors) typically indicates thermal fault — the module's cooling fan should be verified first. AL-12 (DC link overcurrent) indicates an output stage fault, commonly following spindle motor winding insulation breakdown. AL-03 (DC link fuse blown) and AL-04 (input fuse blown) indicate electronic component failures within the drive.
AL-01 (motor overheat) and AL-02 (excess speed deviation) more commonly indicate motor or motor feedback issues rather than the drive itself. The alarm LED on the module body illuminates when any alarm is active — the specific alarm number must be read from the CNC display.
Q5: What servicing options are available for a failed A06B-6078-H206?
Exchange is the most common approach — a failed module is sent to a Fanuc service facility in exchange for a tested, warranted refurbished unit. Component-level repair is also available for faults localised to serviceable parts: the transistor modules in the output stage, cooling fans, and internal fuses are available as service parts and are routinely replaced during module refurbishment. The PCBs within the H206 are not sold by Fanuc as individual parts, but specialist repair facilities carry them in service inventory and address board-level faults as part of complete module reconditioning. All properly serviced A06B-6078-H206 modules should be tested under load on a Fanuc PSM/SVM test configuration with an appropriate alpha spindle motor before returning to service.
