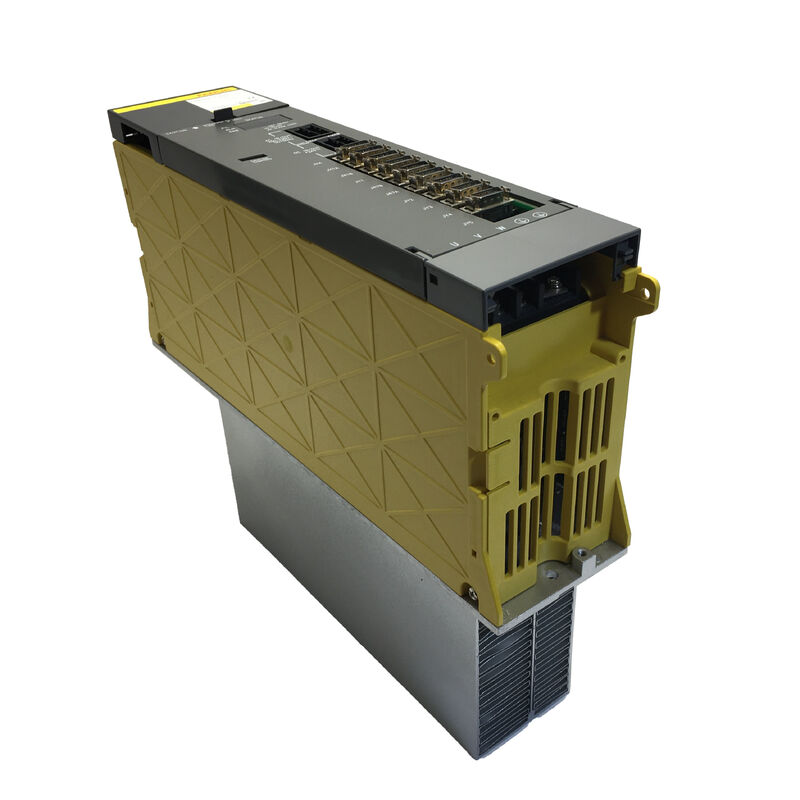

Fanuc A06B-6078-H211 | Alpha Series Spindle Amplifier Module SPM-11 — 13.2kW, 48A, 200V, Type I Interface

Part Number: A06B-6078-H211

Type: AC Spindle Amplifier Module (SPM)

Model: Alpha SPM-11

Interface: Type I

Rated Input Power: 13.2 kW

Input Bus Voltage: 283–325 VDC (from Alpha PSM power supply module)

Maximum Output Voltage: 230 VAC

Rated Output Current: 48 A

Compatible CNC Series: Series 0, 15, 16, 18, 20, 21, 16i, 18i, 20i, 21i, Power Mate i

Compatible Spindle Motors: Alpha 6, Alpha 8, AlphaP 8, AlphaP 12

Ambient Operating Temperature: 0–55°C

Common Variants: #H500 (standard), #H501

Overview

The Fanuc A06B-6078-H211 is an Alpha series spindle amplifier module — model SPM-11 — producing 13.2 kW from the Alpha power supply unit's DC bus, with a rated output current of 48A at up to 230VAC, to drive Alpha series spindle motors in the 6–12 kW class.

It uses a transistor PWM inverter topology and a Type I serial interface to the CNC, and it is the spindle drive module found in Fanuc machining centres, vertical and horizontal milling machines, and drill-tap centres throughout the generation of CNC machine tools built around the Fanuc Alpha drive architecture — including Fanuc's own Robodrill machines and the Leadwell CNC range.

At the SPM-11 power rating, this module covers the 8 kW and 12 kW Alpha spindle motors (Alpha 6, Alpha 8, AlphaP 8, and AlphaP 12) that were factory-specified for the mid-tier machining centres of this period.

It sits in the Alpha spindle amplifier range between the SPM-5.5 (smaller) and the SPM-15 (larger), and its 13.2 kW input capacity and 48A output ceiling determine which spindle motors can be connected to it.

The A06B-6078-H211 exists in two primary suffix variants: #H500 and #H501.

These carry different software versions and, in some configurations, different interface boards — a distinction that matters when sourcing a replacement, because the spindle control parameters stored in the CNC and the communication protocol expected by the module must match.

CNC-Shopping and other specialist suppliers note that #H501 units require specific software confirmation to ensure the correct version is supplied.

Treating these two suffixes as interchangeable without verification can result in a module that powers up but fails to communicate correctly with the machine's CNC.

Key Specifications

Alpha SPM Architecture — Where the SPM-11 Fits

Fanuc's Alpha drive system separates the power conversion and energy storage function from the individual motor drive function. The Power Supply Module (PSM) handles the mains AC input, converts it to a regulated DC bus voltage, and provides energy regeneration during motor deceleration — feeding braking energy back to the mains rather than dissipating it as heat.

The spindle amplifier module draws from this shared DC bus and converts it into the variable-voltage, variable-frequency AC that the spindle motor requires.

This architecture means the SPM-11 has no direct connection to the mains AC supply. It receives DC bus voltage from the PSM and converts that to motor power under the CNC's command via the Type I serial interface.

The PSM must be correctly sized for the total motor load — spindle plus servo axes — and the SPM-11's 13.2 kW input must be within the PSM's available capacity alongside the servo amplifier modules sharing the same bus.

The "11" in SPM-11 indicates the module's rated output power class in kW. Within the 200V Alpha spindle amplifier series, the range runs from SPM-2 at the small end to SPM-55 at the large end.

The SPM-11 is appropriate for the mid-range Alpha spindle motors and is one of the more commonly encountered spindle modules in the Alpha generation of machine tools, which is why exchange units, repair services, and spare boards remain well-supported in the aftermarket.

Type I Interface — CNC Communication

The Type I designation on the A06B-6078-H211 identifies the serial communication interface between the spindle amplifier and the CNC. Fanuc used two serial interface types in the Alpha series spindle drive family: Type I and Type II.

These are not interchangeable — a Type I spindle amplifier module requires a CNC configured for Type I spindle communication, and a Type II module requires a Type II-configured CNC.

Installing the wrong interface type does not merely degrade performance; it prevents the spindle from operating, since the CNC cannot establish communication with the module.

The Type I interface covers the full range of spindle control functions the machine tool requires: speed command transmission, speed feedback reception, oriented stop positioning, Cs-axis (spindle contour axis) control for multi-function machines, and rigid tapping synchronisation with the Z-axis feed.

The SPM-11's speed control range of 1:100 and speed accuracy of ±0.1% of maximum speed are maintained through this serial link under the CNC's closed-loop speed regulation.

When the CNC issues a spindle speed command, the SPM-11 executes it through the PWM inverter, adjusting output frequency and voltage to bring the spindle motor to the commanded speed and maintain it against the variable cutting load torque.

The speed feedback from the spindle motor's MZi or M sensor travels back through the same interface to the CNC, which closes the speed control loop.

Compatible Spindle Motors

The A06B-6078-H211 drives the following Alpha series spindle motors within its 13.2 kW / 48A output envelope:

Alpha 6 (α6): Alpha series 6 kW class spindle motor, typically used on smaller machining centres and drill-tap centres. The SPM-11 is adequately sized for the Alpha 6's current demand.

Alpha 8 (α8): The most common pairing with the SPM-11 in Alpha generation machining centres. CNC-Electronics confirms this as the "normal" motor fitted with this drive module. The Alpha 8 runs within the SPM-11's rated current at both continuous and short-duty output levels.

AlphaP 8 (αP8): The AlphaP series motor in the 8 kW class — a P-type (Powerful) variant offering enhanced torque in the lower speed range. Rated current falls within the SPM-11's 48A output capability.

AlphaP 12 (αP12): The AlphaP series motor in the 12 kW class. This is the largest motor the SPM-11 can drive. Operating at the upper end of the module's rated current, the PSM sizing and ambient temperature conditions should be verified when running an AlphaP 12 in sustained heavy cutting cycles.

Connecting a spindle motor outside this list — specifically a larger Alpha motor like the Alpha 15 or Alpha 22 — risks persistent overcurrent alarms and potential module damage. The motor type parameter in the spindle amplifier module must be set correctly for the connected motor before the spindle is operated.

Protection and Environmental Operating Conditions

The SPM-11 incorporates three layers of hardware protection that operate independently of the CNC's software monitoring: overcurrent protection (trips the output transistors before winding damage occurs at sustained overcurrent), overvoltage protection (monitors the DC bus voltage and intervenes if regenerative energy causes the bus voltage to rise above safe limits), and thermal protection (monitors module temperature and reduces output or shuts down if the internal thermal threshold is exceeded).

The module operates correctly from 0°C to 55°C ambient. Above 55°C, the thermal protection circuit begins to limit output before the module shuts down, which manifests as spindle derating during heavy production — a symptom that looks like a spindle performance issue but is actually a cabinet cooling problem. Maintaining the drive cabinet's ambient temperature within the rated envelope is the primary preventive measure.

Above 1,000 m installation altitude, the available output must be derated by approximately 1°C for each additional 100 m of altitude (equivalent to reduced thermal headroom). For installations at high altitude, this is a parameter to verify with the machine builder or Fanuc's application documentation.

Alarm Codes and Common Fault Modes

The SPM-11 reports faults through a combination of LED indicators on the module face and alarm codes communicated to the CNC. The most frequently encountered alarms in service are:

Alarm 12 (Overcurrent / Spindle Motor Fault): Appears when insulation between PE and the motor power wires (U, V, W) has broken down. The diagnostic procedure is to remove the motor power wires at the amplifier terminals and test insulation between PE and each removed wire. If insulation is acceptable at the amplifier terminals but not at the motor itself, the fault is in the motor windings — the module is not at fault.

Alarm 03 (DC Link Charge Fault): Indicates a problem with the DC bus voltage, which may be the PSM, the DC link capacitors in the PSM or SPM-11, or the interconnecting bus bar.

C0, C1, C2 (Communication Error): These indicate a loss of, or error in, the serial communication between the CNC and the SPM module. Causes include incorrect interface board type, cable faults, or parameter mismatch between the CNC spindle software version and the module's software version — a particular concern when the #H500 and #H501 variants are involved.

Sourcing, Exchange, and Repair

The A06B-6078-H211 is a serviceable module. Specialist companies including CNC-Electronics, Fanucworld, and DNC-Electronics stock exchange units and offer repair services covering both the control/interface board and the power board. When sourcing a replacement, confirm whether the machine requires #H500 or #H501 before ordering — as noted above, these carry different software versions and are not always interchangeable. For machines where only the spindle alarm behaviour points to the module rather than the motor or wiring, a bench test of the suspect module on a Fanuc test rig is the appropriate diagnostic step before committing to a replacement.

FAQ

Q1: What spindle motors can the A06B-6078-H211 drive?

The SPM-11 module is rated for Alpha series spindle motors within its 13.2 kW / 48A output envelope: Alpha 6, Alpha 8, AlphaP 8, and AlphaP 12. The Alpha 8 is the most common pairing. Connecting a larger motor — such as an Alpha 15 or Alpha 22 — exceeds the module's rated current and will produce persistent overcurrent alarms. The motor type parameter in the module must be set to match the connected motor before the spindle is operated.

Q2: What is the difference between the #H500 and #H501 variants?

Both are SPM-11 modules sharing the same power hardware and output ratings. The difference lies in software version and, in some cases, the interface board fitted. The software version must be compatible with the CNC's spindle control software. When the machine was originally built, either #H500 or #H501 was specified. Substituting one for the other without software confirmation can result in a module that fails to communicate with the CNC — the spindle will not run and a communication alarm (C0, C1, or C2) will be generated. Always confirm the required variant before ordering a replacement.

Q3: What CNC controls are compatible with the A06B-6078-H211?

The SPM-11 Type I interface is compatible with Fanuc CNC Series 0, 15, 16, 18, 20, and 21, and the corresponding i-series variants: 16i, 18i, 20i, 21i, and Power Mate i. The CNC must be configured for Type I spindle serial communication. Type II CNCs require a different spindle amplifier module and cannot use the A06B-6078-H211 without modification.

Q4: Alarm 12 is appearing — is the SPM-11 module faulty?

Not necessarily. Alarm 12 indicates an overcurrent condition that is most commonly caused by insulation breakdown in the spindle motor windings or motor power cable, not a module failure. The diagnostic procedure is: power off the machine, remove the motor power wires (U, V, W) from the amplifier's output terminals, then power on and command the spindle. If Alarm 12 is gone, check insulation resistance between PE and each removed wire — acceptable insulation is in the hundreds of megohms range. If insulation fails at the motor terminals, the motor needs service. If insulation is good but Alarm 12 returned even with the wires removed, the SPM-11 module's power stage is suspect.

Q5: Can the A06B-6078-H211 be repaired, or does it need to be replaced as a whole unit?

It is fully repairable. The module consists of two main boards: the control/interface board and the power board. Specialist CNC drive repair companies test and repair both boards, addressing failed power transistors, capacitor degradation, and interface board faults. Repair typically covers a comprehensive bench test on a Fanuc test rig with an actual spindle motor to verify performance before return. Exchange programs — where a working reconditioned unit is supplied against return of the faulty core — are also available and reduce downtime compared to waiting for component-level repair on the original unit.
