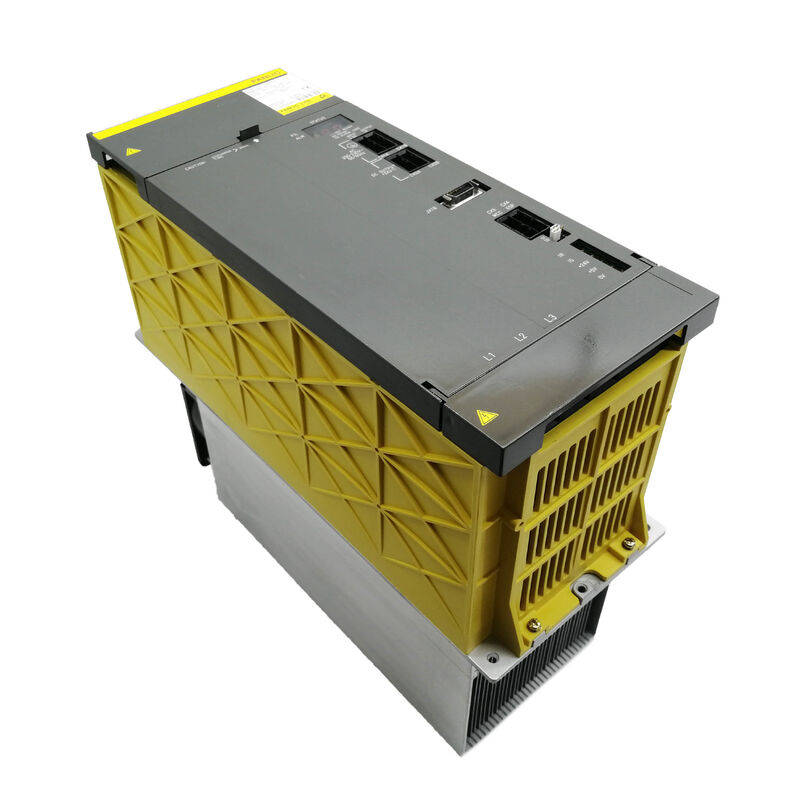

FANUC A06B-6083-H245 | Alpha PSMC-45HV Capacitor Module — High-Voltage DC Bus Storage, 400V System, Japan Origin

Part Number: A06B-6083-H245

Manufacturer: FANUC Corporation (Japan)

Product Type: Power Supply Module Capacitor (PSMC)

Model: PSMC-45HV

Compatible PSM Units: PSM-45HV, PSM-75HV (A06B-6091 series HV modules)

DC Bus Voltage: 566–651V / 566–587V nominal

Input: 400V AC 3-phase (High Voltage series)

Overview

The A06B-6083-H245 is the capacitor module — designated PSMC-45HV — for the high-voltage variant of FANUC's Alpha series power supply system. In FANUC's Alpha HV drive architecture, the Power Supply Module (PSM) converts the incoming 400V three-phase AC supply to a regulated high-voltage DC bus that feeds the servo and spindle amplifier modules.

The PSMC-45HV is a separate capacitor bank that works alongside the PSM-45HV and PSM-75HV units, providing additional DC bus capacitance for energy buffering and regenerative energy absorption.

The HV designation distinguishes this from the standard (200V) Alpha series.

The high-voltage architecture, running from 400V AC three-phase input, was designed for the larger machines that required higher drive power and where the 200V series was insufficient.

These machines — large machining centres, heavy-duty turning centres, and multi-axis production machines installed in markets where 400V AC supply is standard — rely on the PSM-HV units and their companion PSMC modules for their servo and spindle power.

The PSMC module is physically separate from the PSM unit itself.

It connects to the PSM through defined power connections and provides the additional capacitance that smooths the DC bus under the demands of servo and spindle acceleration and regeneration cycles.

The size designation — PSMC-45HV — corresponds to the kW rating of the PSM units it is designed to accompany.

Key Specifications

The PSMC in the High-Voltage Alpha System

Understanding the A06B-6083-H245 requires understanding where it sits in the drive system architecture. The Alpha HV system is a three-tier power system: the PSM-HV generates and maintains the DC bus, the SVM-HV units drive the servo motors from this bus, and the SPM-HV units drive the spindle.

The PSMC sits alongside the PSM and adds bulk capacitance to the DC bus.

Why is bulk capacitance important? The DC bus is a shared energy rail. When a servo motor accelerates, it demands current from the bus and the bus voltage dips momentarily. When it decelerates, the motor generates back-EMF (regenerative energy) that flows back into the bus and the bus voltage rises momentarily.

The PSMC's bank of large capacitors acts as an energy buffer — it supplies energy to the bus during demand peaks and absorbs energy during regenerative events, keeping the bus voltage within acceptable limits under all operating conditions.

Without adequate bus capacitance, the DC bus voltage would swing too widely. Undervoltage during acceleration produces axis velocity errors. Overvoltage during deceleration can trip the drive's protection circuits or, in extreme cases, damage the DC bus components. The PSMC prevents both.

The PSMC-45HV is sized for the PSM-45HV (45 kW) and PSM-75HV (75 kW) power supply modules.

These are among the largest Alpha HV power supply units, used in machines with high servo and spindle power requirements.

PSMC vs PSM — Failure Rates and Service

The PSMC module is mechanically and electrically simpler than the PSM unit itself. The PSM contains active rectification and regeneration circuits, control electronics, and protection logic — multiple potential failure points. The PSMC is essentially a bank of high-voltage electrolytic capacitors with defined connection points. Fewer active components means fewer failure modes.

As DNC Electronics and other specialists note, it is far more common for the PSM to fail than the PSMC.

The PSMC's capacitors are robust and long-lived under normal operating conditions. Their most common failure mode is gradual capacity loss due to capacitor aging — a slow degradation that eventually reduces the effective bus buffering and can cause the PSM to generate alarms on bus voltage swings that were previously within tolerance.

When a PSM-HV fails, the PSMC should be inspected and tested as part of the drive system restoration.

A PSMC with significantly degraded capacitance installed alongside a new PSM will produce the same bus voltage instability that may have masked the PSM fault before failure.

Installation and System Configuration

The PSMC-45HV is installed adjacent to the PSM-HV unit within the drive cabinet. Power bus connections join the PSMC to the DC bus of the PSM.

These connections must be made with the specified bus bar or cable, torqued to the correct specification. High-current DC bus connections that are loose or made with undersized conductors create resistance that can cause localized heating and voltage drop — both of which affect drive system performance.

This module entered service in systems installed from approximately 1995 onward. It is now discontinued by FANUC, but remains available through the aftermarket supply chain for the machines it supports.

FAQ

Q1: The PSM-45HV is generating bus overvoltage alarms during axis deceleration. The PSM has been inspected and appears functional. Could the PSMC-45HV be the cause?

A degraded PSMC can contribute to overvoltage during deceleration. If the PSMC's capacitance has decreased significantly, it can no longer absorb regenerative energy as effectively, allowing the bus voltage to spike higher during deceleration events.

Test the PSMC's capacitance — if significantly below specification, replace the module.

Also verify the drive system's regenerative circuit is functioning correctly, as the PSM's regenerative control must also be working properly.

Q2: The PSMC-45HV is being replaced as preventive maintenance. Should the PSM-45HV also be replaced at the same time?

Unless the PSM is showing signs of degradation or has generated alarms, replacement of the PSM as part of PSMC replacement is not required.

The two components age independently. However, this is a good opportunity to test the PSM's bus voltage regulation performance with the new PSMC installed.

Run the machine through representative acceleration and deceleration cycles and verify the DC bus voltage remains within specification.

Q3: What are the safety precautions when handling and replacing the PSMC-45HV?

The PSMC operates at DC bus voltages between 566 and 651V — lethal voltage levels. Before opening the drive cabinet and before disconnecting the PSMC, the PSM must be powered down completely and the DC bus must be allowed to discharge.

FANUC specifies a discharge wait time after power-down before working on the DC bus connections. Never assume the bus is discharged — measure the bus voltage with a calibrated voltmeter between the DC bus terminals before touching any bus connections.

Follow all applicable electrical safety regulations for high-voltage DC work.

Q4: Can the A06B-6083-H245 be used with other PSM-HV units such as the PSM-55HV?

The PSMC-45HV is documented as compatible with PSM-45HV and PSM-75HV. Compatibility with other PSM-HV ratings should be confirmed against the Alpha amplifier system documentation.

Using a PSMC rated for a different power level without confirmed compatibility documentation is not recommended, as the capacitance sizing is matched to the specific power supply module's energy handling requirements.

Q5: The machine has been in storage for several years. Should the PSMC-45HV be replaced before returning the machine to service?

Electrolytic capacitors degrade during storage, particularly if stored in environments with significant temperature variation. For a machine stored for several years, the PSMC's capacitors may have lost a significant portion of their original capacitance.

Before returning the machine to production, the PSMC should be tested for capacitance and leakage current.

If values are significantly outside specification, replacement before service return is the prudent choice.
