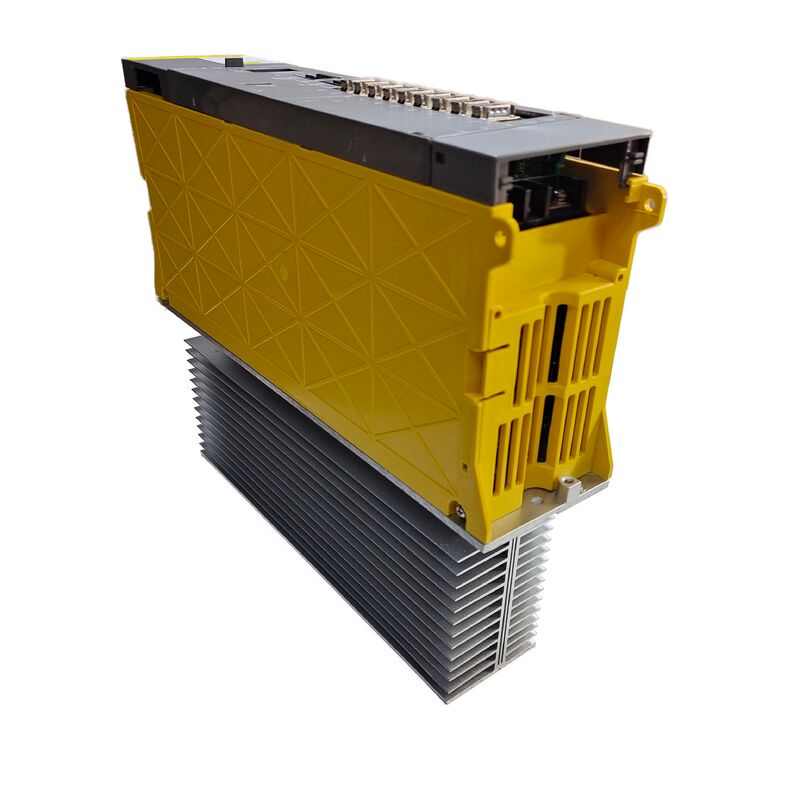

The Fanuc A06B-6078-H206 is a first-generation alpha series spindle amplifier module, designated SPM-5.5, from Fanuc's A06B-6078 spindle amplifier family.
As a compact 5.5kW-class spindle module, it was developed for two specific installation scenarios: as the primary spindle drive on smaller CNC machine tools, and as a secondary or sub-spindle amplifier on twin-spindle machining centres and turning centres where the sub-spindle's power demand is modest relative to the main spindle.
The A06B-6078 series occupies a particular place in Fanuc's alpha amplifier history as the first-generation alpha platform.
This architecture introduced the integrated PSM/SVM/SPM system before the higher-resolution HRV refinements arrived in the later A06B-6082, A06B-6088, and A06B-6102 series. The PSM provides the shared DC bus, the SVM modules handle servo axis drives, and the SPM handles the spindle — all drawing from the same amplifier rail.
The A06B-6078-H206 fits naturally within this architecture, paired alongside A06B-6079 SVM series modules on the same rail in machines of its era.
The 66.8 × 70mm module footprint is physically compact for a 5.5kW spindle drive.
Fanuc's integrated drive module design philosophy enabled this small size, making it practical to install as a sub-spindle amplifier in cabinets already occupied by the main spindle drive and axis modules — without requiring a dedicated cabinet section for the secondary spindle electronics.
| Parameter | Value |
|---|---|
| Module Model | SPM-5.5 |
| Interface | Type 1 (first-generation alpha) |
| Power Series | 200VAC (standard voltage) |
| Feedback Connectors | JY2 and JY4 |
| Dimensions | 66.8 × 70 × 163.5 mm |
| Power Source | Alpha PSM shared DC bus |
| Suffix Variants | #H500, #H501 |
| Compatible SVM | A06B-6079 series |
| Compatible PSM | First-generation alpha PSM |
The Type 1 interface on the A06B-6078-H206 connects to the CNC via the spindle serial interface, enabling the advanced spindle functions that define the first-generation alpha spindle capability: Cs contouring, rigid tapping, spindle synchronisation, and orientation. The feedback arrives at the drive via the JY2 and JY4 connectors, which carry the spindle motor position coder signals and temperature monitor inputs.
This JY2/JY4 feedback arrangement is specific to Type 1 interface spindle drives and distinguishes the A06B-6078-H206 from Type 2, Type 3, and Type 4 interface spindle amplifiers, which use different connector arrangements and parameter sets.
The H206 is explicitly not compatible with these later interface types — machines designed for Type 2/3/4 spindle amplifiers cannot use the H206 as a replacement without interface conversion.
The JY2 connector carries the spindle motor's pulse coder feedback — position and speed signals that the drive uses for velocity control and for servo-mode position control during rigid tapping and Cs axis operation.
The JY4 carries the motor overheat signal from the motor's embedded thermistor, providing thermal protection input that triggers the AL-01 alarm before winding damage occurs.
The 5.5kW continuous power class places the SPM-5.5 below the main spindle modules of most production machining centres, which typically run 7.5kW to 30kW spindle drives. For sub-spindles on twin-spindle CNC turning centres, the secondary spindle performs operations (rear-face drilling, turning, threading) at power levels that rarely require the full capacity of the main spindle.
The SPM-5.5 is the correctly specified module for this application without the cost and size of a larger spindle amplifier.
On smaller CNC machine tools — compact VMCs, drill-and-tap machines, and specialty CNC machines — the SPM-5.5 serves as the primary spindle drive when the application's material removal rates and tool sizes fit within the 5.5kW continuous spindle power budget.
Q1: What distinguishes the #H500 variant from the #H501 in the A06B-6078-H206?
Both variants are SPM-5.5 Type 1 interface spindle modules with identical JY2/JY4 feedback connectors and the same functional capabilities.
The #H500 and #H501 identify minor PCB revisions or regional market specifications.
In most replacement applications, they are functionally interchangeable. When ordering, specify the suffix version to your supplier — while interchange is generally possible, parameter firmware differences between versions can occasionally require adjustment.
Q2: Can the A06B-6078-H206 be replaced with the A06B-6082-H206 SPM-5.5 from the second-generation series?
The A06B-6082 is the second-generation alpha spindle module with improved HRV spindle control. Both share the same SPM model designation and similar electrical ratings but differ in their control PCB architecture and CNC parameter compatibility.
Substituting between generations requires verifying CNC compatibility and parameter sets — it is not always a direct swap.
Consult the Fanuc spindle amplifier compatibility documentation or a qualified service provider before attempting cross-generation substitution on a production machine.
Q3: What CNC alarm codes indicate a fault with the A06B-6078-H206?
Spindle alarms appear on the CNC display as SP-xxx numbers. AL-09 (overheat power semiconductors) indicates a thermal fault — verify the module's cooling fan is running first. AL-12 (DC link overcurrent) typically follows spindle motor winding insulation breakdown and points to the drive output stage.
AL-03 (DC link fuse blown) and AL-04 (input fuse blown) indicate internal component failures within the drive.
AL-01 (motor overheat) and AL-02 (excess speed deviation) more commonly point to the motor or motor feedback rather than the drive. The alarm LED illuminates when any alarm is active; the specific number must be read from the CNC display.
Q4: What is the first-generation alpha architecture and why does it matter for spare parts?
First-generation alpha refers to the A06B-6077 PSM, A06B-6079 SVM, and A06B-6078 SPM module families that formed Fanuc's original integrated alpha drive system.
These modules share a common DC bus architecture and PWM interface generation.
A machine built with A06B-6078 spindle modules will have matching first-generation PSM and SVM modules — replacing the SPM alone with a later-generation module may require PSM or SVM upgrades depending on interface and bus compatibility. Maintaining generation consistency in the amplifier stack is the safest replacement strategy.
Q5: What servicing options are available for a failed A06B-6078-H206?
Exchange is the most practical option: supply the failed module to a service facility and receive a tested, warranted refurbished unit.
Component-level repair is available for faults in the transistor output stage, cooling fan, and internal fuses — these service parts circulate in the repair market and are replaced during module reconditioning.
PCBs within the H206 are not sold separately by Fanuc, but specialist repair facilities carry them as service inventory.
All properly serviced units should be tested under load on a Fanuc PSM/SVM test configuration with an appropriate alpha spindle motor before dispatch.
