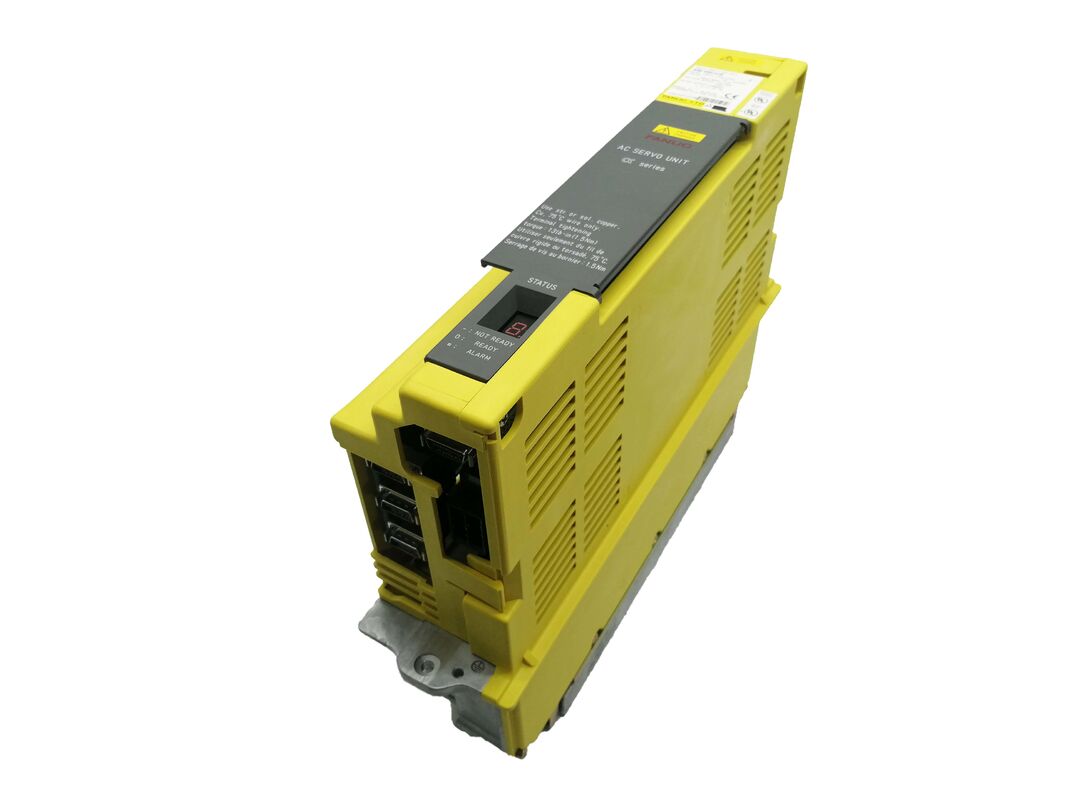

FANUC A06B-6089-H203 Servo Driver — Product Description

Still Running. Still in Demand.

There's a reason maintenance engineers still search for the FANUC A06B-6089-H203 by exact part number. The machines that use it — many of them FANUC Series 0 and Series 15 controlled platforms built through the 1990s — were engineered to run for decades, and a good number of them still do. When one of these systems trips a servo alarm, the instinct isn't to replace the whole machine. It's to find the right driver and get back to production.

The A06B-6089-H203 is part of FANUC's 6089 series servo driver family, one of the earlier transistor-based drive architectures in FANUC's lineup. The H203 suffix identifies this as a two-axis configuration — a significant distinction from single-axis variants in the same series. Two servo axes, one module. That's the kind of integrated design that kept cabinet footprints manageable on older CNC platforms, and it's exactly what makes this part so specific to replace.

Quick Reference: Key Details

About the 6089 Series — and Why the H203 Is a Specific Find

The A06B-6089 series represents one of FANUC's earlier generations of transistorized AC servo drive modules, predating the more widely documented 6090 and 6093 lines. These units were bundled into servo cabinet assemblies for machines where multiple axes shared a common drive enclosure, with the 6089 series providing the power stage and current control for paired servo motors.

The H203 variant in particular handles two axes simultaneously — making it a dual-purpose component within a single housing. This design was practical for space-constrained cabinets but does mean that a failure in this unit takes down two axes at once. For production facilities, that's usually the scenario that drives the search for a replacement.

What's notable about the stock available here: these units are New Factory Seal (NFS) — meaning they come in original FANUC packaging, uninstalled, and are not refurbished or tested-used stock. For a legacy part number like this, finding factory-new inventory is increasingly uncommon, and it matters when long-term reliability is a concern.

Condition: New Factory Seal Explained

"New Factory Seal" means the unit has never been mounted in a machine, powered up in a production environment, or subjected to any operational wear. It left the FANUC factory sealed and has remained that way. This is the highest-confidence condition available for any servo drive component — and for dual-axis modules where a single failure disables two machine axes, that confidence has real operational value.

The 6-month warranty on this unit applies from the date of delivery and covers functional failures under normal operating conditions.

Practical Notes Before You Order

Verify the axis configuration of your machine first. The H203 is a two-axis unit. If your machine originally had a different suffix — H103 (single-axis) or H205, for instance — the H203 is not a drop-in replacement. The part number on the existing unit should be confirmed before purchase.

Parameter backup matters. Before replacing any FANUC servo driver on a live machine, ensure current servo parameters are backed up at the CNC. While a direct swap of the same part number doesn't require reprogramming of the drive itself, having a parameter record protects against unexpected issues during commissioning.

Check your control system compatibility. The 6089 series is associated with specific FANUC CNC generations. For machines running later platforms that were originally equipped with 6090 or 6093 series drives, the 6089 series is not a substitute.

Payment & Shipping

Payment is accepted by Bank Transfer (T/T), PayPal, or Western Union. PayPal and Escrow processing applies to orders valued at USD $500 or below, with handling fees of 3.9–4.4% and 5–5.1% respectively. Bank Transfer is available for any order amount without surcharge.

Dispatch follows within 3–5 business days after payment confirmation. DHL and FedEx serve the majority of global destinations. Buyers in regions with freight restrictions should confirm shipping availability and cost before placing an order. All import duties, taxes, and customs clearance costs are the buyer's responsibility. Combined shipping is offered on multiple-unit orders.

Warranty & Returns — Clearly Stated

New Factory Seal units carry a 6-month warranty from delivery date. This covers functional failure under normal operating conditions and standard installation practice. The warranty does not extend to units that have been physically damaged after receipt, mishandled during installation, or operated outside their rated parameters.

Returns are accepted when: goods arrive damaged or not as described (report same or next business day), or the unit is found to be non-functional within 4 days of delivery. Change-of-mind returns and wrong-item purchases are not accepted — confirm the part number carefully before ordering. All returns must include the original warranty label, undamaged and intact.

Machines That Typically Use the A06B-6089-H203

This dual-axis servo driver is most commonly found in:

• Older FANUC-controlled vertical and horizontal machining centers with paired X/Y or X/Z axis configurations
• CNC lathes running FANUC Series 0-T or Series 15-T controls that use dual-axis drive modules
• Transfer line equipment and dedicated production machinery built with FANUC OEM drive packages in the early-to-mid 1990s
• Retrofitted or long-running production cells where original servo hardware is still in active service

Frequently Asked Questions

Q1: What does the "H203" suffix mean on the FANUC A06B-6089 servo driver?

In FANUC's part numbering convention for the 6089 series, the H-suffix encodes the axis count and current rating of the driver. The "2" in H203 indicates a two-axis configuration — this unit controls two servo axes simultaneously within a single module. This is fundamentally different from single-axis variants in the same family. Installing the wrong H-code variant on a machine that requires the H203 will result in an axis mismatch and likely generate servo alarms during initialization. Always confirm the exact suffix on the existing unit before ordering.

Q2: Is "New Factory Seal" the same as "new original" or could it be old stock?

New Factory Seal means the unit has remained in its original sealed FANUC packaging since it left the factory — never installed, never powered in a machine environment. It is effectively the same as new original. The concern some buyers have about "old stock" is about component degradation over time. For servo drive electronics, properly stored sealed units have a very long shelf life, and FANUC components in particular are known for holding up well in storage. If you have concerns about manufacturing date or storage conditions, feel free to ask before purchasing.

Q3: My machine went down with servo alarms on both axes at once — does that point to the A06B-6089-H203?

Simultaneous loss of two axes is a strong indicator that the shared drive module is involved, since both axes share the same H203 unit. However, the power supply feeding the drive is another common culprit in dual-axis failures. Before ordering a replacement driver, it's worth checking whether the DC bus voltage is within spec and whether the drive's status LEDs or fault indicators show any output. If the power supply checks out and fault codes point to the drive stage, the H203 becomes the most likely replacement.

Q4: Can the A06B-6089-H203 be used as a replacement for other FANUC 6089-series variants with different H-codes?

No. Different H-code variants within the 6089 series have different axis counts and current ratings. The H203 is specifically a two-axis unit. Substituting it for a single-axis variant — or for a variant with a different current rating — will cause incompatibility issues with the servo motor pairing and may generate faults or damage connected motors. Cross-variant substitution is not supported and should not be attempted.

Q5: How do I know if the A06B-6089-H203 is compatible with my specific CNC machine?

The most reliable method is to locate the existing servo driver in your machine's electrical cabinet, read the part number directly from the label, and confirm it matches A06B-6089-H203 exactly. You can also cross-reference this against the machine's electrical documentation or maintenance manual, where the servo drive part number is usually listed in the drive cabinet schematic. If you're unsure or can't access the cabinet label, sharing your machine model number and CNC controller type allows us to help verify compatibility before you commit to a purchase.
