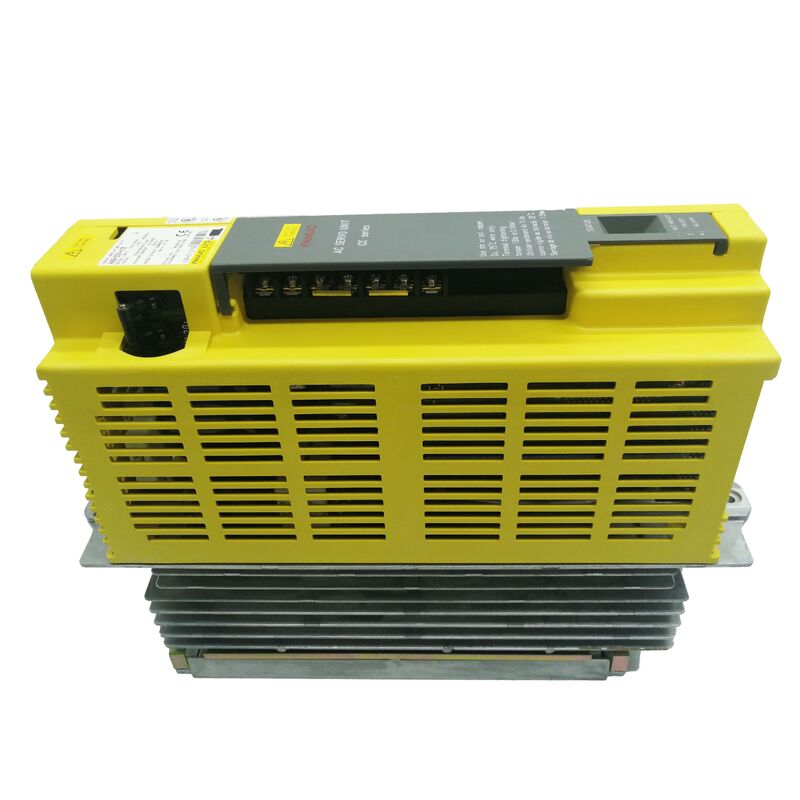

FANUC A06B-6089-H322 — Alpha SVU3-12/12/20: Three Axes, Two Current Tiers, One Self-Contained Unit

Not every axis on a machining center pulls the same load. A vertical machining center's Z-axis fighting gravity with a heavy spindle head needs more current than the lighter X-axis traversing an empty table. A horizontal boring mill's rotary B-axis indexing under a workpiece has different torque requirements than the two linear axes cycling at rapid traverse. Machine builders who understood this made drive selection choices accordingly — and the A06B-6089-H322 reflects exactly that thinking.

Designated SVU3-12/12/20, this is an asymmetric three-axis unit from FANUC's alpha SVU family. The L and M axes are each rated at 3A output (12-class), suitable for lighter alpha servo motors handling lower-load duties. The N axis steps up to 5.9A (20-class), accommodating a motor with meaningfully higher torque demands. All three axes share one housing, one power supply, and one set of power input terminals. The cabinet footprint stays compact; the axis current allocation matches real machine load profiles.

Sande Electric stocks the A06B-6089-H322 in new and used conditions, dispatching worldwide within 0–3 working days.

Understanding the Alpha SVU: A Self-Contained Architecture

The "SVU" designation in FANUC's alpha series stands for Servo amplifier Unit — a naming convention that carries one critical technical implication: the unit contains its own built-in rectifier and DC bus. It connects directly to incoming three-phase AC power and converts it internally. No external power supply module is required, and no shared DC bus needs to be pre-established in the drive cabinet before this unit can operate.

This distinguishes the 6089 SVU family fundamentally from the 6079 and 6080 alpha SVM (Servo Module) families. An SVM module from those series — like the SVM3 three-axis modules — must be paired with a separately installed power supply module that provides the shared DC bus voltage. The SVU does not. It is a standalone installation: bring AC power to it, connect motor cables and encoder feedback, wire the PWM interface to the CNC, and the axis is ready.

This architecture makes the 6089 SVU a practical choice for machines where individual drive placement at the axis — rather than in a centralized cabinet — is desirable. It also simplifies fault isolation: an SVU failure affects only the axes driven by that unit, while an SVM power supply failure takes down every module sharing that bus.

The H322 in Context: Reading the 6089 Three-Axis Range

The 6089 series uses a logical numbering convention for its three-axis SVU lineup. The suffix encodes the current combination across L, M, and N channels:

The H322 sits between the fully symmetric all-12-class H321 and the one-12/two-20-class H323. Its specific combination — two light axes and one mid-range axis — maps naturally to machines where two axes perform similar-duty linear motion while the third drives something heavier. The N axis at 5.9A is not a "heavy" drive; it handles alpha motors in the β2/3000 to α4/4000 range, consistent with a medium-scale primary axis rather than a large-format milling head.

One consequence of the asymmetric current configuration worth noting: the N axis has more thermal dissipation under load than the L and M axes. On machines with high N-axis duty cycles, the unit's thermal management — air cooling around the output stage — matters more for the N channel than for the other two. Good cabinet ventilation and adequate clearance around the unit are important when the N axis runs at or near its 5.9A rated current continuously.

Technical Specifications

The Unused Axis Provision: What To Do When Not All Three Channels Are Active

Three-axis SVU units are sometimes installed on machines that actively use fewer than three axes through that unit. A machine that has been reconfigured, one where an axis was decommissioned, or one where the SVU was selected with capacity to spare — these situations can leave one or more channels idle.

FANUC's documentation for the 6089 SVU family addresses this directly. When an axis is not connected to a motor, the cable between the CNC and the servo amplifier unit for that axis should be removed, and a dummy connector inserted in its place. The dummy connector requires pins 8 and 10 to be shorted — this signals to the drive that the axis emergency stop circuit is satisfied for that unused channel. Without the dummy connector on an unused axis, the SVU may display an alarm condition for that channel on startup or during operation, because the open emergency stop loop is interpreted as a fault. This is a common source of confusing alarms when a 6089 SVU is installed with fewer active axes than its capacity.

6089 Versus 6090: Sibling Series, Different Motor Generations

Both the 6089 alpha SVU and the 6090 SVUC series (covered separately in this catalog) are standalone servo amplifier units with built-in power supplies and PWM interfaces — architecturally they are equivalent in concept. The difference lies in the motor generation they were designed for.

The 6090 SVUC series was optimized for the alpha C motor generation — the model C alpha motors produced in the early to mid 1990s. The 6089 SVU targets the broader alpha series motor family that preceded and overlapped with the C motors. Motor compatibility tables in FANUC documentation show the 6089 used with motors in the standard α1 through α4 class, while the 6090 specifically references αC-designated motors. In practice, there is significant overlap in the machines that may have used one or the other depending on the year of manufacture and the OEM's motor specification at the time of build.

When sourcing a replacement, always verify the installed unit's part number (6089 versus 6090) and the connected motor designations before selecting the replacement. Substituting a 6090 for a 6089 on a machine wired for the 6089's PWM Type A interface requires confirming that the CNC's servo interface matches.

Condition Notes and Stock

New-old-stock A06B-6089-H322 units in original packaging carry a 12-month warehouse warranty. These are the preferred choice for machines supporting continuous production where the cost of unplanned downtime exceeds the price premium of new stock.

Used inspected units are functionally verified across all three axes and offered with a 3-month warranty. Given the age of the 6089 series — these units were produced in an era now 25–30 years past — used inventory condition varies. Contact us before ordering to discuss inspection history and availability.

Ordering, Payment & Shipping

Worldwide dispatch via DHL and FedEx within 0–3 working days of confirmed payment. Combined shipping is available on multi-item orders.

Payment options:

• Bank Transfer (T/T) — all order values
• PayPal — orders up to USD $500
• Western Union — all order values

Import duties and local taxes are the buyer's responsibility at destination.

Warranty & Returns

Returns accepted for units arriving damaged, incomplete, not as described, or confirmed non-functional within 4 days of receipt. Unit must be returned with warranty label intact. Return shipping is the buyer's responsibility. No returns for incorrect orders or change of mind.

Frequently Asked Questions

Q1: How does the A06B-6089-H322 (SVU3-12/12/20) differ from the H321 (SVU3-12/12/12), and how do I know which one my machine originally used?

A: The H321 provides three identical channels at 3.0A each — all axes drive motors in the 12-class current range. The H322 keeps L and M at 3.0A but upgrades N to 5.9A, accommodating a somewhat larger motor on the N axis. The correct identification method is the label on the installed unit: the full FANUC part number including the four-digit suffix is printed on the side. If the label is worn, the motor model plates on the N-axis motor compared to the L and M motors will indicate whether the N axis uses a heavier motor (α4/4000 class) or the same light motor as the others. If the N motor is identifiably larger, the H322 is the correct replacement; if all three motors are the same small model, the H321 was the original. The CNC's servo axis screen may also show the motor code parameters for each axis, which directly references the motor model and confirms the current class requirement.

Q2: The 6089 SVU has a built-in power supply. Does that mean I don't need to change anything else in the drive cabinet when replacing it?

A: In most cases, yes — the H322 is a direct replacement that connects to the same three-phase AC input, the same motor power cables, and the same PWM interface wiring as the original unit. No external aiPS or power supply module needs to be touched. However, before powering up, verify three things: that the incoming three-phase AC voltage is within the 200–230V specification for this unit; that the PWM interface cable from the CNC to the SVU is seated correctly at both ends (a loose interface connection can cause immediate alarm on startup that looks like a unit fault but isn't); and that any unused axis channels have dummy connectors installed with pins 8 and 10 shorted, if those axes are not connected to motors. These three checks cover the most common causes of failed startup after an otherwise correct SVU replacement.

Q3: Can the A06B-6089-H322 be replaced by the A06B-6090-H3xx series from the same current class?

A: The 6090 SVUC series uses the same PWM Type A interface architecture and similar current classes, so in principle the electrical equivalence is there — but a direct substitution requires confirming interface compatibility at the connector level. The 6089 and 6090 series were designed for different motor generations (alpha versus alpha C), and while the interface type is the same, the parameter settings in the CNC for motor codes and current limits must match the motor that is actually connected, regardless of which SVU series the replacement unit comes from. If the machine's motors are standard alpha series (not specifically designated as alpha C), a 6089 H322 replacement is the cleaner like-for-like choice. If you're considering a 6090 as an alternative, verify the motor code in the CNC parameters is appropriate for the actual motor before making the substitution, and confirm no interface wiring adapter is needed.

Q4: After installing a replacement H322, the CNC shows servo alarm 9 (M-axis over-current) immediately on axis enable. The M-axis motor was working fine before the unit failed. What should I check?

A: An M-axis over-current alarm on first enable after replacement most commonly has one of three causes. First, check the M-axis motor power cable connections at the SVU output terminals — an incorrectly seated phase terminal or a terminal that was over-tightened and cracked can cause a phase-to-phase short that trips the over-current protection immediately. Second, verify the M-axis encoder cable is connected to the M-axis feedback input on the new SVU, not swapped with the L or N axis — an encoder feedback mismatch causes the current loop to lose position reference and command excessive current during axis enable. Third, check the CNC's servo parameter for the M axis (motor code, parameter 2020) against the motor nameplate: if the motor code does not match the connected motor model, the drive's current limit settings may be set below what the motor actually draws at initial acceleration, triggering a false over-current. Correct the motor code and re-enable the axis before concluding the replacement unit has a fault.

Q5: The 6089 series is discontinued. Is there a modern FANUC equivalent, and what's involved in upgrading rather than replacing like-for-like?

A: There is no direct modern equivalent — the 6089 SVU architecture (self-contained PWM standalone unit) does not have a current FANUC successor that can be substituted without broader system changes. The modern alpha i and beta i drive families use FSSB fiber optic interface and, for the SVM modules, require a shared aiPS power supply bus. Upgrading from a 6089 SVU installation to a modern drive architecture involves replacing the CNC's servo interface board (or the CNC itself), replacing the drive cabinet's power supply arrangement, replacing the SVU with a compatible FSSB or beta i drive, and potentially re-parameterizing the CNC for the new motor/drive combination. For most machines still running on Series 15, 16, or 18 CNC systems, this represents a full CNC and drive system overhaul rather than a component swap. The more practical path for keeping a 6089-based machine in production is to maintain an inventory of tested used H322 units. Contact us to discuss stock availability and bulk sourcing if you have multiple machines of this type in your facility.
