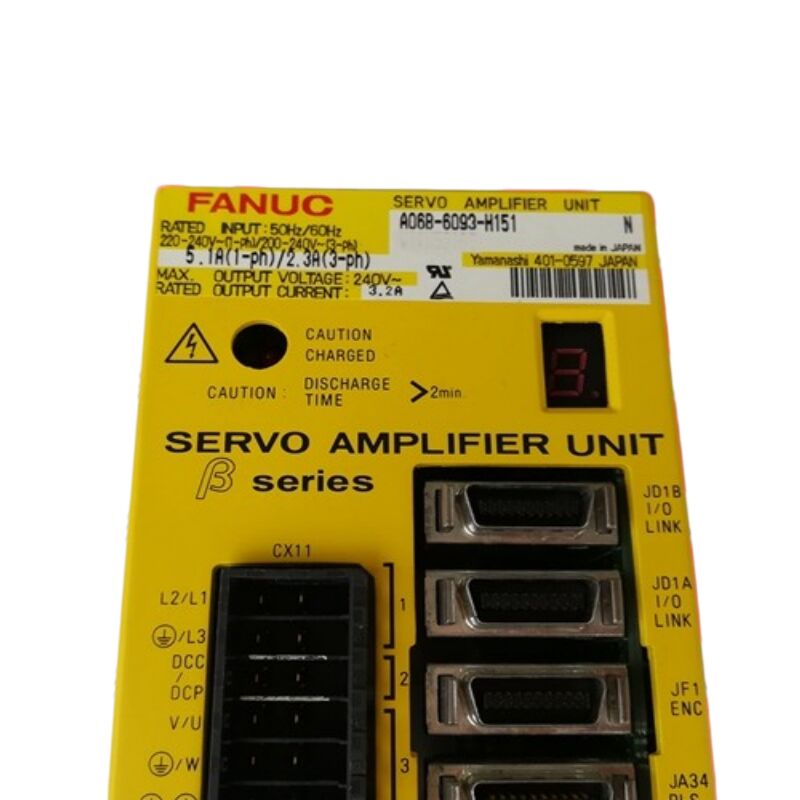

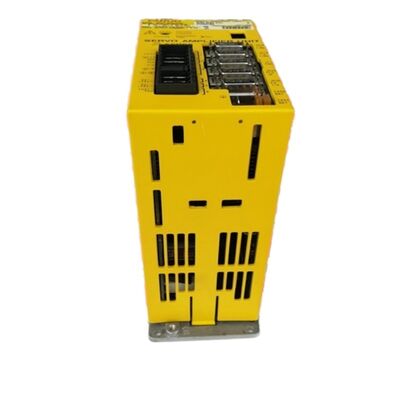

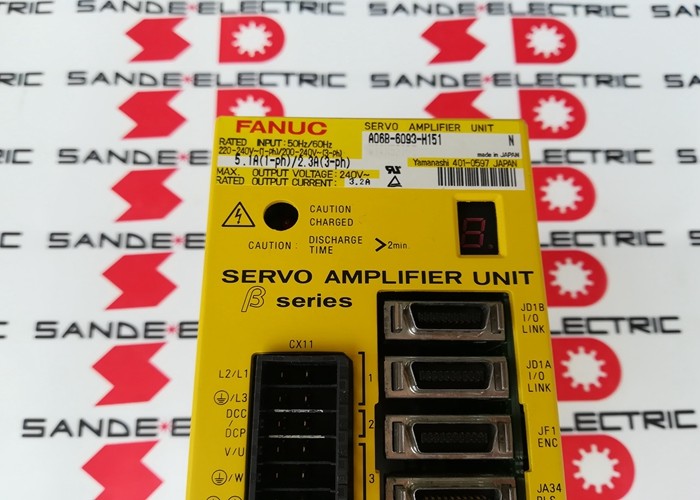

A06B-6093-H151 FANUC AC Servo Amplifier Unit A06B6093H151 A06B-6093-H151

Fanuc A06B-6093-H151 | Beta Servo Amplifier Unit — SVU-12, I/O Link Interface, 220–240VAC Input, 3.2A / 240V Output, Standalone Power Supply

Overview

The Fanuc A06B-6093-H151 is the SVU-12, the smallest single-axis unit in Fanuc's A06B-6093 Beta servo amplifier series, rated at 3.2A continuous output at 240V from a standalone built-in power supply.

The Beta SVU series occupies a specific niche in Fanuc's drive portfolio: compact, low-cost standalone amplifiers for single-axis positioning applications that do not require the full performance envelope of the alpha series SVM/PSM system.

Where an alpha series installation demands a PSM, one or more SVM modules, and a shared DC bus infrastructure, a single Beta SVU draws its own AC supply and connects directly to the CNC — simpler to install, smaller in cabinet footprint, and better matched to applications where axis current demand is modest and axis count is small.

The I/O Link interface is what sets this Beta SVU apart from the Type B PWM variants in the same series.

Rather than the PWM serial protocol used between the CNC and Type B drives, the I/O Link uses a fiber optic connection to transmit position commands and receive feedback between the CNC and the SVU-12.

This fiber optic link provides immunity to electrical noise in the control cabinet — a relevant factor for machines with high-frequency spindle drives, plasma cutters, or induction heating systems nearby — and allows the servo unit to be positioned at greater distances from the CNC without signal degradation.

At 3.2A rated continuous and 12A peak, the SVU-12 is matched to the lighter end of Fanuc's Beta series motors: positioning axis drives for tool changers, automatic pallet changers, workpiece indexing systems, and similar single-axis positioning duties where the travel is defined, the load is predictable, and high-speed contouring is not the primary requirement.

Key Specifications

I/O Link Interface — Architecture and CNC Integration

The I/O Link interface in the A06B-6093-H151 connects to the CNC's I/O Link master port, which on most Fanuc CNC systems also handles the PMC I/O interface for machine signals.

This dual use of the I/O Link for both servo positioning and PMC I/O reduces the total cable count in the installation.

The fiber optic medium carries a digital serial protocol that is fundamentally different from the PWM interface of the Type B Beta SVU variants — the two interface types are not interchangeable, and the CNC must have the I/O Link servo option configured for this drive to operate.

In a CNC system where the primary machining axes use alpha series FSSB modules, the I/O Link SVU-12 covers auxiliary positioning axes: the B-axis rotary table, the tool magazine carousel, the pallet shuttle, or the tailstock positioning on a turning centre.

Each SVU connects to the I/O Link chain independently, allowing the machine builder to distribute single-axis positioning drives around the machine without routing all motor cables to a central drive cabinet.

Beta Series Design Philosophy — Positioning Over Contouring

The Beta series amplifier — and particularly the I/O Link SVU variant — was designed for positioning duty: moving an axis from A to B on a command, holding position, and releasing.

This differs from the contouring duty of alpha and αi series drives, which must regulate velocity continuously during multi-axis interpolated moves.

The SVU-12's 3.2A continuous rating and 12A peak limit reflect this positioning application — the motor accelerates on the 12A peak current, decelerates, and rests at the 3.2A holding current level. Continuous high-current operation at the 12A peak is not a design intent for this unit.

The low continuous current rating means the SVU-12 generates minimal heat during normal positioning duty, and the air cooling system handles thermal management without the heatsink-intensive design of higher-current alpha modules.

FAQ

Q1: Can the A06B-6093-H151 (I/O Link) replace the A06B-6093-H152 (also I/O Link, Type B) in a machine?

The A06B-6093-H151 and H152 are both Beta SVU-12 I/O Link variants with identical electrical ratings.

The distinction between H151 and H152 lies in minor hardware revision or regional specification differences — they are functionally equivalent in most installations.

However, confirm the exact suffix with the machine documentation before ordering, as software revisions or connector variants may differ between specific machine generations.

Q2: What Beta servo motors does the SVU-12 drive?

The 3.2A rated continuous output of the SVU-12 is matched to the small Beta series motors: the βS4/3000 and similar-rated Beta motors that are standard companions for this power class in Fanuc's positioning axis catalogue.

The specific motor model must be confirmed from the machine's Fanuc motor selection documentation — the motor parameter set must correspond to the installed motor for correct positioning operation.

Q3: The SVU-12 has a built-in power supply — does it share power with other drives on the same machine?

No. Each Beta SVU unit operates from its own independent AC input feed. There is no shared DC bus between Beta SVU units, unlike the alpha SVM/PSM system where multiple modules draw from a common DC bus. Each SVU connects to a dedicated AC branch circuit.

This independence is an advantage for distributed machine layouts and simplifies fault isolation — a failure in one SVU does not interrupt power to other axes.

Q4: What happens if the I/O Link fiber optic cable is damaged during operation?

A break or contamination in the I/O Link fiber cable produces a communication error between the CNC and the SVU-12.

The CNC displays a servo alarm referencing the affected I/O Link axis, and the axis de-energises. The 7-segment LED on the SVU unit will show an alarm code.

The fiber optic cable should be inspected for physical damage, sharp bends, and connector contamination.

Replace the cable rather than attempting to clean damaged fiber ends — the plastic optical fiber used in Fanuc I/O Link applications is low-cost and field-replaceable.

Q5: Is the A06B-6093-H151 compatible with Fanuc 0i-D and 0i-F controls?

The 0i-D and 0i-F support the I/O Link servo interface for auxiliary positioning axes, making the SVU-12 compatible with these controls when the machine is configured to use the I/O Link servo option.

Primary machining axes on 0i-D and later controls typically use FSSB αi or βi amplifiers, while the I/O Link SVU handles auxiliary axes.

Verify the machine configuration documentation and parameter settings for the specific I/O Link axis assignment before replacement.
