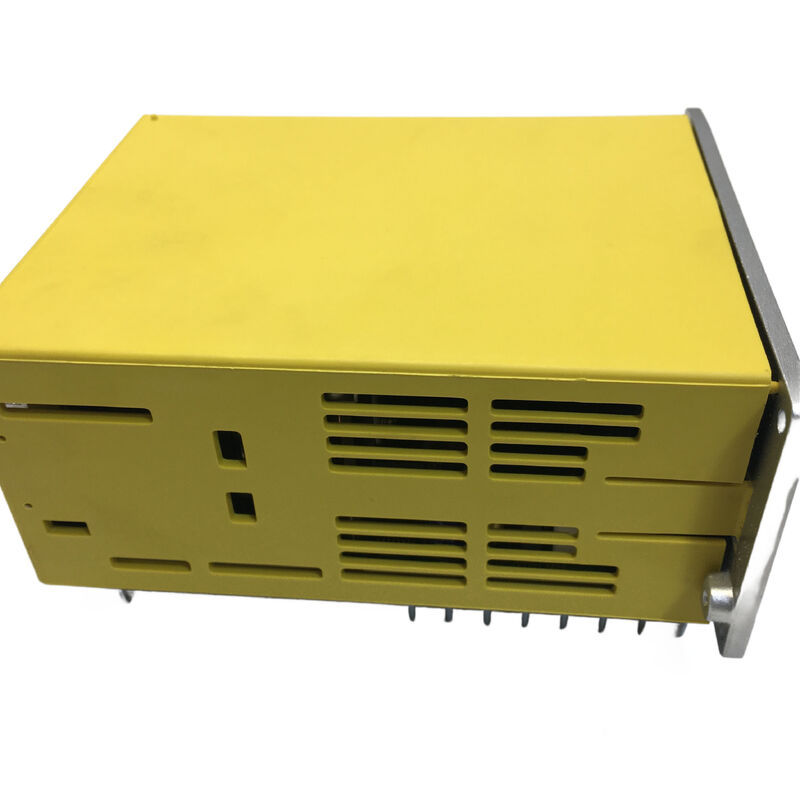

A06B-6093-H171 FANUC AC Servo Amplifier Unit A06B6093H171 A06B-6093-H171

FANUC A06B-6093-H171 Beta Servo Drive — SVU-12 I/O Link, 2nd Generation Standalone Unit

When maintenance engineers search for this part, they usually already know which machine needs it. The A06B-6093-H171 is not an easy unit to mistake for something else — its role is specific, its interface is distinctive, and the machines it lives in have been running long enough that the original unit has simply worn out. Getting the right replacement, fast, is the only thing that matters.

The H171 is designated SVU-12 in FANUC's 6093 Beta servo family: a single-axis, standalone drive with a built-in power supply, communicating with the CNC via I/O Link. It is the second-generation I/O Link variant within the 6093 line (the H15x sub-family was the first). The unit is discontinued by FANUC, which makes stocked new-old-stock and tested used units the primary sourcing routes for anyone keeping these machines productive.

Sande Electric stocks the A06B-6093-H171 in new and used (inspected) condition, ready to dispatch worldwide within 0–3 working days.

SVU vs. SVM: A Distinction That Matters on the Shop Floor

Most of the servo amplifiers in FANUC's CNC cabinet ecosystem are SVM — Servo Modules. They are not self-contained. SVM units draw DC bus power from a shared power supply module (either an aiPS or alpha PS), and they mount together in a common drive cabinet. If the power supply fails, all the SVM modules on that bus go down together. If a module needs to move to a different location in the machine, routing DC bus conductors becomes a constraint.

The A06B-6093-H171 is an SVU — Servo Unit. The difference is the built-in power supply. This unit converts incoming AC directly to the DC it needs internally. No shared DC bus, no dependency on an external power supply module for the servo drive power. This structural independence is precisely why FANUC designed the SVU for auxiliary axes that are physically separated from the main drive cabinet — automatic tool changers, turret indexers, and pallet changers that are built into a machine tool section away from the central cabinet.

For the machine tool builder, an SVU means the drive can be mounted wherever the axis is, eliminating long DC bus runs. For the maintenance engineer replacing one, it means you're swapping a fully self-contained unit — no power supply matching, no DC bus sizing.

The 6093 Family: Where H171 Fits in the Beta Lineage

The 6093 series represents FANUC's original Beta servo unit generation. Beta drives were introduced to serve the auxiliary axis market — smaller, lighter loads like ATC mechanisms and rotary tooling stations — where the full alpha series was over-specified and over-priced.

Within the 6093 I/O Link units, FANUC produced two generations. The first generation carried H15x part numbers (H152 for SVU-12, H153 for SVU-20, etc.). The H17x sub-family — of which the H171 is the SVU-12 member — is the second generation, updated internal boards while maintaining the same electrical and mechanical footprint and the same I/O Link communication interface.

The SVU-12 is the smallest-rated unit in the standalone beta I/O Link range, with a 3.2A rated output matched to the smallest beta servo motors. The range steps up through SVU-20 (H172), SVU-40 (H173), and SVU-80 (H174), each matched to progressively larger beta motors.

The 6093 I/O Link series was eventually superseded by the 6132 series (beta i I/O Link), which brought the beta i motor generation along with hardware updates. However, the installed base of machines with 6093 units remains active — the SVU interface, the PMM connection, and the I/O Link node addressing are all characteristics specific to the 6093 generation, and 6132 units do not directly substitute without changes to the machine's wiring and CNC configuration.

Technical Specifications

Discontinued Status: What It Means for Sourcing

FANUC has discontinued the A06B-6093-H171 from its current production lineup. For machines still running this unit — many of which are lathes and machining centers built in the late 1990s and 2000s — sourcing options have narrowed to new-old-stock units from authorized and independent distributors, and tested used units from reputable suppliers.

New-old-stock units are genuine, unused FANUC product that has been held in proper storage conditions. Where available, these are the closest equivalent to a factory-new replacement and carry a full 12-month warranty from our warehouse.

Used inspected units are the practical alternative: sourced from machines that have been decommissioned or upgraded, tested to confirm functionality, and offered with a 3-month warranty. The SVU-12 typically drives low-duty-cycle auxiliary axes — the current demands on an ATC or turret motor are brief and intermittent rather than continuous — so well-maintained used units from machines with normal service histories are a reliable working spare.

Contact us to confirm availability on both conditions before ordering, as stock of discontinued units is finite.

Ordering, Payment & Shipping

Worldwide dispatch via DHL and FedEx within 0–3 working days of confirmed payment. Combined shipping is available on multi-item orders.

Payment methods:

• Bank Transfer (T/T) — all order values
• PayPal — orders up to $500
• Western Union — all order values

Import duties and taxes are the buyer's responsibility at the destination.

Warranty & Returns

Returns accepted if the unit arrives damaged, incomplete, not as described, or is confirmed non-functional within 4 days of receipt. Unit must be in original condition with warranty label intact. Return shipping is at the buyer's cost. Failures from incorrect installation, wrong motor pairing, or physical damage post-delivery are outside warranty coverage.

Frequently Asked Questions

Q1: What exactly is I/O Link, and how is the A06B-6093-H171 connected to the FANUC CNC?

 I/O Link is a serial communication protocol used widely across FANUC and other Japanese automation equipment. In a FANUC CNC system, it allows peripheral devices — including this SVU-12 drive — to be connected to the CNC's PMM (Power Mate Manager) or directly to the CNC's I/O Link interface, rather than occupying a dedicated servo axis channel on the CNC servo card. The physical connection is via a JD1A/JD1B connector (usually a small ribbon or plug connector), and the drive is assigned a node address that the CNC uses to identify it on the I/O Link chain. One I/O Link chain can carry multiple devices. This architecture is why the SVU can be physically located anywhere on the machine — it only needs the I/O Link signal cable and its own AC power input, not the DC bus infrastructure of FSSB servo modules.

Q2: The H171 is a 2nd generation unit — can it replace an H15x (1st generation) unit on the same machine?

 In the majority of installations, yes. The H171 (2nd generation) uses the same I/O Link interface, the same physical connector positions, the same SVU-12 current rating, and the same motor compatibility as the H15x 1st generation. The internal boards are different (the H17x uses A20B-2100-0132 and A20B-2100-0186, while the H15x used earlier board revisions), but the functional interface to the machine and CNC is the same. In practice, H171 has been routinely used as a replacement for H152 and other 1st-generation units. The key check before substituting is to verify the CNC's I/O Link node address assignment and confirm no specific software parameter references the exact unit version in a way that would cause a configuration mismatch on power-up. For the majority of machines, this is a clean substitution.

Q3: My machine shows an ATC alarm and the turret no longer indexes. How do I determine whether the SVU-12 is the fault or whether the problem is elsewhere?

The SVU-12 has a 7-segment LED display on its front face that shows its own status independently of the CNC. Power up the machine and check this display first — if it shows a steady number or letter code, look up the meaning in the beta servo unit alarm reference. A code indicating DC link low voltage, IPM fault, or overcurrent points toward the drive hardware or its motor/cables. If the LED shows normal status (no fault code) but the axis still doesn't move, the problem is more likely upstream: check the I/O Link node address setting, the I/O Link cable connection, or the CNC's PMM ladder for the ATC sequence. A common misdiagnosis is condemning the drive when the I/O Link cable has developed a poor connection at one of the connectors — these cables flex with machine motion and can develop intermittent open circuits at the connector crimp points.

Q4: Can the A06B-6093-H171 be replaced with a 6132-series beta i I/O Link unit as a permanent upgrade?

Not without modifications. The 6132 series beta i SVU units also use I/O Link and have a standalone PSU, but they are designed for the beta i motor series (biSV motors), not the original beta b-series motors like the b1/3000 or b2/3000 that the H171 is matched to. The connectors, parameter structure, and servo tuning are specific to each motor generation. A direct substitution would require replacing the motor as well as the drive, updating the CNC parameter set for the new motor type and drive model, and verifying that the machine's ATC or turret sequence program is compatible with any timing differences in the new drive's response. This is a feasible upgrade path in a planned maintenance context, but it is not a like-for-like swap. If the goal is simply to restore the machine to its original working condition, sourcing a correct H171 is the simpler and faster route.

Q5: Does replacing this unit require any I/O Link node address reconfiguration?

The I/O Link node address for the SVU-12 is typically set via DIP switches or rotary switches on the unit itself, or it may be defined in the CNC's PMM parameters depending on the machine's configuration. When replacing the H171 with another H171, the node address on the new unit must be set to match the address the original unit was running. If the original unit is still physically present and powered, the address can be read directly from its switch settings before removal. If the original unit has already been removed or its settings can't be read, the address is recorded in the machine's electrical documentation — or can be determined from the CNC's I/O Link device list, which shows all connected nodes and their addresses. Setting the wrong node address is one of the most common causes of a "drive not found" fault after an SVU replacement, so confirming this before powering up the new unit saves unnecessary troubleshooting time.
