FANUC A06B-6096-H301 3-Axis Alpha Servo Module

Overview

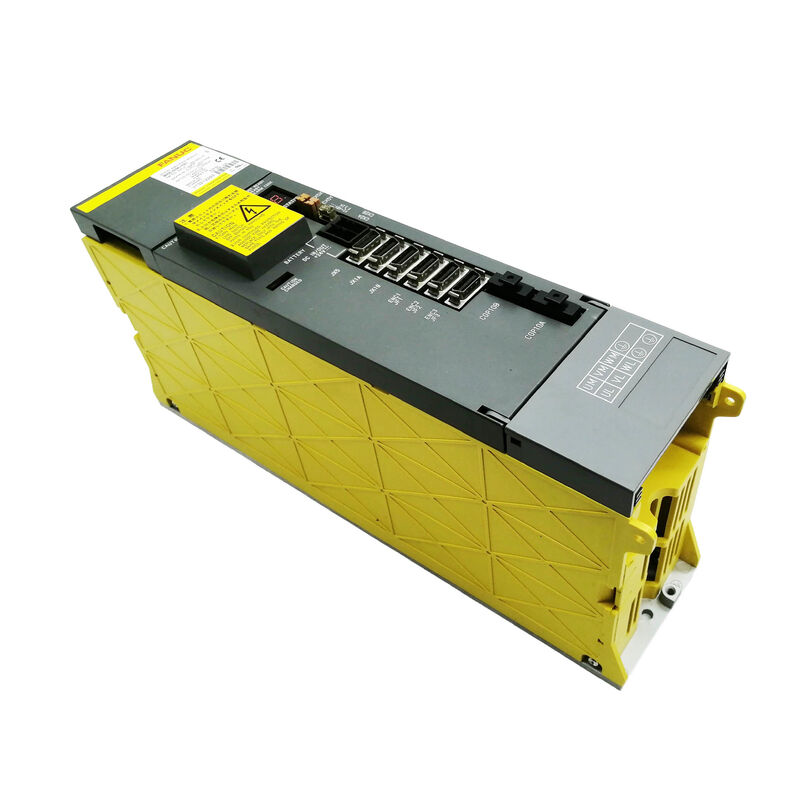

The A06B-6096-H301 is a 3-axis Alpha servo amplifier module used in FANUC CNC systems that require integrated multi-axis motion control within the Alpha drive family. Public FANUC-related technical references identify this model as SVM3-12/12/12, and industrial product listings consistently describe it as a three-axis Alpha servo module in the A06B-6096 series.

In practical machine architecture, a three-axis servo module is chosen when multiple controlled axes need to be handled from one amplifier assembly while keeping the cabinet layout compact and the original drive structure intact.

This is especially relevant in CNC machinery and integrated automation equipment where the original servo layout is part of the machine’s core design logic.

For product-page positioning, the strongest description is straightforward: A06B-6096-H301 is a FANUC Alpha 3-axis servo amplifier module, model SVM3-12/12/12, for CNC replacement and motion-control support.

That wording is more useful to technical buyers than a vague “high-performance automation module” description because it clearly reflects how the part is identified in the field.

Key Specifications

Three-Axis Architecture — Better for Integrated Motion Platforms

One of the most important practical features of A06B-6096-H301 is its 3-axis configuration. In real CNC systems, a three-axis module is not simply a larger amplifier; it reflects a more integrated drive arrangement where multiple axes are handled within a single Alpha module family position.

For machine builders and service teams, that can help preserve cabinet organization and simplify how the system is restored during replacement work.

The SVM3-12/12/12 designation also matters because it gives the module an exact technical identity. Buyers looking for this part are usually not searching generically for “3-axis servo control.”

They are typically matching a known FANUC amplifier class already installed in the machine.

FSSB Context and Replacement Positioning

Public product listings for A06B-6096-H301 often associate the model with F/O or FSSB interface context, which is useful because it reinforces the fact that this is part of a defined FANUC servo communication environment rather than a stand-alone generic drive.

For service-focused buyers, that kind of context can be just as important as the axis count.

That is why the model is strongest as a replacement-oriented listing.

Industrial users sourcing A06B-6096-H301 are usually trying to restore an existing multi-axis FANUC motion platform, not redesign a machine around a new amplifier family. Product copy should reflect that practical reality.

FAQ

Q1: What kind of product is A06B-6096-H301?
It is a FANUC Alpha 3-axis servo amplifier module identified as SVM3-12/12/12. In practical terms, it is used in CNC and industrial motion systems that need coordinated control of three servo axes within one amplifier family position.

Q2: Why is the 3-axis configuration important?
The 3-axis format matters because it preserves the original integrated drive structure of the machine.

In replacement work, keeping the correct multi-axis module type is often critical to maintaining cabinet layout, wiring structure, and control architecture.

Q3: What does the SVM3-12/12/12 designation mean for buyers?
It identifies the exact Alpha-family class of the module and distinguishes it from other three-axis or mixed-capacity variants.

For technical buyers, that designation is often the clearest confirmation that the replacement part belongs to the correct drive family.

Q4: Why is FSSB or optical interface context relevant here?
Public listings often associate this model with F/O or FSSB interface usage, which helps confirm that it belongs to a defined FANUC servo communication environment.

In real service work, this context can be useful when verifying machine-side compatibility.

Q5: What should buyers verify before ordering?
Buyers should confirm the full part number, SVM3-12/12/12 designation, the 3-axis Alpha architecture, and the machine’s original communication and drive layout.

For multi-axis FANUC modules, system fit is usually more important than broad functional similarity.
