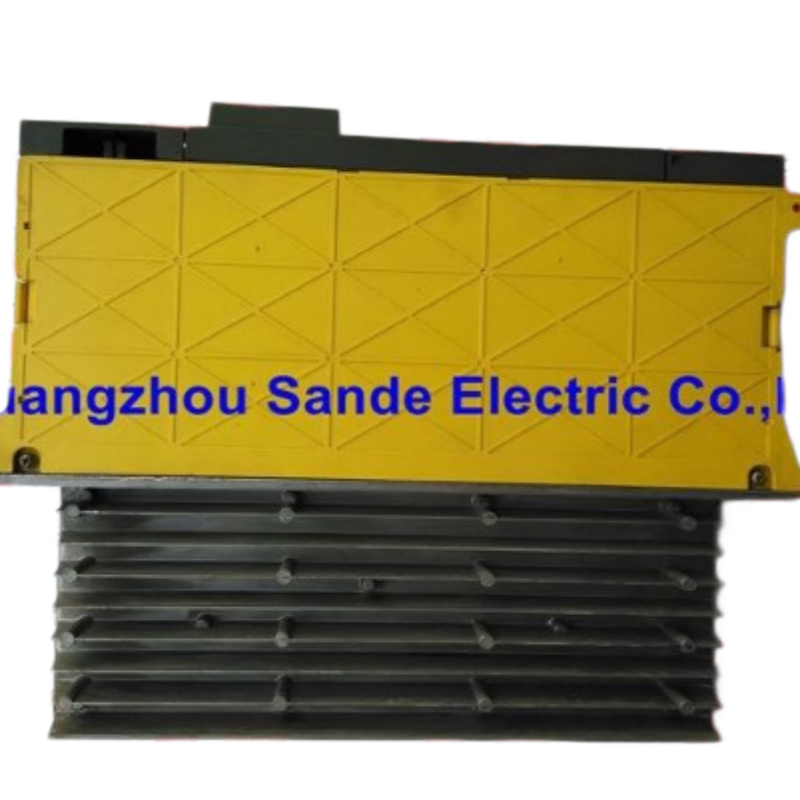

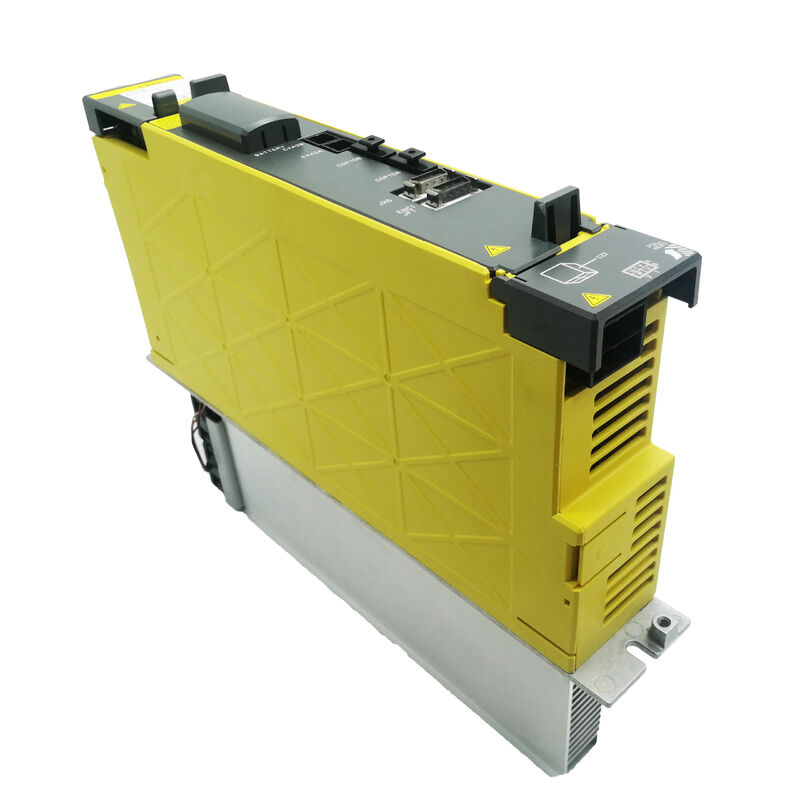

A06B-6114-H105 FANUC AC Servo Amplifier Unit A06B6114H105 A06B-6114-H105

FANUC A06B-6114-H105 Alpha i Servo Module SVM1-80i

Overview

The A06B-6114-H105 is a single-axis FANUC Alpha i servo amplifier module identified as SVM1-80i. Public replacement-channel listings consistently use that model designation, and the publicly accessible FANUC αi maintenance manual places A06B-6114-H105 in the αi SV 80 position within the single-axis servo amplifier table.

That gives the model a clear technical identity inside the Alpha i servo family.

In practical CNC and industrial motion-control systems, a single-axis module like this is selected when one dedicated servo axis must be driven within the original Alpha i cabinet structure.

That makes it especially useful in repair, exchange, and installed-machine support where the original FANUC amplifier family and axis arrangement need to be preserved rather than redesigned.

Public market references also associate this model with 5.5 kW and 19 A context, which fits the αi SV 80 class and helps distinguish it from smaller or larger single-axis Alpha i servo modules nearby in the same family.

For product-page writing, the strongest approach is exact and technical: A06B-6114-H105 is a FANUC Alpha i single-axis servo module, model SVM1-80i, for CNC replacement and motion-control support.

Key Specifications

Single-Axis Alpha i Servo Positioning

One of the most useful technical details about A06B-6114-H105 is that it sits clearly in the single-axis αi servo family. In actual machine architecture, that matters because a single-axis servo module is chosen not just by current rating, but by how it fits the original cabinet arrangement, drive layout, and servo-axis structure already built into the machine.

For maintenance teams, exact family identity is often more important than broad feature descriptions.

The SVM1-80i naming also helps make the product page more useful.

Technical buyers often search by this designation because it confirms the module’s practical position inside the Alpha i single-axis range and reduces confusion with nearby two-axis or higher-capacity servo models.

FAQ

Q1: What kind of product is A06B-6114-H105?
It is a FANUC Alpha i single-axis servo amplifier module. Public references identify it as SVM1-80i, and the FANUC αi maintenance table places it in the αi SV 80 family position.

Q2: Why is the SVM1-80i designation important?
It gives the module a precise place inside the Alpha i single-axis servo family. In practical replacement work, that helps distinguish it from neighboring Alpha i servo models and confirms that the part belongs to the correct amplifier class.

Q3: Are the 5.5 kW and 19 A figures useful in matching?
Yes. Public market references use those values to describe this module class, and they help show that the amplifier belongs to the αi SV 80 range rather than to a smaller or larger single-axis unit. For service engineers, that provides useful matching context.

Q4: Is this mainly a replacement and service part?
Yes. Public listings present the model through repair, exchange, and industrial spare-parts channels, which is typical for FANUC servo amplifier modules used to support installed CNC and automation equipment.

Q5: What should buyers verify before ordering?
Buyers should verify the exact part number, the αi SV 80 / SVM1-80i designation, the single-axis architecture, and the original FANUC cabinet layout.

For servo modules, correct family and axis-role matching are usually more important than broad functional similarity.
