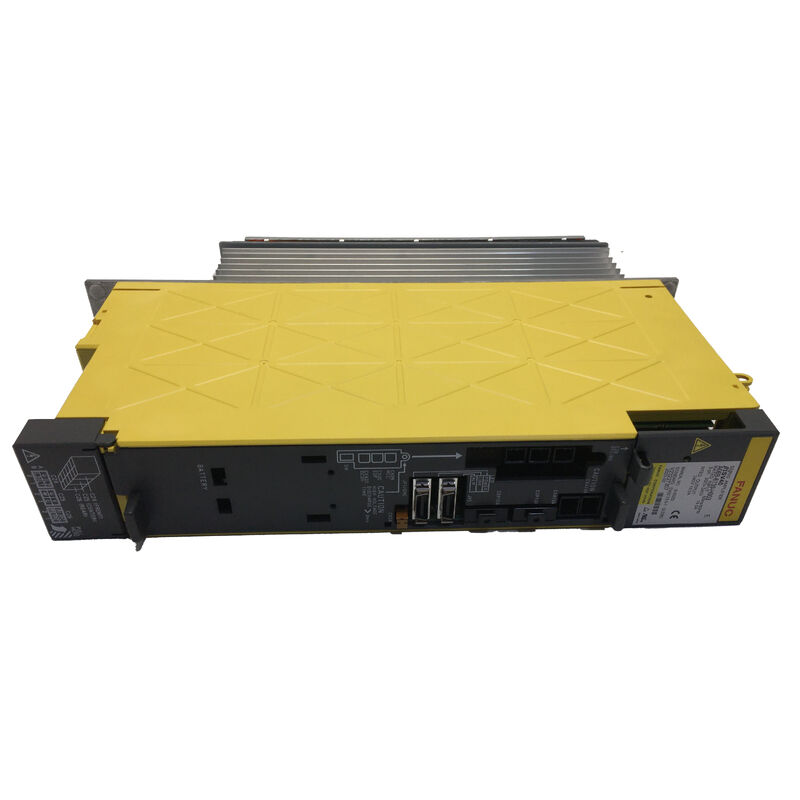

FANUC A06B-6130-H003 AC Servo Amplifier Unit — Beta i SVM1-40i with FSSB Fiber Optic Interface

The FANUC A06B-6130-H003 occupies a specific and important place in FANUC's servo amplifier history. Officially designated the SVM1-40i (biSV-40), it was the first generation of FANUC's beta i servo units — a milestone product that established the compact, standalone beta amplifier architecture that machine tool builders came to rely on for small-axis applications across CNC machining centers, turning machines, and industrial robots.

Decades later, those machines are still running. And when this amplifier fails, finding a genuine replacement quickly is what matters most.

We stock the A06B-6130-H003 in new and used (inspected) condition, ready for worldwide dispatch within 0–3 working days.

A Pioneer Design: The First Beta i Unit

Understanding what makes the 6130 series stand out starts with recognizing what was new about it at launch. The A06B-6130-H003 introduced several design principles that defined the beta i platform:

Standalone built-in power supply. Unlike the alpha modular series, which requires a separate power supply module shared across multiple drive axes, the biSV-40 carries its own internal power stage. This independence means the unit can be installed at any point on the machine — near the axis it drives — without running back to a centralized power module. For machine tool builders, that freedom opened up cleaner mechanical designs, especially on axes like ATC (Automatic Tool Changers), turrets, and rotary tables that sit away from the main drive cabinet.

FSSB fiber optic communication. The 6130-H003 connects to the CNC controller via FANUC's high-speed FSSB (Fanuc Serial Servo Bus) fiber optic interface. Fiber optic transmission is inherently immune to electromagnetic interference — critical in electrically noisy machine environments — and delivers the low-latency position feedback required for tight servo loop closure. This is the same communication backbone used in the alpha series, giving the beta i the precision performance of a full-scale servo system in a more compact package.

Technical Specifications

Inventory on this model moves — contact us to confirm availability before ordering.

Inside the Unit: What You're Getting

The A06B-6130-H003 contains three core internal assemblies: a 50A transistor power module, a wiring board (A16B-3200-0512), and a control/interface card (A20B-2101-005x). These boards are not available separately — the unit ships and is serviced as an integrated assembly.

Spare components that are available independently include replacement transistors, internal fuses, and the drive's cooling fan. For buyers considering long-term maintenance planning, having a known-good amplifier unit on the shelf — alongside consumable spare parts — is the most practical approach for minimizing future downtime on machines running this drive.

The unit also includes built-in leakage current detection and an alarm output function, providing early-warning capability that helps maintenance teams identify downstream motor or cable faults before they escalate into more extensive damage.

How the 6130 Compares to Other Beta Series Drives

Buyers searching for a beta series amplifier sometimes encounter multiple 6130 variants and adjacent series numbers. A quick orientation:

Within the 6130 series, the H003 is the mid-output variant in the first-generation beta i line. The H002 (biSV-20) operates at lower output current for smaller motors, while the H004 handles a higher current range. These are not interchangeable — always match the complete part number.

The 6132 series (such as the H003 and H004) represents a later-generation beta amplifier line. The 6132 series includes both FSSB and I/O Link variants, whereas the 6130 series is exclusively FSSB. If your machine's documentation specifies an A06B-6130-H003, a 6132-series unit is not a valid substitute.

Ordering, Payment & Shipping

Worldwide dispatch via DHL and FedEx. Most orders leave our facility within 0 to 3 working days following payment confirmation. Multi-item orders qualify for combined shipping.

Payment options:

• Bank Transfer (T/T) — accepted for all order values
• PayPal — for orders up to $500
• Western Union — accepted for all order values

Customs duties and import taxes at the destination are the buyer's responsibility. Need a shipping cost estimate? Contact us before ordering and we'll confirm the details for your country.

Warranty & Returns

Returns are accepted when a unit arrives damaged, incomplete, or not as described — or proves non-functional within 4 days of receipt. Items must be in original condition with the warranty label intact. Return freight costs are the buyer's responsibility.

Failures caused by incorrect installation, mismatched motor configuration, or physical damage post-delivery fall outside warranty coverage. If you're unsure whether this is the right unit for your machine, reach out before ordering.

Frequently Asked Questions

Q1: The 6130-H003 and the 6132-H003 look similar — can I use one in place of the other?

No. Despite sharing some visual similarities and both belonging to the beta servo family, the 6130 and 6132 series are not interchangeable. The most significant difference is the control interface: the 6130-H003 uses FSSB (fiber optic serial servo bus), while the 6132-H003 uses I/O Link via PMM. The connector configurations, internal firmware, and communication protocols are different. Substituting a 6132 unit into a machine designed for a 6130 will result in a communication failure between the drive and CNC. Always replace with an exact part number match.

Q2: My machine uses the A06B-6130-H003 on an ATC or turret — is that a typical application?

Yes, very typical. The standalone power supply design of the biSV-40 was specifically intended to give machine tool builders flexibility in placing drives physically close to remote axes. Automatic Tool Changers, turret indexers, and pallet mechanisms are exactly the kind of applications this unit was designed for — axes that are mechanically located away from the main servo cabinet but still need the precision of FSSB-based closed-loop control. The fiber optic cable connecting back to the CNC can run longer distances than copper-based servo feedback without signal degradation, which suits these remote placements well.

Q3: What FANUC CNC controllers is the A06B-6130-H003 compatible with?

The biSV-40 was designed primarily for use with FANUC's 0i-C and 0i-D series CNC controllers, as well as the 3x-i series. Compatibility ultimately depends on the software configuration and axis assignment within the specific CNC. For a direct replacement scenario — where the original unit on your machine was an A06B-6130-H003 — the replacement will be compatible with the same controller by definition. If you're integrating this amplifier into a different machine or controller configuration, verify the FSSB axis mapping with your system's documentation.

Q4: What are the most common fault symptoms that indicate the A06B-6130-H003 has failed?

The most frequent failure presentations include: axis servo alarm on the CNC with no motor movement, the amplifier's LED showing an alarm condition with no matching fault in the motor or cable, loss of FSSB communication on the affected axis, and visible evidence of blown fuses or overheated transistors on inspection. The biSV-40 uses an LED alarm display — unlike some drives with numeric readouts — so cross-referencing the LED pattern with the CNC's alarm history is typically needed to distinguish drive faults from motor or feedback faults. If the CNC reports a hardware alarm specifically associated with this axis, and motor windings test normal, the amplifier is usually the likely cause.

Q5: Is it worth stocking a spare A06B-6130-H003 unit, or is it better to source one when needed?

For facilities running machines where this amplifier is on a production-critical axis, holding at least one spare is generally worth the investment. The 6130 series is an older generation drive, and while stock is available, lead times can be unpredictable — particularly for new units. The cost of a single day's production downtime while waiting for a replacement to arrive typically exceeds the cost of the spare itself many times over. If your machine runs a second or third shift, or if this axis is on the critical path of your production flow, we'd recommend treating a spare unit as a maintenance asset rather than a reaction purchase.
