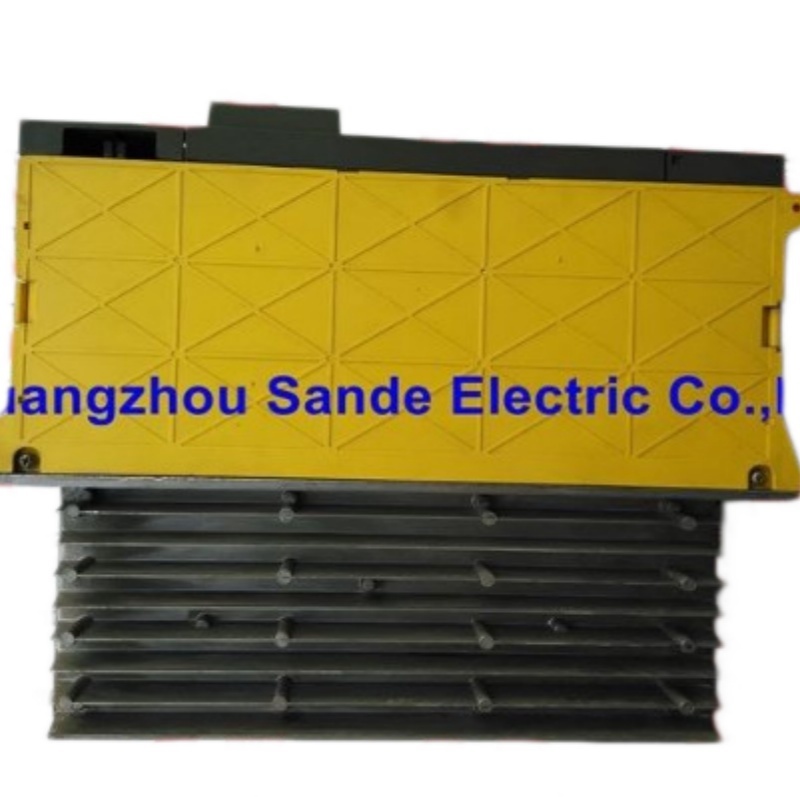

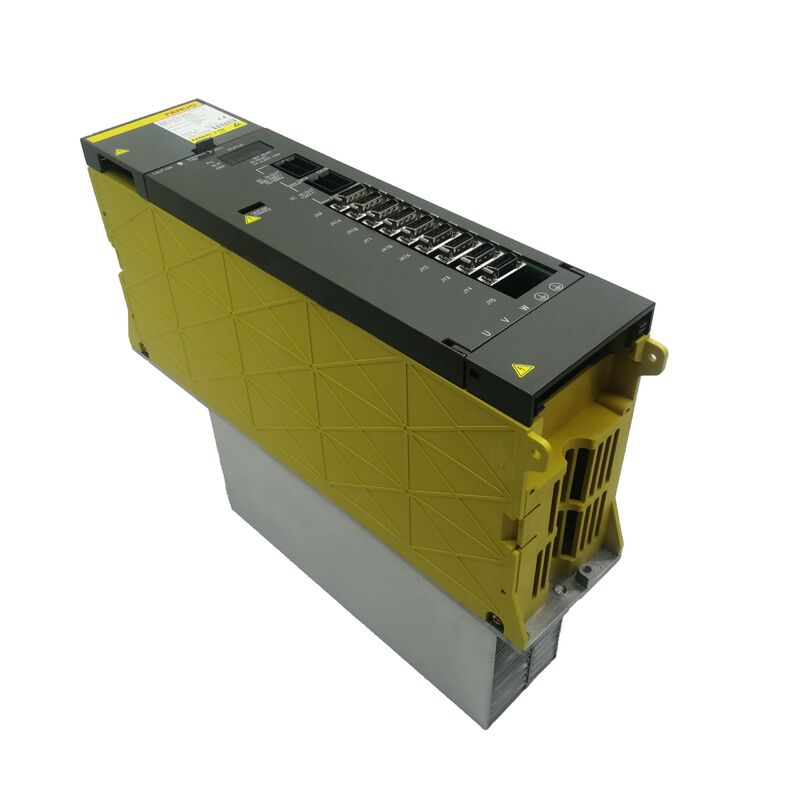

FANUC A06B-6102-H215 AC Servo Amplifier Unit — Product Description

When the Machine Is Old But the Production Line Still Needs It

Not every CNC machine tool on a factory floor is new. In many facilities, the machines doing the most reliable daily work are the ones that have been running for fifteen or twenty years — fully depreciated, thoroughly understood by the maintenance team, and still capable of producing parts to tolerance. When one of these machines throws a servo alarm and stops, the question isn't always "should we replace it?" It's often "how fast can we get the drive back online?"

The FANUC A06B-6102-H215 is a servo amplifier unit from FANUC's α Series — a generation of drives that powered a significant portion of the world's CNC machine tools through the 1990s and into the 2000s. It is manufactured in Japan, CE certified, and available in both new and refurbished condition. If this is the part number in your machine's documentation or on the label of the failed module, this page is for you.

α Series vs αi Series — This Distinction Matters More Than You Think

One of the most common sourcing errors in FANUC servo drive procurement happens right here: buyers searching for an A06B-6102 variant accidentally receive, or nearly order, an A06B-6114 or A06B-6134 unit from the αi Series instead. The numbers are close. The modules can look visually similar in online listings. But they are not interchangeable, and the difference goes well beyond a single digit in the part number.

The A06B-6102 belongs to FANUC's α Series — an earlier-generation drive family that uses an analog servo interface to communicate with the CNC controller. The αi Series (A06B-6114, A06B-6134, and related variants) uses FANUC's digital FSSB fiber-optic serial bus for drive-to-controller communication. These two interface types are architecturally incompatible — an αi drive cannot be dropped into an α Series machine without controller changes, parameter overhaul, and potentially motor replacement.

The α Series was designed to work with FANUC controllers from the Series 0, Series 16, Series 18, and Series 21 families, among others. If your machine runs one of these controllers, the A06B-6102 is the correct drive series. If your machine runs a 0i, 30i, or 31i controller, you are looking at the wrong product family entirely.

Checking the controller model before ordering takes two minutes and prevents an expensive mis-ship.

What H215 Tells You About This Unit

FANUC's part number suffix convention in the α Series packs meaningful technical information into the alphanumeric string after the H. In the H215 designation:

The "2" position indicates this is a dual-axis module — a single physical unit that drives two servo axes simultaneously, sharing a common power section while providing independent current regulation for each axis. This is the standard architecture for α Series multi-axis modules, where one drive rack position handles two axes of motion.

The "15" component identifies the specific current output rating tier for this variant within the dual-axis configuration. As with all α Series amplifiers, the rated output current must be matched to the servo motors on each axis — not just approximately, but specifically to the motor's continuous and peak current ratings. Running a motor whose requirements exceed the amplifier's rated output will cause recurring thermal overload alarms; installing an oversized amplifier for very low-current motors creates fine-positioning instability due to resolution mismatch in the current feedback loop.

If your machine's parameter sheet or the nameplate on the original failed unit shows H215, that is the specific variant to source.

Specifications

The Sourcing Reality for α Series Parts

Here is something worth understanding about the secondary market for α Series FANUC drives: availability tightens over time, not because demand disappears, but because the pool of recoverable units shrinks as machines are scrapped, rebuilt with newer controllers, or simply lost to time without their components being catalogued and saved.

A machine that was installed in 1998 and has been running reliably is not on anyone's replacement schedule — until the drive fails. At that point, the maintenance team discovers that the α Series drives powering that machine are no longer in active production, and that global stock consists of what was manufactured years ago, distributed to various resellers and spare parts distributors. Some variants remain genuinely available as new-in-box from FANUC service supply chains; others are primarily available as refurbished units pulled from decommissioned equipment.

The H215 variant's current availability should be confirmed directly before finalizing any procurement plan. Contact the sales team for a live stock check — particularly if you are planning a repair project with a firm return-to-production deadline.

Condition Options and Warranty Coverage

New / Original condition units are uninstalled, in original or appropriate protective packaging, and carry a 12-month warranty. These are suitable for machines in continuous production where reliability expectations are highest.

Tested refurbished units are recovered from decommissioned or upgraded machines, cleaned, functionally tested under load, and verified before listing. They carry a 3-month warranty and are a practical choice for lower-utilization machines, backup spare stock, or budget-sensitive repair scenarios where a verified working unit is the priority.

In both cases, the module's original label must remain intact and the unit must be returned in the same condition as sent if a warranty claim is made. Warranty does not cover physical damage incurred during installation, damage from motor-side faults, or issues caused by incorrect parameter settings after installation.

Ordering and Shipping

Items are dispatched within 2 to 4 working days of payment confirmation. International delivery is handled via DHL and FedEx; local Guangzhou warehouse pickup can be arranged. Combined shipping is available for orders covering multiple part numbers — useful when sourcing several components for a single machine rebuild or a planned spare parts inventory refresh.

Payment options: T/T bank transfer (all values) | PayPal and Western Union (orders up to USD $500).

Cross-border buyers are responsible for import duties, taxes, and any destination-country fees. Please factor these into your total landed cost when evaluating sourcing options.

If goods haven't arrived within 10 days of dispatch, notify us immediately. If goods arrive damaged, incomplete, or not as described, report it the same day or the next business day — with photos where possible. Units that prove non-functional within 4 days of receipt under normal operating conditions qualify for return or replacement.

Frequently Asked Questions

Q1: My machine uses a FANUC Series 18 controller. Is the A06B-6102-H215 the correct drive series for it?

The A06B-6102 α Series drives are designed to interface with FANUC's analog-servo-compatible controllers, which includes the Series 16, 18, and 21 families as well as certain configurations of the older Series 0. If your machine's servo interface is analog rather than digital fiber-optic (FSSB), then yes — the A06B-6102 series is the appropriate drive family. To confirm the specific variant required, check the parameter data sheets for your machine or the nameplate on the failed unit itself. The controller family alone doesn't confirm the H suffix variant; that's determined by the motor specifications on each axis.

Q2: Can an αi Series drive (such as A06B-6114) be used as a substitute for the A06B-6102-H215 in an older machine?

 No, not as a direct replacement without significant additional work. The α Series and αi Series use fundamentally different communication interfaces — analog versus FSSB digital fiber-optic. An αi drive installed in an α Series machine will not be recognized by the controller during initialization. Making such a swap function would require controller hardware changes, new cabling, motor encoder compatibility verification, and a full parameter configuration — essentially a partial CNC retrofit. For a machine that simply needs a failed drive replaced and returned to its original specification, sourcing the correct A06B-6102 variant is the practical path.

Q3: The H215 suffix on our failed unit appears damaged and is partially illegible. How do we confirm the exact variant needed?

 If the nameplate label is unreadable, there are several ways to confirm the correct variant. First, check your machine's electrical documentation — maintenance manuals, the servo drive parameter sheets, or the machine builder's parts list often specify the exact drive model by axis. Second, if other axes on the same machine use the same drive model, the readable label on those units will confirm the variant. Third, the CNC controller's parameter data can sometimes indicate the connected amplifier specifications. If none of these are accessible, contact the sales team with the machine model, axis count, and controller type — this is enough to narrow down the likely variant to a short list for confirmation.

Q4: These are older drives. Is it worth repairing the machine, or should we consider a full CNC retrofit instead?

This is a question many maintenance managers face with aging α Series equipment, and the answer is genuinely case-dependent. A drive replacement — sourcing and installing a like-for-like A06B-6102 unit — is typically the fastest path back to production and carries the lowest immediate cost. A full retrofit (replacing the controller, drives, motors, and wiring) returns the machine to current-generation technology but involves significant project time, capital expenditure, and a period of downtime that can stretch from days to weeks depending on the complexity. If the machine's mechanical condition is sound and the failure is isolated to the drive, a direct replacement usually makes economic sense. If the machine has repeated drive failures across multiple axes over a short period, or if the failure is symptomatic of deeper electrical deterioration, a retrofit conversation becomes more relevant.

Q5: We need to maintain a spare parts stock for several machines running α Series drives. What's the most efficient way to source multiple variants at once?

For multi-machine spare parts programs, submitting a consolidated list of all required part numbers and quantities in a single inquiry is the most efficient approach. This allows the sales team to check availability across all variants simultaneously, identify any that require additional lead time or alternative sourcing, and offer combined shipping to reduce freight costs. It also surfaces potential stock gaps early — before a machine failure creates urgency. When putting together a spare parts list for α Series drives, include the part numbers from the module nameplates directly rather than translating from memory, as minor suffix differences between variants can have meaningful technical implications.

Same-generation replacement. Verified stock. Worldwide shipping.
