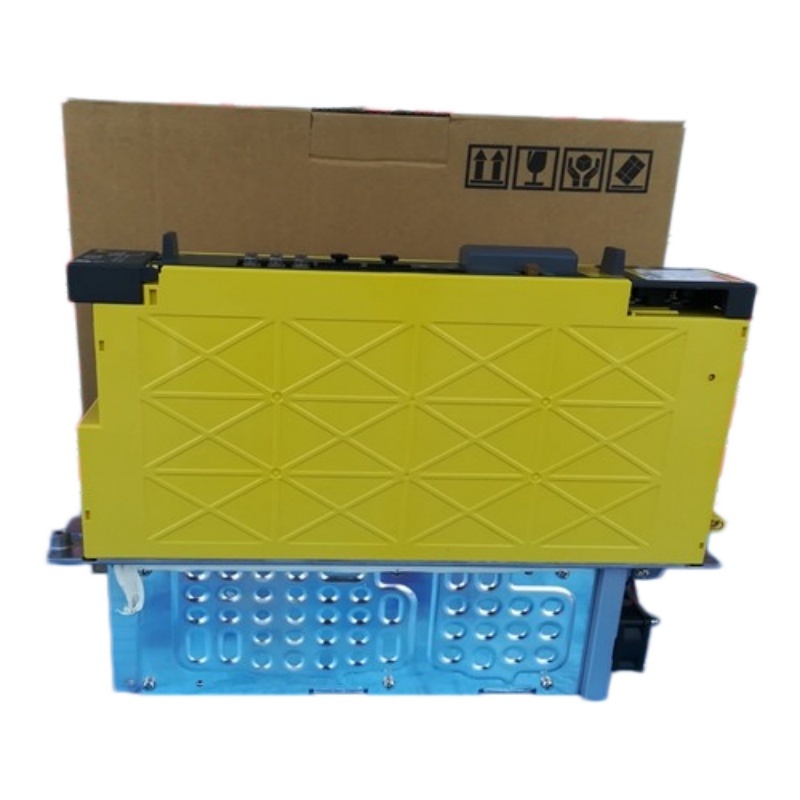

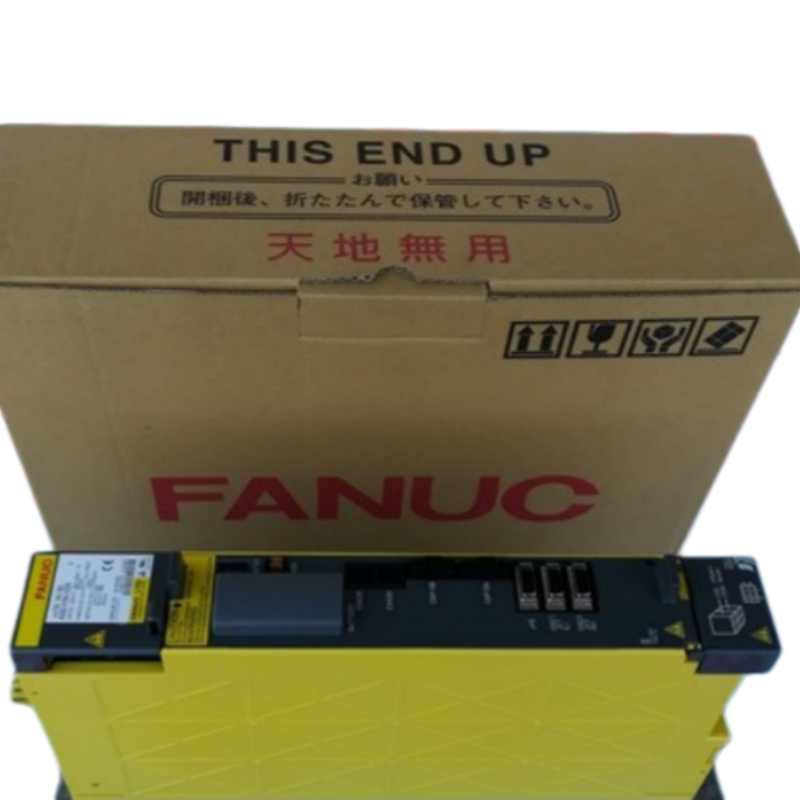

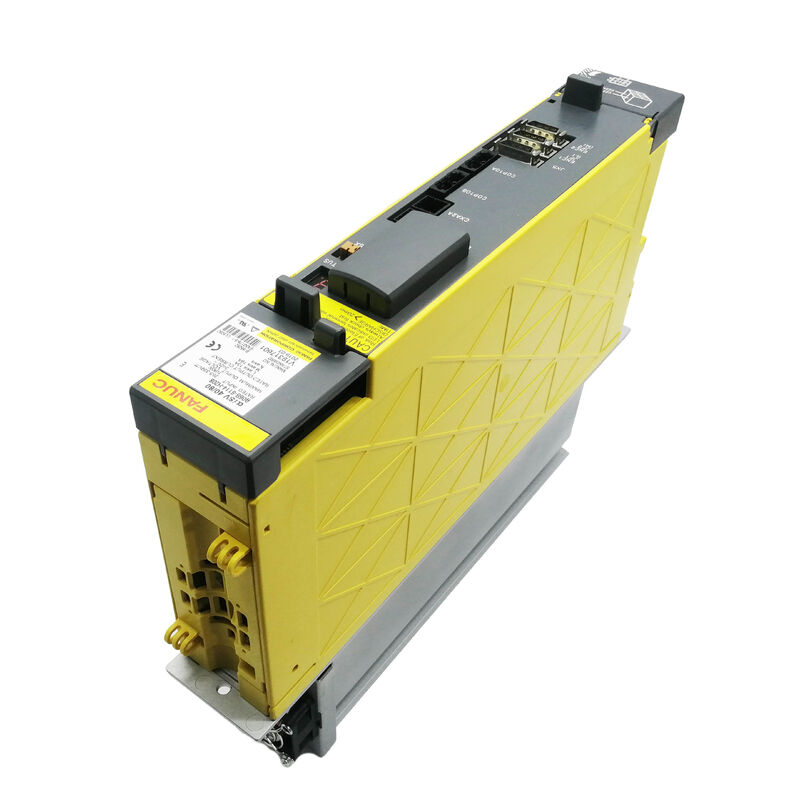

FANUC A06B-6114-H208 AC Servo Amplifier Unit — Product Description

Driving Two Axes, Zero Compromise — FANUC A06B-6114-H208

There's a reason the A06B-6114-H208 keeps showing up on maintenance procurement lists across machine shops and factory floors. This dual-axis AC servo amplifier, part of FANUC's αi Series SV (Servo) drive lineup, is built to manage two servo axes simultaneously within a single compact module — cutting cabinet space requirements and simplifying cabling without sacrificing a single degree of motion control accuracy.

Manufactured in Japan, the A06B-6114-H208 is engineered for continuous-duty performance in demanding CNC environments. The suffix "-H208" identifies this as a two-axis configuration, capable of driving two separate αi Series servo motors from one integrated unit. This makes it a common fit for machining centers, multi-axis turning cells, and automated production lines where X/Y or Y/Z axis pairs need coordinated servo control.

What the Part Number Tells You

For anyone navigating FANUC's numbering system: the A06B-6114 designates the αi SV Series servo amplifier family, while H208 encodes both the axis count (dual-axis) and the rated current output. Understanding this helps when cross-referencing against machine documentation or verifying compatibility with existing motor specifications. If you're replacing a failed amplifier, always match the full part number — swapping in a similar but non-identical unit can cause parameter mismatches and controller faults.

Specifications at a Glance

Typical Application Scenarios

CNC Machining Centers — Two-axis amplifier modules like the A06B-6114-H208 are standard in vertical and horizontal machining centers where X and Y axes (or Y and Z) run from a shared drive rack. A single dual-axis unit handles both, reducing the total number of amplifiers in the cabinet.

Retrofit and Upgrade Projects — When a machine's original single-axis drives are being consolidated for space efficiency, or when an older system is being upgraded to αi Series hardware, the H208 variant is frequently selected as the go-to dual-axis replacement.

Spare Parts Inventory — Maintenance departments running fleets of FANUC-controlled machines often stock this part number as a critical insurance spare. A dual-axis unit covers two potential failure points, which makes it particularly valuable as buffer inventory.

Condition, Warranty & What to Expect

New units are original, factory stock — never installed — and carry a 12-month warranty. These are the right call when the machine in question runs critical production and downtime risk needs to be minimized.

Refurbished units have been pulled from service, bench-tested, and verified functional before being listed for sale. They carry a 3-month warranty and suit budget-conscious repairs, backup inventories, or lower-duty applications where extended warranty coverage is less critical.

Both grades ship in protective packaging. Given that αi Series components are no longer in active production for many variants, stock levels fluctuate — it's worth confirming availability before placing an order, especially for time-sensitive situations.

Ordering, Payment & Delivery

Most orders go out within 2–4 working days of confirmed payment. Worldwide shipping is handled via DHL and FedEx. Combined shipping is available when ordering multiple parts, and local pickup at the Guangzhou warehouse can be arranged on request.

Accepted payment methods include bank wire transfer (T/T), PayPal, and Western Union. PayPal and escrow are available on orders up to USD $500; wire transfer is standard for higher-value purchases. Import duties and taxes at the destination are the buyer's responsibility.

Returns & Warranty Claims

Returns are accepted without argument when goods arrive damaged, incomplete, or not as described — report these issues on the day of delivery or the following business day. If a unit proves non-functional within 4 days of receipt under normal operating conditions, it qualifies for return or replacement. Units that sustain physical damage after delivery, or that fail due to installation errors or improper operation, fall outside warranty coverage. Return shipments must include the original warranty label intact.

Frequently Asked Questions

Q1: The A06B-6114-H208 is listed as dual-axis — does that mean I need two motors to use it, or can I run just one axis?

 The H208 is designed to drive two servo motors, each on its own axis channel. In principle, one channel can be left unused if your application only requires a single axis, but this configuration is generally not recommended — FANUC controllers running a dual-axis amplifier typically expect both channels to be properly connected and parametrized. Running mismatched configurations can trigger servo alarms. If you only need a single axis, look at single-axis αi SV variants (such as the H1xx series) for a cleaner fit.

Q2: How do I confirm that the A06B-6114-H208 is compatible with my existing FANUC controller and motors?

Compatibility depends on three factors: the CNC controller model and its servo control card, the rated specifications of your αi Series servo motors, and the amplifier's current output rating (indicated in the H2xx suffix). The safest approach is to check the drive specification label on your existing amplifier or refer to your machine's electrical schematics. If you can provide your controller part number and the servo motor models you're running, the sales team can help verify compatibility before you order.

Q3: Is this part still being manufactured by FANUC, or is it considered a legacy component?

The A06B-6114-H208 belongs to FANUC's αi Series, which was the mainstream servo drive platform for many years and is still in service across a large global installed base. Availability in new condition depends on remaining factory stock, while refurbished units are sourced from decommissioned machines. Because active production status changes over time, it's always worth contacting the supplier directly to confirm whether new stock is currently available or whether tested-used is the primary option.

Q4: My machine has been showing a servo alarm on one axis. Can I swap just the amplifier to fix it, or do I need to check other components first?

A servo alarm can point to the amplifier itself, but it can equally come from the servo motor, the encoder, the power supply feeding the drive, or a wiring fault. Before replacing the amplifier, it's worth pulling the alarm code from the controller and checking the motor and encoder connections for damage or loose contacts. If the motor runs hot, makes abnormal noise, or shows encoder errors independently, the issue may not be the amplifier at all. Replacing a good amplifier to chase a fault elsewhere is a costly mistake — rule out the simpler causes first.

Q5: What happens if I need to return the unit after installation?

Returns are accepted for units that arrive damaged, not as described, or that prove non-functional within 4 days of receipt under normal conditions. However, returns are not accepted for units that have been correctly installed and operated, and then later develop issues due to physical damage or parameter misconfiguration — these fall outside the warranty scope. Change-of-mind returns or wrong-part purchases are also not accepted, so double-check your part number against the machine's documentation before placing the order. If you're unsure, contact the sales team first.

Ready to Order or Need a Stock Check? Inventory on FANUC αi Series parts moves quickly. Get in touch to confirm availability and lead time before your production schedule is affected.
