| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A860-0360-V511 |

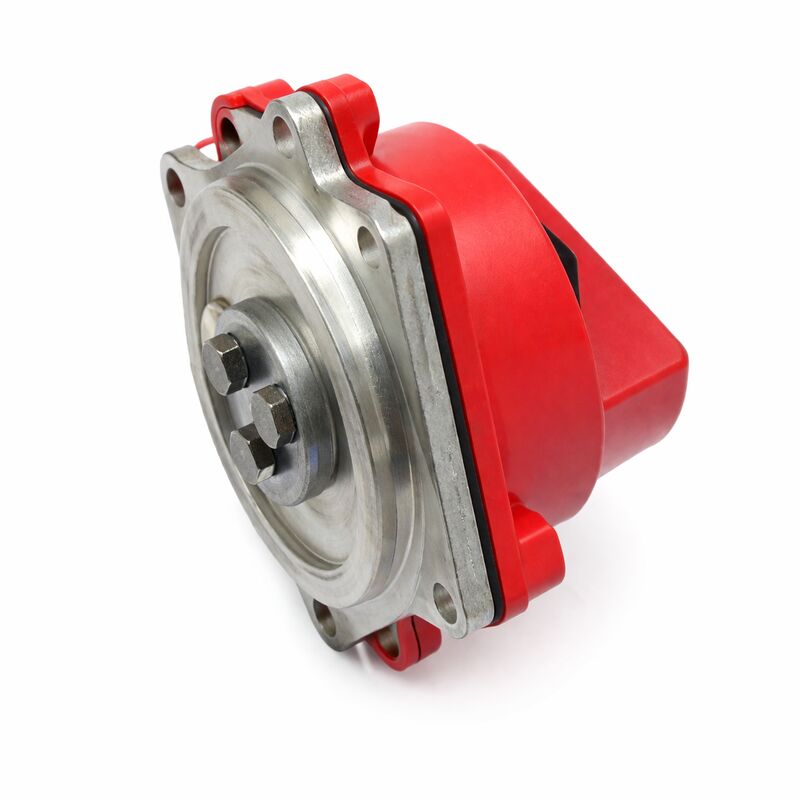

The Fanuc A860-0360-V511 is a later-generation αA64 absolute pulse coder for Fanuc's alpha series servo motors, featuring an internal supercapacitor for short-term position backup and a 14-pin male connector that does not include a cable.
This cable-free design is intentional and represents a deliberate evolution in how Fanuc approached encoder replacement logistics for the alpha motor platform.
The key idea behind the V511's no-cable configuration is that the cable and its motor-side Amphenol connector remain permanently attached to the motor body — the cable does not leave with the encoder when the encoder is replaced.
When the encoder fails, only the encoder body is removed and exchanged; the cable, its routing through the motor cap, and the Amphenol connection to the motor's encoder socket all stay undisturbed.
The replacement V511 plugs directly into the cable's female socket at the motor, and the installation is complete without any cable procurement, routing, or connector work.
This design reduces the chance of introducing cable or connector damage during what should be a straightforward encoder swap, and it eliminates the need to stock encoder cables alongside encoder bodies.
The supercapacitor inside the V511 distinguishes it from the V501 and the earlier T-suffix absolute αA64 variants that rely entirely on battery backup in the servo amplifier for position retention.
The V511's supercapacitor holds the encoder's within-one-revolution position data for a short period after the machine's power supply is removed — the multi-turn count is still maintained by the amplifier battery.
If the amplifier battery fails and the machine is powered down for an extended period, position data loss and the need for reference return follows — this is the same behaviour as all absolute encoders in the alpha range, supercapacitor or not.
The V-suffix notation (V511) rather than T-suffix (T001, T201 etc.) in Fanuc's encoder part numbering indicates a connector-only variant — no cable is included by definition. Facilities sourcing the V511 for motor repairs should verify that the existing motor cap and cable assembly's female connector mates correctly with the V511's 14-pin male output before ordering.
| Parameter | Value |
|---|---|
| Encoder Model | αA64 + Supercapacitor |
| Resolution | 64,000 ppr |
| Feedback Type | Serial absolute (multi-turn) |
| Position Backup | Internal supercapacitor (short-term) |
| Connector | 14-pin male (no cable) |
| Motor Series | Alpha (pre-i generation) |
| CNC Compatibility | 15/16/18/21 (Model A) |
| Design Intent | Cable stays with motor; encoder swaps independently |
| Status | Surplus / Refurbished exchange |
The logic of having the cable remain with the motor rather than with the encoder is sound from a maintenance engineering standpoint. Motor encoder cables routed through motor caps are precision wiring assemblies — the cable gauge, shielding, routing, and connector termination are all specified for the alpha encoder's signal requirements.
A cable that stays with a particular motor body has been installed once, dressed once, and sealed once. Removing it and refitting it during an encoder replacement introduces handling risk to an assembly that was not the failing component.
By separating the cable from the encoder body via the 14-pin male connector,
Fanuc made encoder replacement a clean single-component swap.
The cable assembly's condition is not disturbed; the encoder body alone is exchanged. Over a motor's lifetime, this design means the cable wiring is handled once (during the original motor build or first motor overhaul) rather than every time an encoder fails.
The supercapacitor inside the V511 charges from the encoder's 5V supply while the machine is powered on. When the machine powers off, the supercapacitor provides a brief sustaining voltage to the encoder's position memory circuitry.
This hold time — typically a few minutes under normal temperature conditions — is enough to bridge short power interruptions (EMO trips, brief power outages) without losing the within-one-revolution position reference.
The supercapacitor's hold time reduces over the component's service life and with high operating temperatures.
As it ages, the hold time shortens.
A V511 that previously survived a 5-minute power interruption without losing position may eventually only hold for 30 seconds. When position loss begins to occur after power-off periods that previously caused no issues, the V511 has reached end-of-life for its supercapacitor and the encoder requires replacement.
Q1: What is the difference between the A860-0360-V511 and the A860-0360-V501 within the same family?
Both are V-suffix (no-cable) αA64 absolute encoders for the same alpha motor range.
The V511 includes an internal supercapacitor for short-term position backup; the V501 does not.
In installations where the machine undergoes frequent brief power cycles or where power interruptions are common, the V511's supercapacitor provides a meaningful operational benefit by bridging these interruptions without requiring a reference return.
In installations where full battery backup in the amplifier is maintained and power-off periods are predictable, the V501 is functionally adequate.
Q2: The encoder comes without a cable — does the 14-pin male connector on the V511 fit the motor cap's existing socket?
The 14-pin male connector on the V511 is designed to mate with the socket in the alpha motor's encoder cap assembly. This socket and its cable are the permanent parts of the encoder installation that stay with the motor.
Before ordering a V511 as a replacement for a motor that originally had a different αA64 variant, confirm that the motor cap has the 14-pin socket format and that the existing cable is terminated with the correct matching connector.
Different motor cap styles and vintages may use different socket formats; if the motor cap was previously fitted with a T-suffix encoder (which has the cable as part of the encoder assembly), it may not have the 14-pin socket the V511 requires.
Q3: After installing a V511 replacement encoder, must a reference return be performed?
Yes — encoder replacement always requires a reference return, regardless of encoder type. The replacement encoder starts from an arbitrary within-one-revolution angular position that has no mechanical relationship to the absolute position count previously stored in the amplifier.
After fitting the replacement, power on the machine, observe the absolute encoder reference lost alarm (if displayed), and execute a full reference return cycle on the affected axis. This re-establishes the absolute position datum in the amplifier's battery-backed memory and relates it to the new encoder's angular position.
Q4: Can the A860-0360-V511 be used on any alpha motor, or are there specific motor series restrictions?
The V511 is a later-generation αA64 encoder described as fitting various models of alpha servo motors.
Compatibility with a specific motor model depends on the motor's encoder mounting interface, shaft coupling design, and the connector format on the motor cap.
Fanuc's motor documentation for each alpha motor model lists the correct encoder variant for that motor. When in doubt about compatibility, a Fanuc-trained service specialist familiar with alpha motor variants can confirm which encoder fits the specific motor under consideration, either from the motor's order specification or from physical inspection of the motor's encoder mounting.
Q5: How does the internal supercapacitor affect disposal and transport compared to battery-backed encoders?
A supercapacitor contains no hazardous chemicals and is not subject to the transport restrictions that apply to lithium battery cells.
This is a minor practical advantage when shipping or air-freighting a motor for repair — the encoder does not introduce a lithium battery shipment classification requirement.
For disposal, a supercapacitor can typically be handled as general electronic component waste under applicable local e-waste regulations, whereas lithium battery cells require specific battery disposal channels.
Check applicable regulations in the relevant jurisdiction for final disposal requirements.
